Waveshare 25515 Round 2D Codes Scanner Module Barcode/QR Code Reader, With LED Indicator

• Product type: Module
• Brand: Waveshare
• Compatibility: Barcode/QR Code Reader
• Material: Not specified
• Key feature: Advanced image recognition
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics

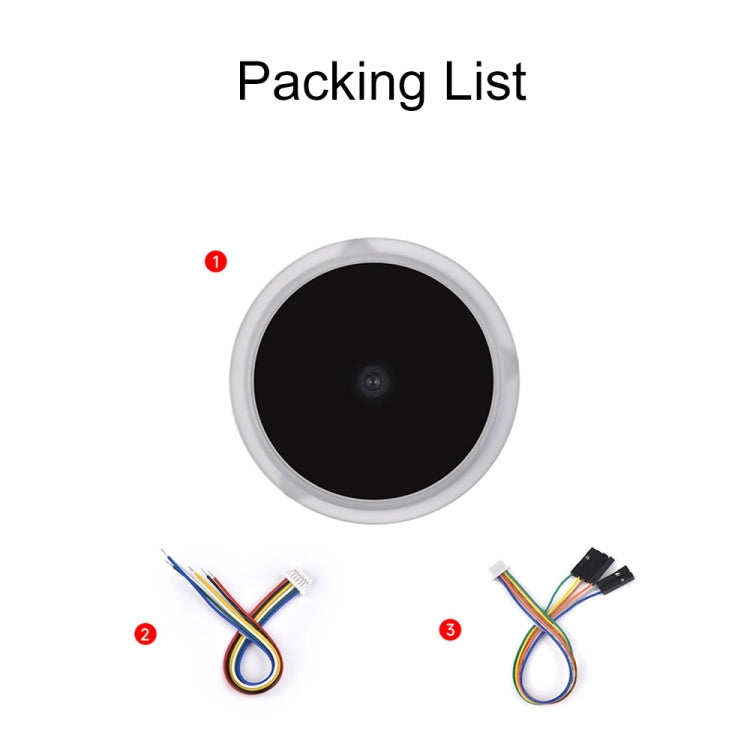

Features:1. Suitable for barcode scanning applications such as elevators.2. Use advanced image recognition algorithms to easily decode various one-dimensional or two-dimensional codes.3. Onboard UART interface, which can be easily integrated into various embedded devices.4. Compact size and high integrationProduct parameters:1. Resolution: 640 x 4802. Scanning angle: horizontal 70 degrees, vertical 55 degrees, rolling 360 degrees3. Scan mode: induction, continuous4. Accuracy: one-dimensional code is greater than or equal to 5mil, two-dimensional code is greater than or equal to 10mil5. Communication interface: UART port (default 9600 8N1)6. LED indicator:Blue: ScanGreen: decoding successful7. Power supply: 3.3V8. Current: 120mA9. Security protection:Electrostatic protection: contact discharge 6 kV, air discharge ±12KVIP protection: IP54 (front)10. Operating temperature: -30 to 70 degrees Celsius11. Storage temperature: -40 to 80 degrees Celsius12. Working humidity: 5%RH-95%RH (non-condensing)13. Product size: 21 x 21 x 8.9mmPacking list:-Barcode scanning module (D) x 1-6PIN cable without header x 1-6PIN cable x 1
