12V/24V/36V/48V 30A Battery Overshoot & Over-Discharge Protection Automatic Shutdown Switch Module
12V/24V/36V/48V 30A Battery Overshoot & Over-Discharge Protection Automatic Shutdown Switch Module
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

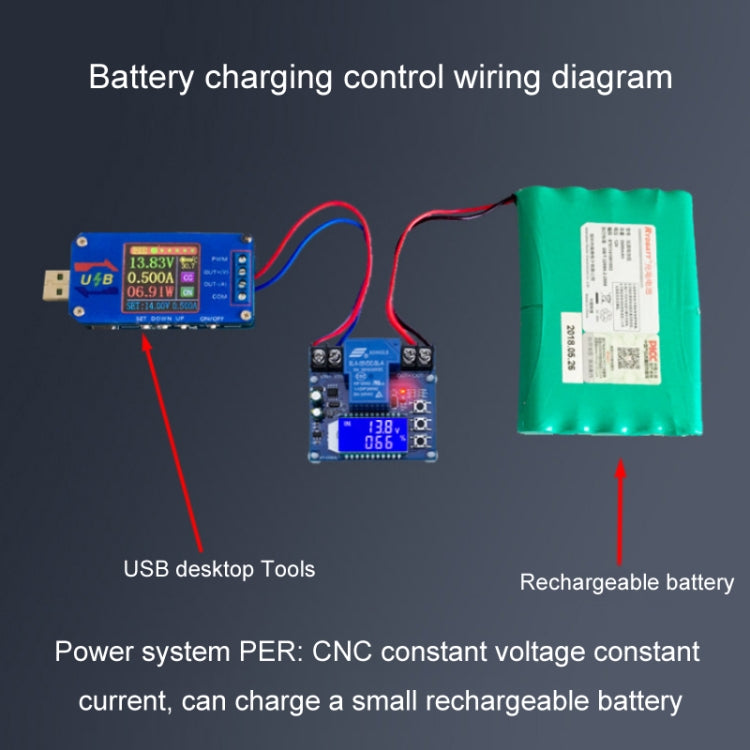

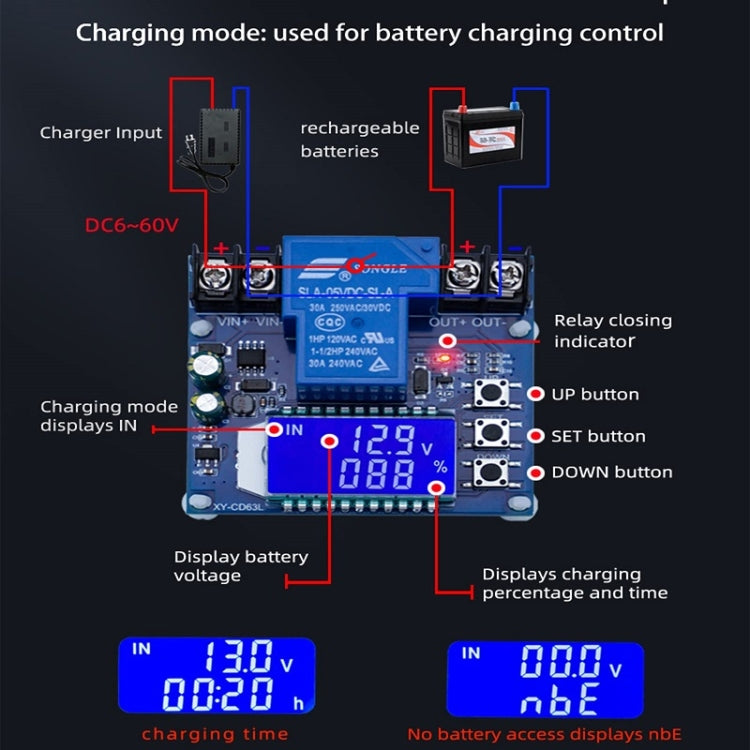

1. Charging mode IN: By setting the upper limit voltage UP and lower limit voltage dn; when the battery voltage is less than or equal to the lower limit voltage dn, the relay is turned on and the charger starts charging the battery; when the battery voltage is greater than or equal to the upper limit voltage UP, the relay is turned off and complete. One-time automatic charging; the relay is turned on and IN flashes, indicating that charging is in progress.

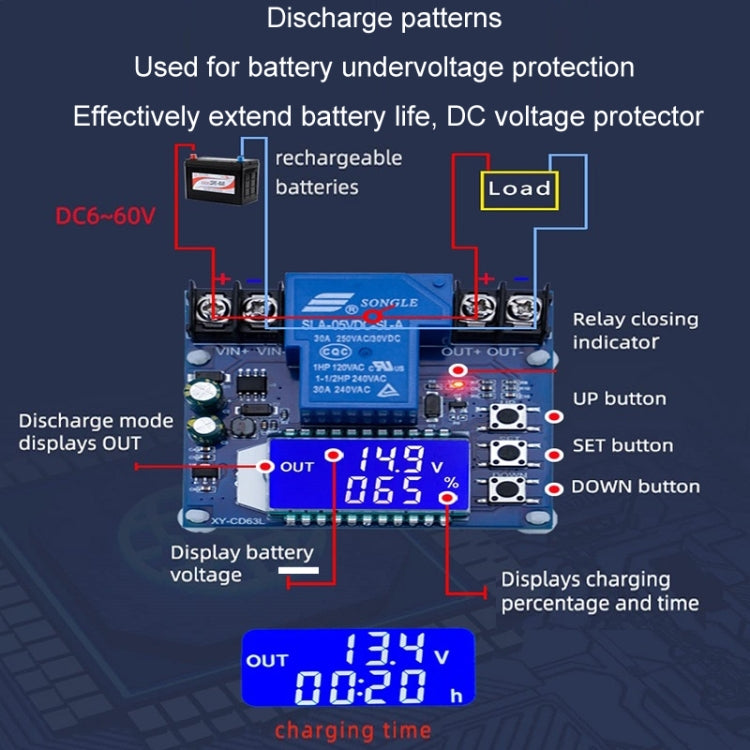

2. Discharge mode OUT: By setting the upper limit voltage UP and lower limit voltage dn; when the battery voltage ≥ the upper limit voltage UP, the relay is turned on and discharge starts; when the battery voltage is less than or equal to the lower limit voltage dn, the relay is turned off to complete an automatic discharge function; The relay is turned on and OUT flashes, indicating that it is discharging.
3. Charge/discharge time control function: When the set time parameter OP is non-zero, charge/discharge time control is started; when the relay is turned on to start a charge/discharge, the timing starts; when the timing is completed, the relay is automatically disconnected to complete a charge. /Discharge process; if the timing is completed, in charging mode, the detection voltage is less than the lower limit voltage dn or in discharge mode, the detection voltage is greater than the upper limit voltage UP, the charging time control function will be automatically turned off, and H:ER will flash to remind the user that the time parameter setting is incorrect. Reasonable; press any key to stop flashing
4. When charging/discharging time control is not turned on, the product will record a complete time. When entering the time display interface, the charging time will flash and display; it will be cleared when exiting the time display interface or the next charging is turned on (relay is turned on).
5. Automatic parameter detection: After setting the parameters and exiting, if the lower voltage limit dn ≥ the upper limit voltage up, the system will flash "ERR" as a reminder.
6. Discharge conduction forced start time FOP (0~10S): After the relay conduction conditions are met, the relay is forced to conduct (0~10S) and the battery voltage is detected again; this function is mainly for the discharge function, and some test loads are At the moment of conduction, it will be instantly pulled down to the lower limit voltage, causing the relay to be disconnected due to false triggering, and the normal discharge process cannot be carried out.
7. Dimensions: 62x57x22mm
8. Weight: 51 grams
9. Note: This product is a simple voltage controller that turns on and off the output through a relay. It only functions as a switch and cannot transform voltage.
