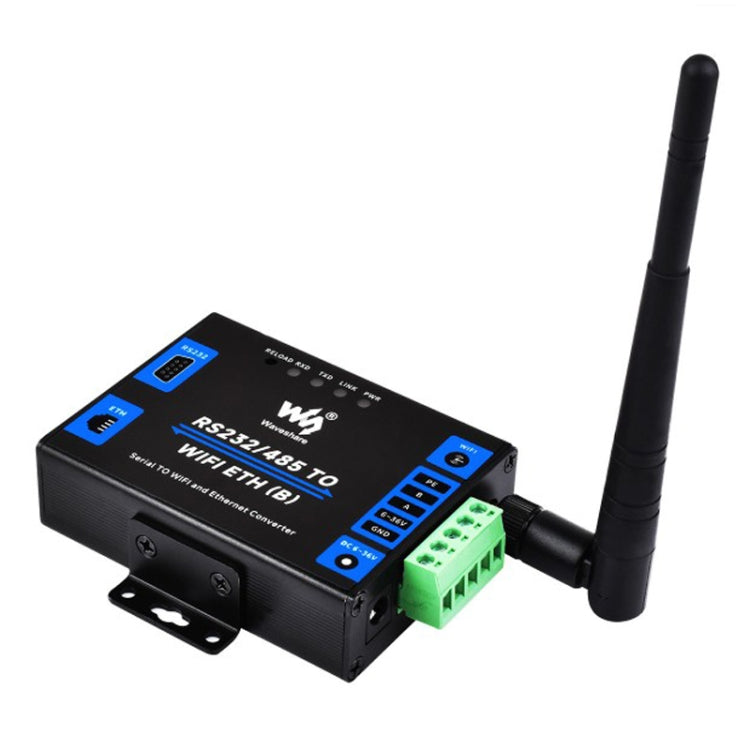

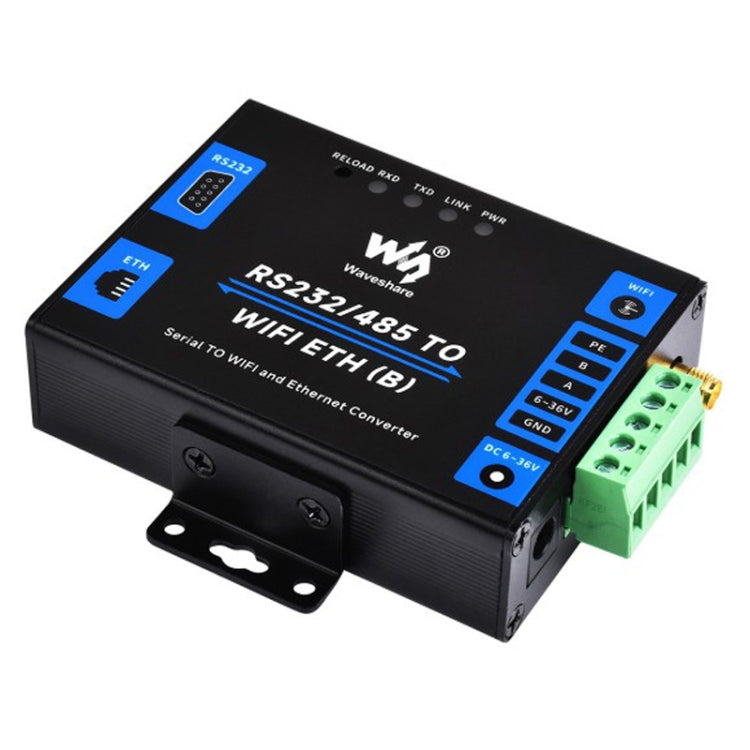

Waveshare Industrial Grade Serial Server RS232/485 to WiFi / Ethernet RJ45 Network Port

Waveshare Industrial Grade Serial Server RS232/485 to WiFi / Ethernet RJ45 Network Port

Regular price R 909.00
Regular price Sale price R 909.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

Quantity

🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

FREE Shipping

FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 business days.

Overseas Warehouse: Shipping from China.

Duties and Taxes

  • For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
  • For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.

Return Guaranteed

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


Features:

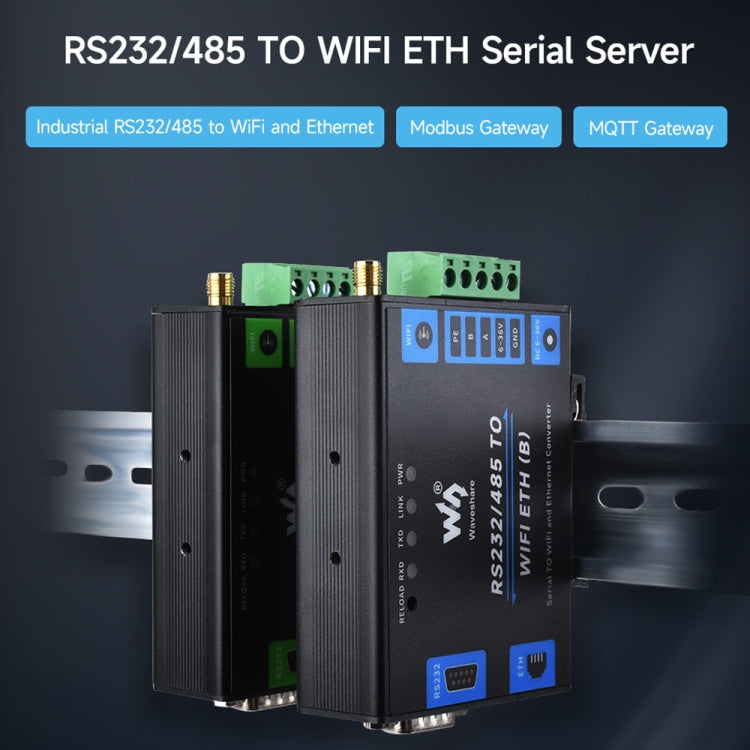

1. RS232/485 device data collector/IoT gateway specially designed for industrial environments.

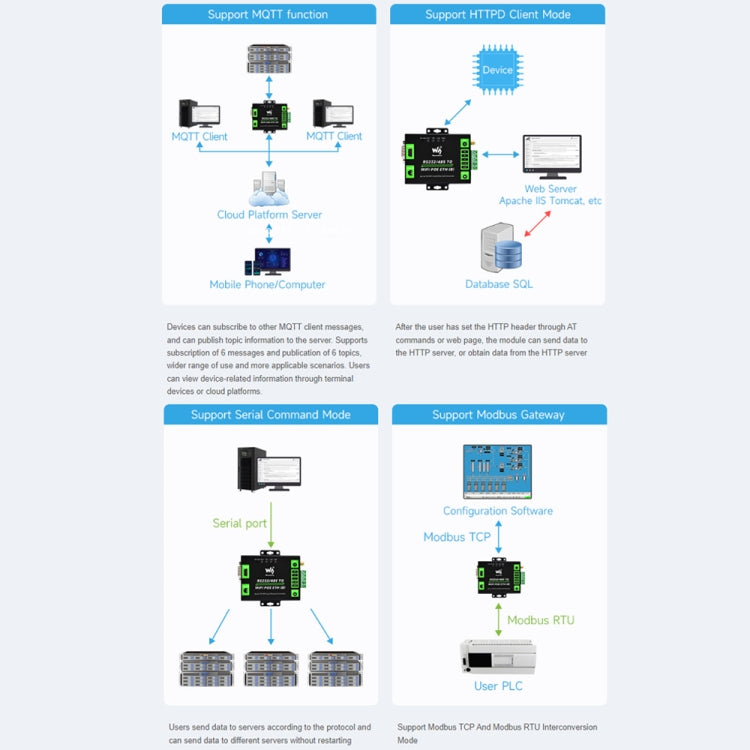

2. Integrate multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, serial port to HTTPD client, etc.

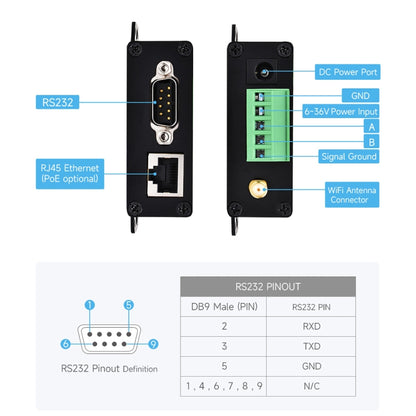

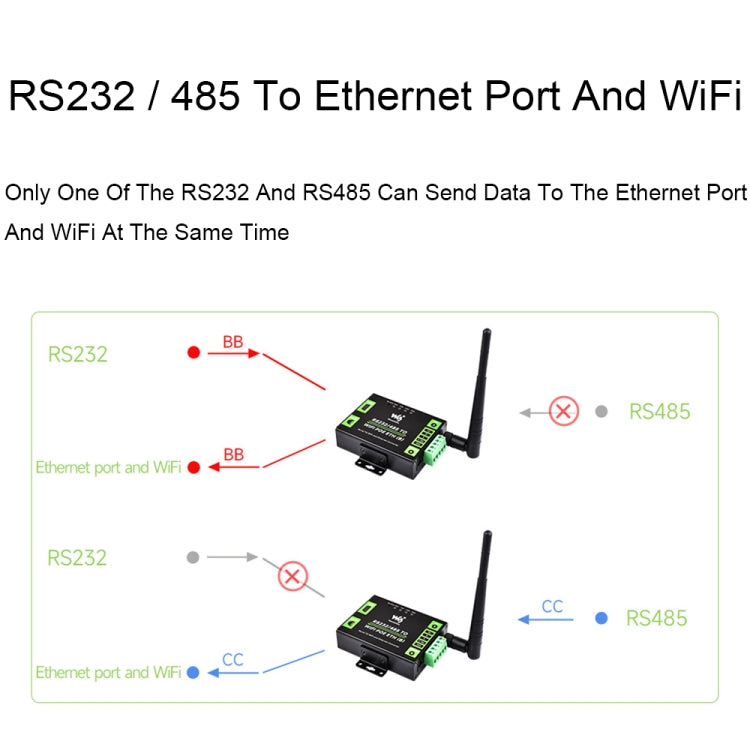

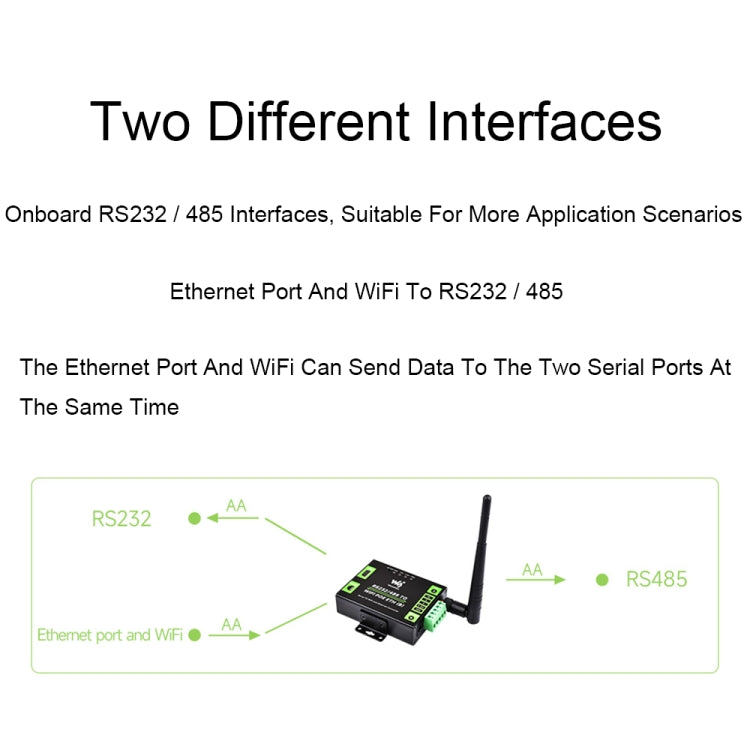

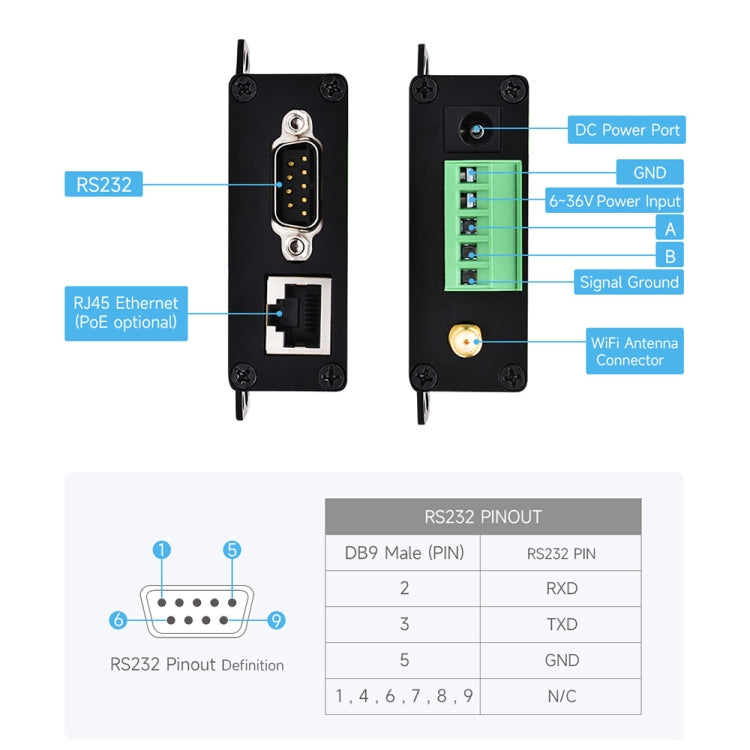

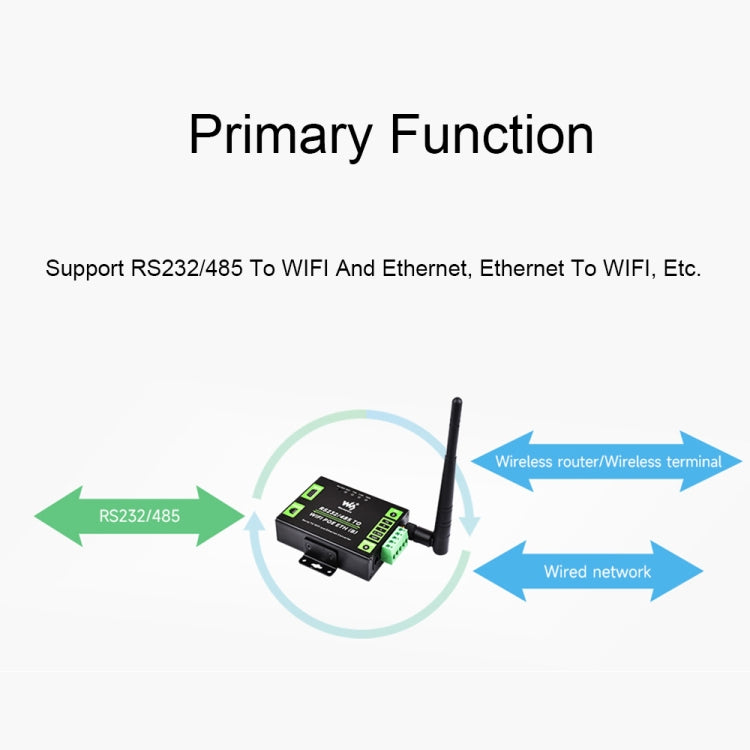

3. The module has RS232, RS485, WIFI, and Ethernet interfaces, which can realize serial to WIFI, serial to WIFI and other functions; Ethernet, Ethernet to WIFI, etc.

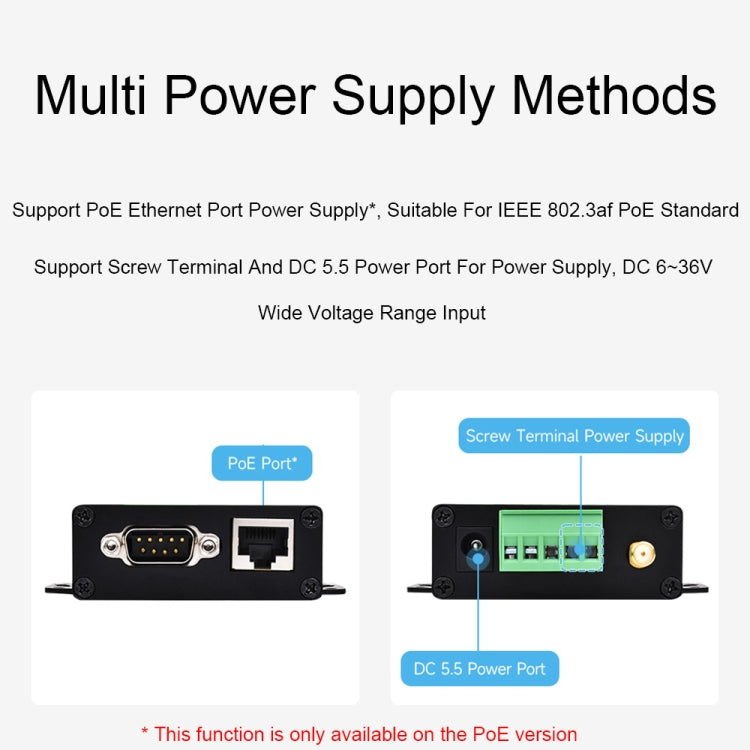

4. Multiple onboard power interfaces support a wide range of 6~36V power supply, and can be equipped with PoE function.

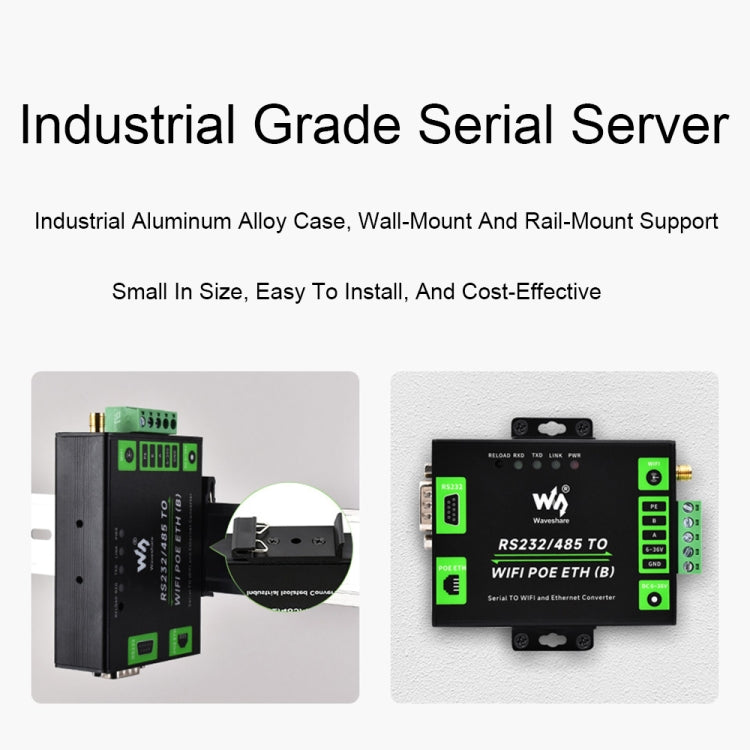

5. Industrial-grade metal shell design supports wall-mounted and rail-mounted installation. It is small in size and easy to install.
6. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications.

Product parameters:
1. Frequency band: 2.412-2.484 GHz

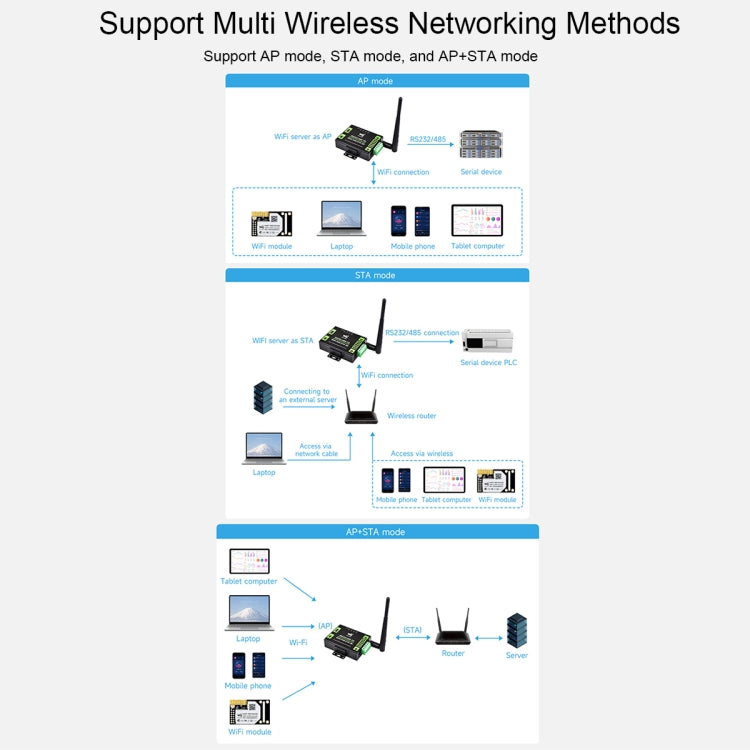

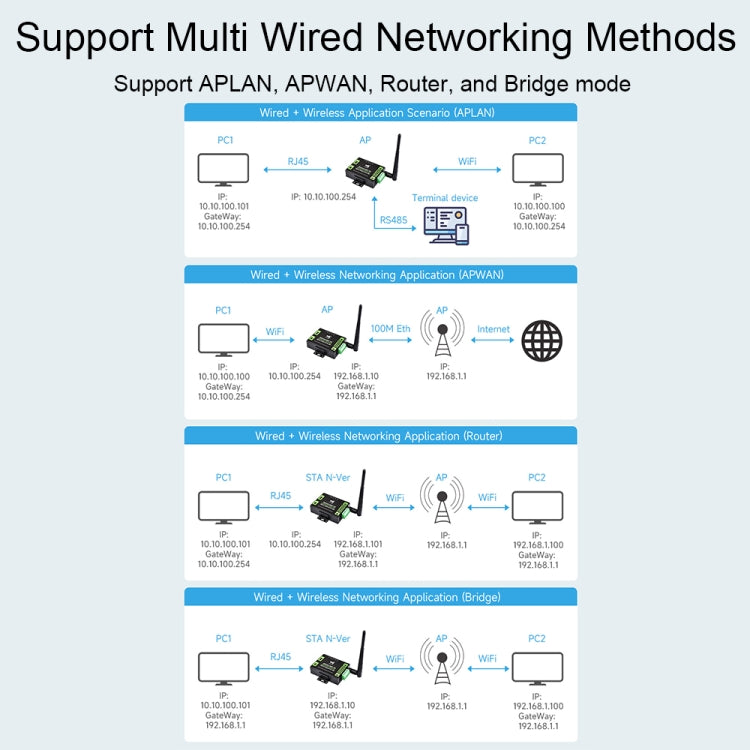

2. Wireless network: Station / AP / AP+Station mode
3. Security mechanism: WPA-PSK / WPA2-PSK
4. Encryption type: TKIP/AES
5. Transmission power:
802.11b: +19dBm (max @11Mbps)
802.11g: +18dBm (max @54Mbps)
802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)
6. Receiving sensitivity:
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
7. Baud rate: 300-460800 bps
8. Check digit: none, odd, even, mark, space
9. Data bits: 5-9 bits
10. Flow control: RTS/CTS N/A
11. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT

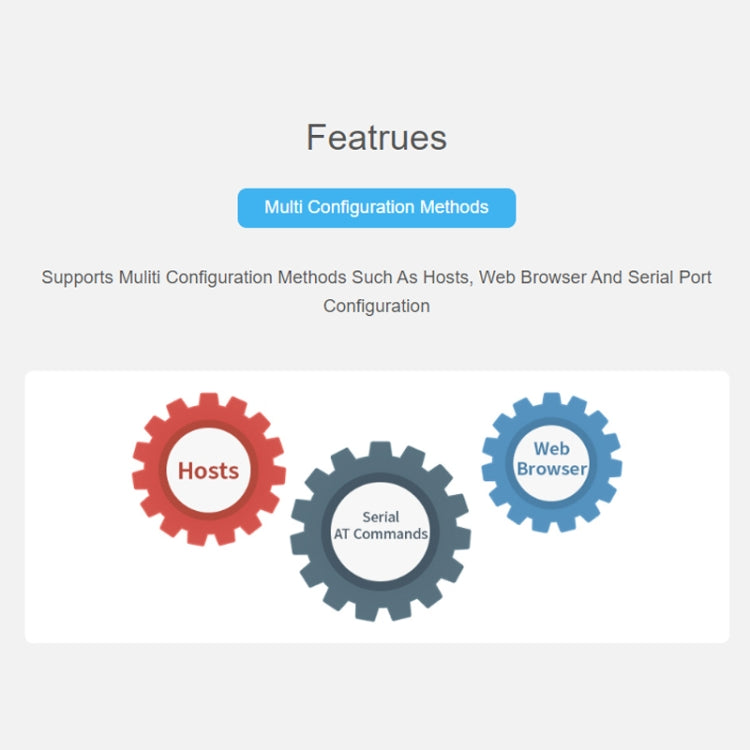

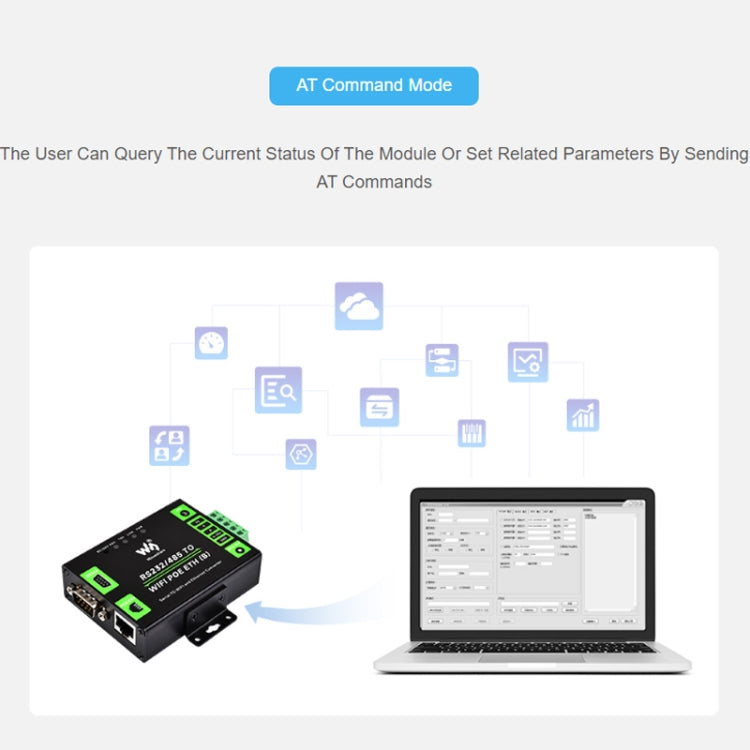

12. Configuration: host, browser, serial AT command
13. Communication method: TCP/IP direct communication, VCOM

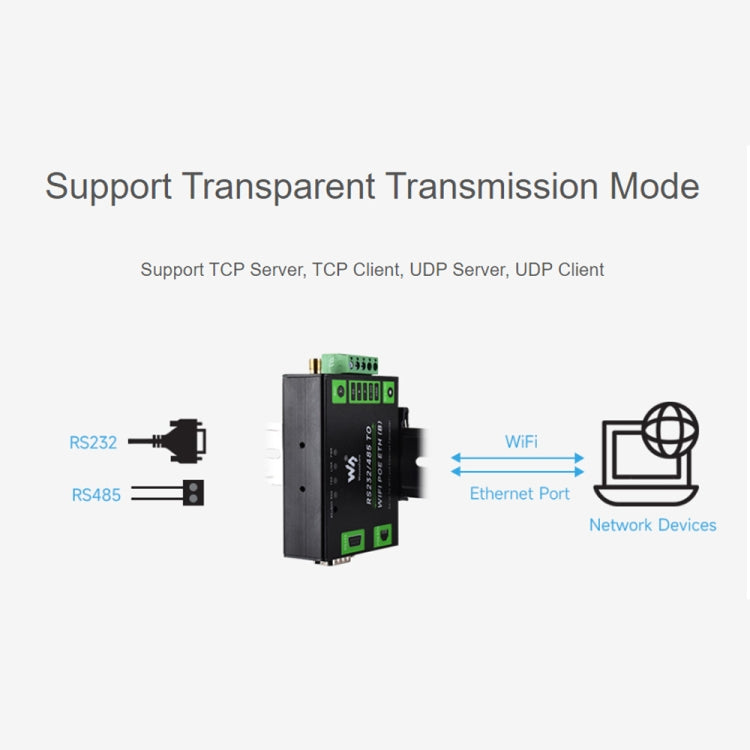

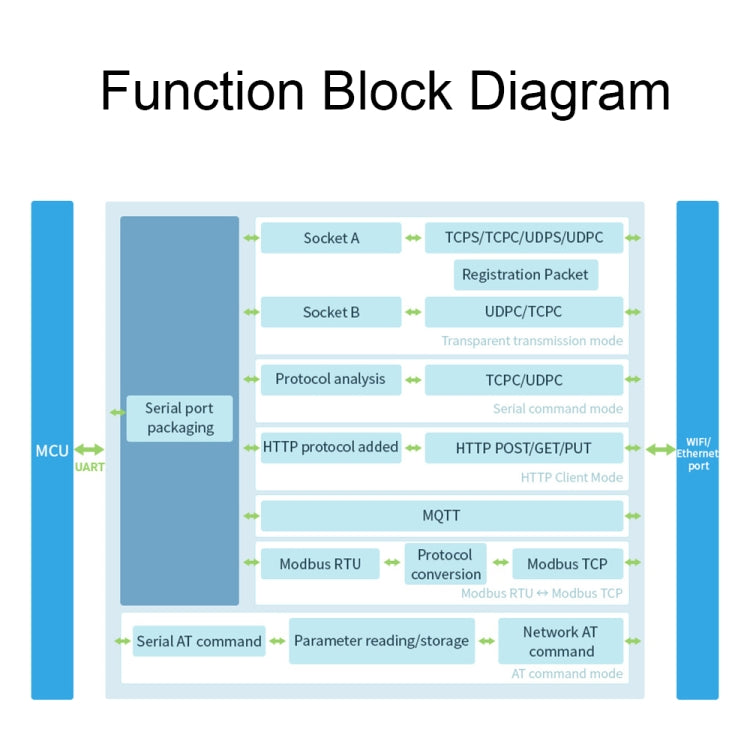

14. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU
15. Working temperature: minus 40 degrees Celsius - 85 degrees Celsius
16. Humidity range: 5%-95% relative humidity

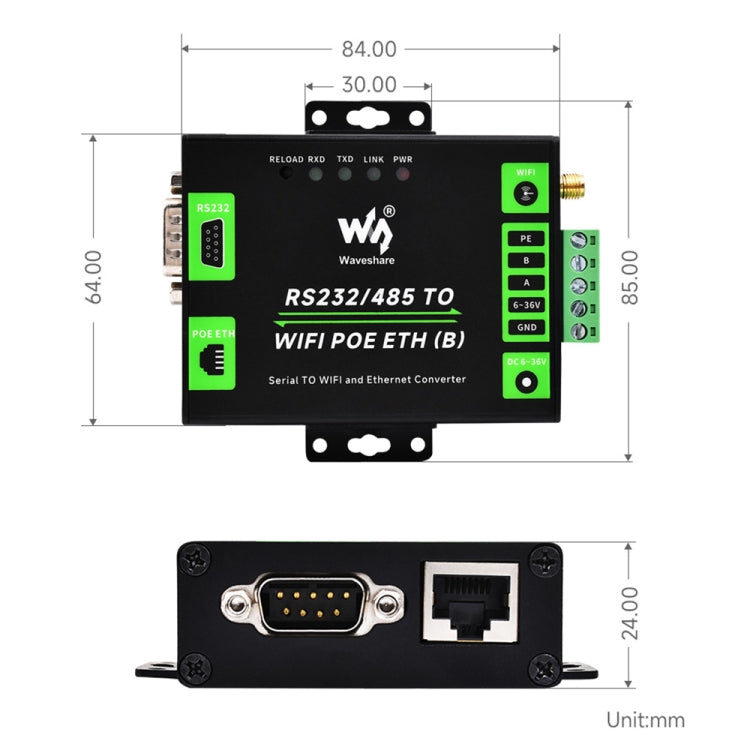

17. Product size: 85 x 84 x 24mm
18. Weight: 157g, 169g

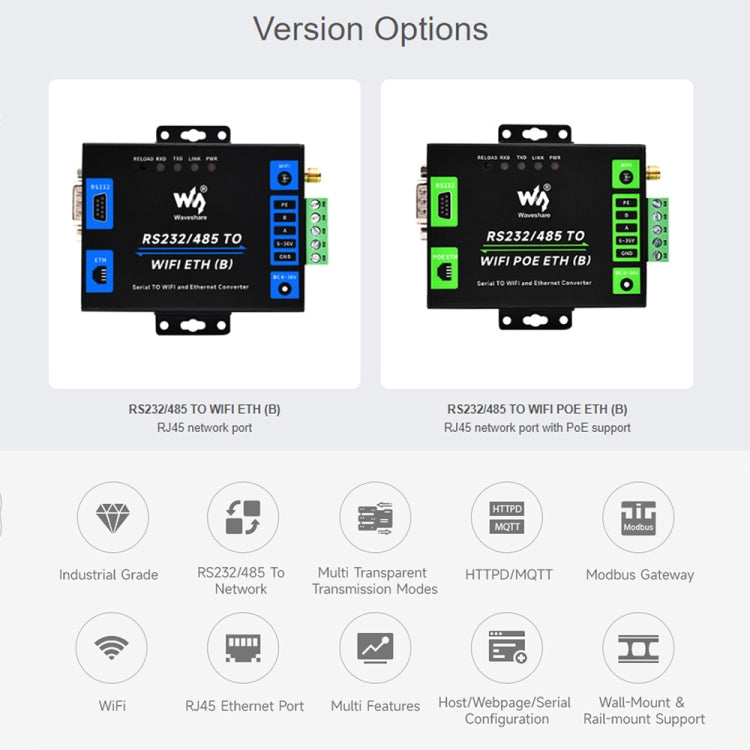

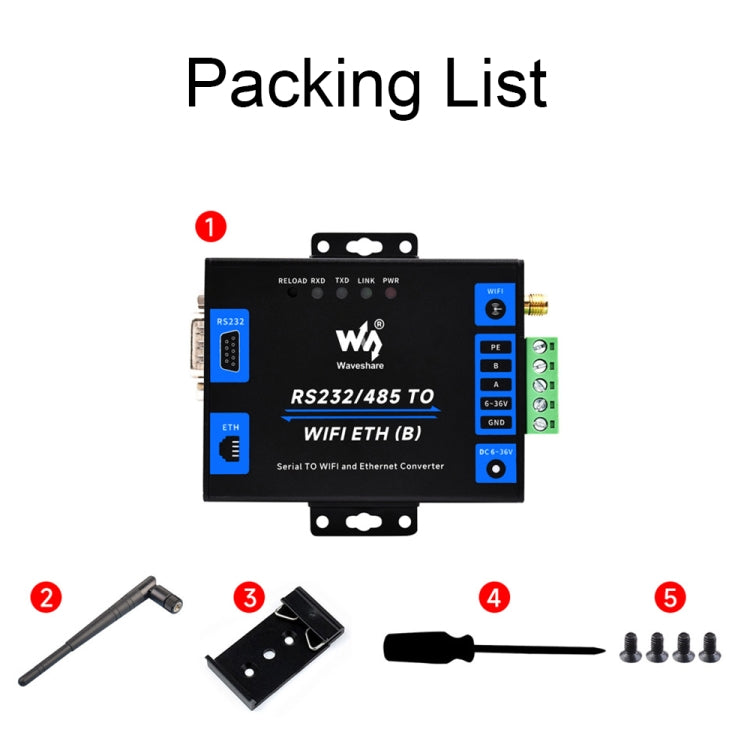

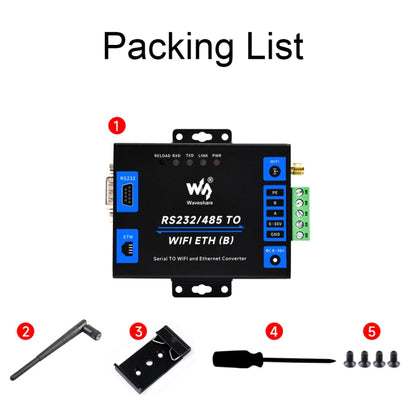

Packing list:
RJ45 network port:
-RS232/485 to WIFI Ethernet (B) x1
-2.4G WiFi antenna x1
-Rail mounting buckle x1
-Screwdriver x1
-Screw pack x1

RJ45 network port supporting POE:
-RS232/485 to WIFI POE ETH (B) x1
-2.4G WiFi antenna x1
-Rail mounting buckle x1
-Screwdriver x1
-Screw pack x1
