MFRC-522 RC522 RFID RF IC Card Sensor Module with S50 Fudan Card
MFRC-522 RC522 RFID RF IC Card Sensor Module with S50 Fudan Card
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

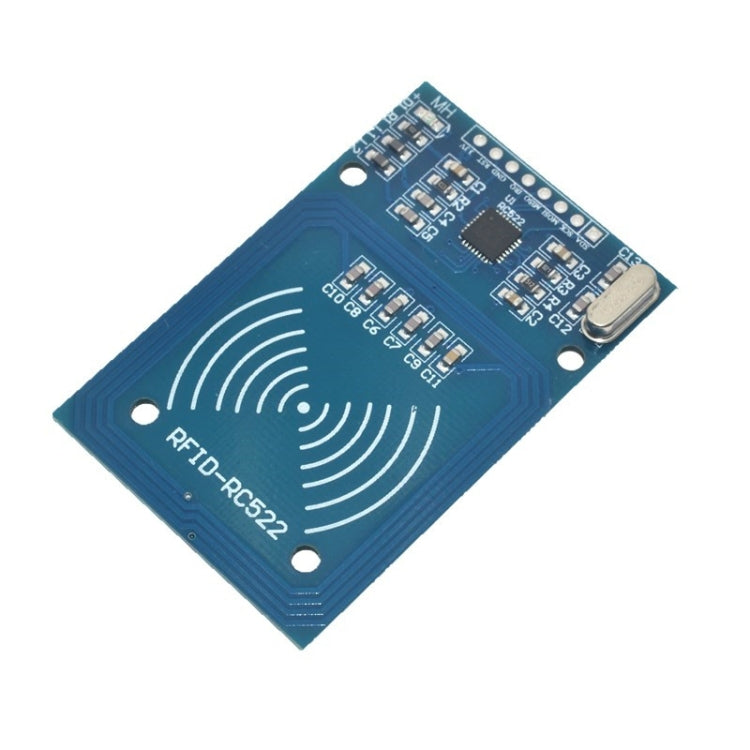

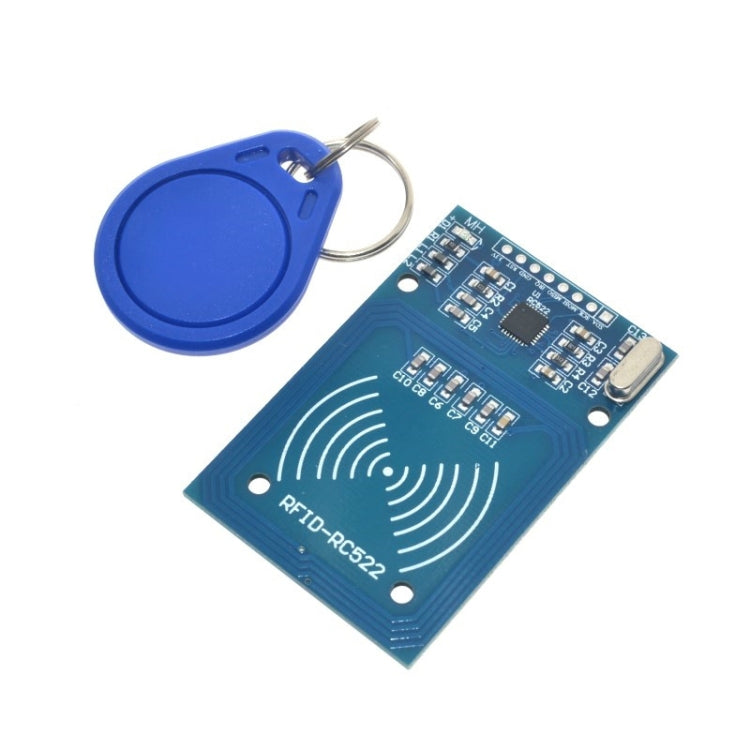

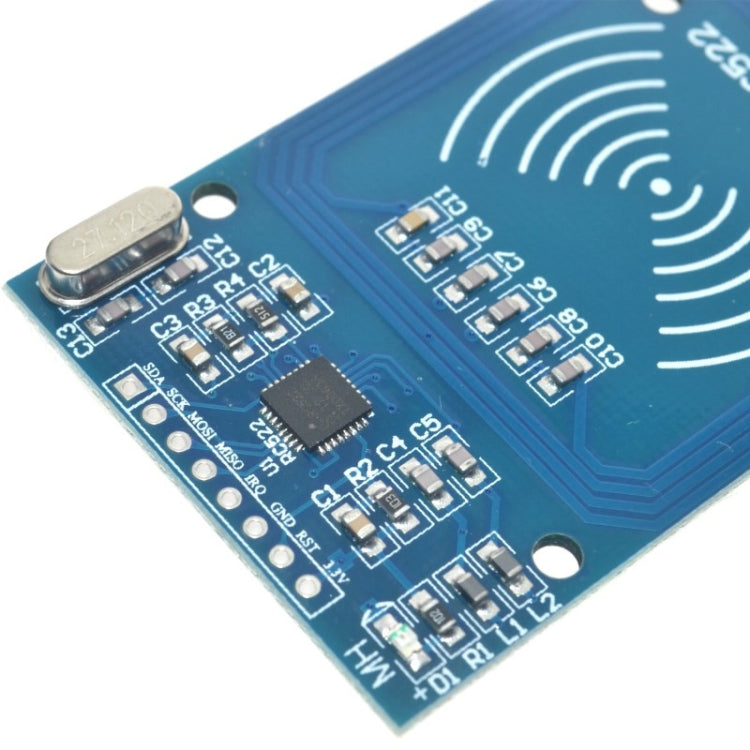

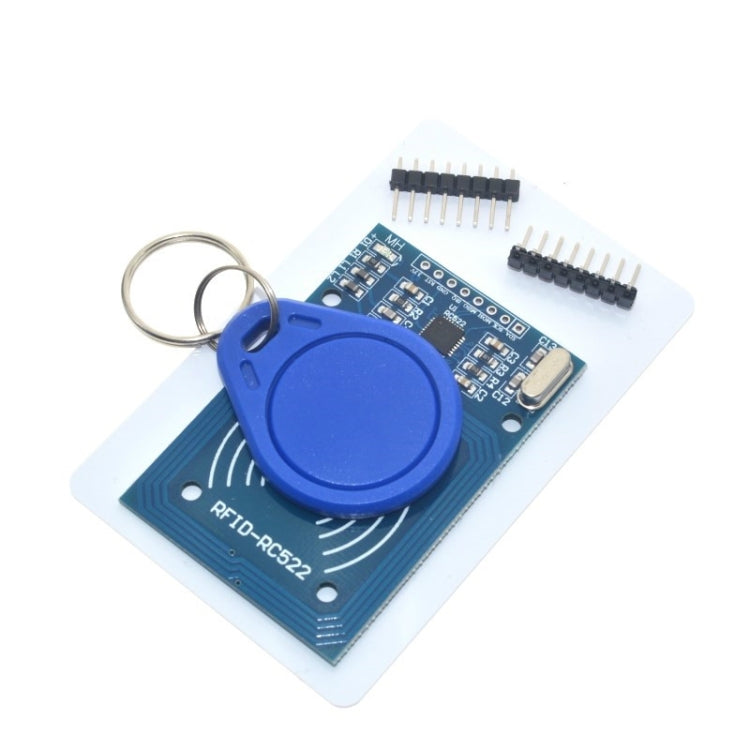

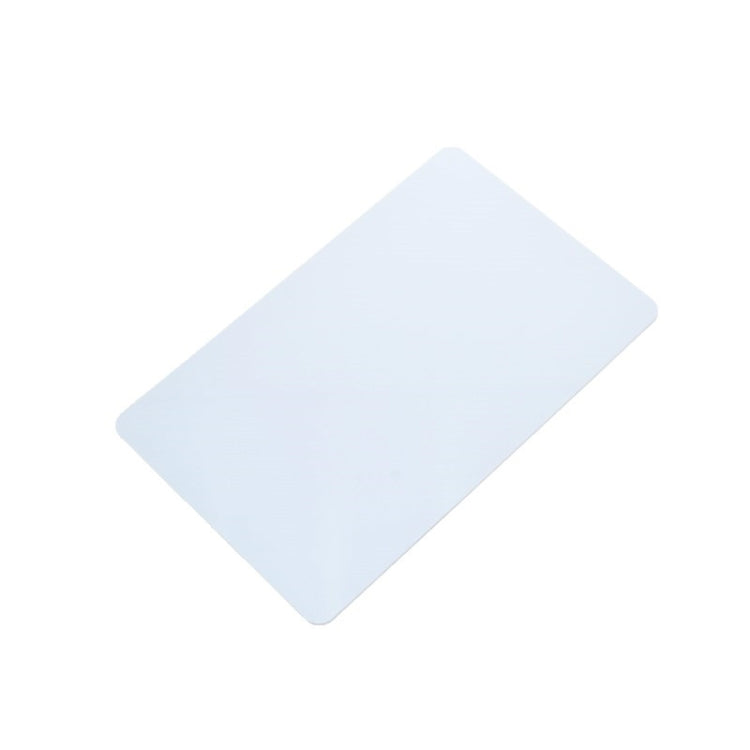

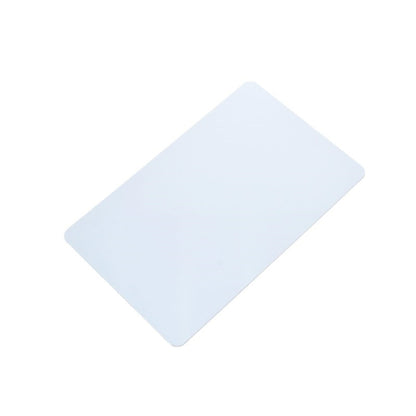

1. Package includes: RFID-RC522 module X1, standard S50 blank card X1, S50 special-shaped card (as shown in the shape of the key ring); a straight row and a bent row of pins;
2. Working current: 13-26mA / DC 3.3V
3. Idle current: 10-13mA / DC 3.3V
4. Sleep current: <80uA
5. Peak current: <30mA
6. Working frequency: 13.56MHz
7. Supported card types: Mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
8. Product physical characteristics: Size: 40mm × 60mm
9. Ambient working temperature: -20-80 degrees Celsius
10. Environmental storage temperature: -40-85 degrees Celsius
11. Environmental relative humidity: Relative humidity 5% -95%
12. Module interface SPI parameters: Data transmission rate: maximum 10Mbit / s
13. This module can be directly loaded into various card reader molds. The module uses a voltage of 3.3V. It can be directly connected to any CPU motherboard of the user through a few lines of SPI interface, which can ensure the stable and reliable operation of the module and the distance of card reading.
