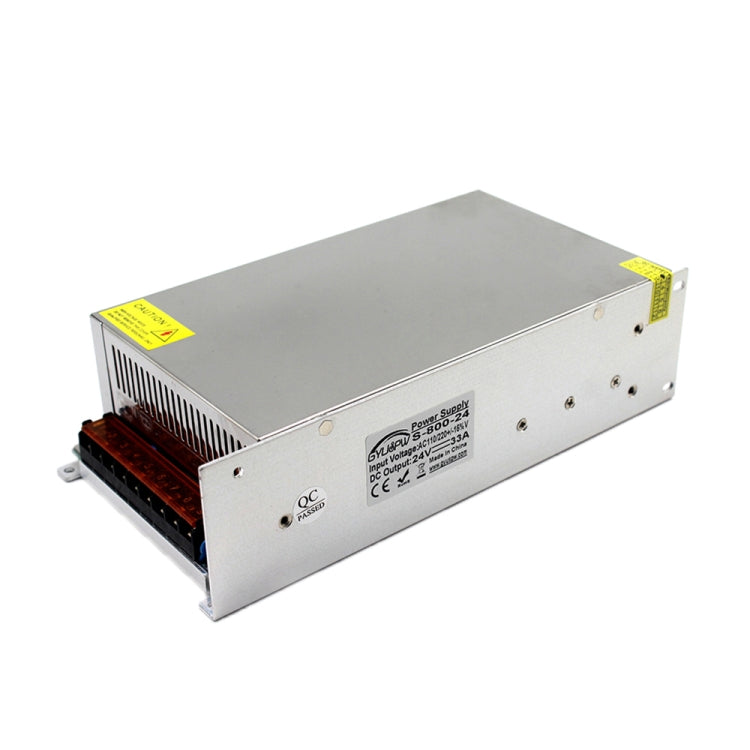

S-800-24 DC24V 33A 800W LED Light Bar Monitoring Security Display High-power Lamp Power Supply, Size: 245 x 125 x 65mm
S-800-24 DC24V 33A 800W LED Light Bar Monitoring Security Display High-power Lamp Power Supply, Size: 245 x 125 x 65mm
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from International Fulfillment Center • Import tax and duties included
Ships from International Fulfillment Center • Import tax and duties excluded
Ships from International Fulfillment Center • Import tax and duties excluded
Description
The S-800-24 DC24V 33A 800W LED Light Bar Power Supply is designed to provide reliable power to LED light bars. It is suitable for everyday use in various lighting applications, ensuring stable performance and safety.
- Product Type: Power Supply
- Compatibility: LED Light Bars
- Material: Aluminum
- Key Feature: Enhanced heat dissipation
- Input Voltage: 110V/220V +/- 1% (100-140V, 180-260V)
- Output Voltage: DC24V 33A
- Difference Range: +/- 1%
- Power: 800W
- Output Adjustable Voltage Range: +/- 5%
- Frequency: 50-60Hz
- Leakage Current: Less than 1mA / 230V
- Temperature Coefficient: +/- 0.03%/degree Celsius
- Start Time: 200ms
- Rise Time: 50ms
- Hold Time: 20ms
- Vibration Resistance: 10-500Hz, 2G 10min/1 cycle, duration 60 minutes, each axis
- Protection: Overload, overvoltage, overcurrent, short circuit
- Pressure Resistance: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
- Working Temperature: -10~60 degrees Celsius
- Working Humidity: 20-90% RH
- Storage Temperature: -20~85 degrees Celsius
- Storage Humidity: 10-95% RH

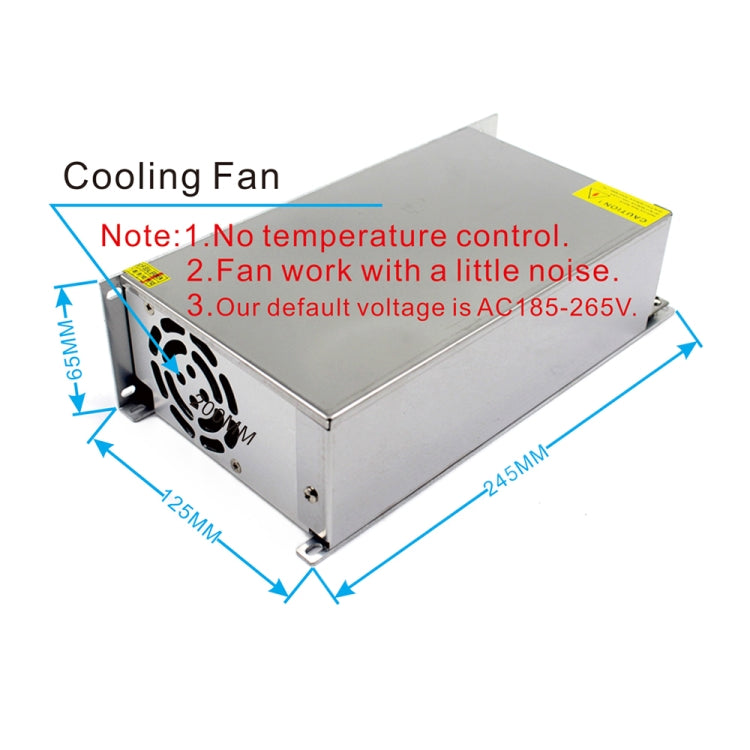

- Dimensions: 245 x 125 x 65mm
