1 In 8 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter(US Plug)
1 In 8 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter(US Plug)
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

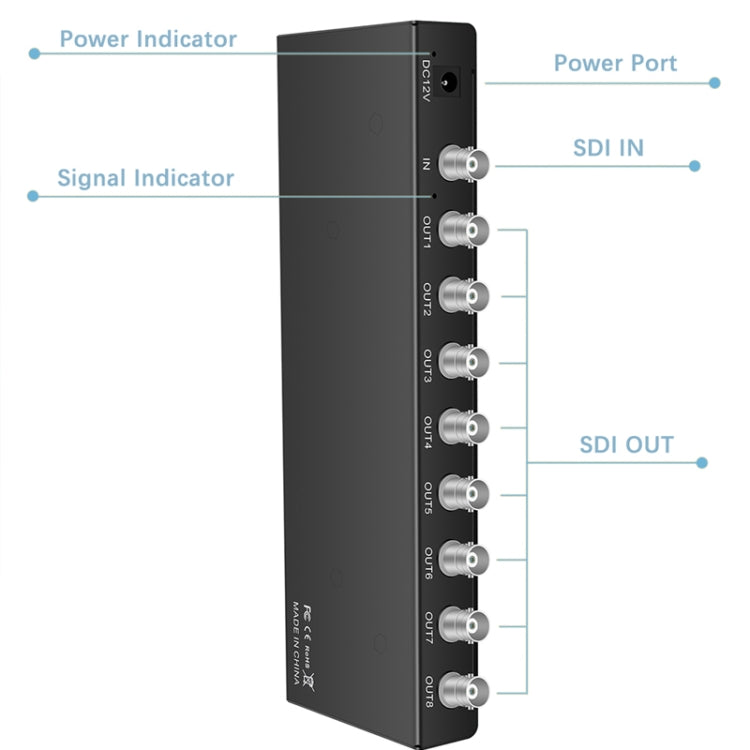

1. SDI output interface: BNC SDI×2 SDI×4 SDI×8
2. SDI standard compatible: SMPTE 424M, SMPTE 292M and SMPTE 259M-C
3. SDI signal format: SD-SDI HD-SDI 3G-SDI
4. Support SDI rate: 143-2970MB/S
5. SDI impedance: 75 ohms
6. Resolution: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60HZ / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI signal output amplitude: 800mVp-p
8. Dimensions: 219 x 70 x 24.5mm
Installation steps:
1. Connect the SDI input interface to the SDI signal source through the coaxial cable
2. SDI output can be connected to other display devices that support SDI signal input
3. Turn on the power of the host, and the machine starts to work
Function description:
1. SDI distribution function: Connect the hardware according to the three "installation steps", and the SDI splitter will start to work normally. The SDI splitter supports SD-SDI (270Mbps), high-definition HD-SDI (1.485Gbps) and full high-definition 3G-SDI (2.97 Gbps) video format, SDI video distribution
2. Extension function: This product supports cable length up to (Belden-1694A); SDI line input and output distance: SD supports 400m, HD supports 200m, 3G supports 100m (theoretical value, the specific distance is related to the quality of the cable)
3. Wide voltage design: built-in wide voltage design, support DC5V~36V voltage input (power up to 2W)
4. Intelligent design: It adopts pure hardware processing to plug and play, and can automatically detect different SDI signals. When a valid SDI signal is input, the LED indicator will display green. If there is no signal or the signal is not consistent with the standard LED indicator will be will go out, making it easier for engineering customers to judge the problem
