COMFAST CF-EW85 1300Mbps 2.4G/5.8G Gigabit Wireless AP Signal Amplifier Supports DC/POE Power Supply AU Plug

1. 1300Mbps high-power wireless AP, 2.4&5.8Ghz Gigabit dual-band, high-speed transmission (1300Mbps is the theoretical speed)
2. Qualcomm three-chip solution, powerful three-core CPU to ensure performance
3. Equipped with 5 high-gain independent signal amplification chips, external 3 high-gain omnidirectional antennas, strong signal
4. High-density capacity, no matter how dense the users are, you can maintain smooth WiFi
5. Supports both POE/DC power supply methods, more flexible installation
6. Built-in watchdog chip, automatic repair and restart, reducing maintenance costs

Parameters:
1. Hardware specifications: QCA9563+QCA9886+QCA8337 chip solution; 2.4G PA: SKY65900 x 3; 5.8G PA SKY85743-21 x 2
2. Memory: 128MB
3. Flash memory: 16MB
4. Antenna specifications: 3x5dBi external omnidirectional antenna
5. Wireless rate: 2.4GHz: 450Mbps; 5.8GHz: 867Mbps
6. RF parameters:
--Maximum transmit power: 29dBm (800mW);
--Minimum receiving sensitivity: -96dBm
--Operating frequency: 802.11b/g/n: 2.412GHz-2.472GHz; 802.11an/a: 5.180GHz-5.825GHz
7. Physical interface:
--1 x 10/100/1000Mbps RJ45 WAN Ethernet port;
--2 x 10/100/1000Mbps RJ45 LAN Ethernet ports;
--1 x RESET button;
--1 x DC interface
8. Power supply: 24V 1A POE power supply
9. Power consumption: less than 18W
10. Protection level: IP66 level
11. MTBF: greater than 250000H

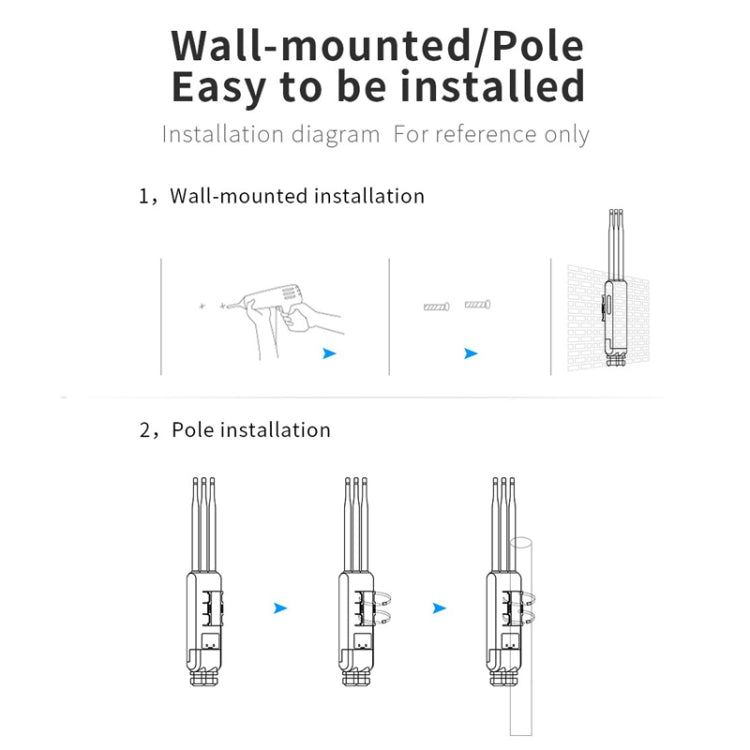

12. Installation method: wall-mounted, pole-mounted
13. Dimensions: 90 x 388mm (without antenna), single antenna length 188mm
