GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980)
GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980)
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1) Frequency range:
-Up link GSM 890-915
-Downlink GSM 825-960
2) Gain(dB) GSM Up link: 55
3) GSM downlink: 60
4) Gain adjustable range: GSM950/ 50Db~55Db
5) Output power(dBm): ≥27 / 30
6) Pass band ripple GSM: 4dB
7) Guard band rejection: GSM(BW-60dB)≤42 MHz (BW-70dB)≤45 MHz
8) I/O impedance: 50Ω
9) I/O return loss: ≤-10dB
10) Noise coefficient: ≤5dB
11) Intermodulation attenuation (Po=13dBm): ≥40dBc
12) Transmission delay: ≤0.5us
13) Ambient temperature: -10℃～60℃
14) Power supply: AC220V / DC 12V 45～55Hz
**Characteristic
1) Fully integrated 980 MHz antenna system
2) Powerful amplifier enables up to + 85 dB of signal gain including cable loss
3) Intelligent signal processing and real time adaptive operation
4) Automatically adjusts power levels as needed to ensure a consistent coverage footprint
5) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
6) Auto-track LED diagnostics displays aid install and operation
7) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices

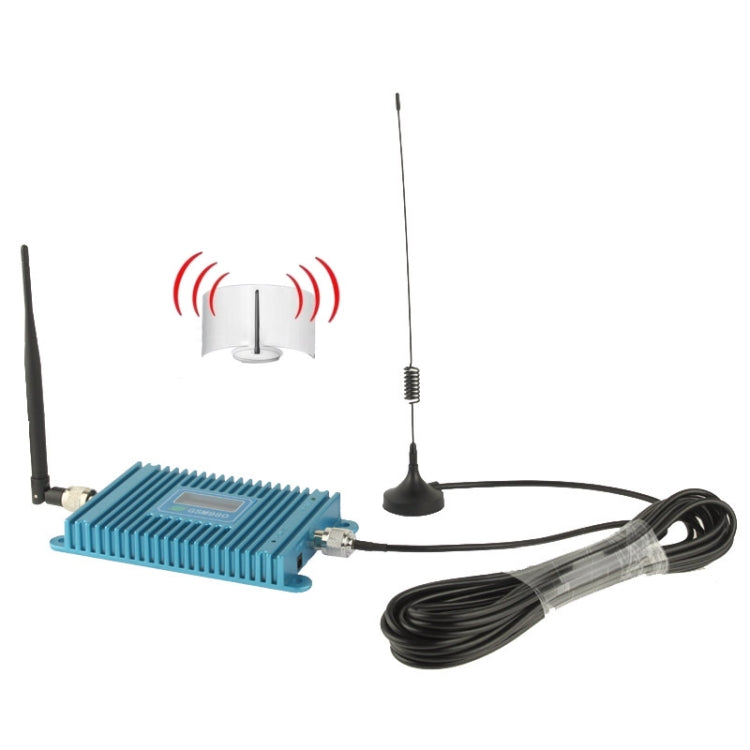

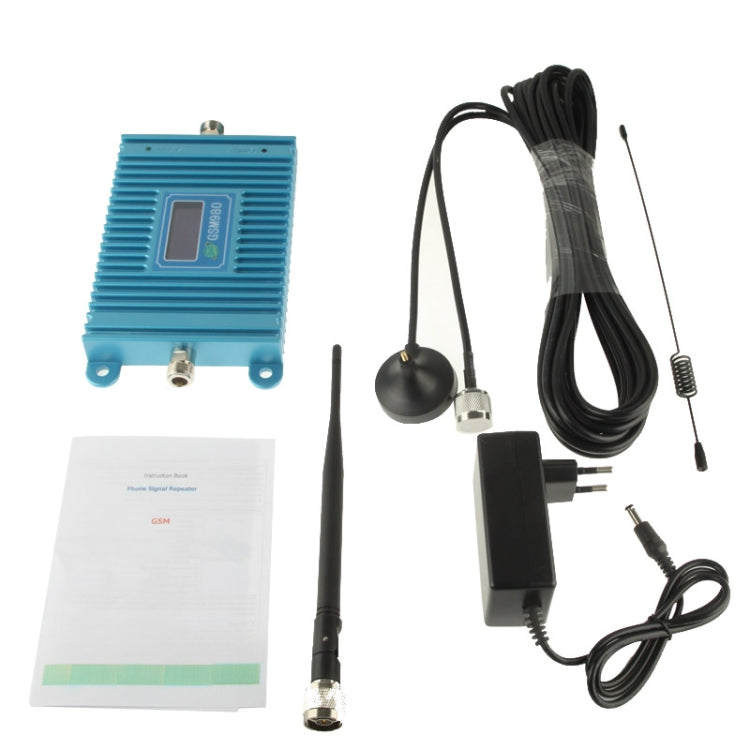

**The package contains:
1) 55dB GSM cellular phone signal amplifier
2) 9dB outdoor antenna
3) 3dB indoor antenna
4) 10m cable
5) Mounting accessories
6) AC power supply
