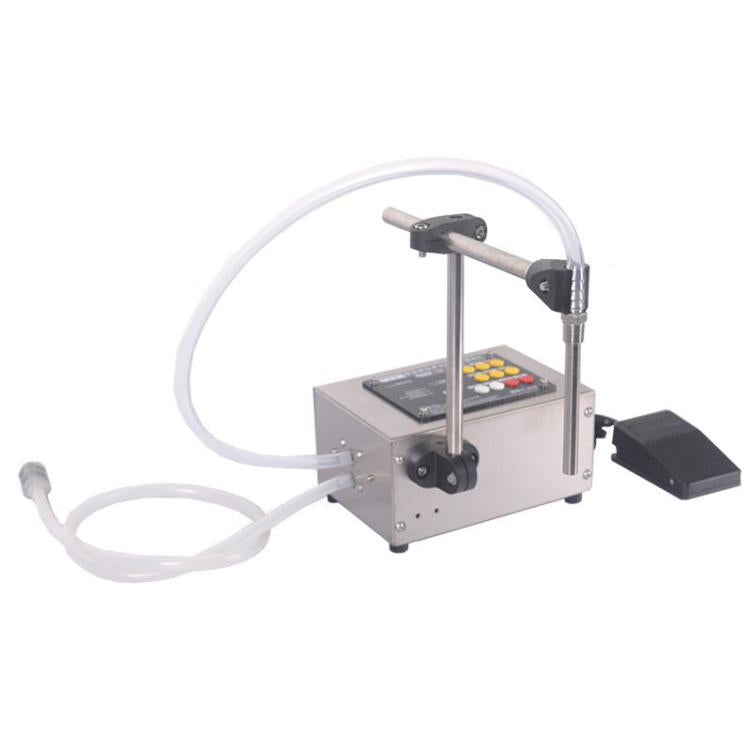

HECHEN CA10B Heat-resistant 1.5L Automatic Small Intelligent Single Head Liquid Induction Multifunctional Quantitative Filling Machine(US Plug)

• Product type: Drinking Tools
• Brand: HECHEN
• Compatibility: Liquids with good fluidity
• Material: Stainless steel
• Key feature: Intelligent induction
• Color/Variant: N/A
• Intended use: Efficient filling operations
• Category: Home & Garden

1. Input voltage: AC 110-220V 50/60Hz
2. Output voltage: DC12V
3. Ambient temperature: 10 - 40 degrees Celsius
4. Medium temperature: 1.5L model: 5 - 100 degrees Celsius
5. Minimum flow rate: 1.5L model: 5ml
6. Maximum flow rate: 1.5L model: 1500ml/min
7. Water pump flow rate: adjustable
8. Speed range: 01-99 PWM digital display speed regulation
9. Filling capacity setting range: 1-9999
10. Counter: Supported
11. Pump head material: 1.5L: PC plastic
12. Corrosion resistance: 1.5L: not corrosion resistant
13. Scope of application: liquids with good fluidity, no particles
14. Power-off memory: supported
15. Adjustable range of filling bracket: 0-200mm adjustable
16. Check valve: yes
17. Suitable for bottle mouth inner diameter: greater than 12mm
18. Conveyor belt interface: supports 12V conveyor belt expansion
19. Sensor interface: with foot switch, supports DC12V NPN three-wire sensor
20. Six working modes: Inching, Manual, Automatic, Foot switch, Induction, Conveyor belt
21. 1.5L heat-resistant diaphragm pump: suitable for non-corrosive, non-particle-free liquids within 100 degrees Celsius

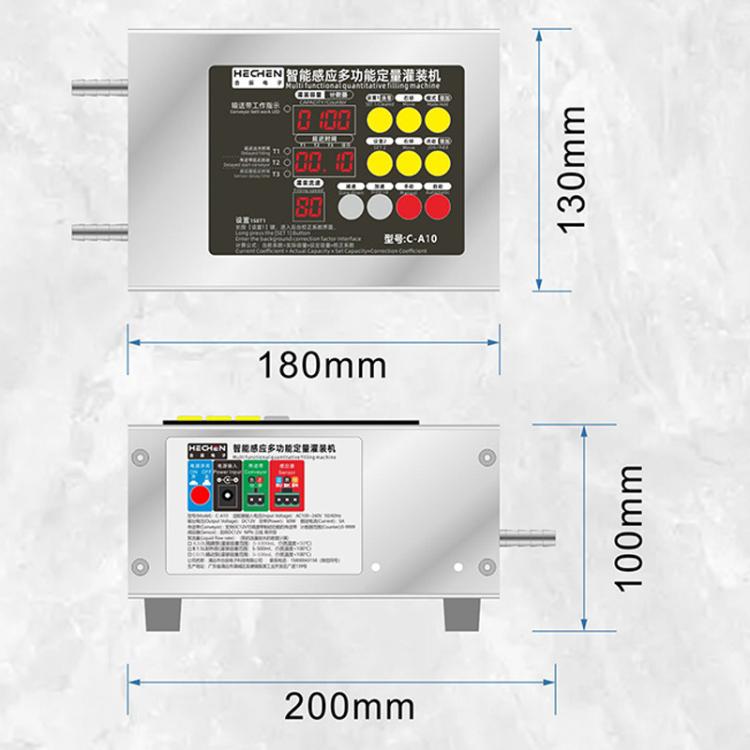

22. Size: about 18 x 13 x 10cm

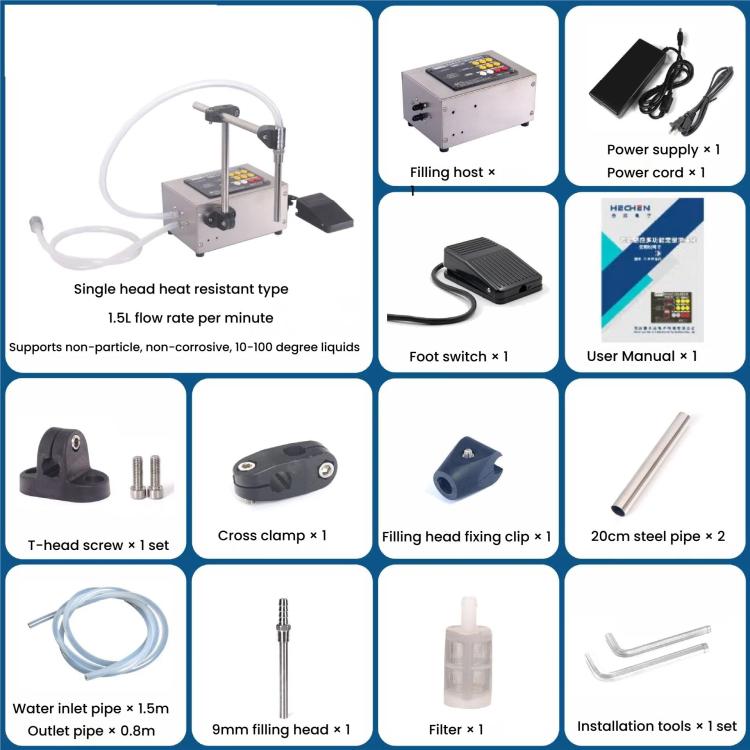

Packing list:
- Filling host x 1
- Power supply x 1
- Power cord x 1
- Foot switch x 1
- Instruction manual x 1
- T-head x 1
- Screws x 2
- Cross clamp x 1
- Filling head fixing clamp x 1
- 20cm steel pipe x 2
- 1.5m water inlet pipe x 1
- 0.8m water outlet pipe x 1
- 9mm filling head x 1
- Filter x 1
- Installation tool x 2
