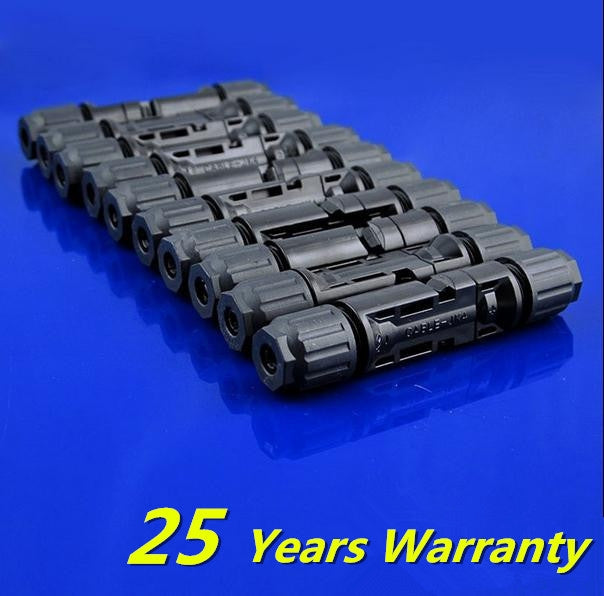

MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2

• Product type: AC Adapers
• Compatibility: solar panels
• Material: PPO
• Key feature: IP67 protection
• Color/Variant: Not specified
• Intended use: everyday use
• Category: Consumer Electronics

Model Number: EU Connection: Plug In Output Type: DC
Output voltage: DC1000V
Usage: solar
Specification Product No: MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension: 4.0mm
Proof voltage: DC 8KV (1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP67 (IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature: -40 to +85 degrees
Flame Class: UL94V - 0
