Waveshare 7.5 inch 640x384 E-Ink Display HAT for Raspberry Pi, Three-color, SPI Interface
Waveshare 7.5 inch 640x384 E-Ink Display HAT for Raspberry Pi, Three-color, SPI Interface
Sale
Sold out
Pre-order
Regular price
R 1,309.00
Regular price
Sale price
R 1,309.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
Overview

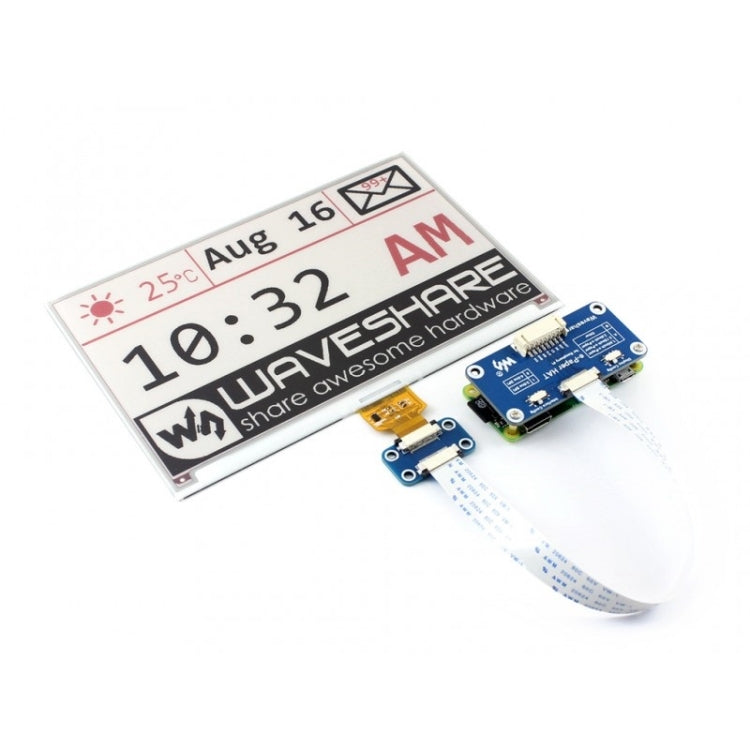

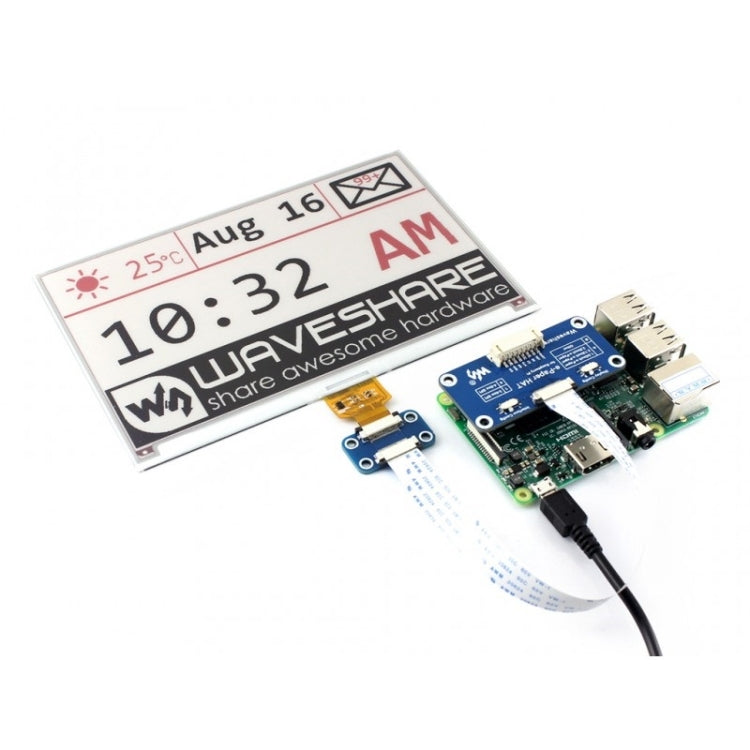

1. This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Onboard voltage translator, compatible with 3.3V/5V MCUs
6. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V~5V
2. Interface: SPI

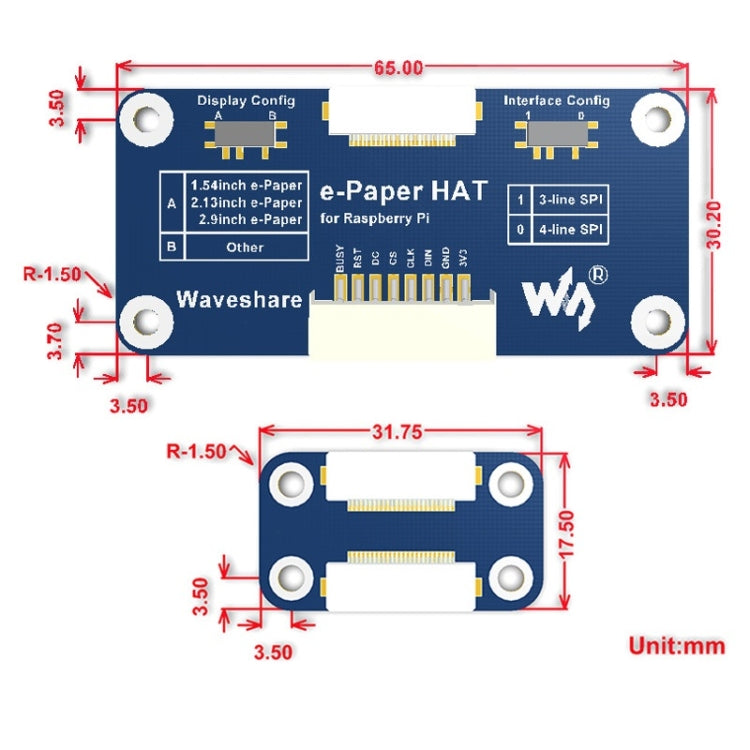

3. Outline dimension: 170.2mm x 111.2mm
4. Display size: 163.2mm x 97.92mm
5. Dot pitch: 0.255 x 0.255
6. Resolution: 640 x 384
7. Display color: red, black, white
8. Grey level: 2
9. Full refresh time: 16s
10. Refresh power: 38mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
13. Weight: 0.065 kg
Package Contents
1. 7.5 inch e-Paper (B) x1

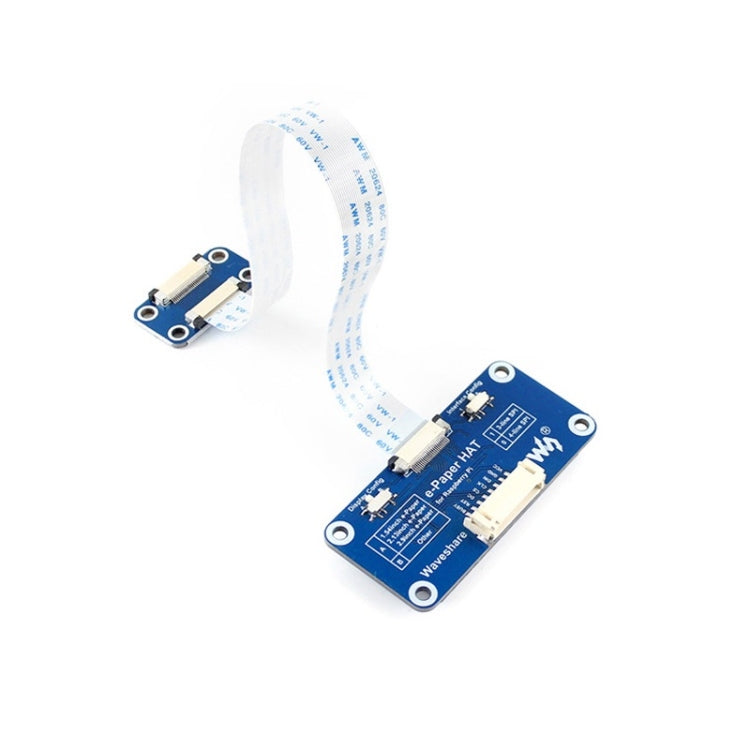

2. e-Paper Driver HAT x1

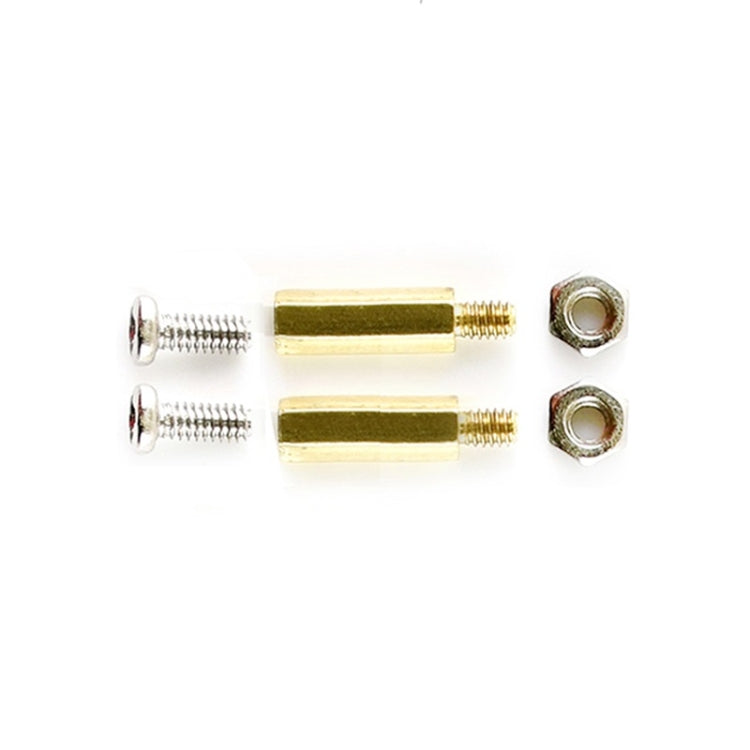

3. RPi screws pack (2pcs) x1

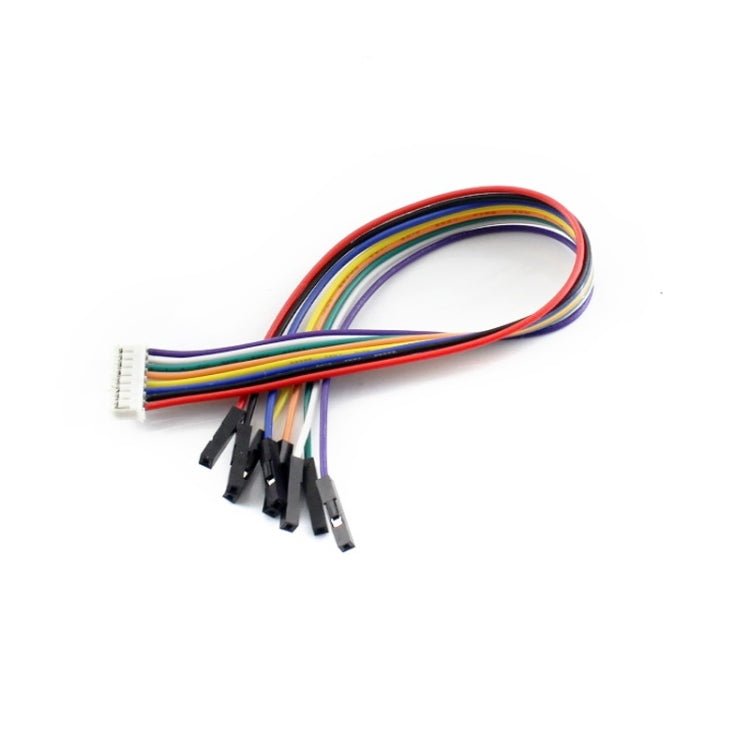

4. PH2.0 20cm 8Pin x1
