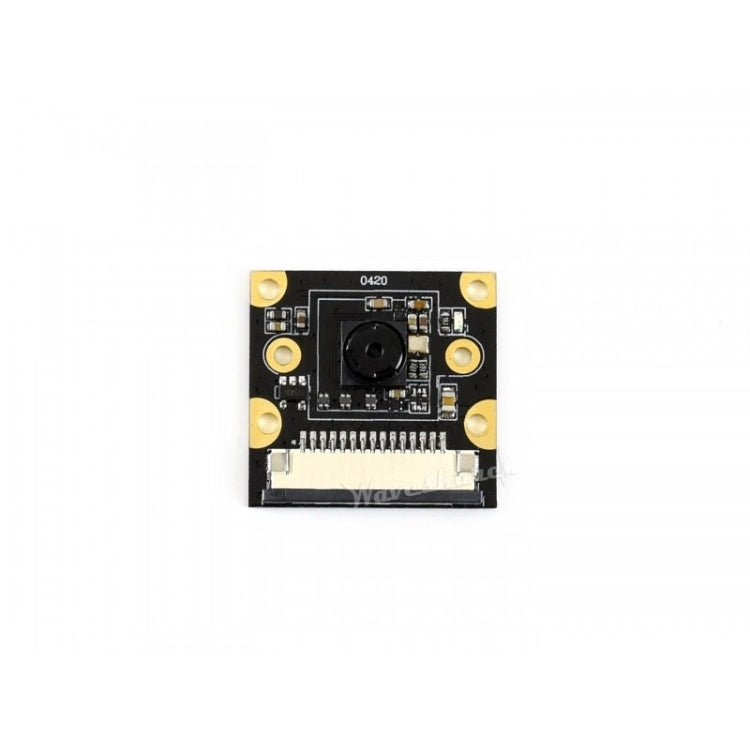

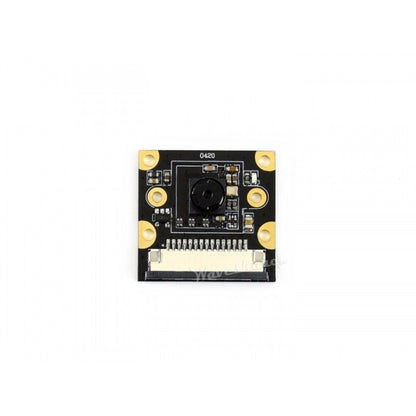

Waveshare IMX219-77 8MP 77 Degree FOV Camera, Applicable for Jetson Nano
Waveshare IMX219-77 8MP 77 Degree FOV Camera, Applicable for Jetson Nano
Sale
Sold out
Pre-order
Regular price
R 419.00
Regular price
Sale price
R 419.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Jetson Nano
• Material: Not specified
• Key feature: 8 Megapixels with 77-degree FOV
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
Features

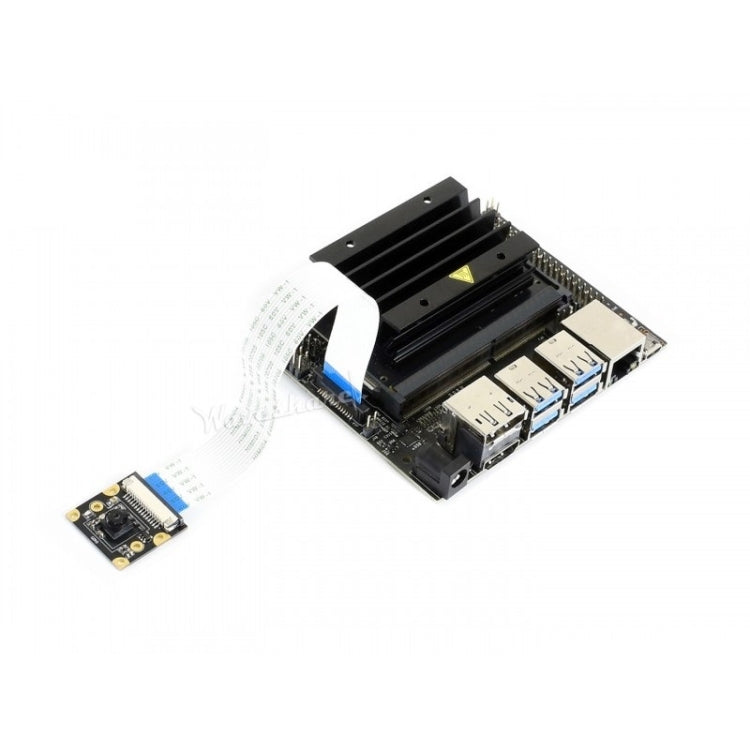

1. Support NVIDIA Jetson Nano Developer Kit
2. 8 Megapixels
3. Sensor: IMX219
4. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm x 6.5mm
5. 4 screw holes
6. Used for attachment
7. Provide 3.3V power output
8. Support connecting infrared LED and/or fill flash LED
9. Dimension: 25mm x 24mm
10. Weight: 12g
Packing List:

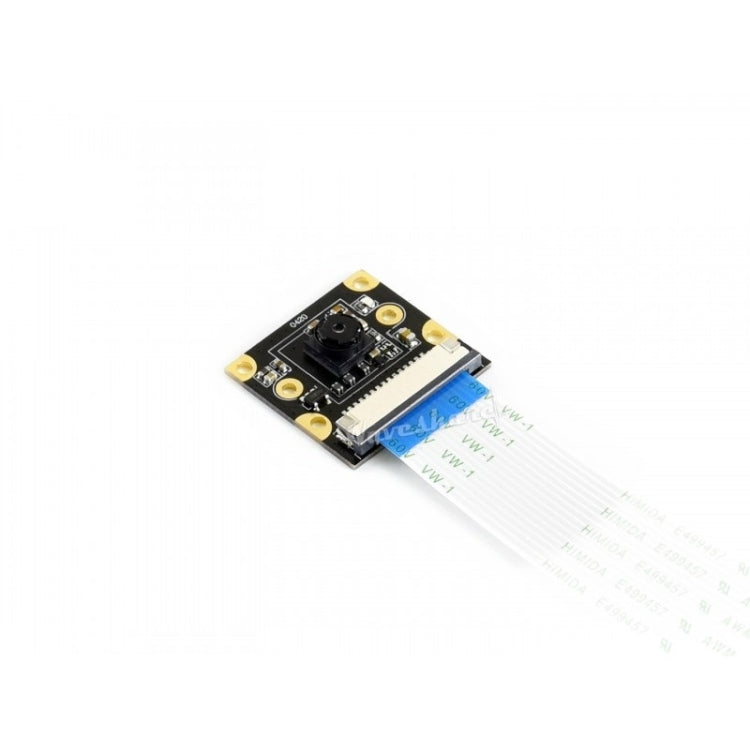

1. IMX219-77 Camera x1
2. 15-pin FFC (opposite sides contact) x1
• Brand: Waveshare
• Compatibility: Jetson Nano
• Material: Not specified
• Key feature: 8 Megapixels with 77-degree FOV
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
Features
1. Support NVIDIA Jetson Nano Developer Kit
2. 8 Megapixels
3. Sensor: IMX219
4. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.0
- Focal Length: 2.96mm
- Angle of View (diagonal): 77 degree
- Distortion: <1%
- Lens dimensions: 6.5mm x 6.5mm
5. 4 screw holes
6. Used for attachment
7. Provide 3.3V power output
8. Support connecting infrared LED and/or fill flash LED
9. Dimension: 25mm x 24mm
10. Weight: 12g
Packing List:
1. IMX219-77 Camera x1
2. 15-pin FFC (opposite sides contact) x1
