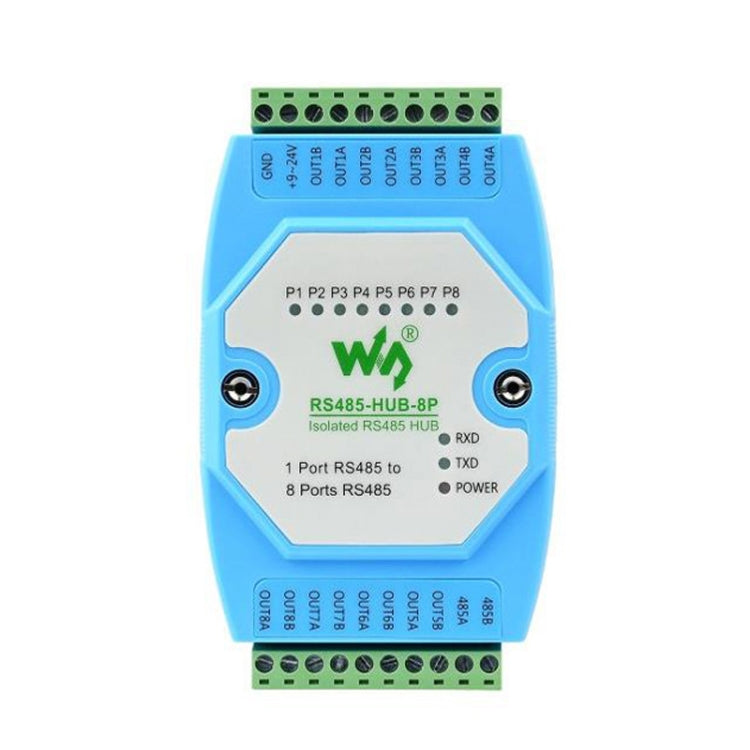

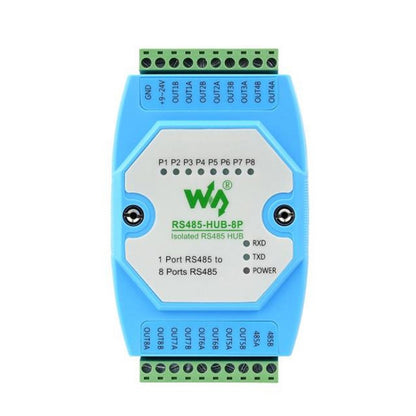

Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range
Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Interface standard: compliant with RS485 standard
2. Physical interface: RS485 wiring terminal
3. Communication rate: 300-460800bps baud rate (adaptive)
4. Support points: each RS485 interface can support up to 32 nodes
5. Communication distance: 1200m (9600bps), the higher the communication rate, the shorter the distance
6. Working mode: RS485 two-wire (A, B), half-duplex transparent transmission
7. Power supply voltage: DC 9-24V
8. Transmission medium: ordinary parallel wire/twisted pair

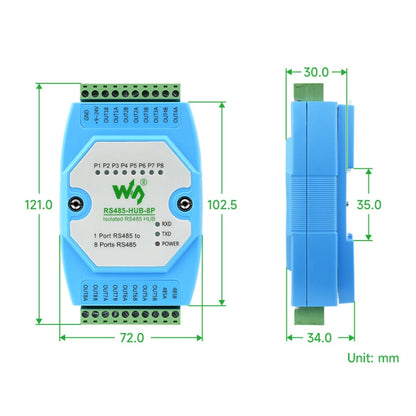

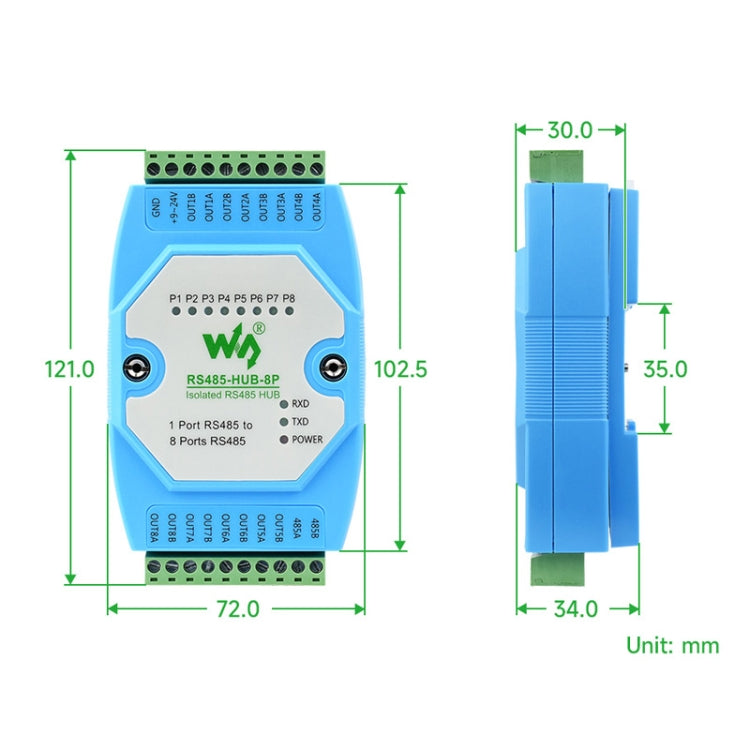

9. Size: about 12.1 x 7.2 x 3cm
Features:

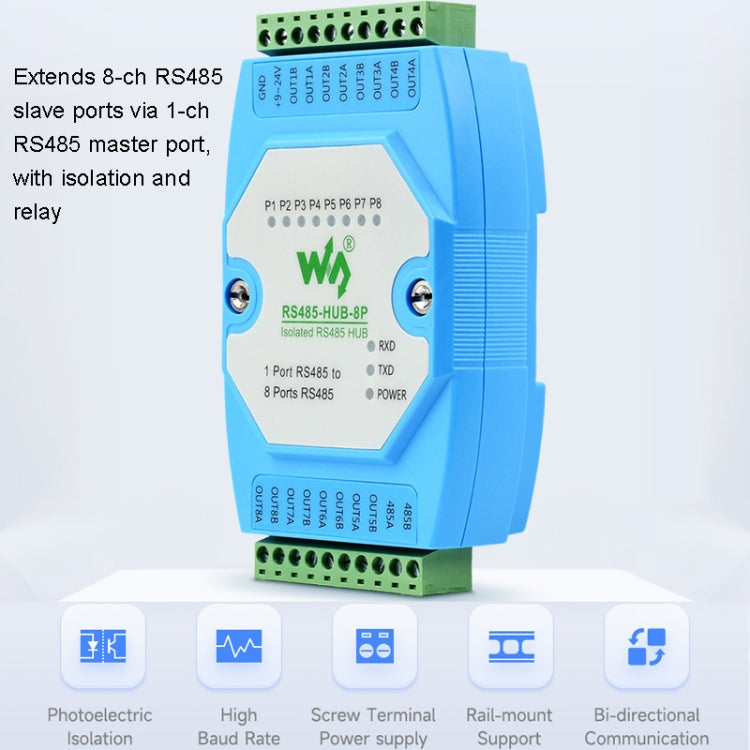

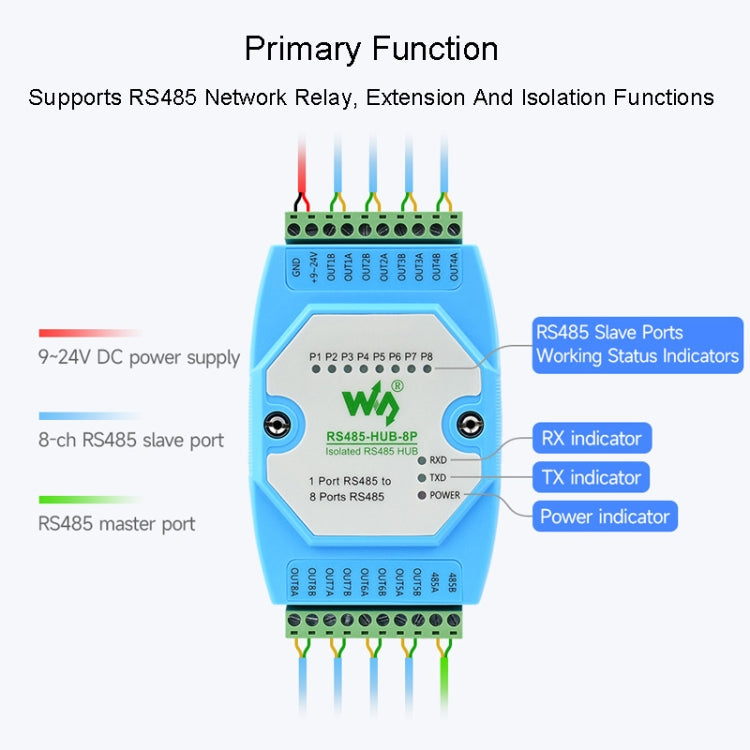

1. 8-way RS485 slave port can be extended by one 485 master port with isolation and relay

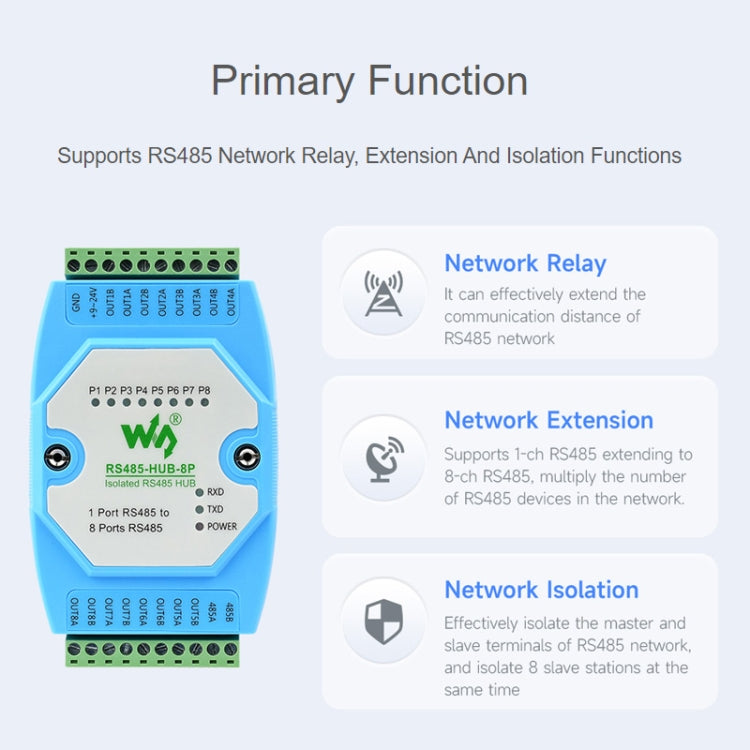

2. RS485 network relay, extension and isolation functions can be realized

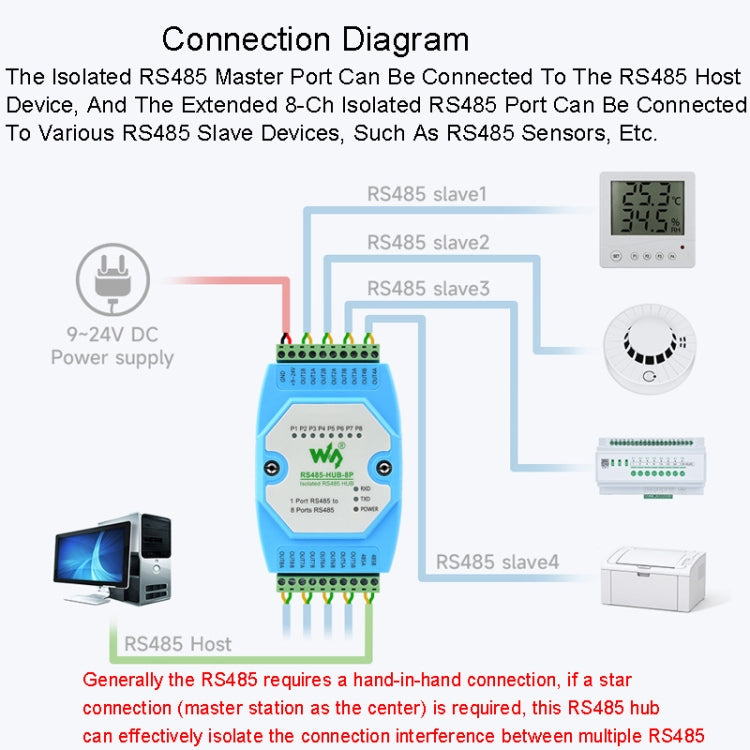

3. The isolated RS485 interface at the RS485 master port can be connected to RS485 master control devices, and the extended 8-way isolated RS485 interface can be externally connected to various RS485 slave devices, such as RS485 sensors, etc.

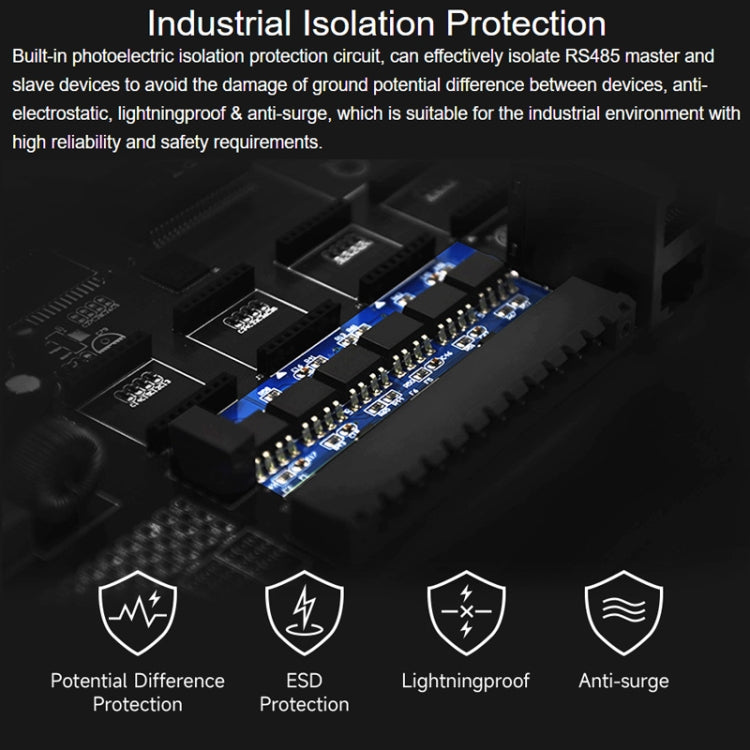

4. Built-in optoelectronic isolation protection circuit, RS485 master and slave devices are isolated, which can effectively protect RS485 master and slave devices from the damage of ground potential difference between devices, static electricity, surge, which can be applied to industrial environment with high requirements of reliability and safety

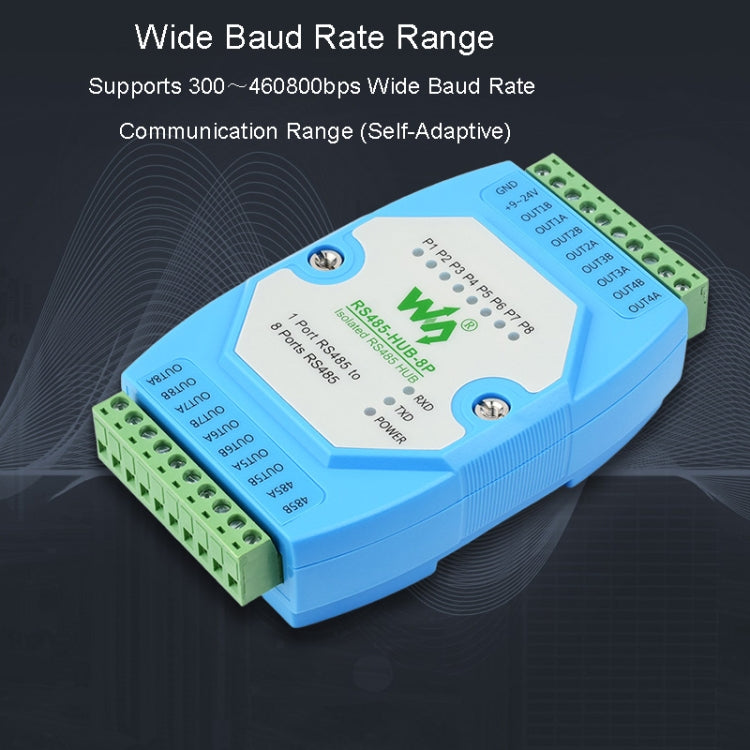

5. Wide baud rate range, support 300-460800bps wide baud rate communication range (self-adaptive)

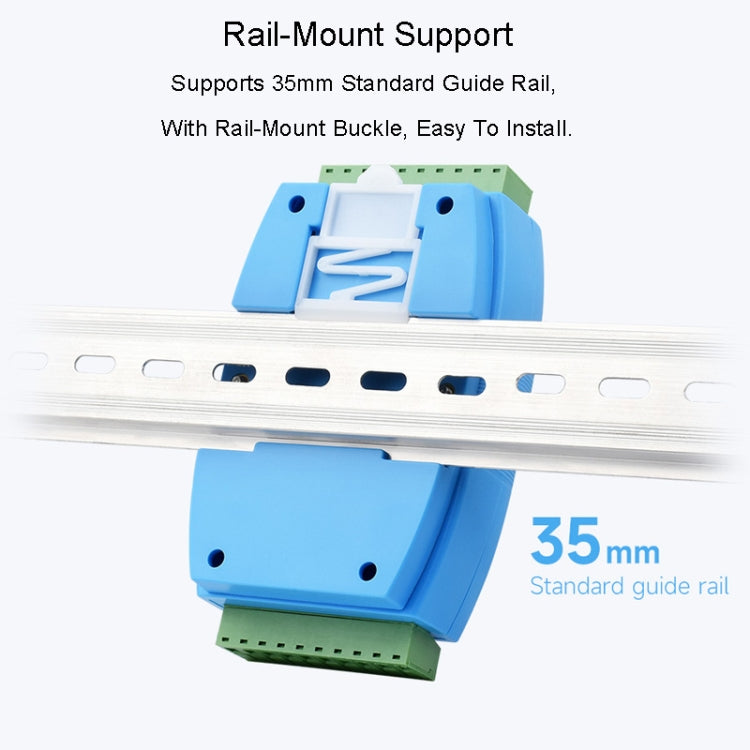

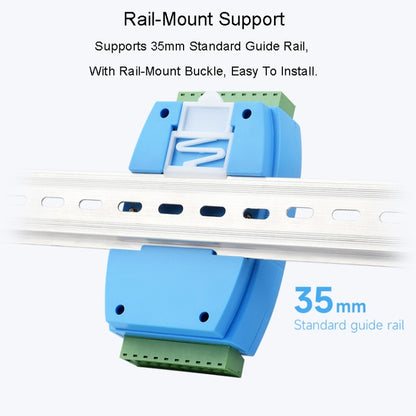

6. Support 35mm standard rail with rail clips, easy to install
