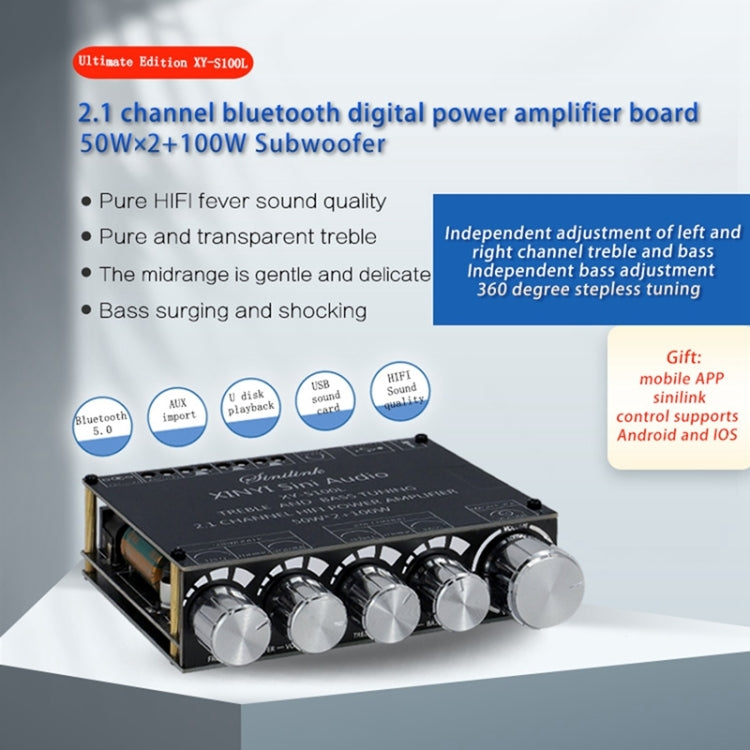

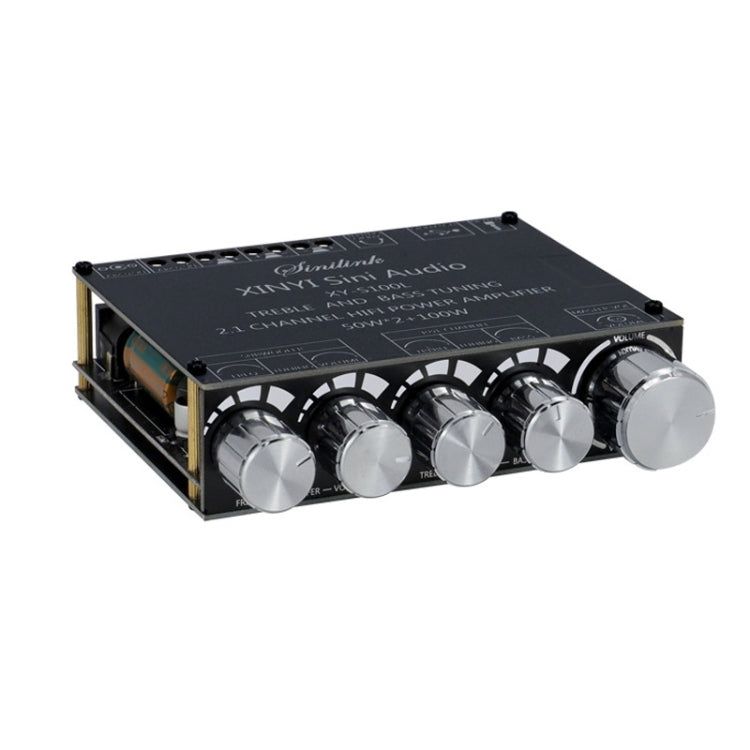

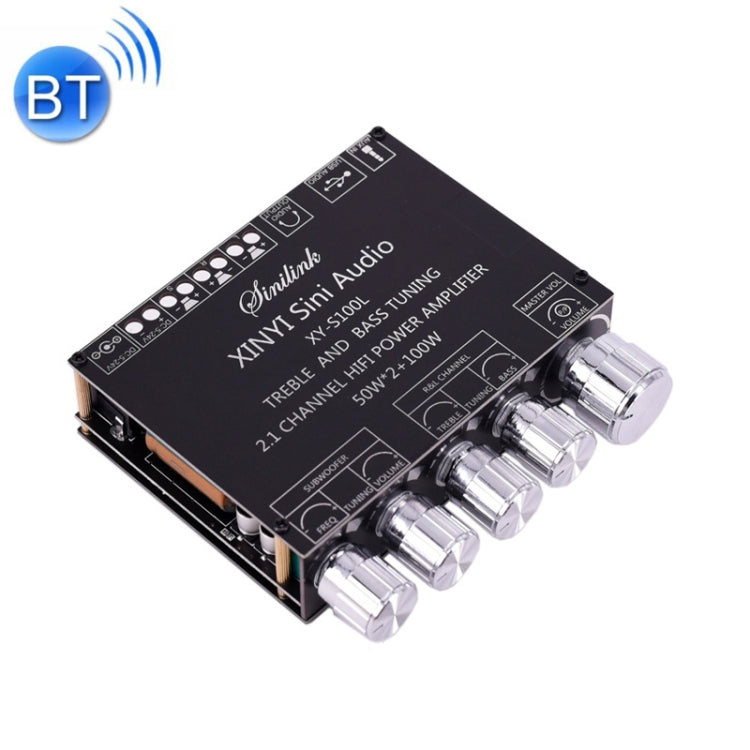

XINYI XY-S100L Sini Audio Channel 2.1 Bluetooth Power Board Module(S100L)
XINYI XY-S100L Sini Audio Channel 2.1 Bluetooth Power Board Module(S100L)
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

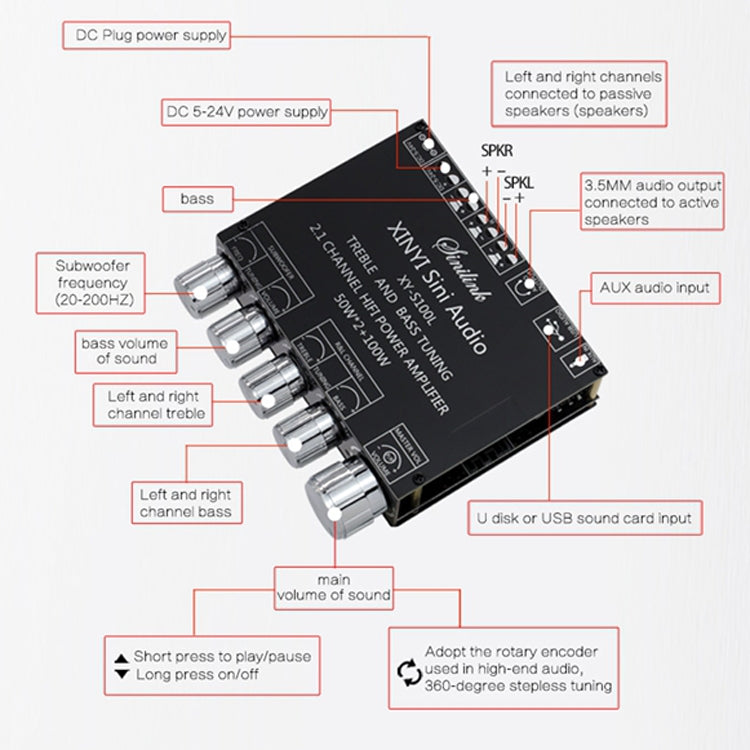

1. Audio channel: 2.1 channel
2. Bluetooth version: 5.0
3. Audio input: Bluetooth+AUX+U disk+USB sound card
4. Audio output: Left and right channel + subwoofer + 3.5mm interface stereo output
5. Volume adjustment: Encoder knob adjustment, smooth feel
6. Frequency range: 20Hz-30KHz
7. Signal to noise ratio: 92dB
8. Output power: 50W x 2 (left and right channels) + 100W (subwoofer)
9. Left and right channel speakers: 10-100W /4-8 ohm
10. Subwoofer: 20-200W /4-8 ohm
11. Protection mechanism: Static electricity, overcurrent, overheating and short circuit protection
12. Adapter power supply: Above DC 5-26V/10A
13. Function: Support Sinilink APP control
14. Size: About 9.5 x 8.8 x 2.5cm
15. Weight: About 156g

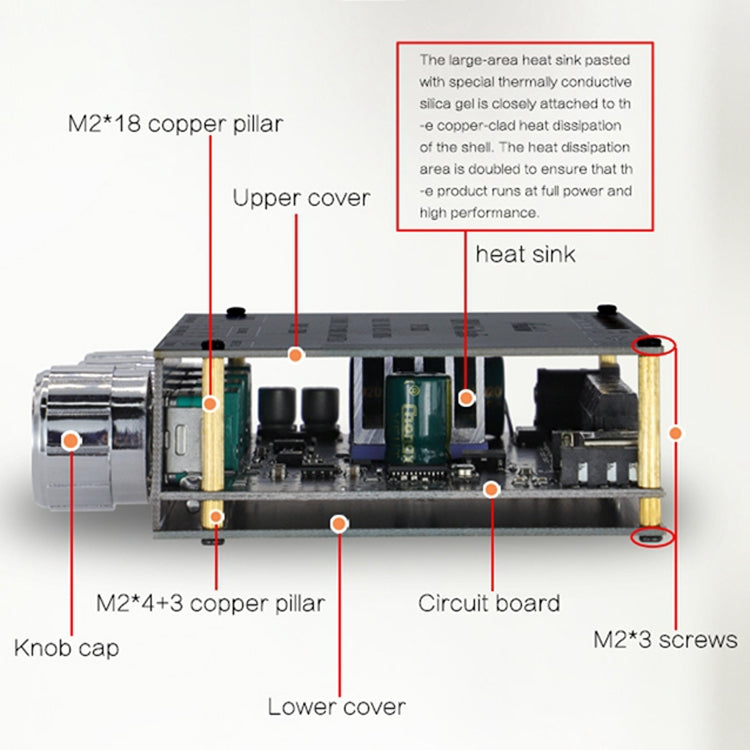

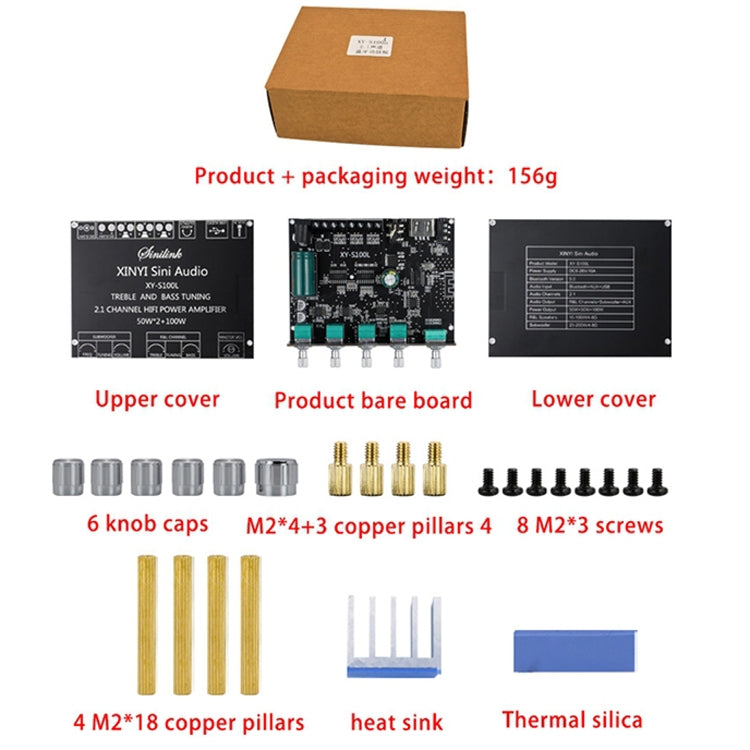

Packing list:
1. Upper cover x 1

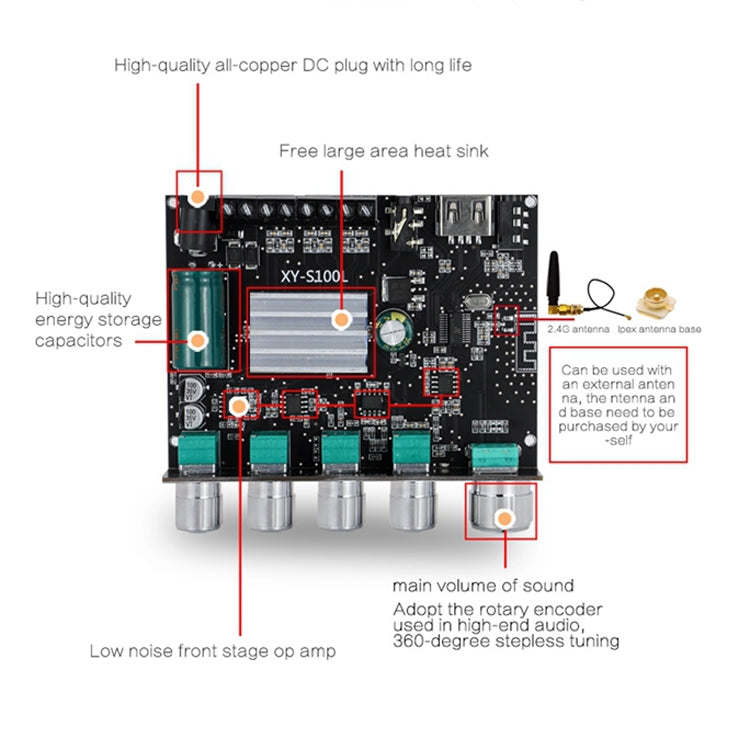

2. Bare board x 1
3. Lower cover x 1
4. Knob cap x 6
5. M2x4+3 copper pillar x 4
6. M2x3 screw x 8
7. M2x18 copper pillar x 4
8. Heat sink x 1
9. Thermally conductive silicone paste x 1
