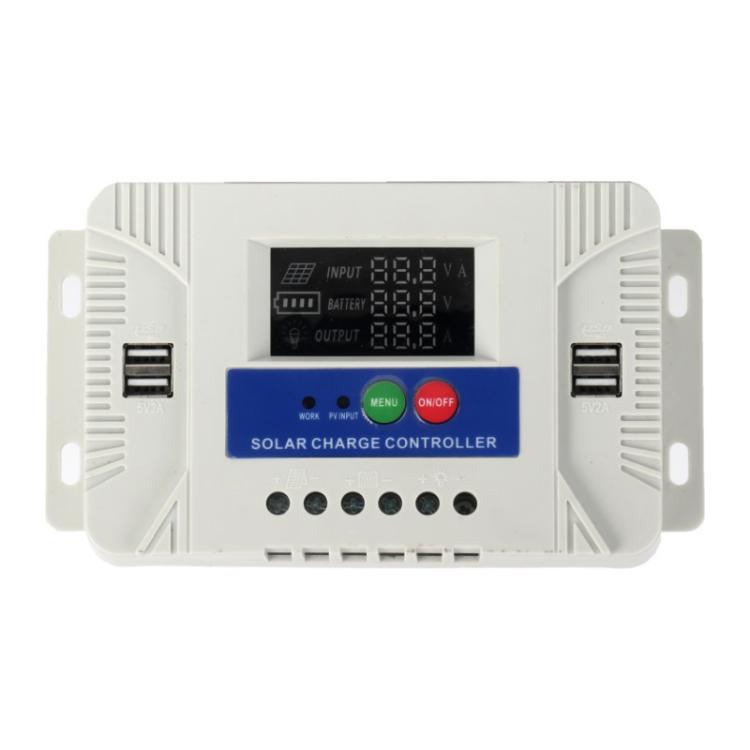

40A 12V 24V Setup-Free Color Screen Luminous Display Solar Controller PV Solar Charge Controller

• Product type: Others
• Compatibility: 12V/24V systems
• Material: Industrial-grade components

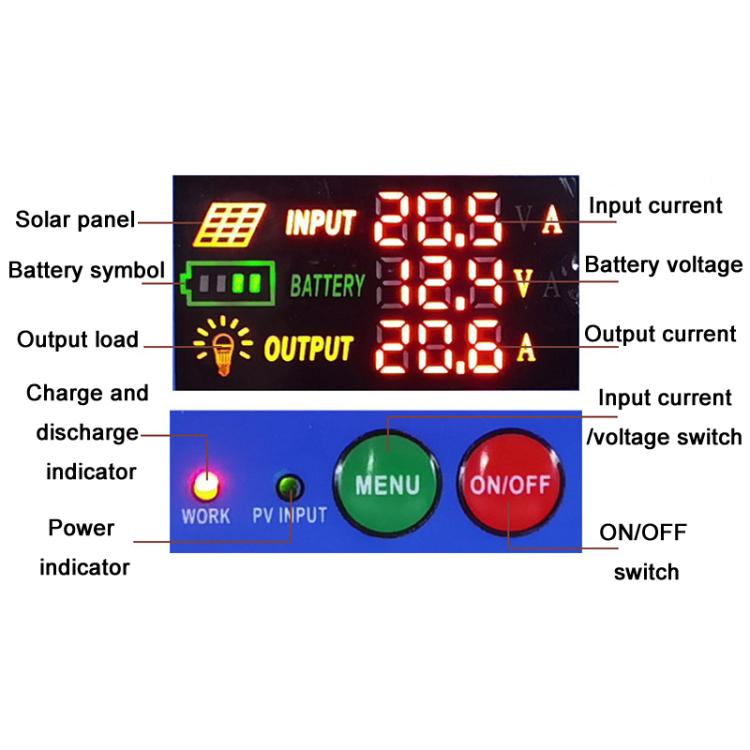

• Key feature: Color screen display
• Color/Variant: N/A
• Intended use: Solar energy management
• Category: Solar Power

-Safe use recommendations:1. This controller is a 12V-24V general-purpose controller, when installing for the first time, please make sure the battery has enough voltage so that the controller can work normally2. Install the controller as close to the battery as possible to avoid the voltage drop caused by long wires, affecting the normal voltage judgment3. This controller is suitable for all kinds of lead-acid batteries (including open, sealed, gel, etc.), lithium ternary batteries, lithium iron phosphate batteries, the use of which need to be set up can be4. This controller can only use photovoltaic panels as a charging source, please do not use DC or other power sources as a charging source5. The controller will be hot when running, please note that the controller will be installed on a flat, well-ventilated surface-Technical parameters:1. System voltage: 12V/24V automatic adaptation2. USB output: 2-channel USB output, 5V/2A (max)3. Standby current: less than 10mA4. Operating temperature: -35- 60 degrees Celsius5. Weight: about 290g6. Size: about 18.5 x 9.5 x 4.1cm7. Warm tips: the screen display of the battery voltage will have a little error, please prevail in reality-Features:1. Adopting industrial-grade main control chip2. Large LCD display, adjustable charging and discharging parameters, with power failure memory function3. Complete 3-stage charging management4. Built-in overcurrent, short circuit protection, open circuit protection, reverse connection protection, are self-recovery type, does not damage the controller5. 4-way USB output, the maximum current up to 2A, support for iPhone charging6. Dual MOS anti-backflow circuit, ultra-low heat generation
