DC 6-28V 3A PWM Speed Adjustable Reversible Switch DC Motor Driver Reversing
DC 6-28V 3A PWM Speed Adjustable Reversible Switch DC Motor Driver Reversing
Sale
Sold out
Pre-order
Regular price
R 199.00
Regular price
Sale price
R 199.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description

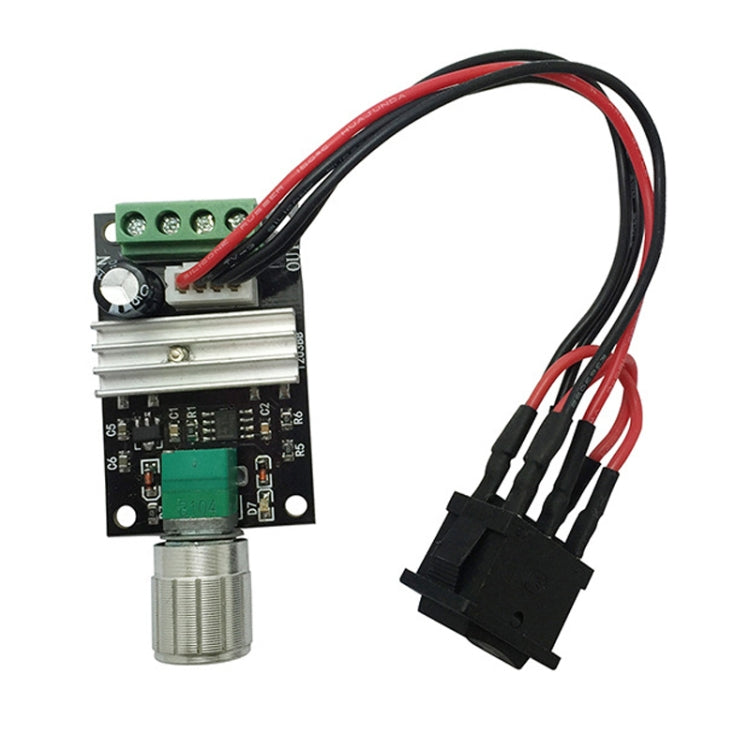

1. The 1203BB DC motor speed regulator controls the speed of the DC motor by adjusting pulse width modulation (PWM). It provides 3A of continuous current to your DC motor or other DC load.
2. The circuit contains a 3A fuse for reverse power supply, and controls the forward, reverse, and stop of the DC motor through a switch.
3. Material: metal
4. Input voltage: DC 6-28V
5. Dimensions: 5 x 3.2 x 1.5cm
6. Weight: 30g
Instructions:
Make sure the power is off before trying to connect the controller.

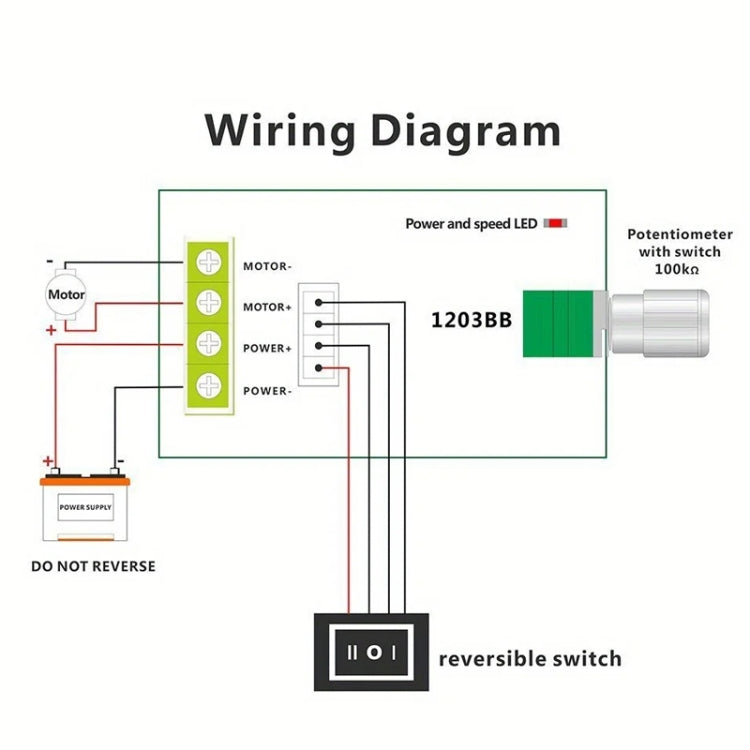

1. Connect the wires according to the wiring diagram.
2. Turn on the power and adjust the potentiometer.
3. LED indicates power on and motor speed.
Warning: Do not connect the positive and negative power supplies reversely. This will damage the controller!
