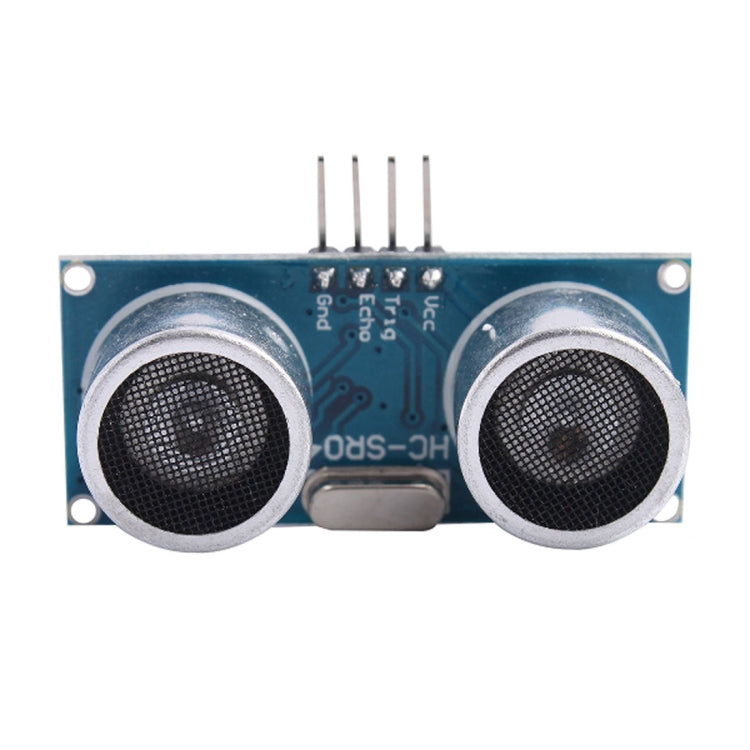

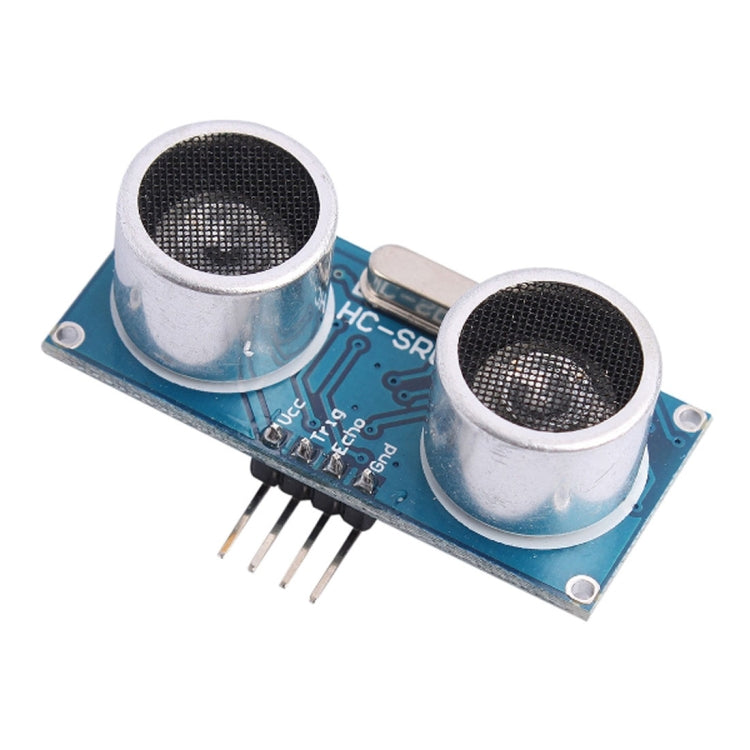

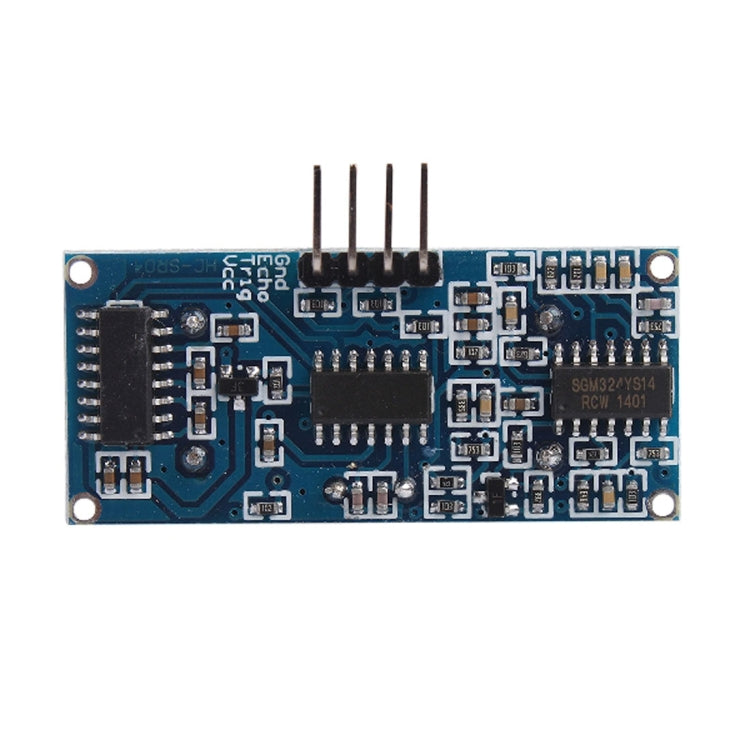

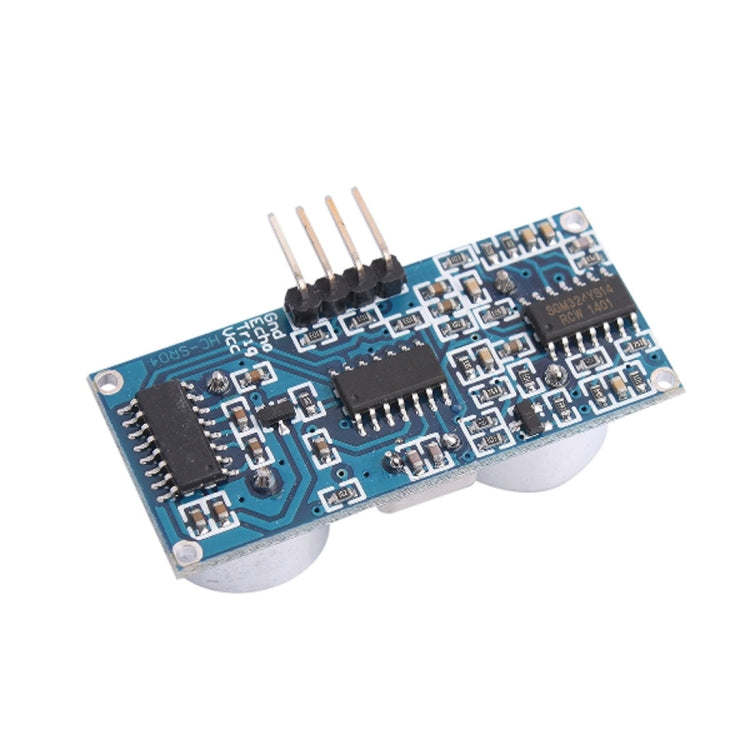

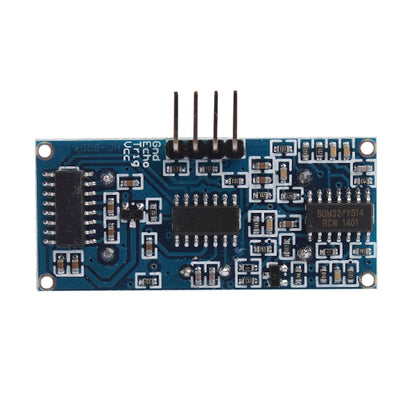

HC-SR04 Ultrasonic Sensor Distance Measuring Module for PICAXE Microcontroller Arduino UNO

HC-SR04 Ultrasonic Sensor Distance Measuring Module for PICAXE Microcontroller Arduino UNO

Regular price R 219.00
Regular price Sale price R 219.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

Quantity

🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

FREE Shipping

FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 business days.

Overseas Warehouse: Shipping from China.

Duties and Taxes

  • For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
  • For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.

Return Guaranteed

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Main Features:
1. Brand new Ultrasonic Sensor HC-SR04 Distance Measuring Module
2. Features 4-mode connections: VCC / trig (T) / echo(R) / GND
3. With electric frequency output signal from 0V to 5V
4. Has high precision up to 3mm
5. 5VDC power supply
6. Detecting distance is from 2cm to 450cm

Module Working Principle:
1. Adopt IO trigger through supplying at least 10us sequence of high level signal
2. The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal
3. If there is signal returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving
