Original 240W Charging Manager for DJI Matrice 4D Series

• Product type: Other
• Brand: DJI
• Compatibility: DJI Matrice 4D series batteries
• Material: Not specified
• Key feature: Supports standard and standby mode charging
• Color/Variant: Not specified
• Intended use: Charging manager for batteries
• Category: Other Accessories

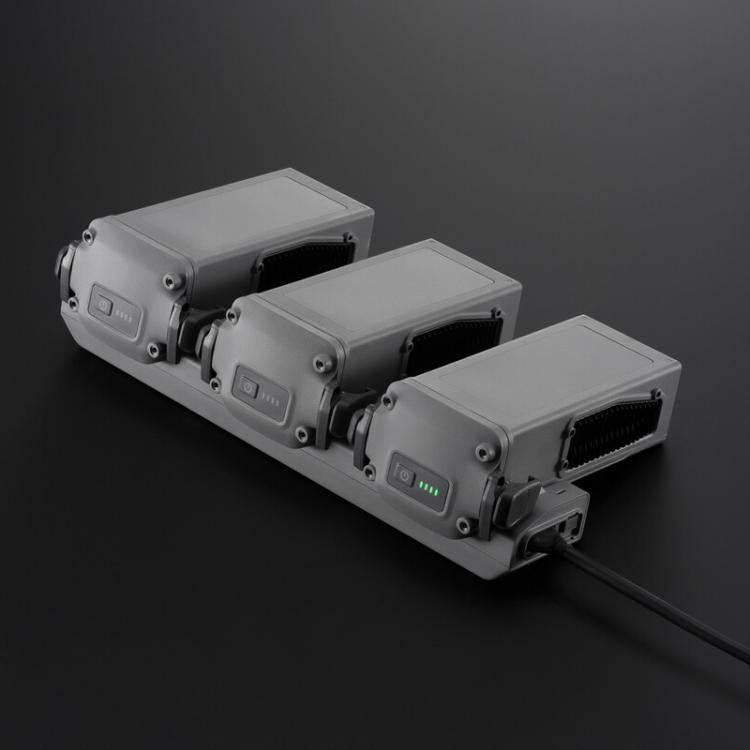

1. When used with a 240W desktop charger or DJI Power 1000 outdoor power supply, it can simultaneously connect three Matrice 4D series batteries and charge them sequentially based on their remaining battery levels.
2. Supports standard mode and standby mode charging. Standard mode charges each battery sequentially to 100%; standby mode charges each battery sequentially to 90% and maintains that charge level for quick use.
3. Product model: CHX230-240.
4. Applicable power adapter: DJI 240W desktop charger.
5. Applicable battery model: BPX230-6768-22.146.
6. Operating temperature: 5 - 40 degrees Celsius.
7. Input: 16.8-25.5 volts, maximum 12.1 amps.

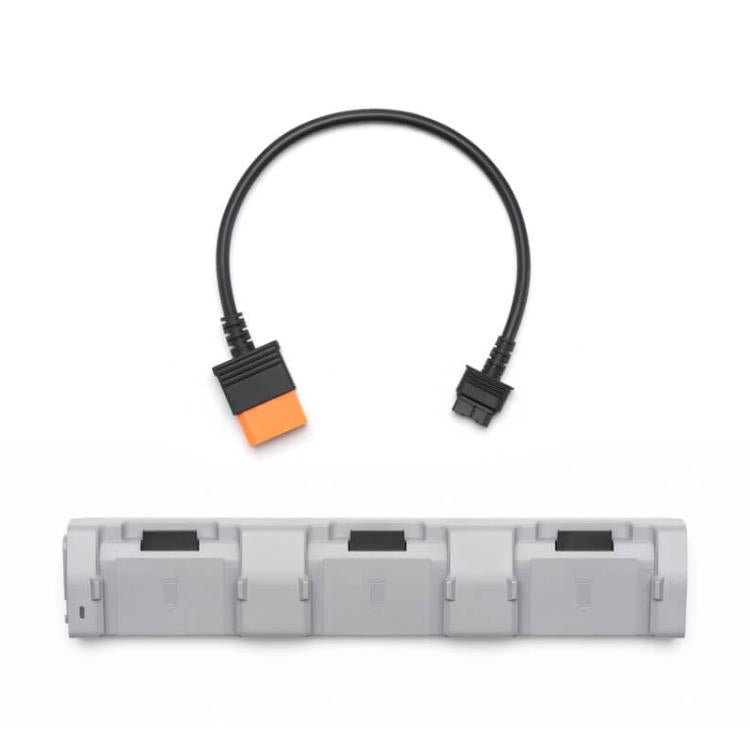

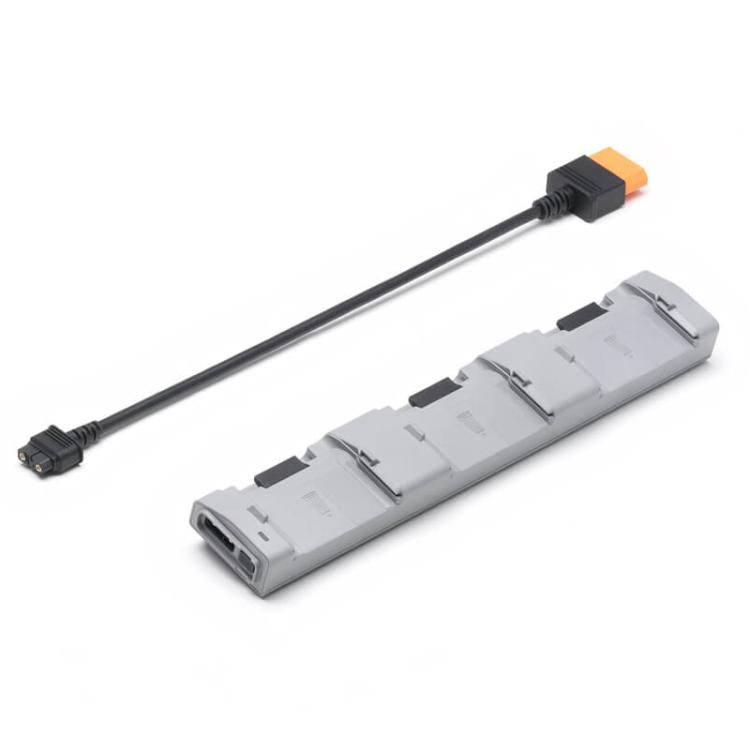

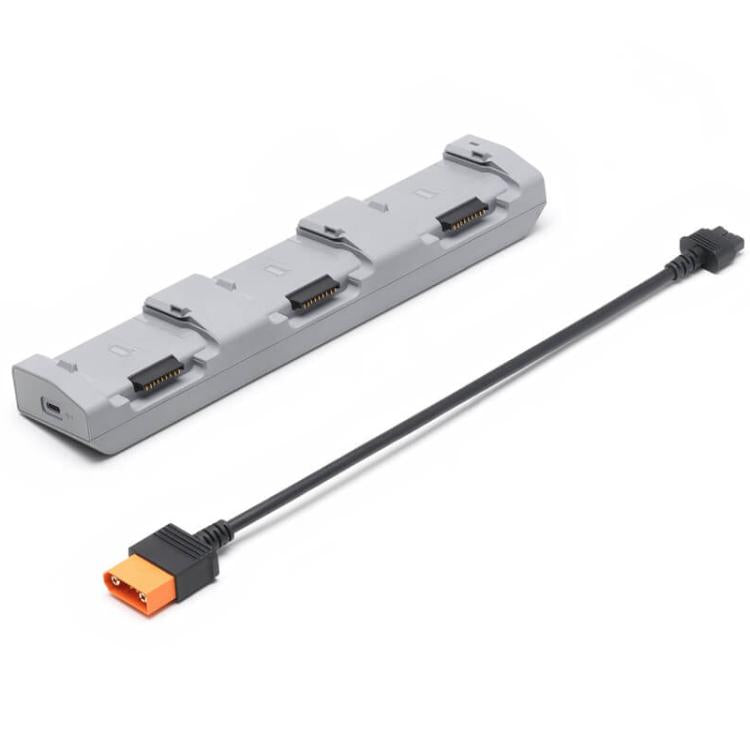

8. Package contents: Charging Manager x 1, SDC Fast Charging Cable x 1.

Important notes:
1. When using the Charging Manager to charge the battery, please use the DJI 240W Desktop Charger to power the Charging Manager.
2. The Charging Manager is only compatible with DJI Matrice 4D series batteries for intelligent flight battery charging. Do not use the Charging Manager to charge batteries of other models.
3. When using the Charging Manager, place it on a stable surface and ensure proper insulation and fire prevention.
4. Do not touch the metal terminals with your hands or other objects. If foreign objects are attached to the metal terminals, wipe them clean with a dry cloth.
