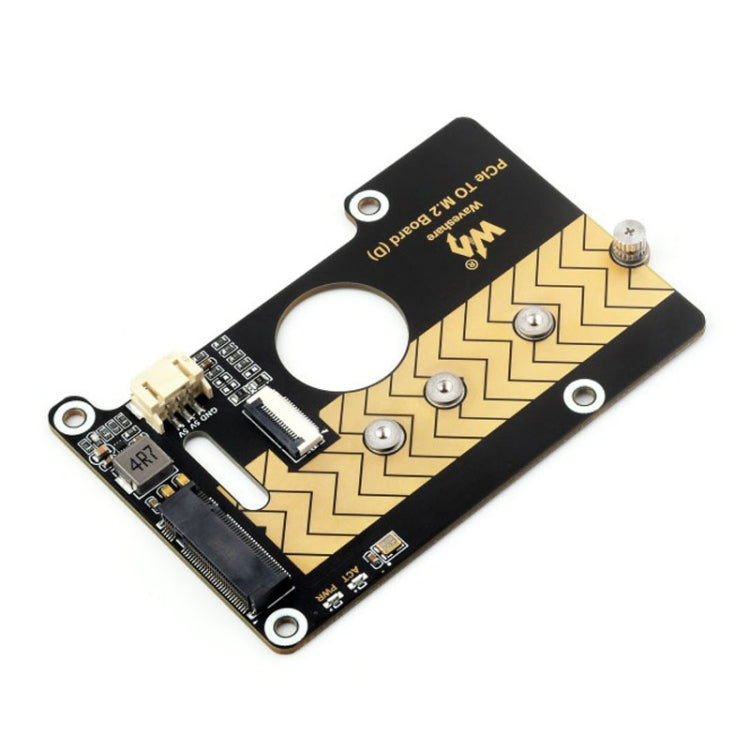

Waveshare For Raspberry Pi 5 PCIe To M.2 Adapter Board Support NVMe Protocol(27709)

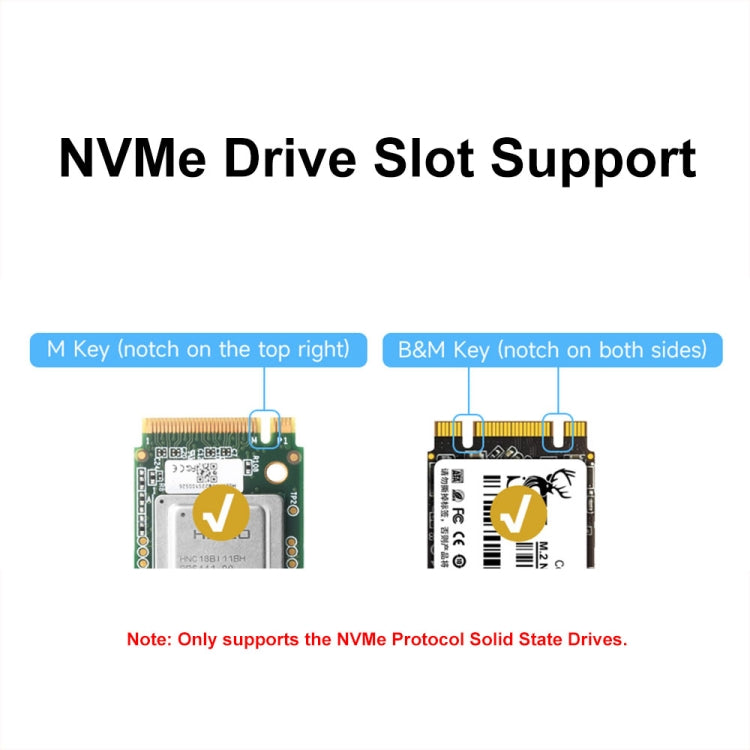

1. Support NVMe protocol M.2 interface hard disk, high-speed reading and writing, improve work efficiency

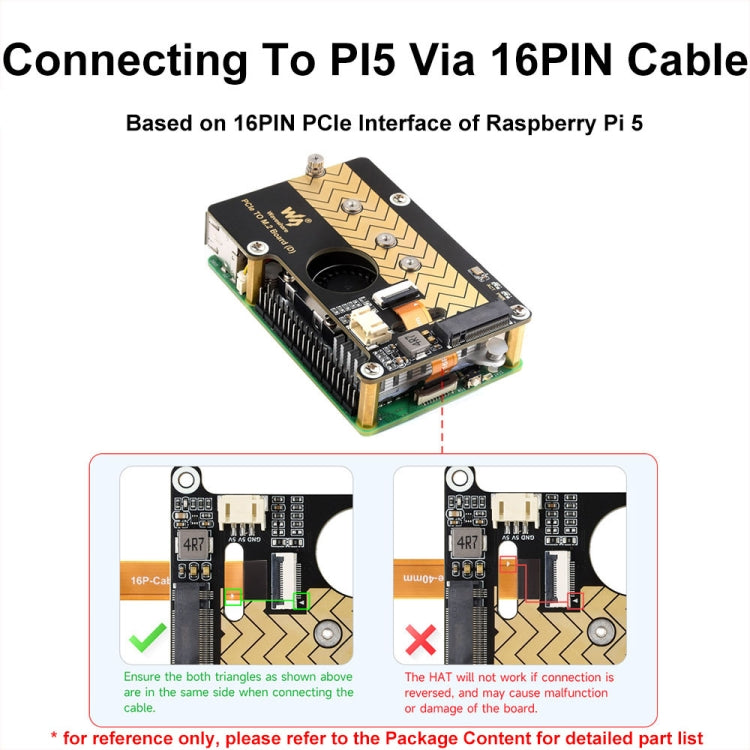

2. Based on the 16-pin PCle interface design of Raspberry Pi 5, retain the fan vents and Raspberry Pi 40pin GPIO interface position

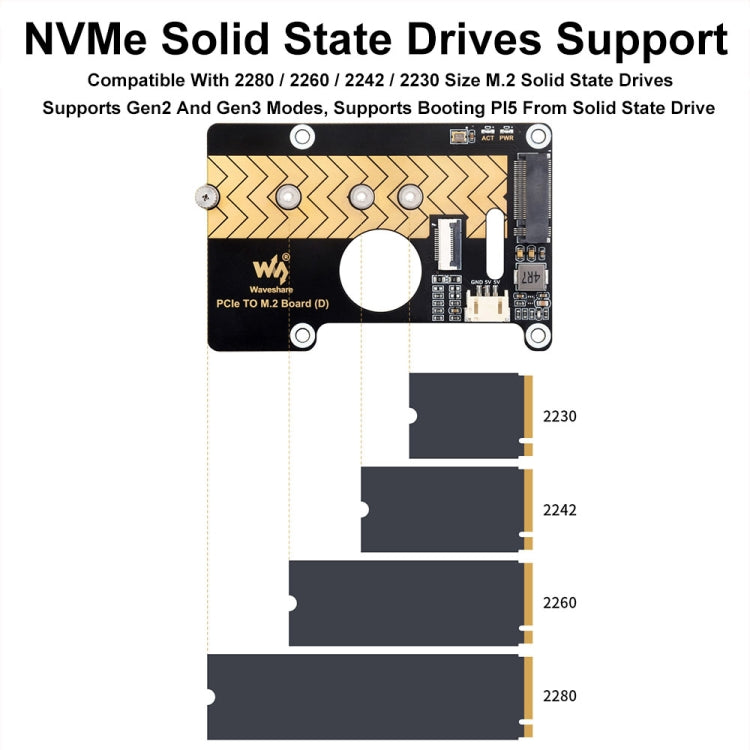

3. Compatible with 2280/2260/2242/2230 size M.2 hard disks
4. Support Gen2 and Gen3 modes, support booting PI5 from SSD

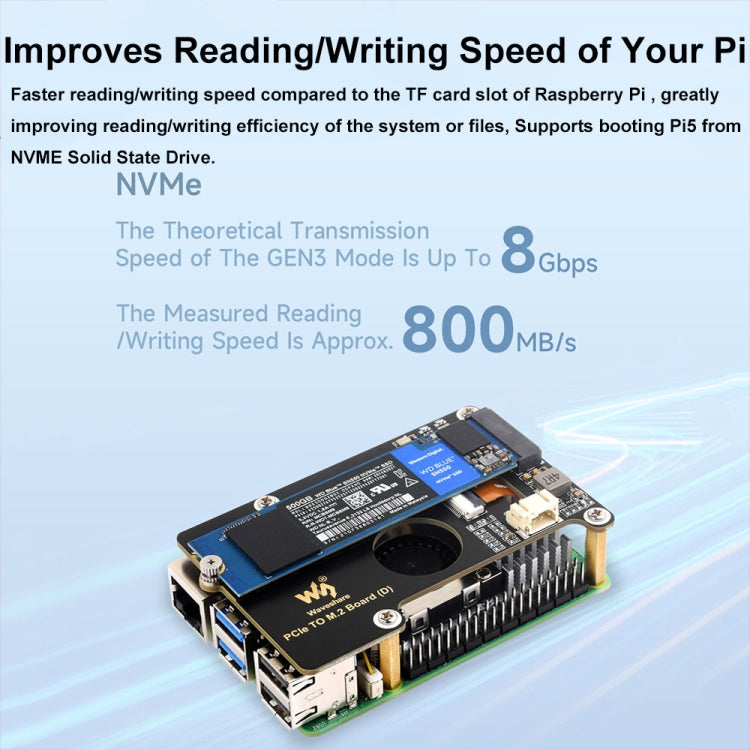

5. Compared with the Micro SD interface of Raspberry Pi, it has faster reading and writing speeds, greatly improves the reading and writing speed of the system or files, and supports NVMe SSD to boot Raspberry Pi
6. Support PCIe cable power supply or 3PIN cable power supply
7. Onboard dual LED indicator, the device status is clear at a glance
8. Application field: specially designed for Raspberry Pi 5

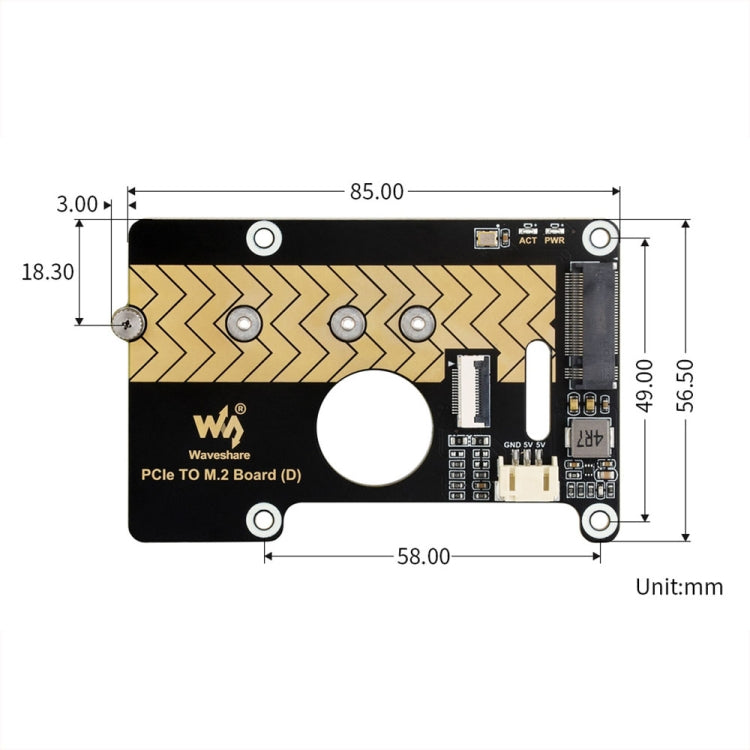

9. Product size: 85 x 49mm
10. Weight: 32 grams

Packing list:
-Adapter board x 1
-Cable x 1
-Screw bag x 1
