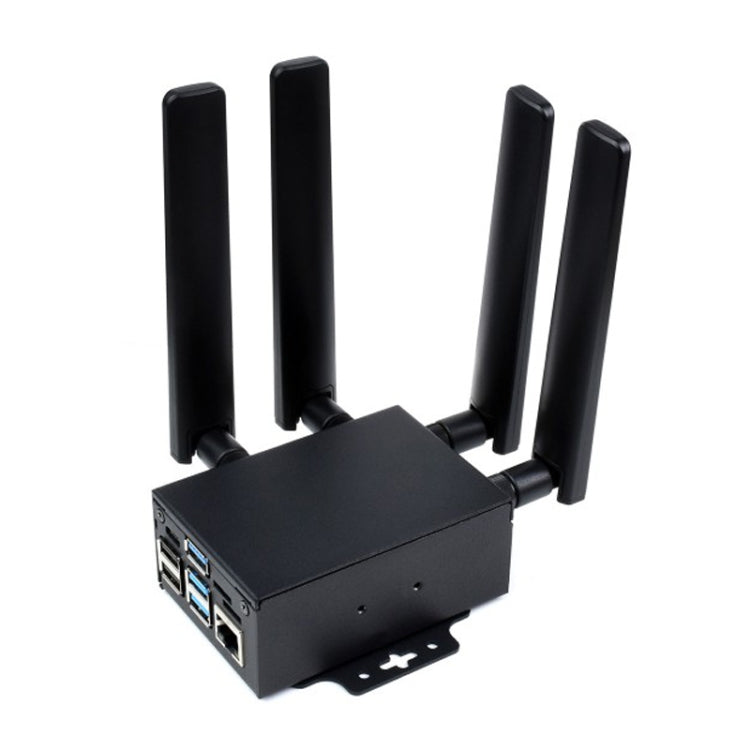

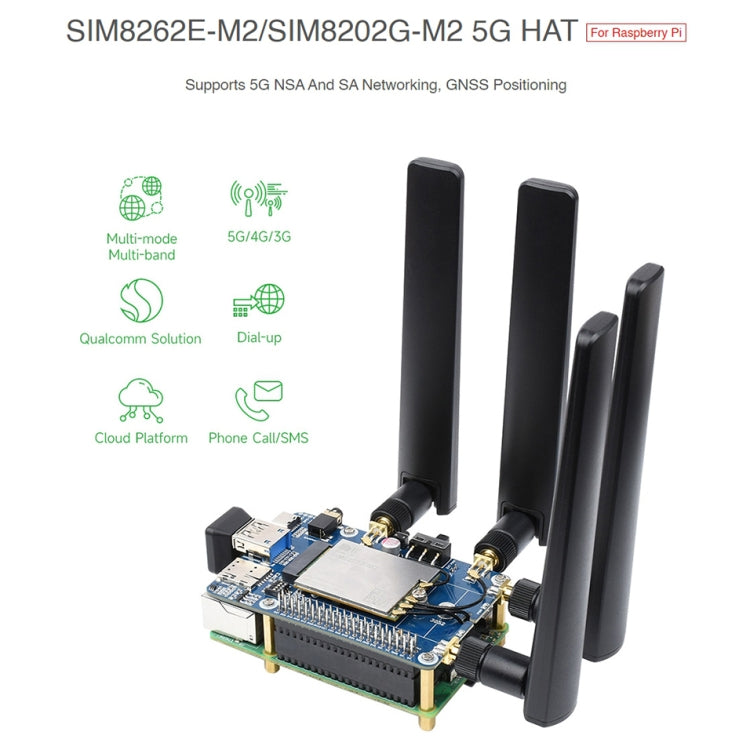

Waveshare SIM8262E-M2/SIM8202G-M2 5G HAT Multi-band For Raspberry Pi
Waveshare SIM8262E-M2/SIM8202G-M2 5G HAT Multi-band For Raspberry Pi
Sale
Sold out
Pre-order
Regular price
R 5,419.00
Regular price
Sale price
R 5,419.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
⚠️ Import Notice: Import duties and taxes may apply. You'll be responsible for any customs charges.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Mini PC Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Multi-band 5G support
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
1. Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
3. Operating system support: Windows/Linux/Android
4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
5. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
7. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable and flexible power supply
8. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
9. 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2x SIM card slot, dual card single standby, switchable via AT command
11. Onboard audio jack and audio decoder, allows audio operation like making phone call
12. High efficiency power supply circuit, up to 3A output current
• Brand: WAVESHARE
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Multi-band 5G support
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
1. Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
3. Operating system support: Windows/Linux/Android
4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
5. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
7. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable and flexible power supply
8. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
9. 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2x SIM card slot, dual card single standby, switchable via AT command
11. Onboard audio jack and audio decoder, allows audio operation like making phone call
12. High efficiency power supply circuit, up to 3A output current
