Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car
Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Package: Step-down module
2. Power: Standard
3. Size: 20*11*5 mm
4. Input voltage: DC 4.5-24V

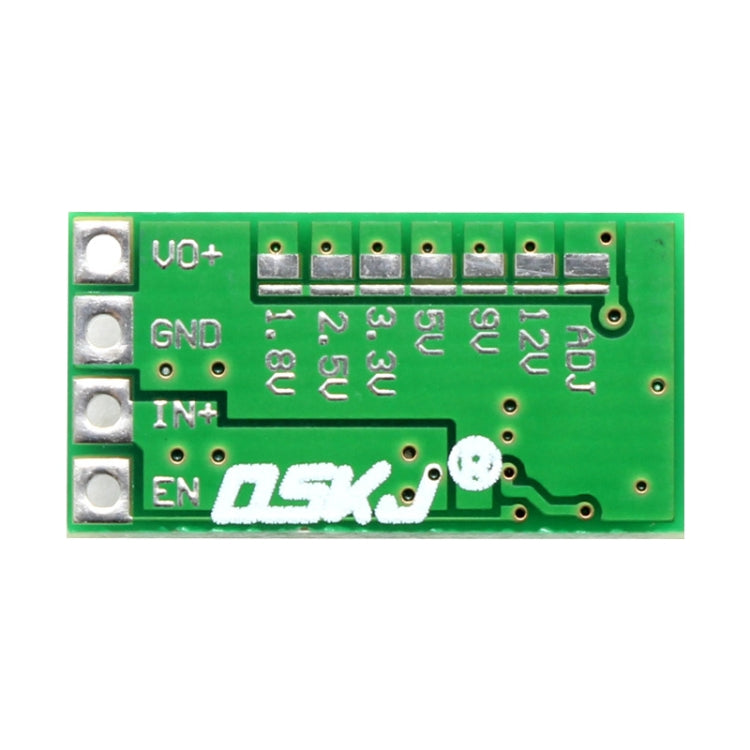

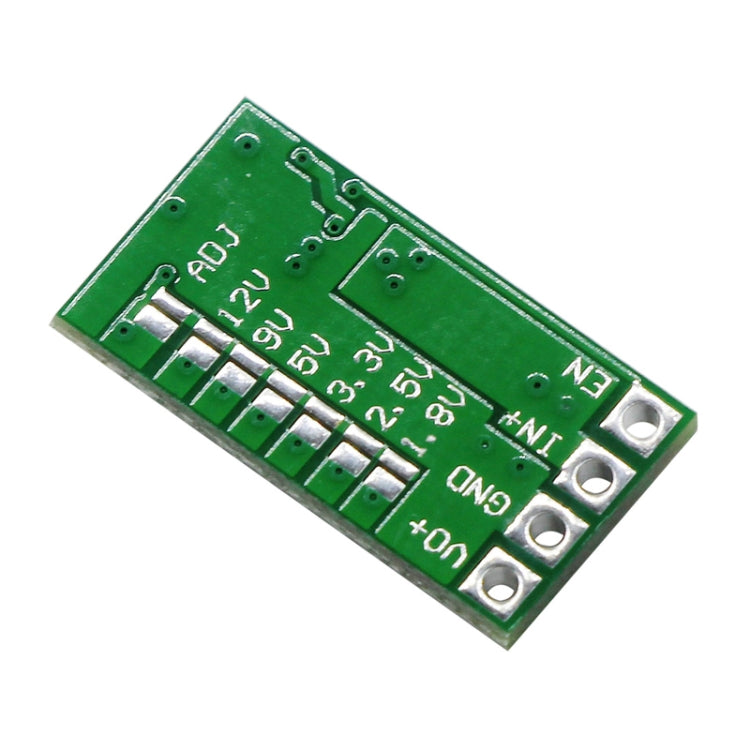

5. Output voltage: integrated adjustable and fixed output, fixed output voltage on the back
6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
7. Output current: maximum 3A (please pay attention to heat dissipation at full load), the actual test input 12V output within 1.5A without special treatment heat dissipation.
8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
9. Switching frequency: 500KHz
10. Output ripple: 20mV (12V to 5V3A) 20M bandwidth
11. Wiring method: welding
12. Input method: welding
13. Output method: welding / pin header
14. Welding hole spacing: 2.54 mm
15. Output over voltage protection: none
16. Full load temperature rise: 40 ° C
17. Quiescent current: 0.85 mA
18. Load adjustment rate: ±1%
19. Voltage regulation rate: ±0.5%
20. Dynamic response speed: 5% 200uS
