Description

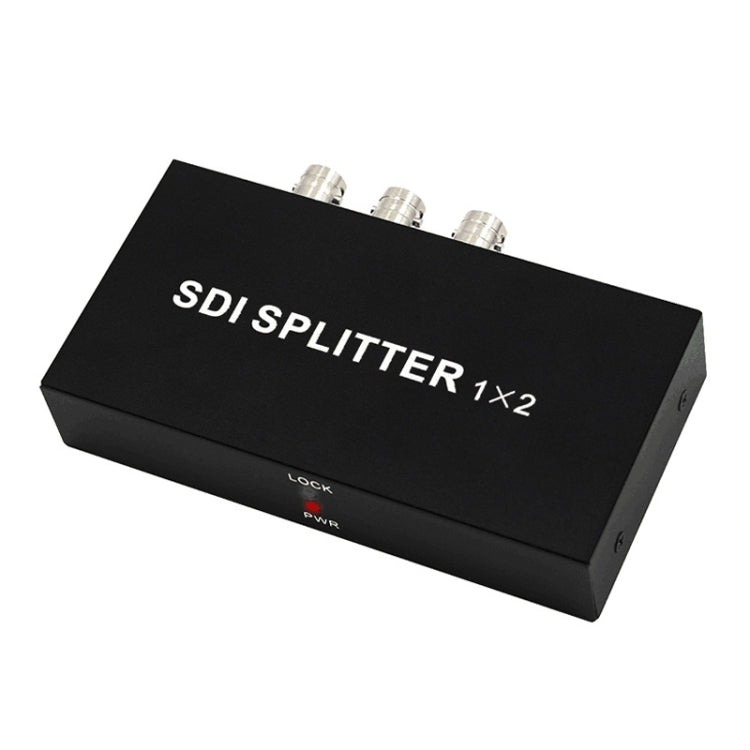

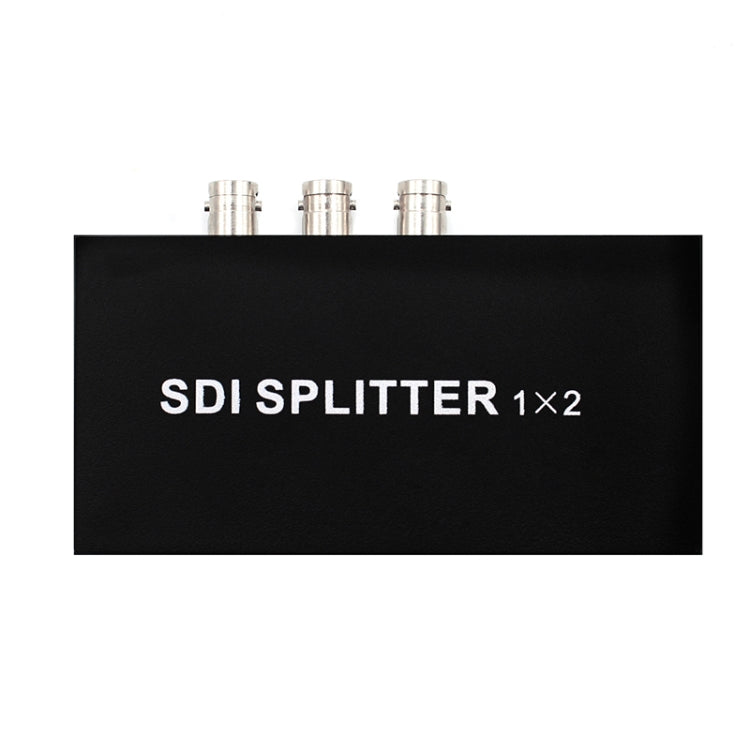

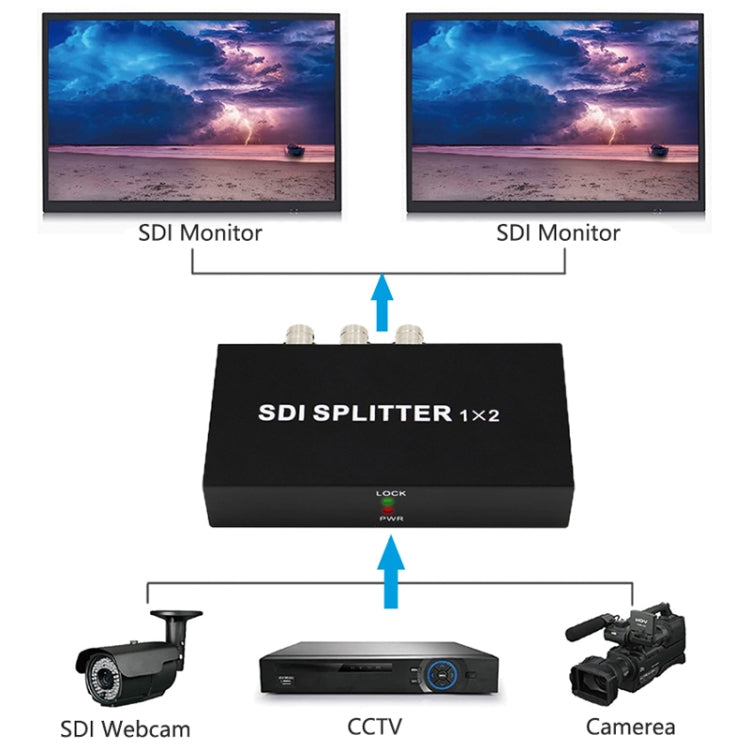

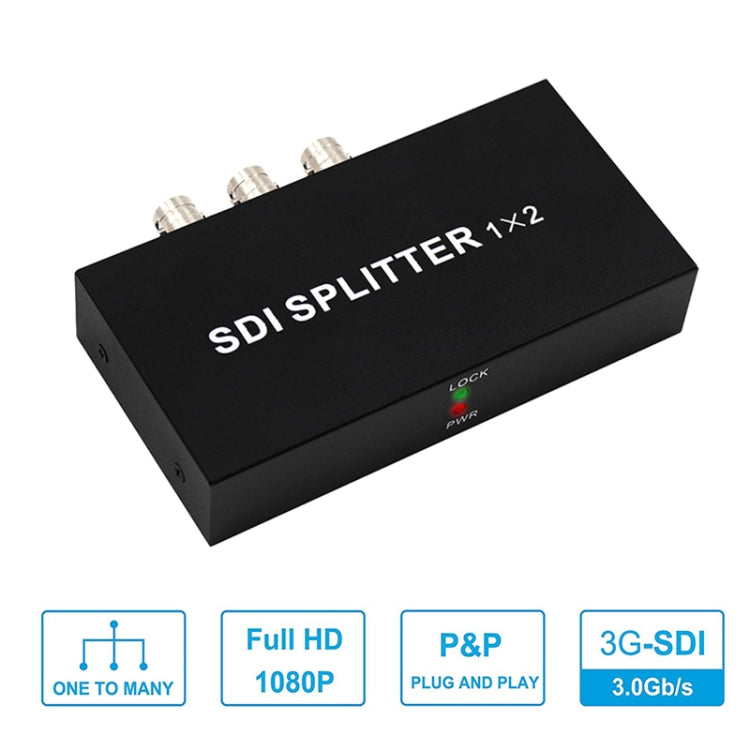

The 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter is designed to distribute SDI signals to multiple outputs. It is suitable for connecting SDI sources to multiple display devices while maintaining signal integrity over long distances.
- SDI output interfaces: BNC SDI x2, SDI x4, SDI x8
- SDI standard compatibility: SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- SDI signal formats supported: SD-SDI, HD-SDI, 3G-SDI
- Supported SDI rates: 143-2970 MB/s
- SDI impedance: 75 ohms
- Supported resolutions: 480i 60Hz, 576i 50Hz, 720P 50Hz, 720P 60Hz, 1080i 50Hz, 1080i 60Hz, 1080P 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
- SDI signal output amplitude: 800 mVp-p

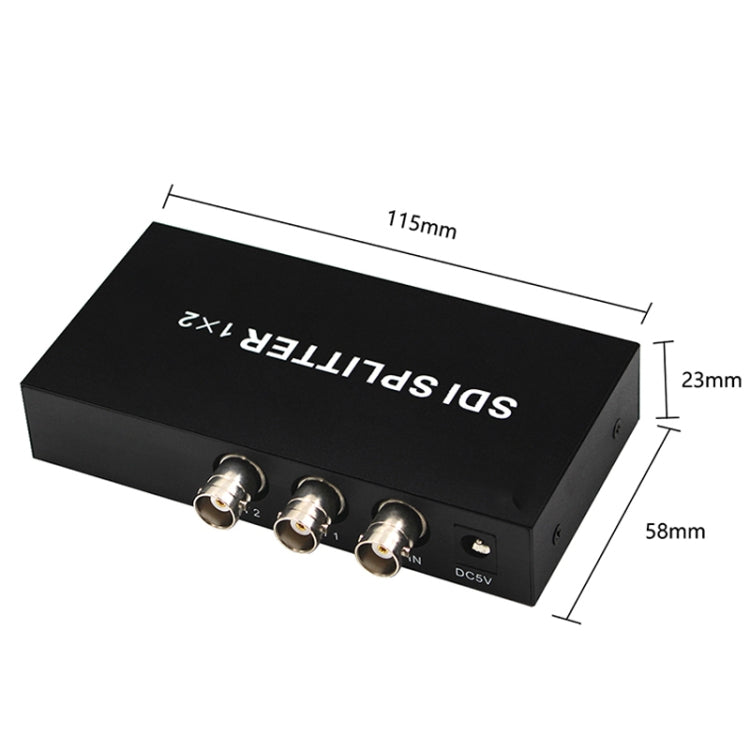

- Dimensions: 115 mm x 58 mm x 23 mm

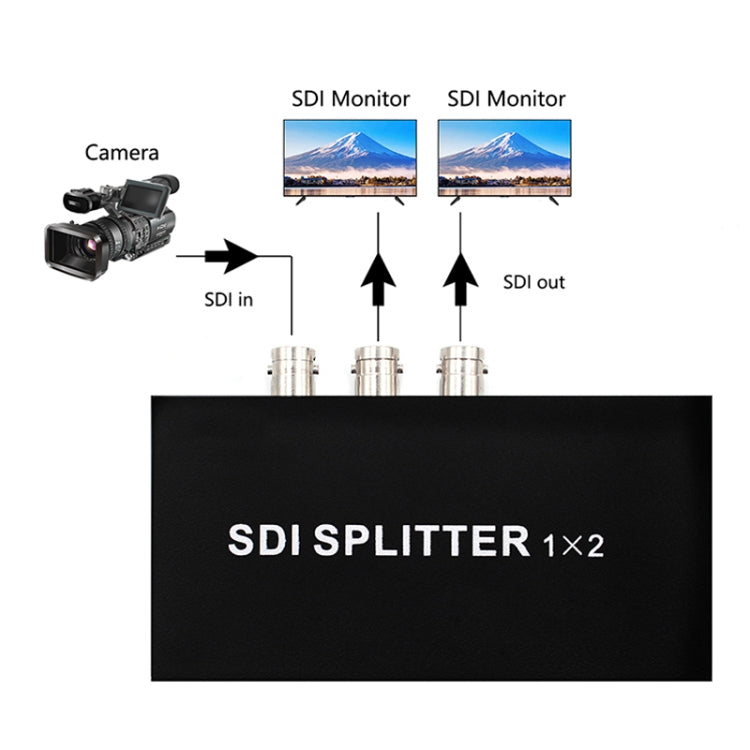

- Installation steps: Connect SDI input to signal source, connect SDI output to display devices, power on the unit
- SDI distribution function: Supports SD-SDI (270 Mbps), HD-SDI (1.485 Gbps), 3G-SDI (2.97 Gbps) video formats
- Extension function: Supports cable lengths up to Belden-1694A; SDI input/output distances: SD - 400m, HD - 200m, 3G - 100m (theoretical values)
- Voltage input: DC 5V - 36V, power consumption up to 2W

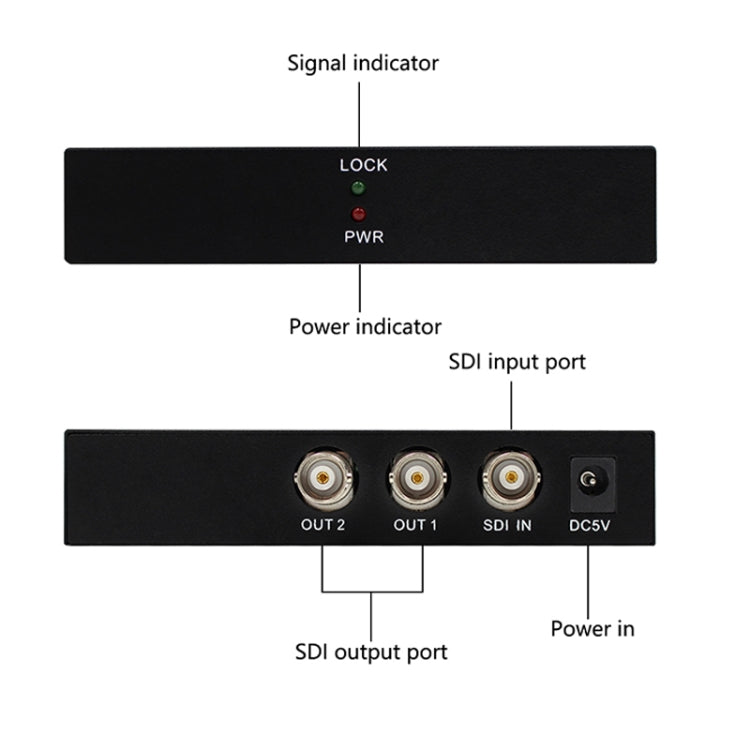

- Intelligent design: Pure hardware processing, plug and play, automatic detection of SDI signals with LED indicator feedback
