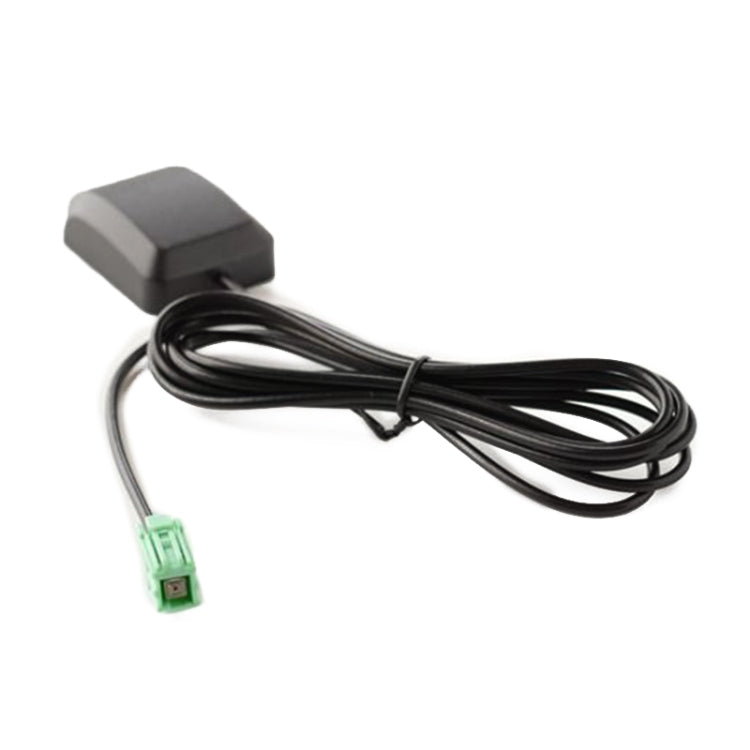

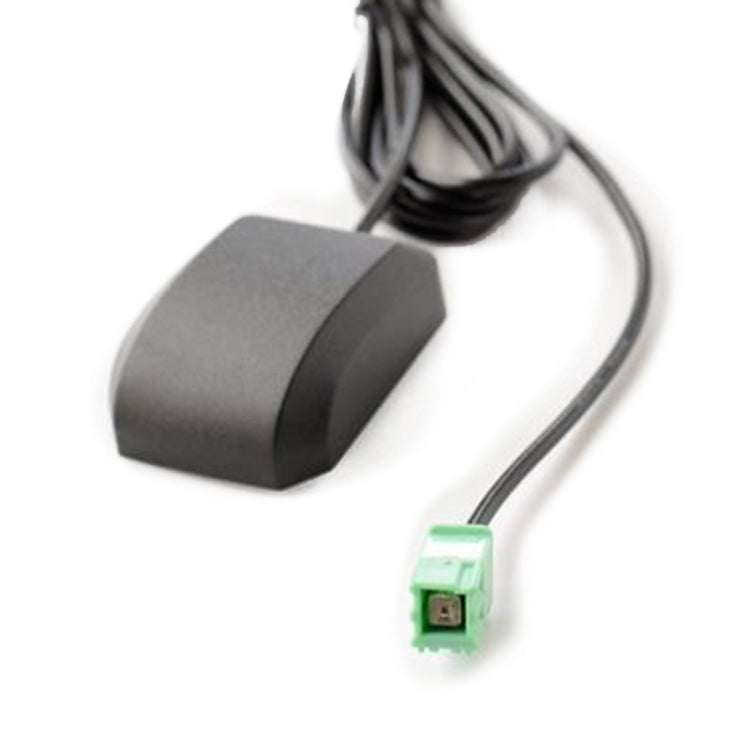

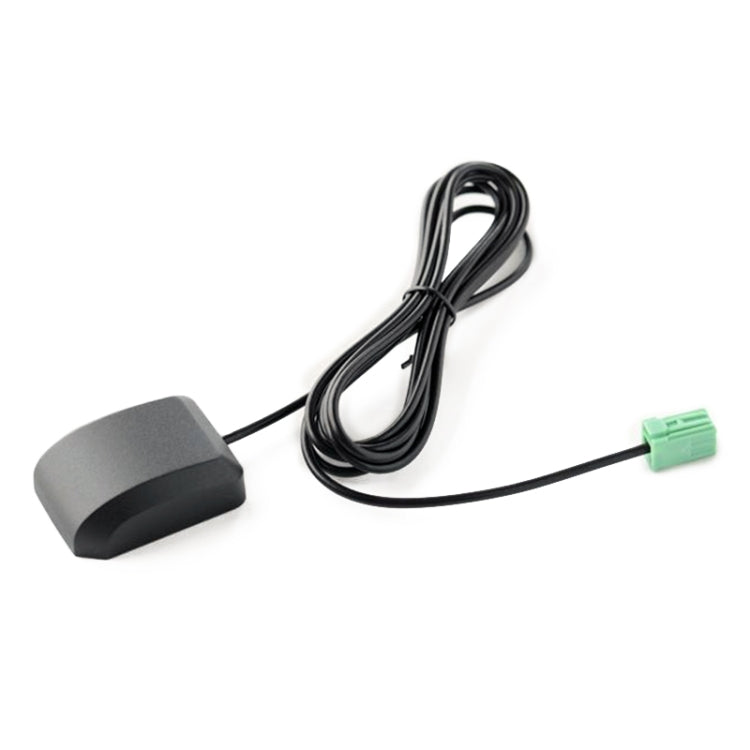

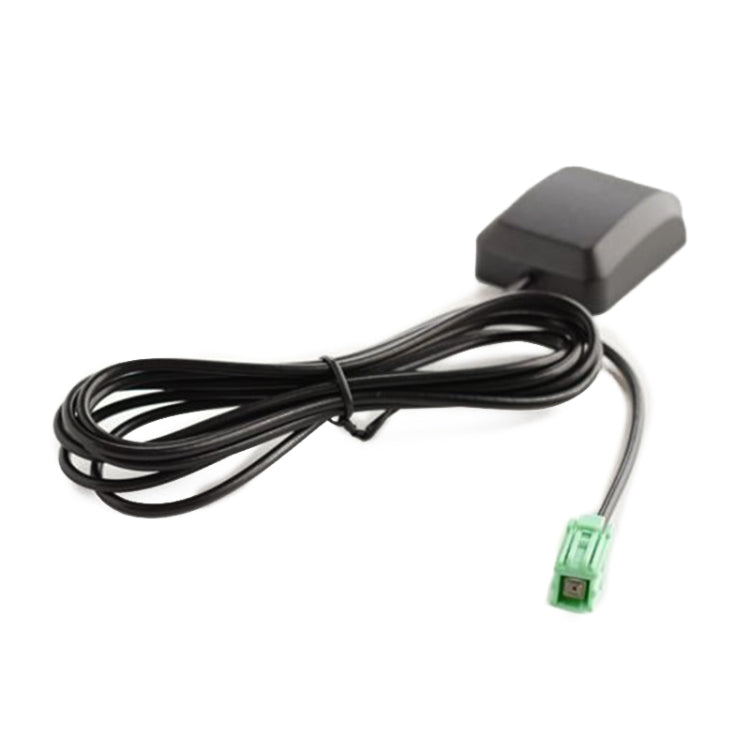

Car GPS Antenna KD51-66-DY0A KD5166DY0A for Mazda 6 CX-5
Car GPS Antenna KD51-66-DY0A KD5166DY0A for Mazda 6 CX-5
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R89.8/mo 3 months
- R45.41/mo 6 months
- R23.97/mo 12 months
- From R89.8/month over 3 months, or as low as R23.97/month over 12. Total repayable over 12 months: R287.64. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
Car GPS Antenna KD51-66-DY0A KD5166DY0A is designed to enhance GPS signal reception. It is suitable for various Mazda models, improving navigation accuracy during travel.
- Type: Car GPS Antenna
- Model: KD51-66-DY0A KD5166DY0A
- Active Gain: Yes
- Built-in Low Noise Amplifier: Yes
- Magnetic Base: Yes
- Center Frequency: 1575.42 MHz ± 3 MHz
- V.S.W.R: 1.5:1
- Bandwidth: ± 5 MHz
- Impedance: 50 ohm
- Peak Gain: > 3 dBic (based on 7x7 cm ground plane)
- Gain Coverage: > -4 dBic at ± 90 degrees, < 0, > +90 degrees (over 75% Volume)
- Polarization: RHCP
- LNA/Filter: Yes
- LNA Gain (without cable): 28 dB (typical)
- Noise Figure: 1.5 dB
- Filter Out Band Attenuation: 7 dB min at f0=1575.42 MHz, 20 dB min at f0±20 MHz, 30 dB min at f0±50 MHz
- V.S.W.R: < 2.0
- DC Voltage: 3V, 5V, 3V to 5V
- DC Current: 5 mA, 10 mA max
- Working Temperature: -40°C to +85°C
- Vibration Sine Sweep: 1g (0-p) 10-50-10 Hz each axis
- Humidity: 95% to 100% RH
- Length: 5 m
- Compatibility: 2013-2015 Mazda 6 and CX-5 models with specified engine types
PMC TechLife is an independent retailer. Any third-party trademarks or brand names mentioned are the property of their respective owners and are used strictly to indicate product compatibility.
