Description

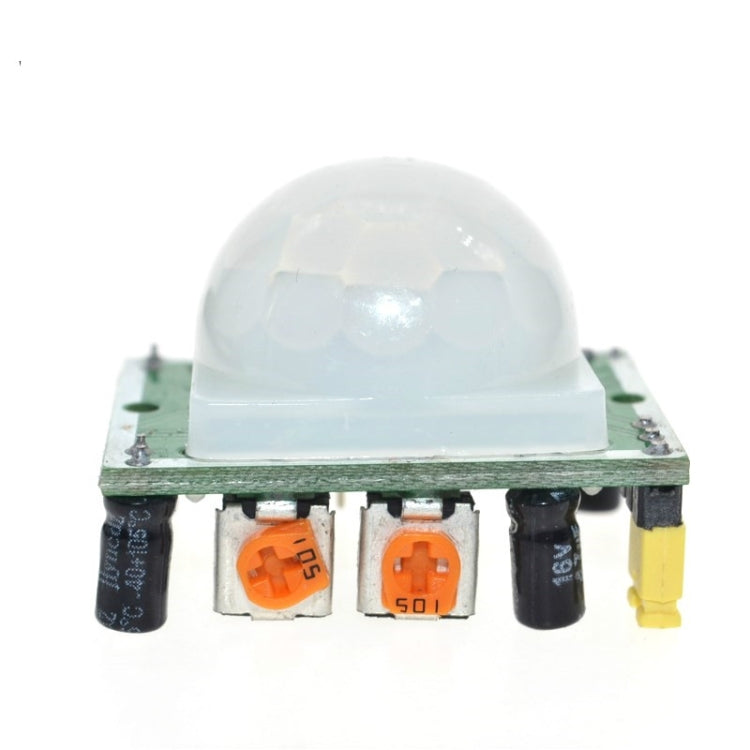

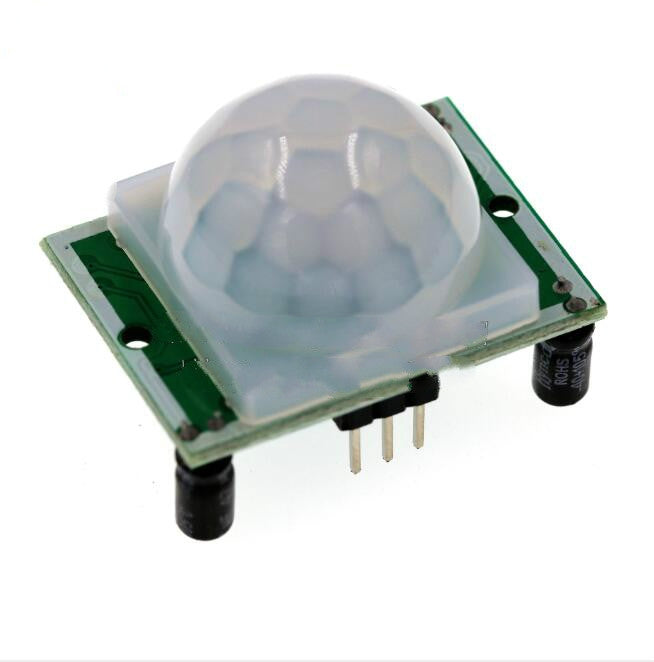

HC-SR501 Module is a human infrared sensor module designed for electronic projects. It detects motion within a 120-degree cone angle up to 7 meters, making it suitable for various applications such as security systems and automation.
- Product Type: Sensor Module
- Compatibility: HC-SR501
- Operating Voltage Range: DC 5-20V
- Static Current: <65uA
- Level Output: 3.3V high / low 0V
- Trigger Mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
- Delay Time: 0.5-200 seconds (adjustable)
- Blocking Time: 0.2 seconds
- Circuit Board Dimensions: 32mm x 24mm
- Sensing Range: <120-degree cone angle, up to 7 meters
- Working Temperature: -15 to +70 degrees Celsius
- Induction Lens Size: Diameter 23mm
