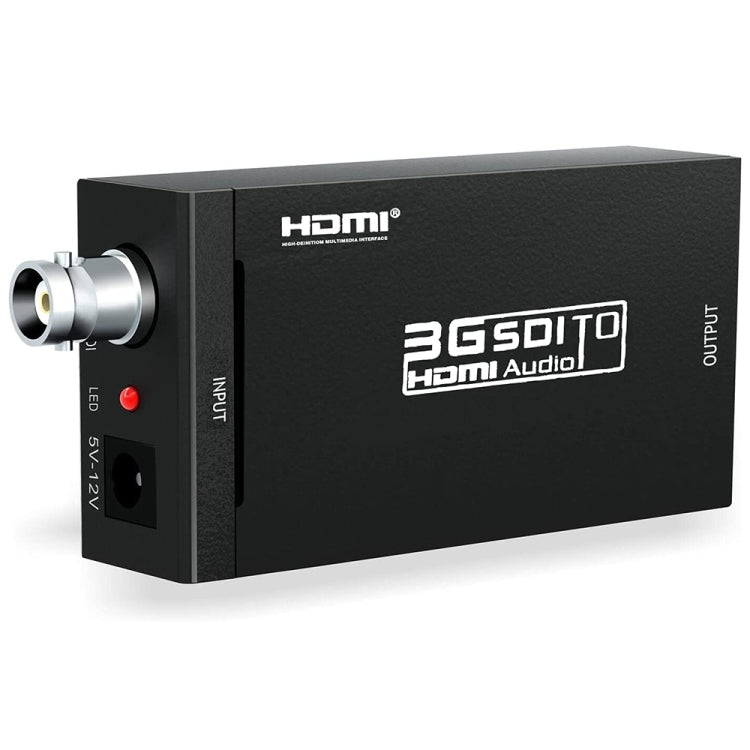

NEWKENG S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI Video Converter

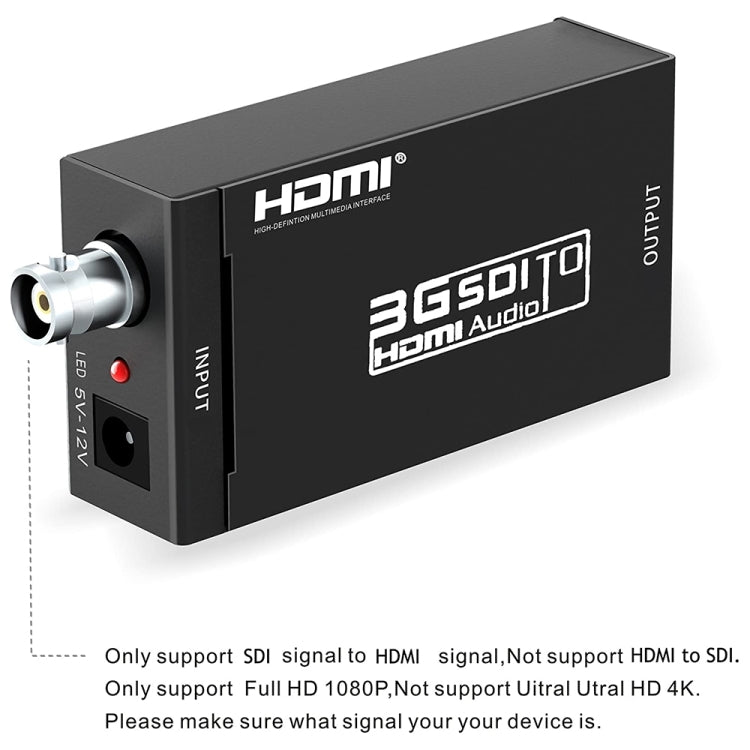

1. Converts SD-SDI / HD-SDI / 3G-SDI video input to HDMI output
2. Supports video format: SD-SDI (270Mb/s) / HD-SDI (1.485Gb/s) / 3G-SDI (2.97Gb/s)
3. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
4. Equalized and re-clocked loop output integrated audio de-embedder for a maximum of 8 channels, 48KHz audio
5. Input / output resolution: 480, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.91/24/25/29.97/30/50/59.94/60Hz

Parameter
1. Video input signal: HD digital component serial interface (HD-SDI and 3G-SDI) signal
2. Video output signal: one HDMI signal output (1080P @ 60Hz)
3. Input audio signal: SDI embedded
4. Maximum working current: 500mA
5. Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output DC 12V / 1A
6. Working temperature: -15-55 degrees celsius
7. Dimensions: 80x 41x25mm
8. Weight: 150g

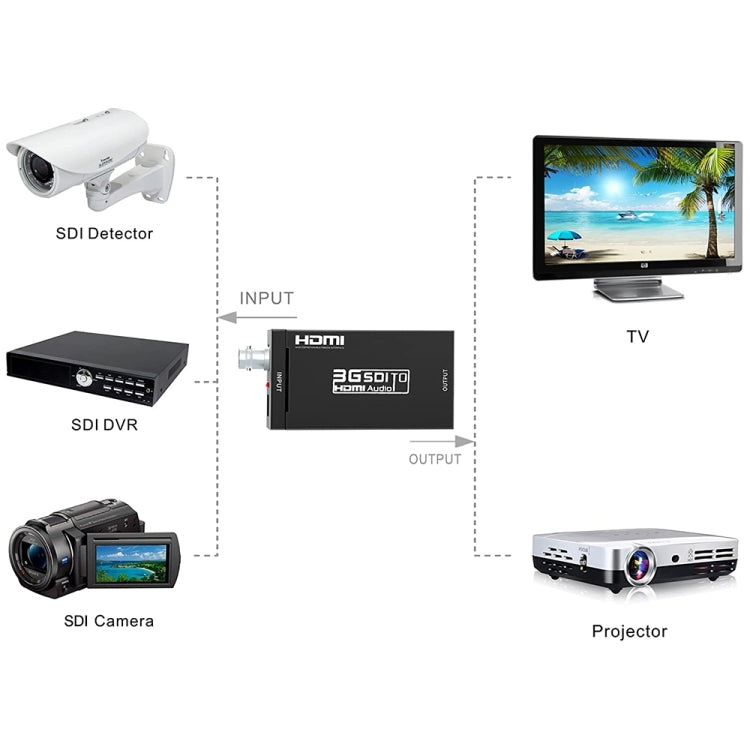

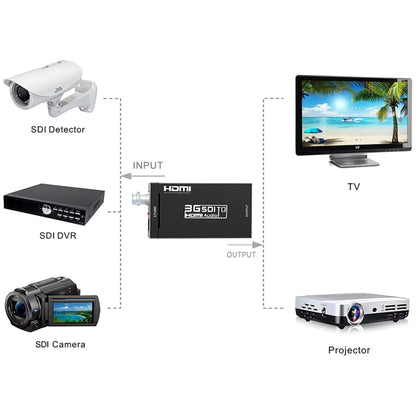

Connection and operation:

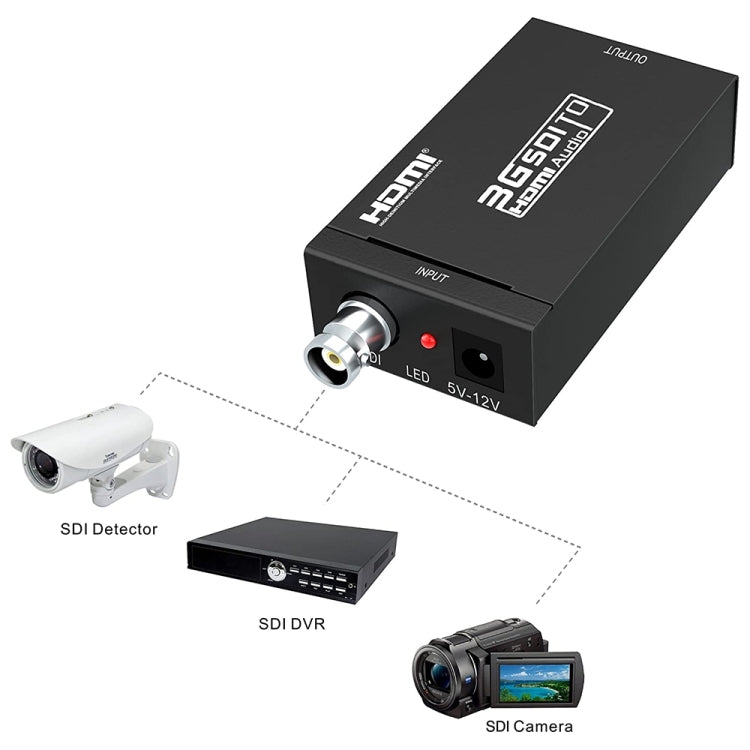

1. Connect the signal source with SDI connector to the SDI connector input of the device

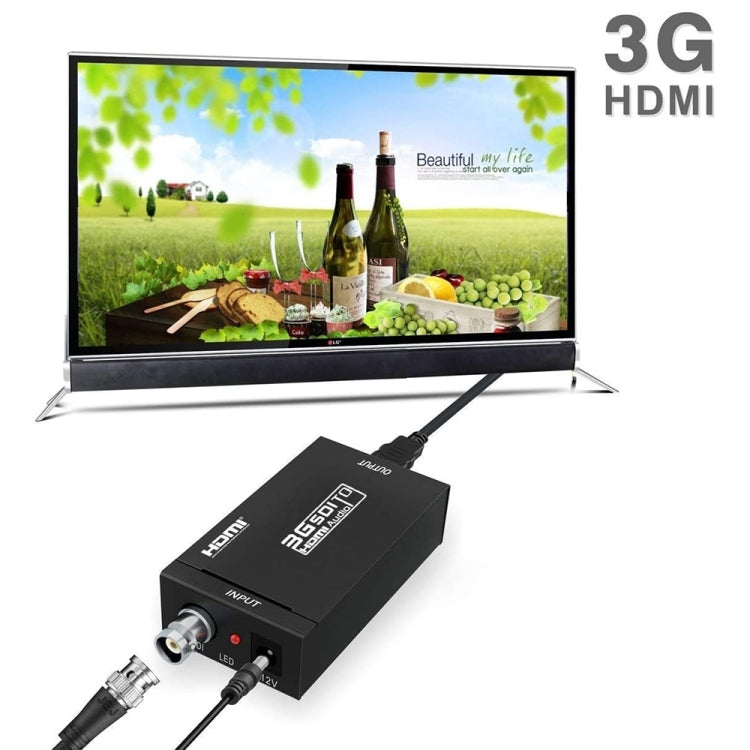

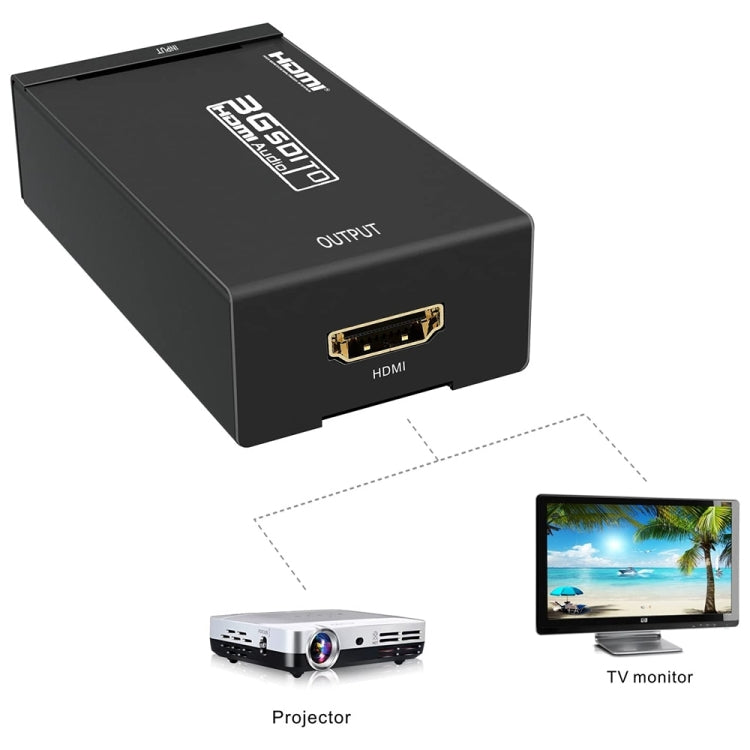

2. Connect the converter output to the terminal display via HDMI cable
3. Connect DC 5V/1A power supply or 12V power supply to the converter
