Description

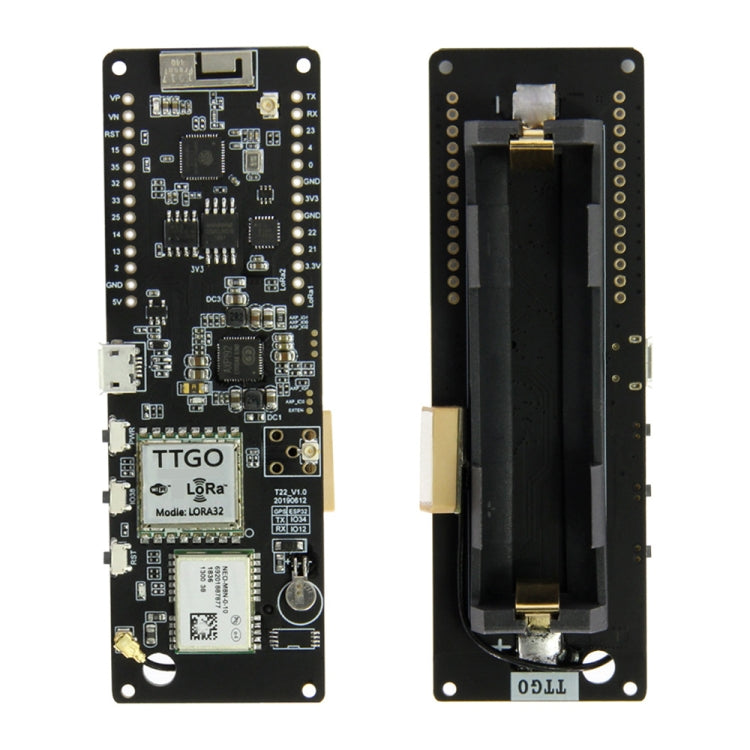

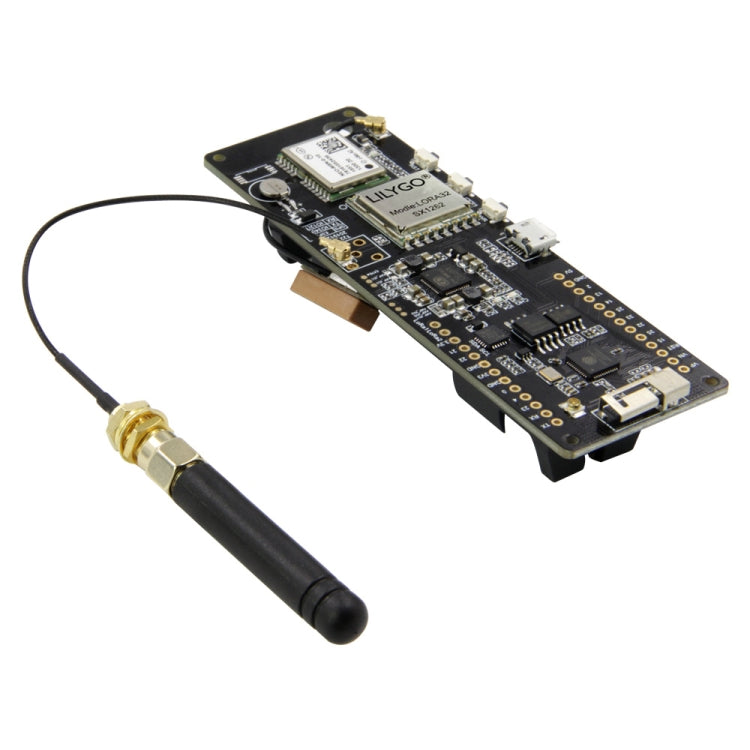

TTGO T-Beam ESP32 Bluetooth WiFi Module is a versatile communication module with GPS capabilities. It is suitable for applications requiring long-range wireless communication and location tracking.
- Model: TTGO T-Beam ESP32
- Version: REV1
- Wi-Fi and Bluetooth connectivity
- Flash memory: 4MB
- PSRAM: 4MB
- Antenna type: 3D antenna
- LORA frequency: 433MHz (SX1278)
- Working voltage: 1.8V to 3.7V
- Acceptable current: 10mA to 14mA
- Emission current: -120mA at +20dBm, -90mA at +17dBm, -29mA at +13dBm
- Receiving sensitivity: -139dBm at LoRa 62.5kHz & SF=12 & 146bps, -136dBm at LoRa 125kHz & SF=12 & 293bps, -118dBm at LoRa 125kHz & SF=6 & 9380bps, -123dBm at FSK 5kHz & 1.2Kbps
- Frequency error: +/- 15kHz
- FIFO space: 64 bytes
- Data rate: 1.2Kbps to 300Kbps at FSK, 0.018Kbps to 37.5Kbps in LoRa
- Modulation modes: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
- Interface: SPI
- Sleep current: 0.2µA in sleep mode, 1.5µA in idle mode
- Operating temperature: -40°C to +85°C
- Digital RSSI function
- Automatic frequency correction
- Automatic gain control
- RF wake-up function
- Low pressure detection and temperature sensor
- Fast wake-up and frequency hopping
- Highly configurable packet handler

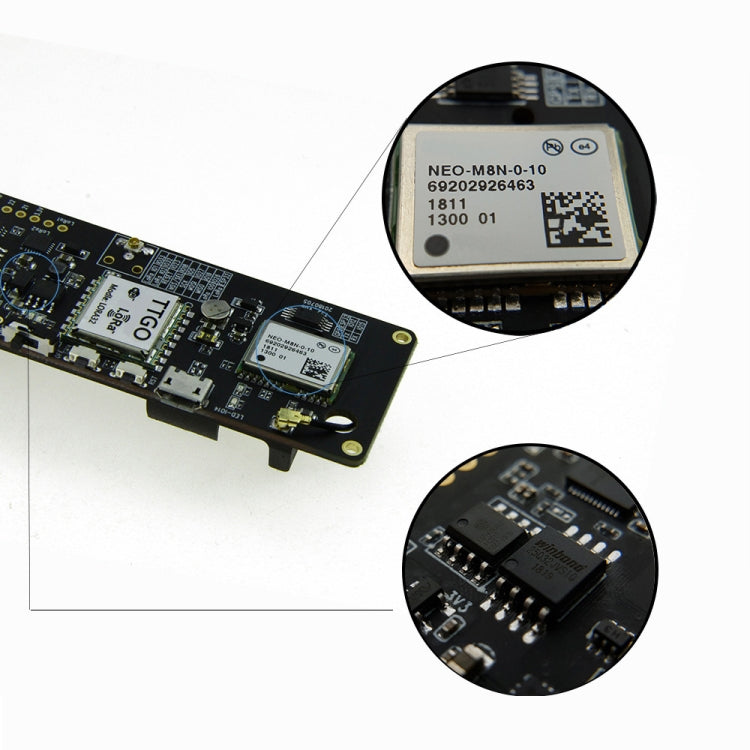

- GPS module: NEO-M8N, 3V-5V power supply compatible
- Ceramic antenna for GPS with strong signal
- EEPROM for saving configuration parameters
- Backup battery for data retention
- LED signal indicator
- Default baud rate: 9600
- Battery management: TP5400, 2A
- LED indicators: 4 LEDs for real-time battery status
- Power button: Single click to start, double tap to turn off
- USB interface
- CP2104-GMR chip
- Pre-flashed firmware: SoftRF V4.0

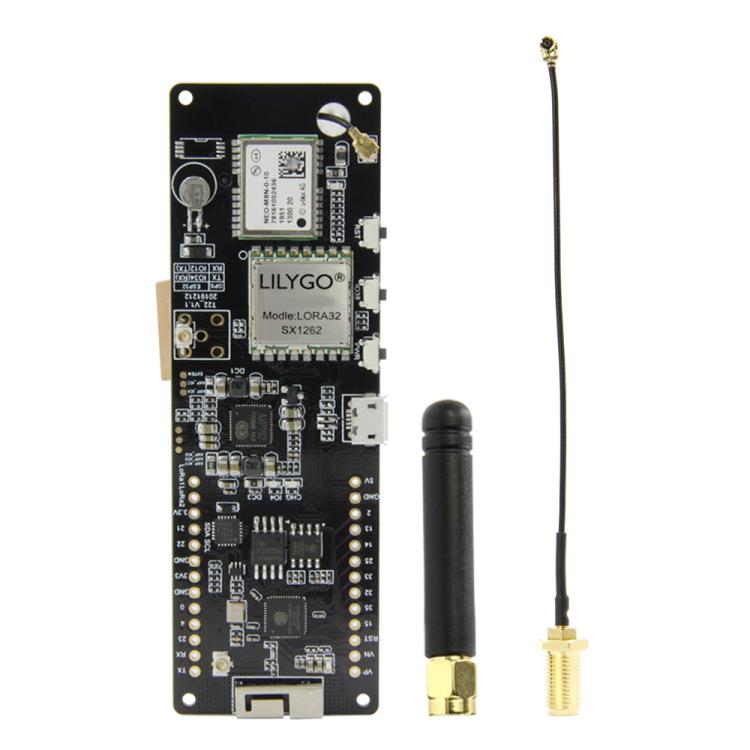

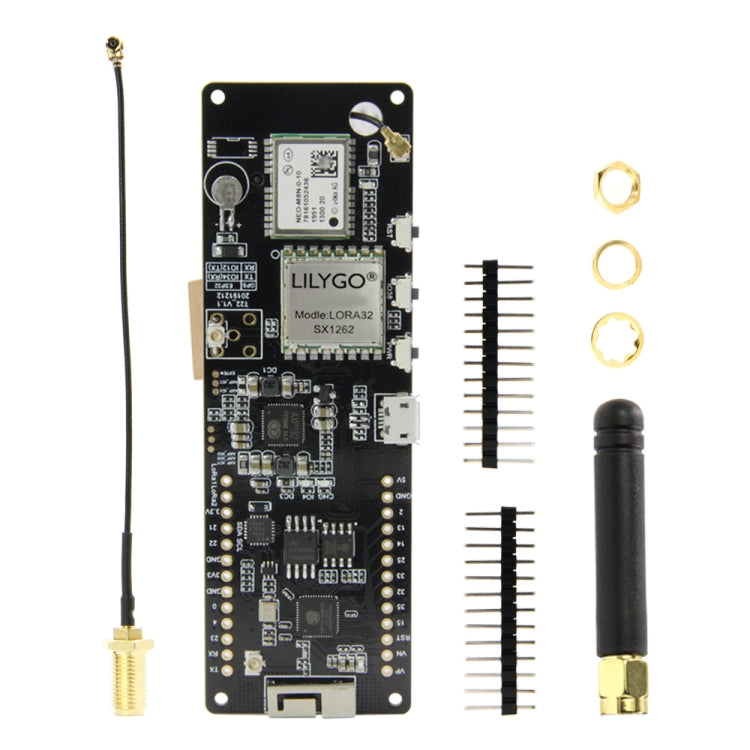

- Packing list includes: TTGO T-Beam ESP32, 433MHz antenna, pin x 1, screw washer x 3
- Note: OLED is not included in the invoice
