Description

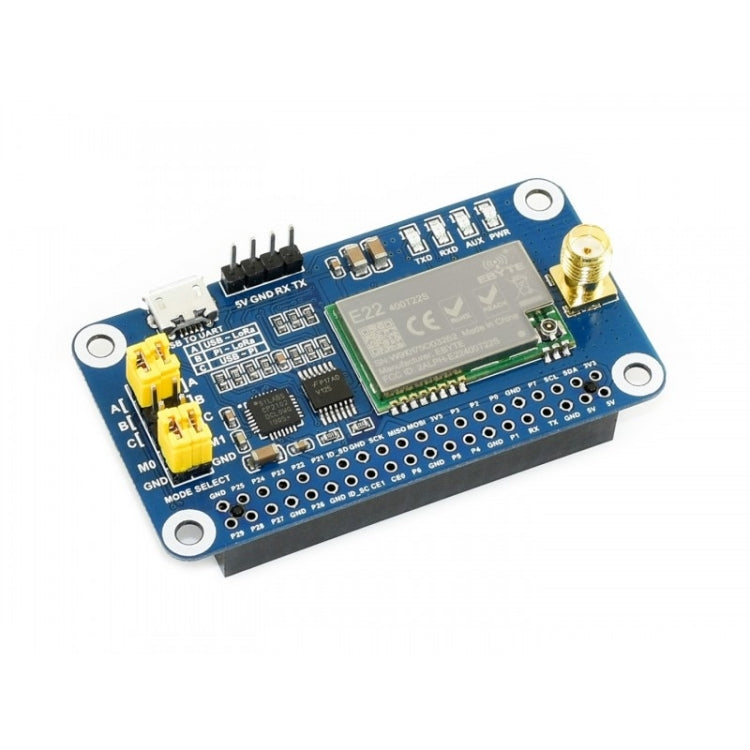

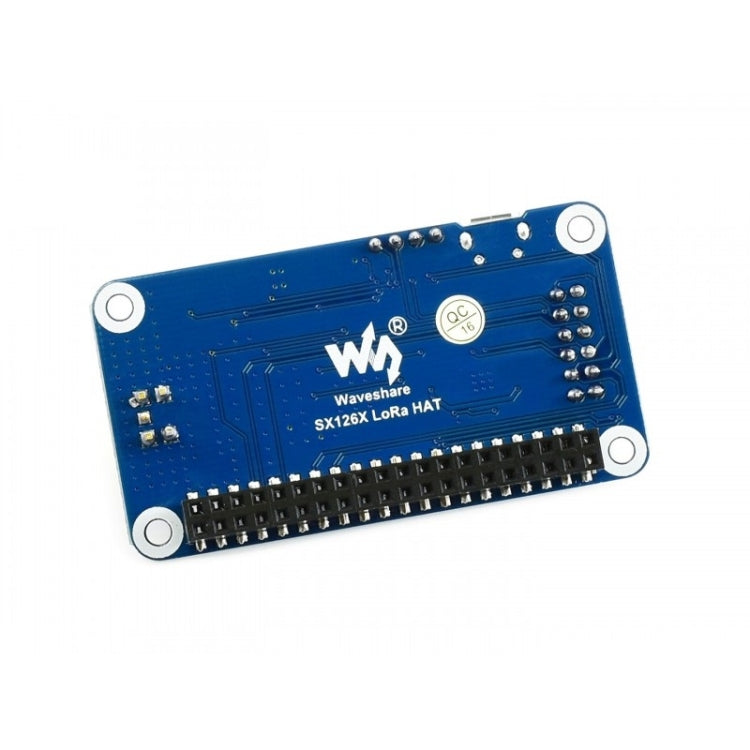

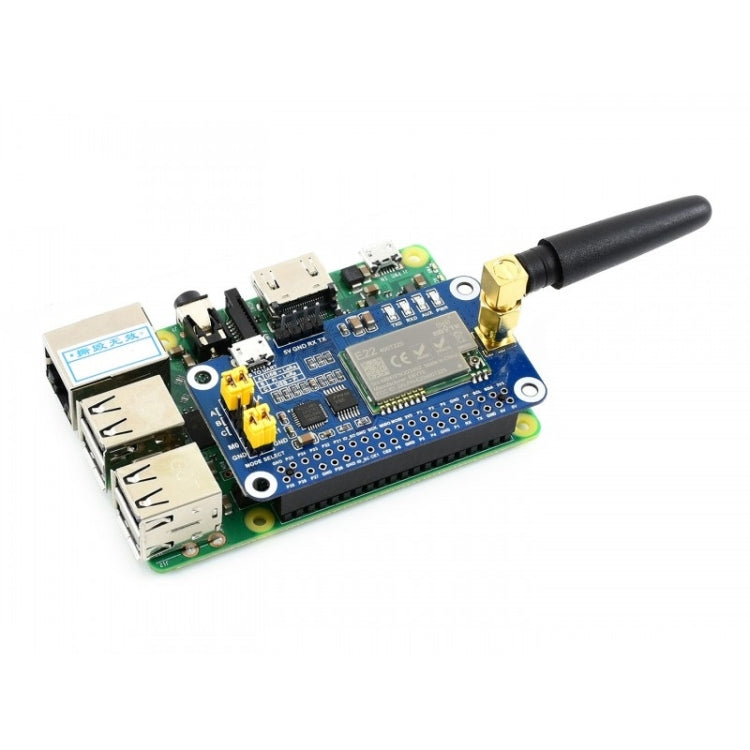

The Waveshare LoRa HAT is a communication module designed for Raspberry Pi that operates on the 433MHz frequency band. It is suitable for applications such as smart home systems and industrial control, enabling data transmission over distances up to 5 kilometers.
- Type: LoRa HAT
- Frequency Band: 433MHz
- RF Module: SX1268
- Radio Rate: 0.3kbps to 62.5kbps (programmable)
- Transmit Power: 22.0dBm (programmable)
- Receive Sensitivity: -147dBm (at 2.4kbps)
- Power Consumption:
- Transmit Current: 110mA
- Receive Current: 11mA
- Sleep Current: 2µA
- Communication Interface: UART (TTL level)
- Baud Rate: 1200bps to 115200bps (default 9600bps)
- Packet Length: 240 Bytes (programmable)
- Cache: 1000 Bytes
- Experimental Range: 5km (optimal conditions)
- Power Supply: 5V
- Logic Level: 3.3V/5V
- Operating Temperature: -40°C to 85°C
- Dimensions: 7cm x 12cm x 2cm
- Weight: 69g
- Applications: Smart home, industrial sensors, building automation, smart meters, IoT applications
- Included Components:
- SX1268 433MHz LoRa HAT x1
- USB type A plug to micro plug cable x1

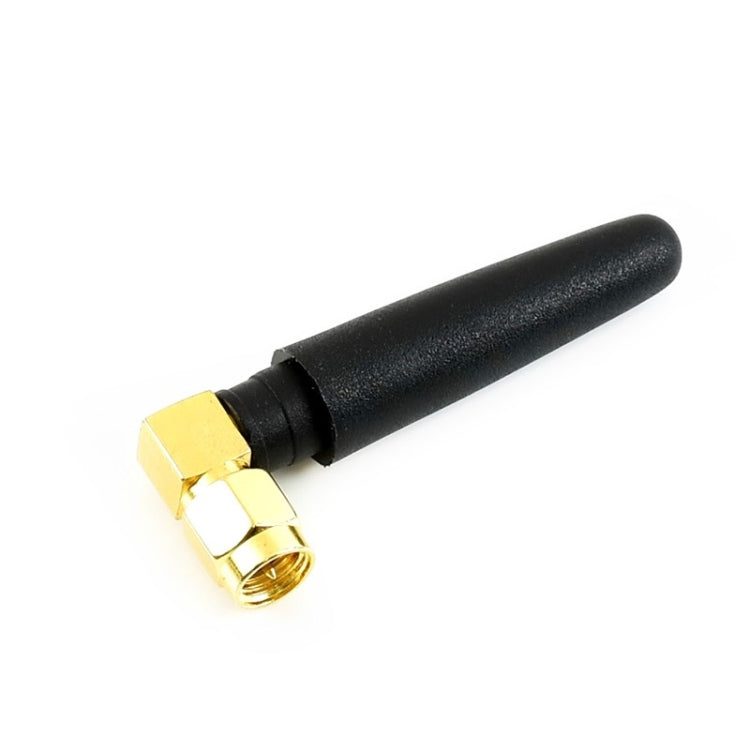

- 433MHz antenna x1
