Description

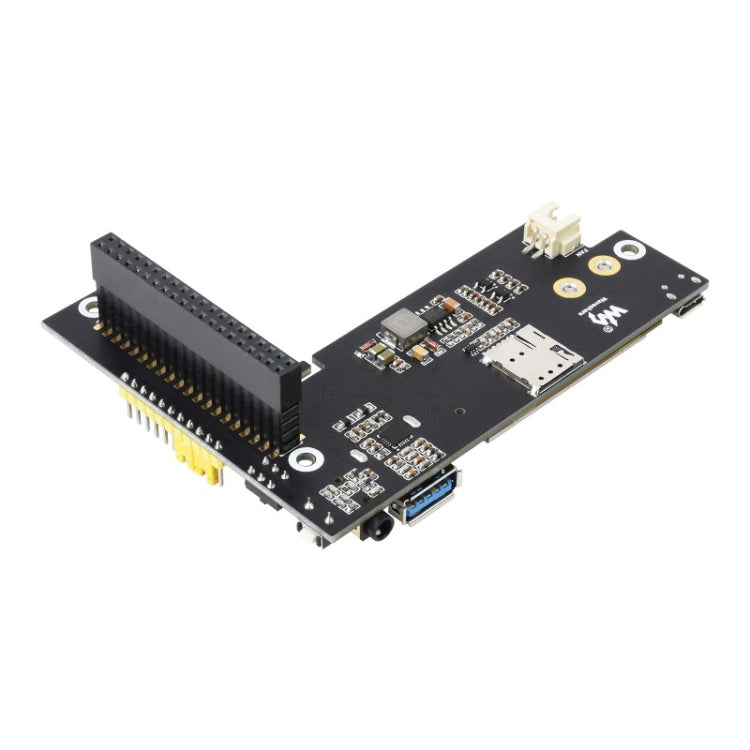

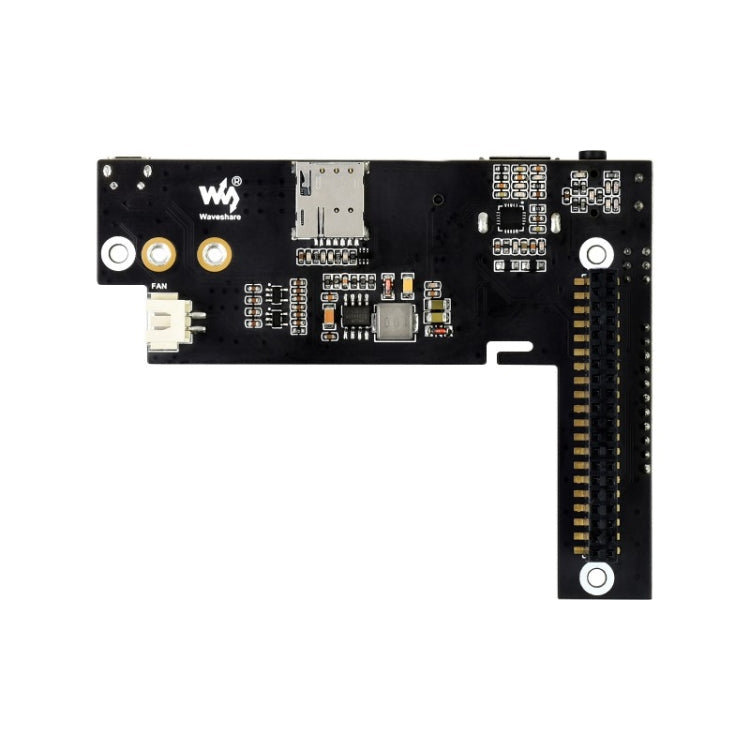

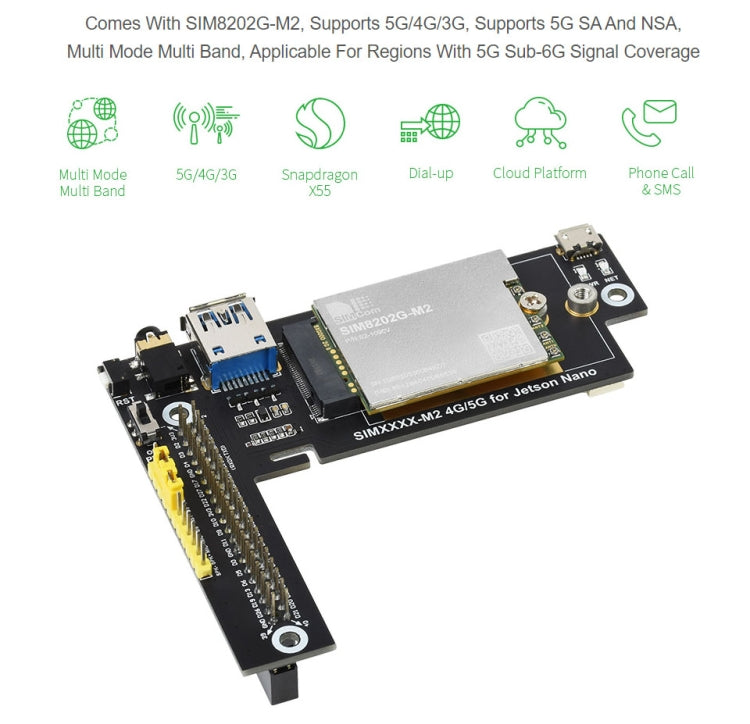

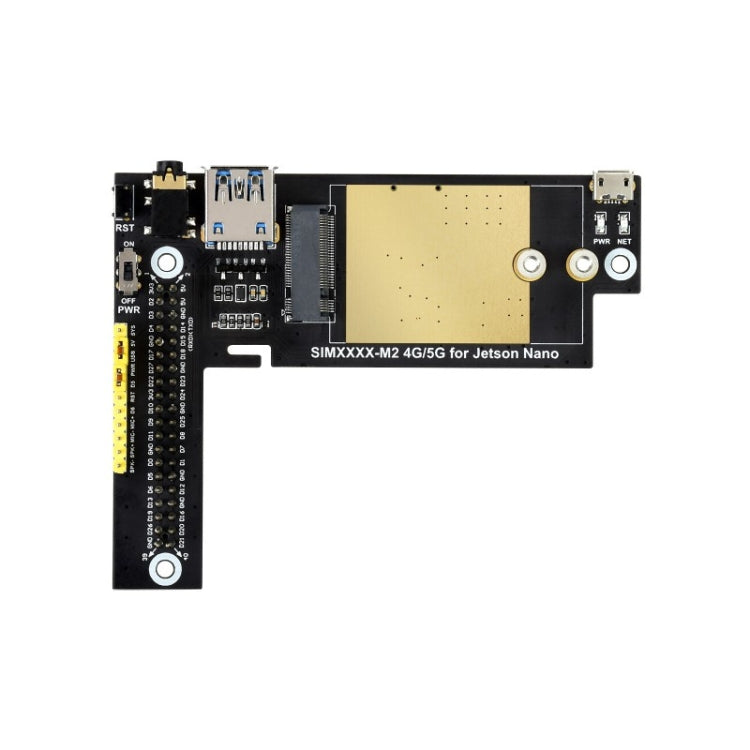

The Waveshare SIM8202G-M2 is a 5G communication module designed for the Jetson Nano. It enables high-speed data transmission and supports various applications requiring 5G connectivity.
- Module Type: 5G/4G/3G communication module

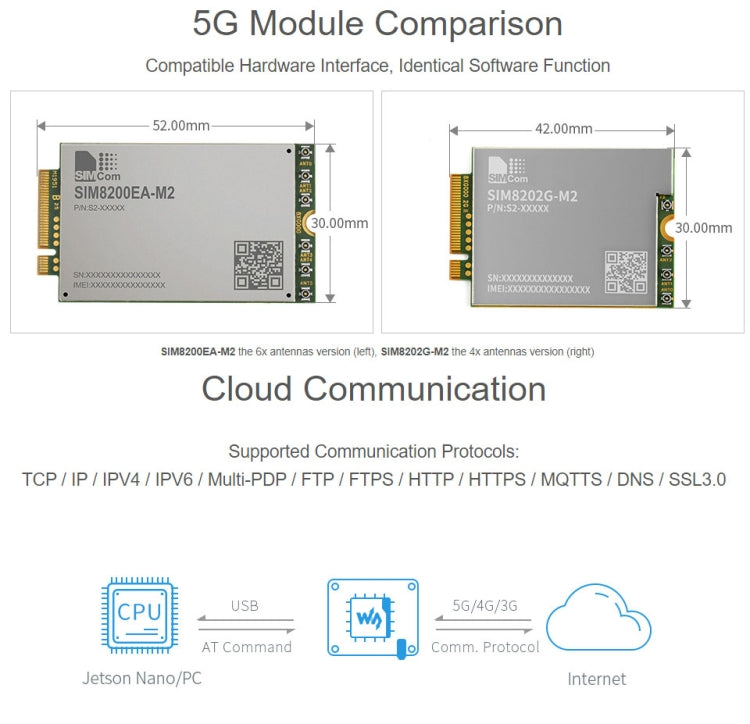

- Core Module: SIM8202G-M2 based on Qualcomm Snapdragon X55 platform
- Data Rate: Up to 2.4 Gbps (DL) / 500 Mbps (UL)
- Frequency Bands:
- Sub-6G (SA): N1, N2, N3, N5, N7, N8, N12, N20, N28, N38, N40, N41, N48, N66, N71, N77, N78, N79
- Sub-6G (NSA): N41, N77, N78, N79
- LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
- LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
- WCDMA: B1, B2, B3, B4, B5, B8
- GNSS: GPS, GLONASS, Beidou, Galileo, QZSS
- Operating System Support: Windows, Linux, Android
- Power Supply: 5V 3A
- SIM Card Compatibility: 1.8V / 3V SIM card

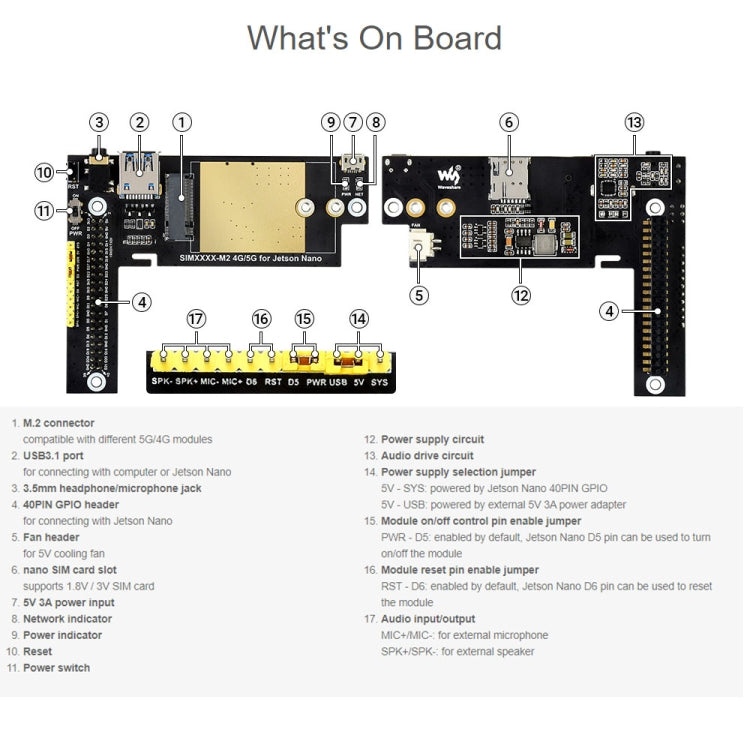

- USB Interface: USB 3.1 port for AT commands and data transmission
- Audio Features: Onboard audio jack and audio decoder for phone calls
- LED Indicators: 2x LED indicators for monitoring status
- GPIO Header: Standard 40PIN GPIO extension header for direct attachment to Jetson Nano

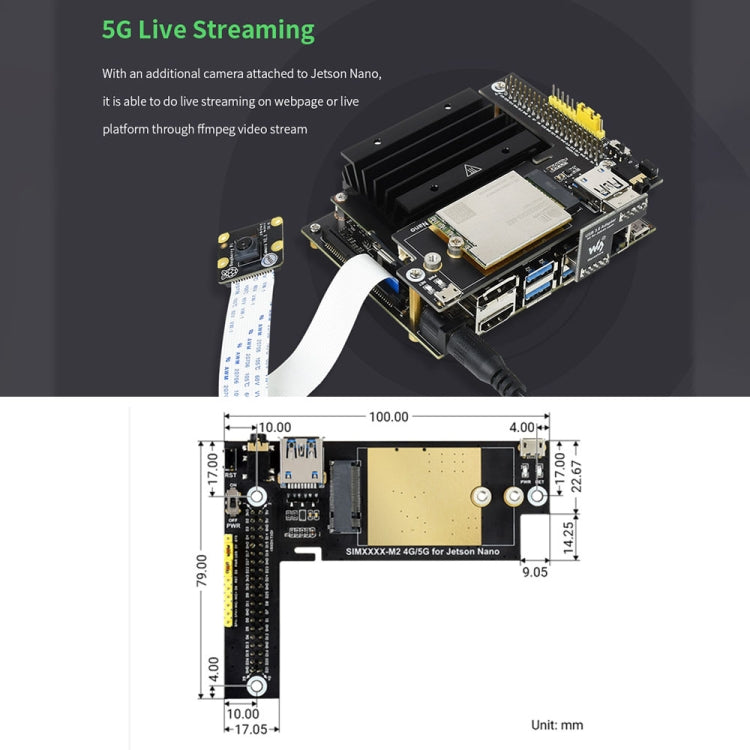

- Dimensions: 42.0 x 30.0 x 2.3 mm
- Package Contents:
- SIMXXXX-M2 4G/5G module base x1
- SIM8202G-M2 x1
- 5G External Antenna x4
- Power adapter 5V 3A x1
- USB3.0 dual plug cable x1
- USB 3.0 Adapter (C) x1
- Heatsink x1
- Screws pack x1
- Applications: Suitable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, Middle East, Latin America.
