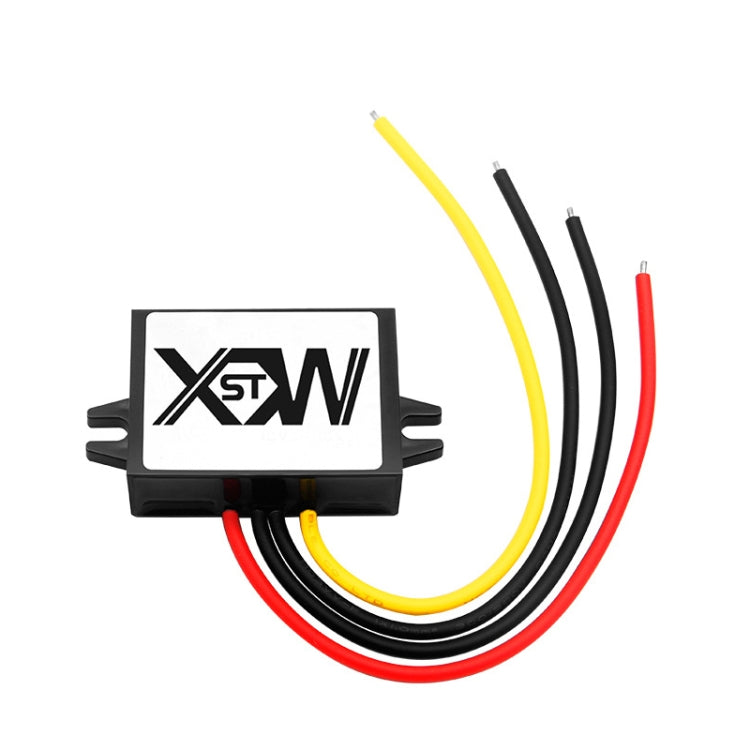

XWST DC 12/24V To 5V Converter Step-Down Vehicle Power Module, Specification: 12/24V To 5V 10A Medium Rubber Shell
XWST DC 12/24V To 5V Converter Step-Down Vehicle Power Module, Specification: 12/24V To 5V 10A Medium Rubber Shell
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Module nature: non-isolated BUCK
2. Input voltage: DC12V (wide voltage 8~22V), DC 12V24V (wide voltage 8~40V)
3. Output voltage: DC 5V
4. Output current: 1A~40A optional
5. Output power: 5W~200W
6. Ripple: (1A-30A) 40MV, 40A 170MV
7. Low power consumption: (1A-3A) 1.4MA, (5A-10A) 11MA, (10A-30A) 15MA, 40A 70MA
8. Protection function: over current / over voltage / over temperature / short circuit protection
9. Waterproof rating: IP67
10. Scope of application: all kinds of vehicle system modification, routers, ADSL modems, switches, LED digital photo frames, electronic refrigerators, portable DVDs, audios, security systems, portable tools, printers, network equipment, control equipment and other voltage parameters Industrial equipment
11. Reminder: there is no reverse connection protection for the input, please connect carefully, and the output voltage of the power supply cannot be directly used to charge the battery or battery
12. Installation cable length: 13-14cm

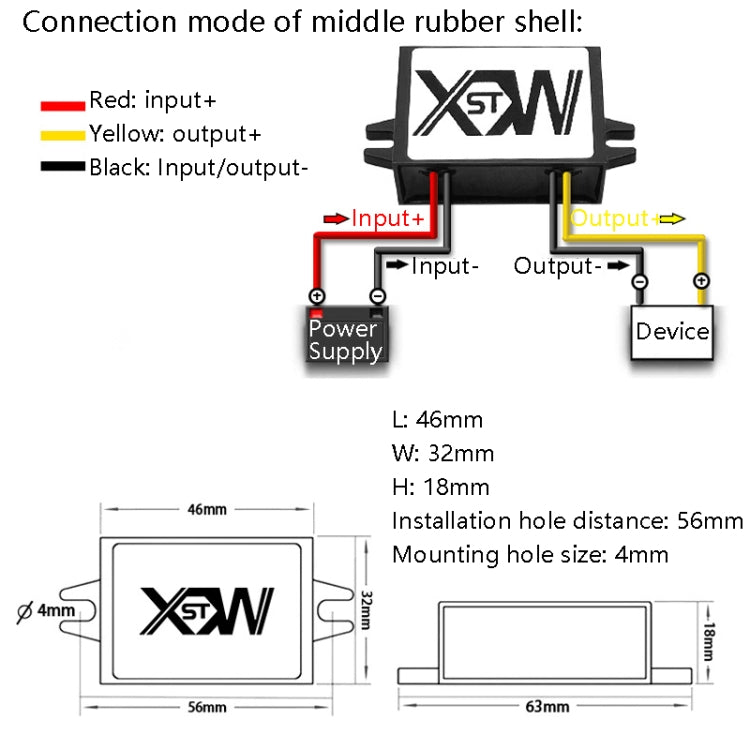

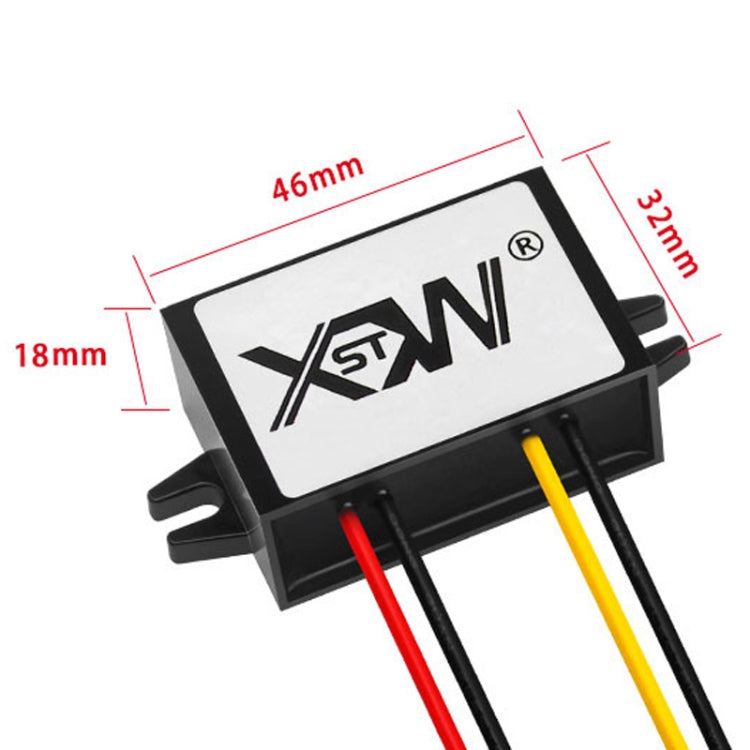

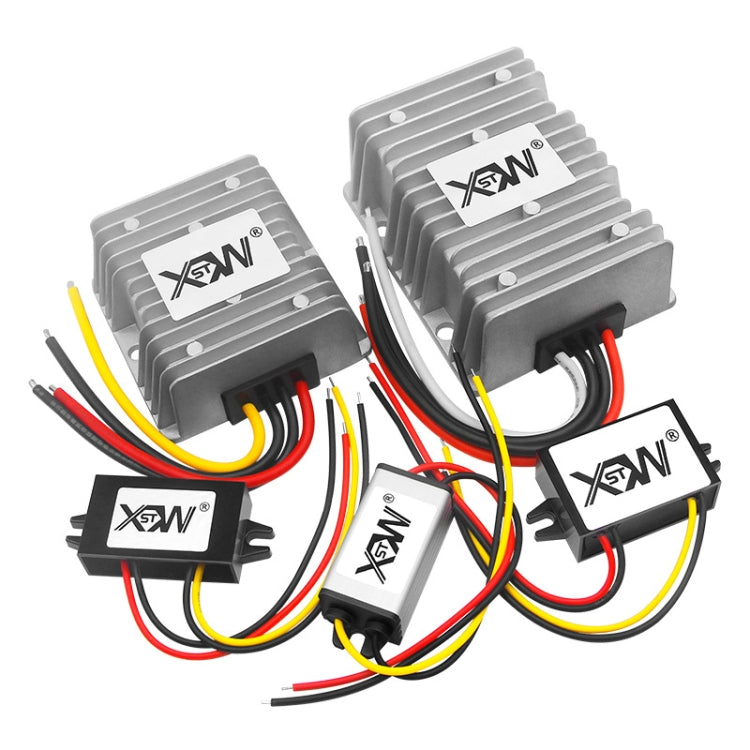

13. Size: 1-3A small rubber shell is about 4.6x2.7x1.4 cm, 1-10A medium rubber shell is about 4.6x3.2x1.8 cm, 1-5A small aluminum shell is about 4.4x2.5x2.05 cm, 5 -10A medium aluminum shell is about 6.4x5.7x2.2 cm, 10-30A large aluminum shell is about 7.4x7.4x3.2 cm, 40A large aluminum shell is about 10x8x3.9 cm
14. Weight: 1-3A small rubber shell about 28 grams, 110A medium rubber shell about 53 grams, 1-6A small aluminum shell about 45 grams, 5-10A medium aluminum shell about 108 grams, 10-30A large aluminum shell about 260 grams, about 500 grams of 40A enlarged aluminum shell
