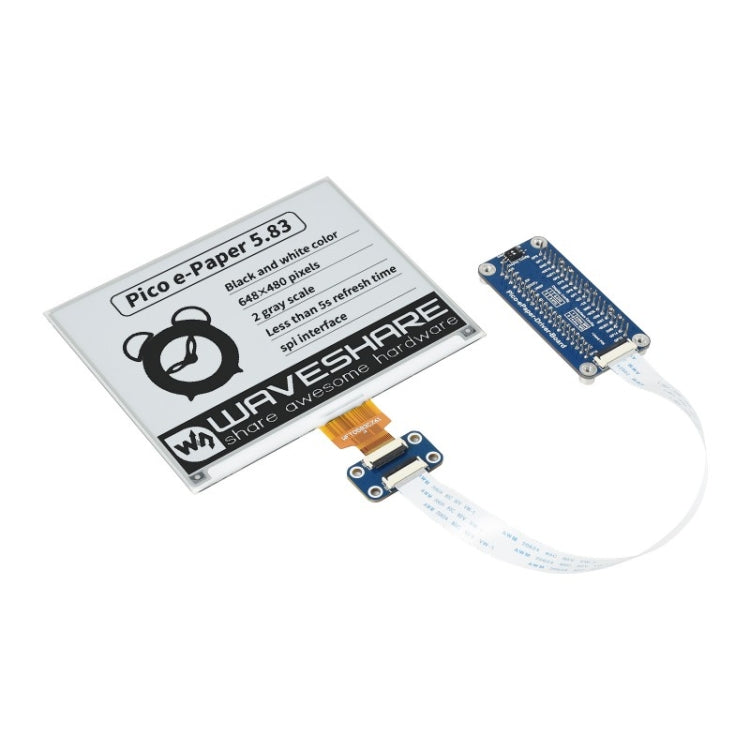

Waveshare 5.83 inch 648x480 Pixel Black White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Waveshare 5.83 inch 648x480 Pixel Black White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Sale
Sold out
Pre-order
Regular price
R 1,079.00
Regular price
Sale price
R 1,079.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description
The Waveshare 5.83 inch E-Paper Display Module is designed for use with the Raspberry Pi Pico. It is suitable for applications requiring low power consumption and long-lasting display capabilities.
- Product Type: E-Paper Display Module

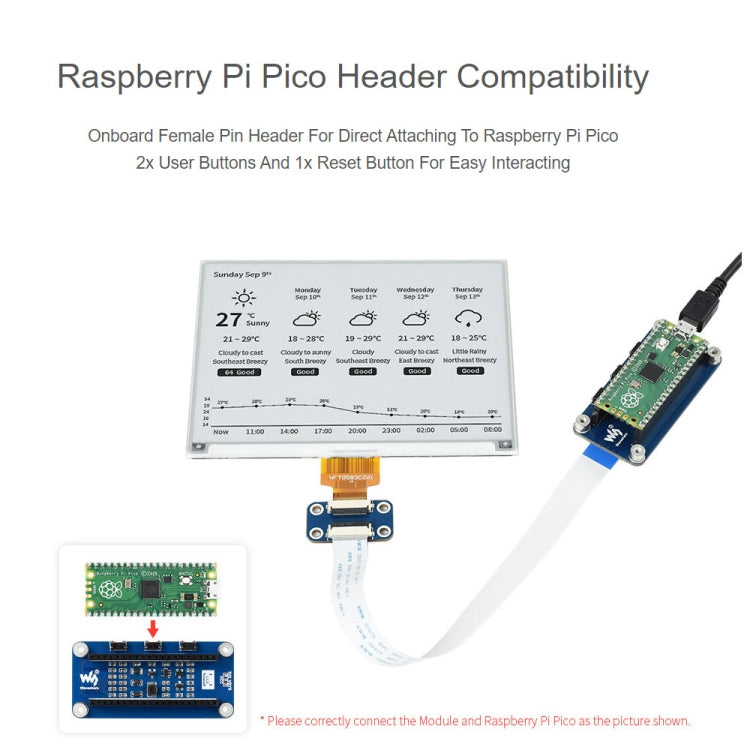

- Compatibility: Raspberry Pi Pico
- Material: E-paper
- Display Color: Black, White
- Resolution: 648 x 480 pixels
- Grey Scale: 2
- Interface: 3-wire SPI, 4-wire SPI
- Operating Voltage: 3.3V
- Viewing Angle: Greater than 170 degrees
- Full Refresh Time: 5 seconds

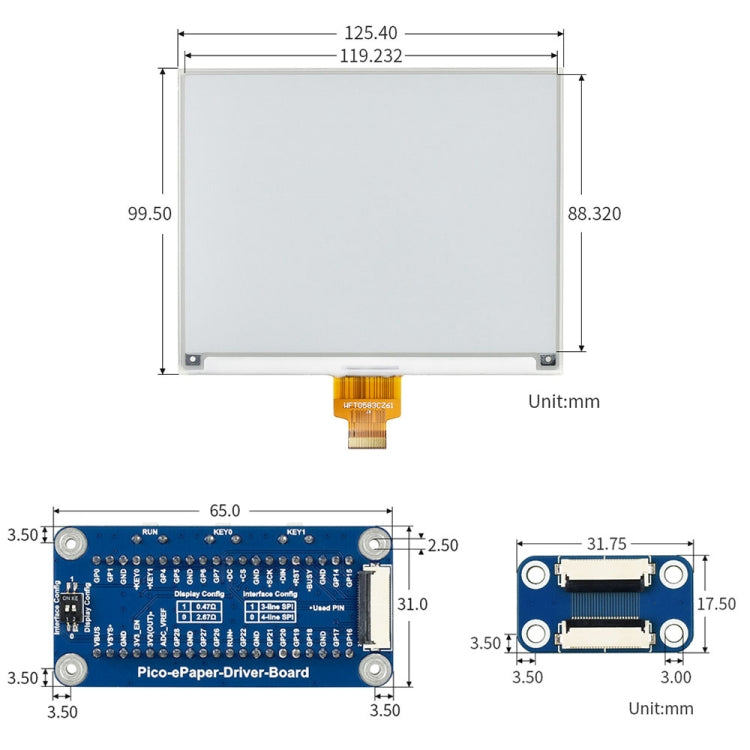

- Dimensions: 125.4 x 99.5 mm
- Display Size: 119.232 x 88.320 mm
- Refresh Power: 26.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Includes: 2 user buttons, 1 reset button
- Package Contents: 5.83 inch E-Paper x 1, Pico-ePaper-Driver-Board x 1, Standoff pack x 1
