Description

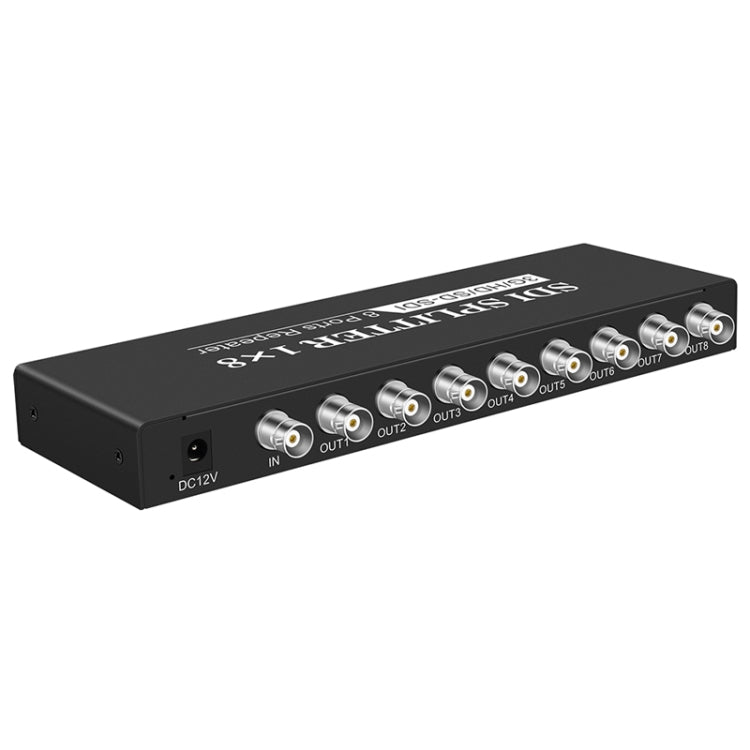

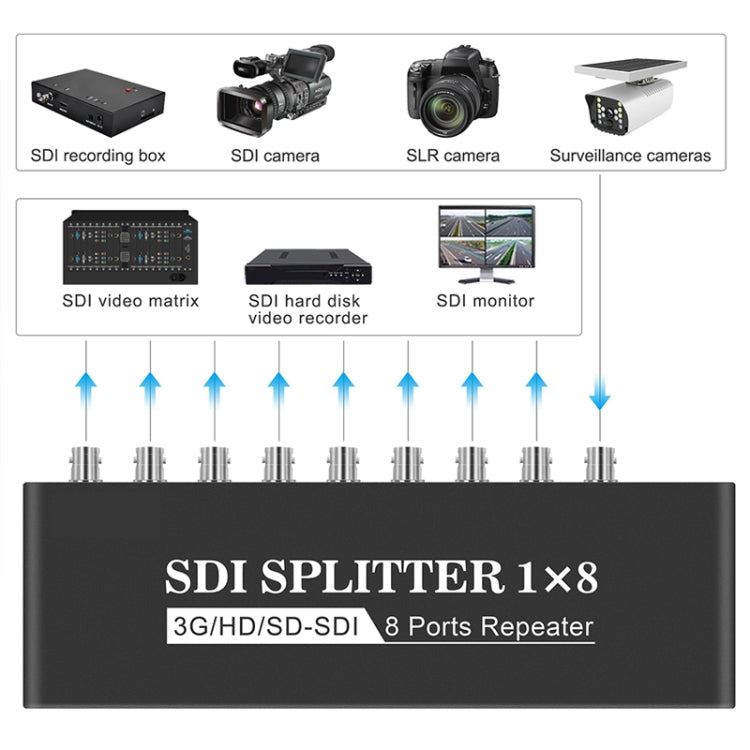

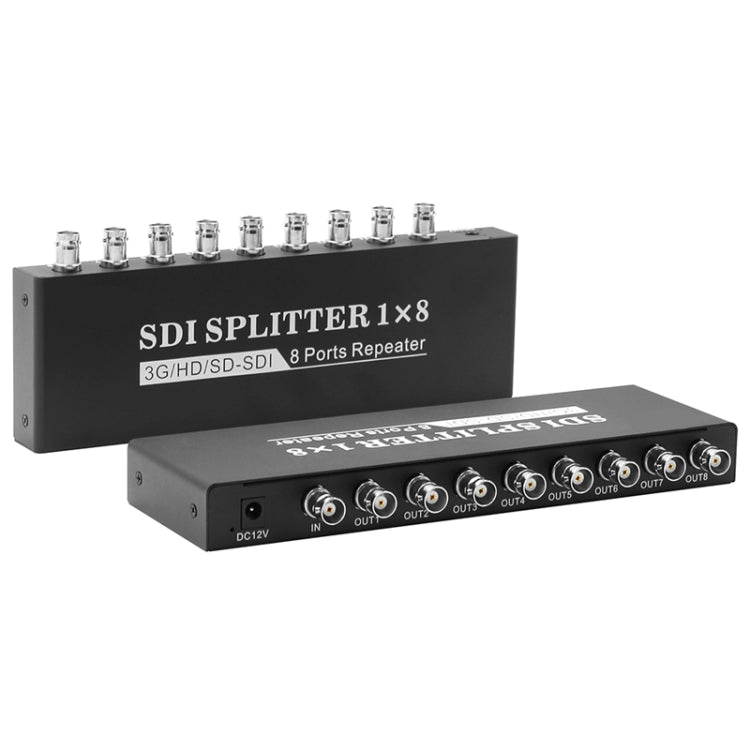

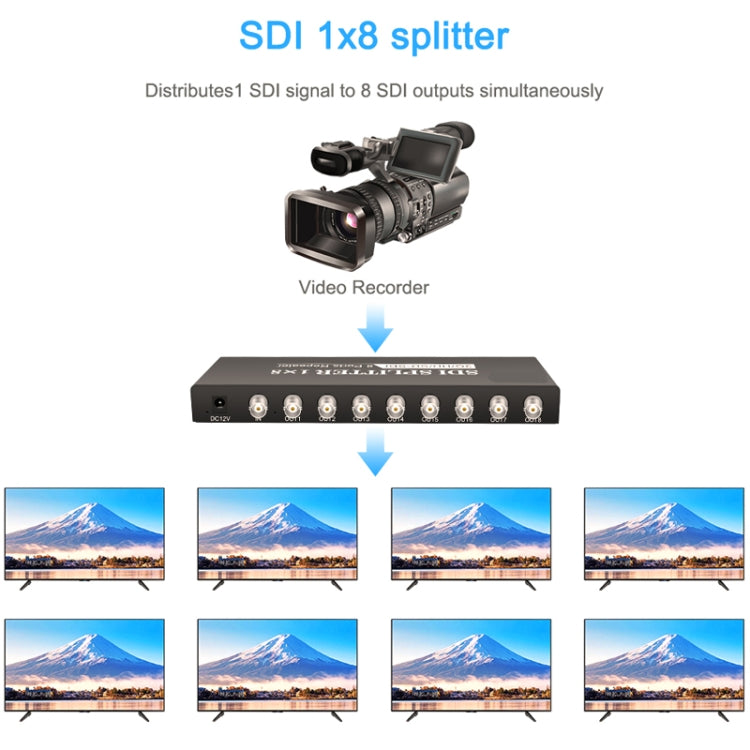

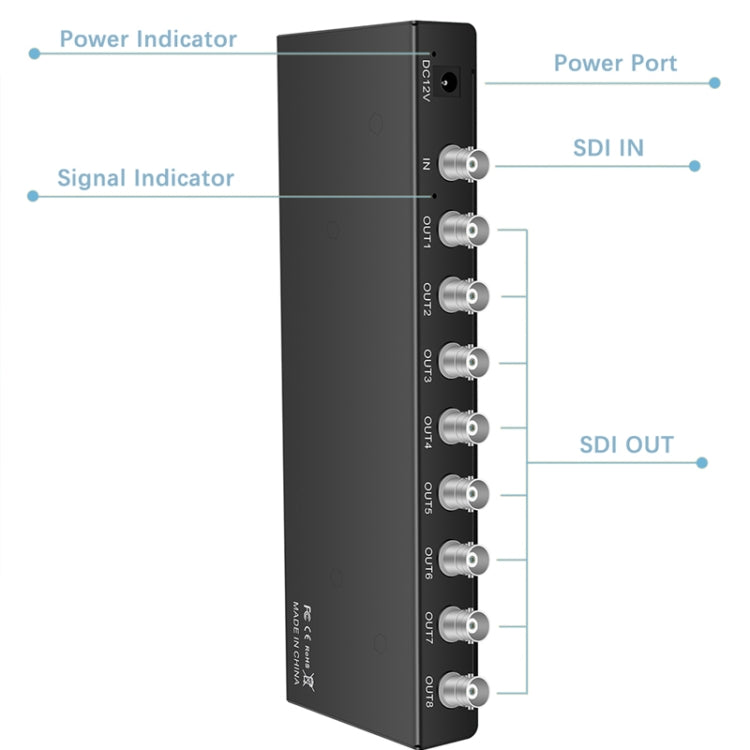

1 In 8 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter is designed to distribute SDI signals to multiple outputs. It is suitable for use in broadcasting environments where multiple displays require the same SDI input signal.

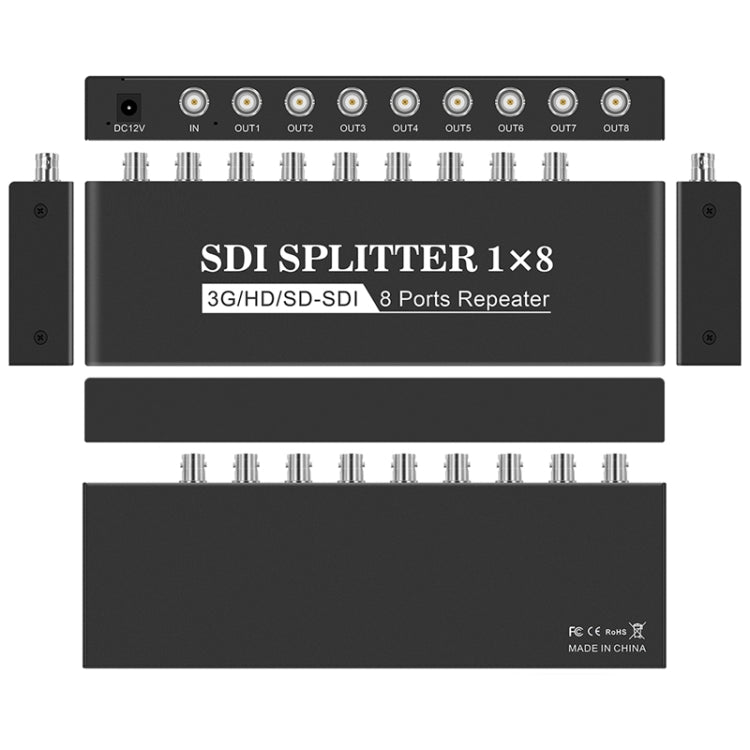

- SDI output interfaces: BNC SDI x2, SDI x4, SDI x8
- SDI standard compatibility: SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- SDI signal formats supported: SD-SDI, HD-SDI, 3G-SDI
- Supported SDI rates: 143-2970 MB/s
- SDI impedance: 75 ohms
- Supported resolutions: 480i 60Hz, 576i 50Hz, 720P 50Hz, 720P 60Hz, 1080i 50Hz, 1080i 60Hz, 1080P 24Hz, 1080P 25Hz, 1080P 30Hz, 1080P 50Hz, 1080P 60Hz
- SDI signal output amplitude: 800 mVp-p

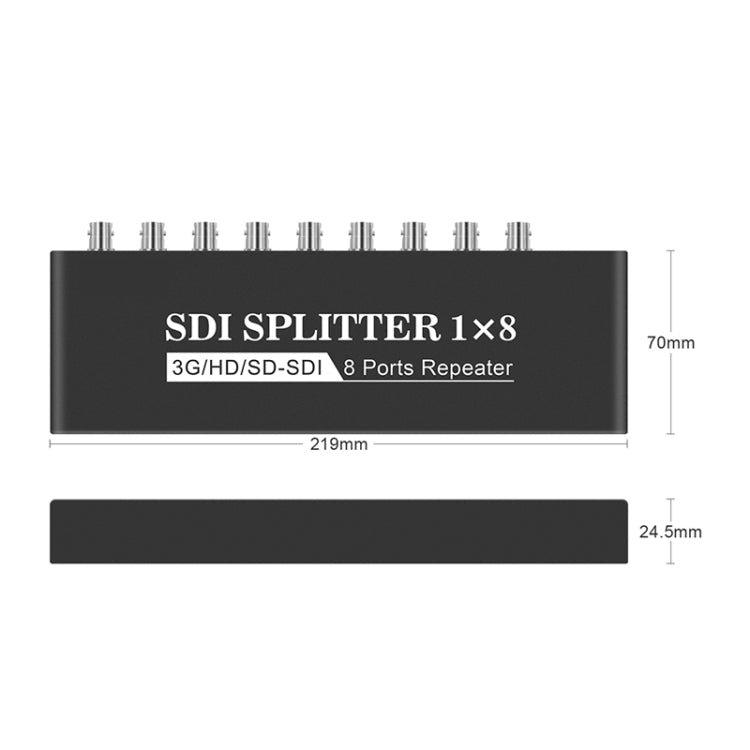

- Dimensions: 219 mm x 70 mm x 24.5 mm
- Maximum cable length: SDI input/output distance: SD supports 400m, HD supports 200m, 3G supports 100m (theoretical values dependent on cable quality)
- Voltage input: DC 5V to 36V (power consumption up to 2W)
- Intelligent design: Pure hardware processing with automatic detection of SDI signals; LED indicator displays green for valid signals and off for invalid signals
