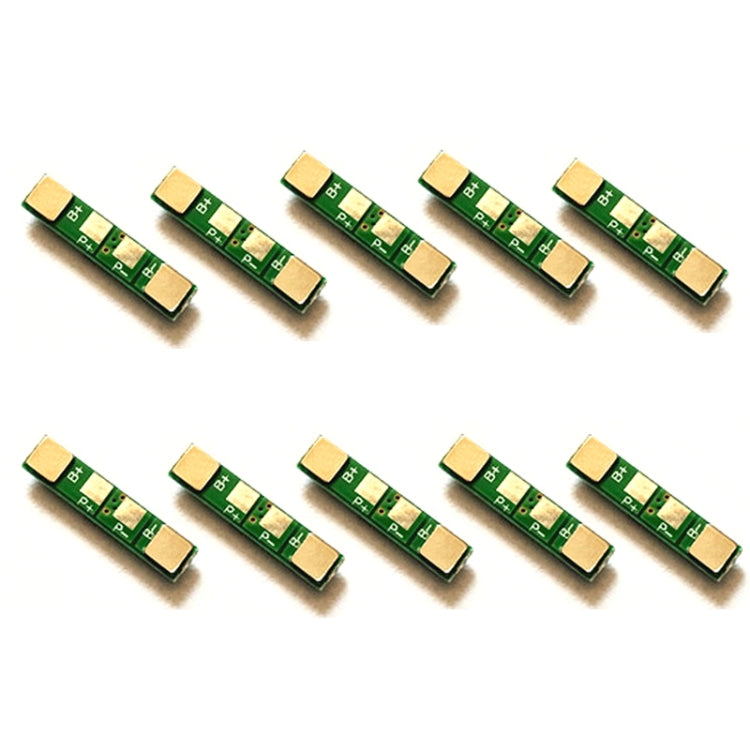

10pcs 3.7V Lithium Battery Protection Board Polymer Overcharge and Overdischarge Protection Board(As Show)
10pcs 3.7V Lithium Battery Protection Board Polymer Overcharge and Overdischarge Protection Board(As Show)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

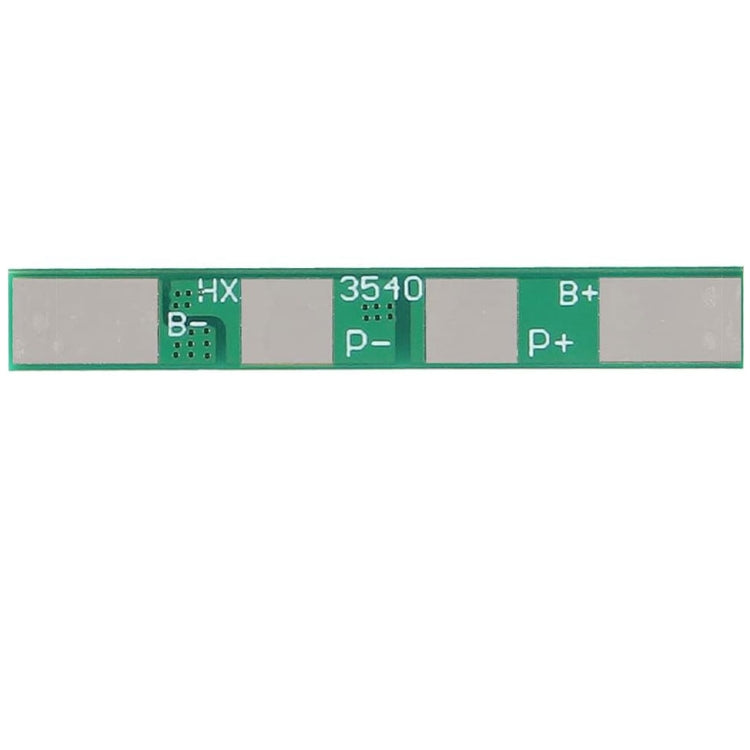

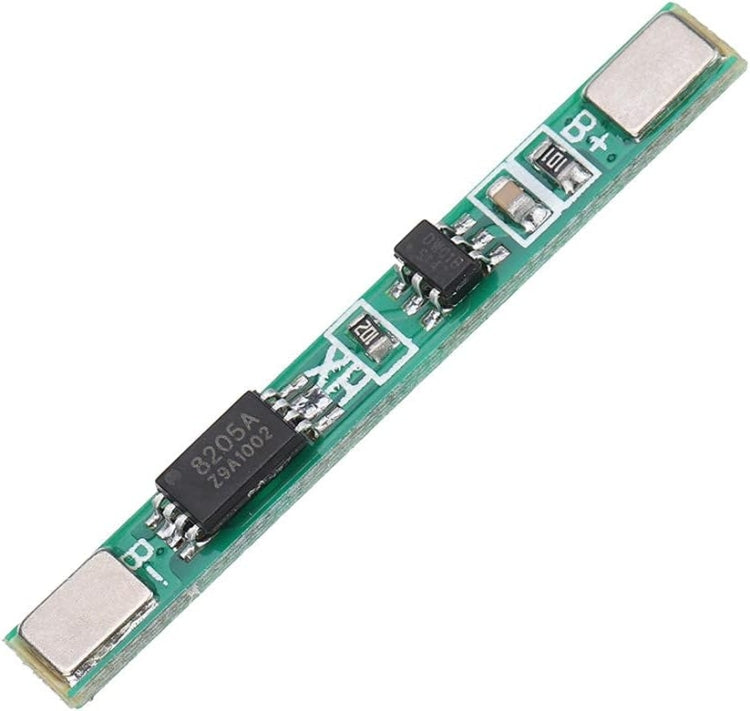

10pcs 3.7V Lithium Battery Protection Board provides overcharge and overdischarge protection for lithium batteries. It is suitable for everyday use in various electronic projects requiring battery management.
- Product Type: Sensor Module
- Compatibility: Lithium Battery Protection Board
- Material: Not specified
- Key Feature: Overcharge and overdischarge protection
- Charging Voltage: DC4.2V
- Continuous Discharge Current: 4A
- Overcharge Detection Voltage: 4.28V
- Overcharge Detection Delay Time: 1S
- Overcharge Recovery Voltage: 4.08V
- Over-Discharge Detection Voltage: 2.8V
- Over-Discharge Detection Delay Time: 128ms
- Over-Discharge Recovery Voltage: 3.0V
- Overcurrent Detection Voltage: 200mV
- Overcurrent Detection Current: 4A
- Delay Time of Overcurrent Detection: 12ms
- Working Temperature Range: -40 to 50 degrees Celsius
- Size: 15x3.1mm

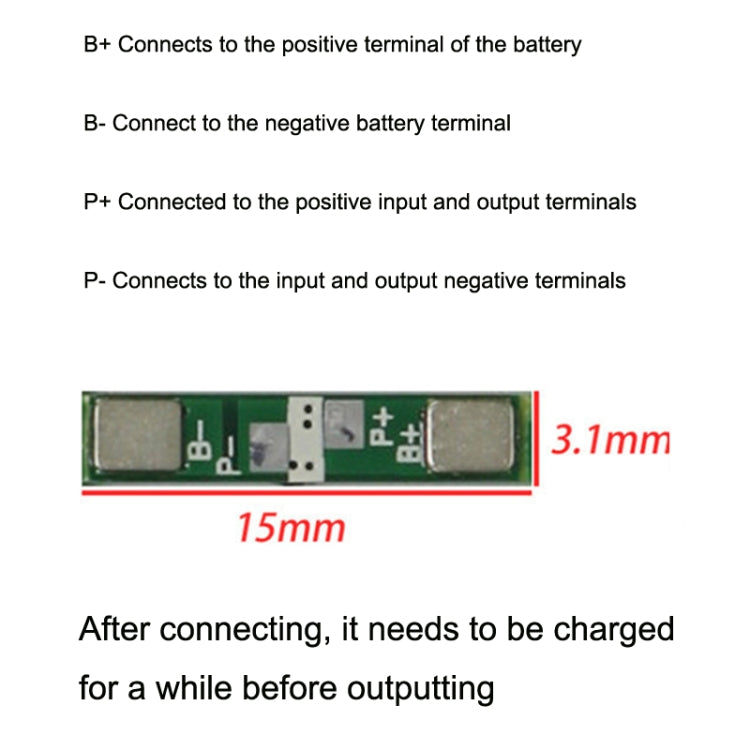

- Assembly Note: Understand wiring diagram before assembly to avoid damage
- Wiring Caution: Incorrect wiring may cause damage
