Description
The 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch is a relay module designed for timing circuits. It is suitable for use in various applications requiring precise timing control, such as automation systems and Arduino projects.
- Product Type: Relay Module
- Compatibility: 12/24V systems
- Material: PCB
- Working Voltage: 6-30V power supply

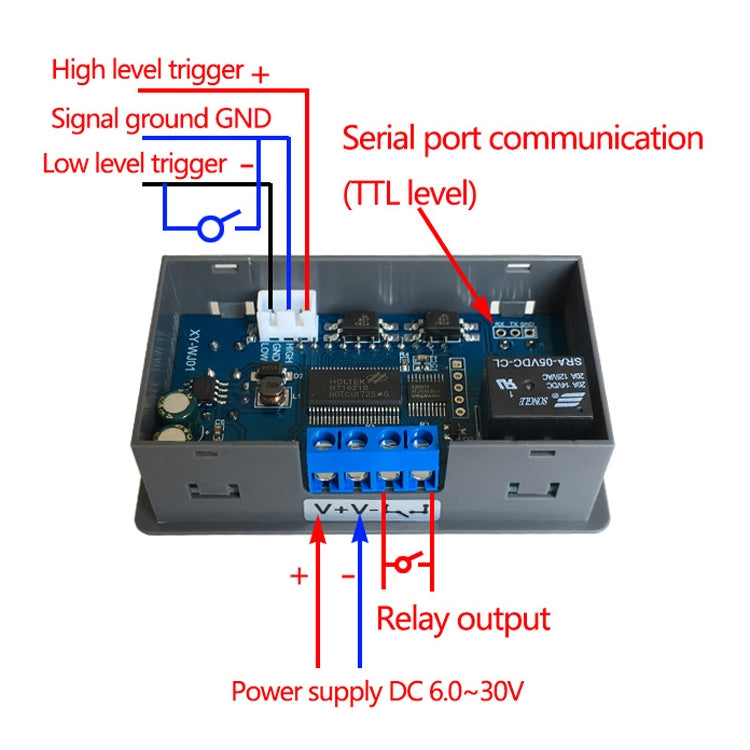

- Trigger Signal Source: High level trigger (3.0V-24V), low level trigger (0.0V-0.2V), switch control (passive switch)

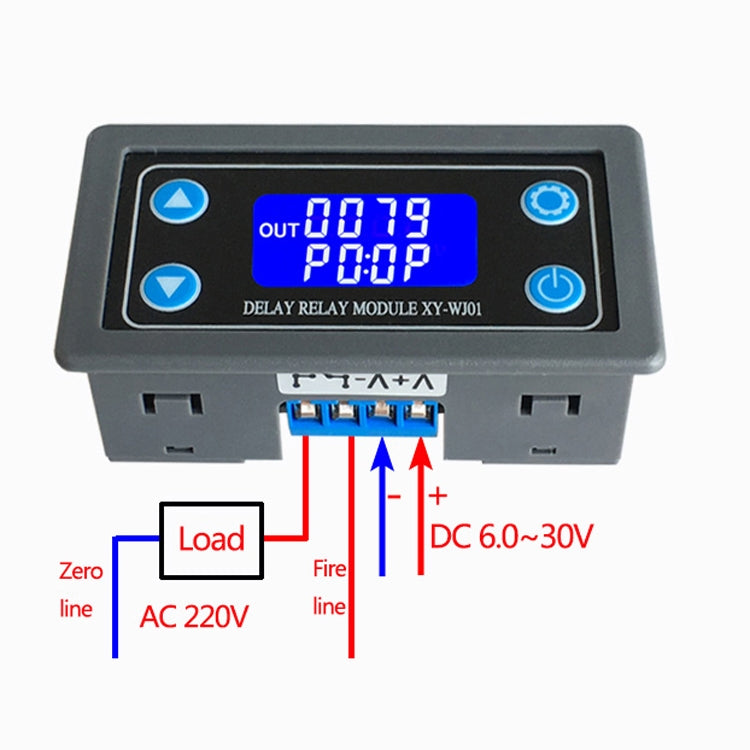

- Output Capability: Controls equipment within DC 30V10A or AC 220V5A
- Quiescent Current: 15mA
- Working Current: 50mA
- Optocoupler Isolation: Yes, enhances anti-interference ability
- Circuit Board: Industrial-grade
- Timing Range: 0.01s-9999min
- Weight: Approximately 45g

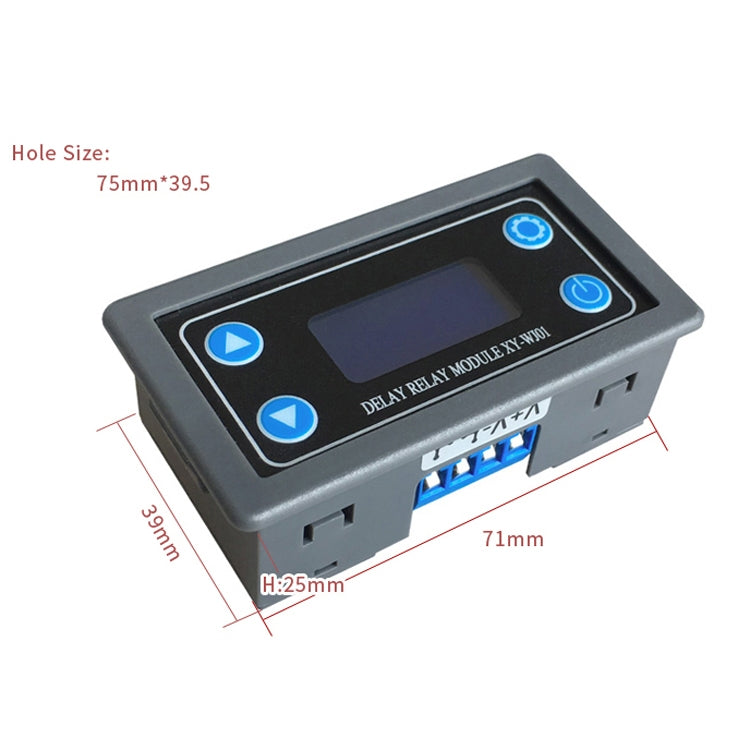

- Size: Approximately 7.1x3.9x2.5cm

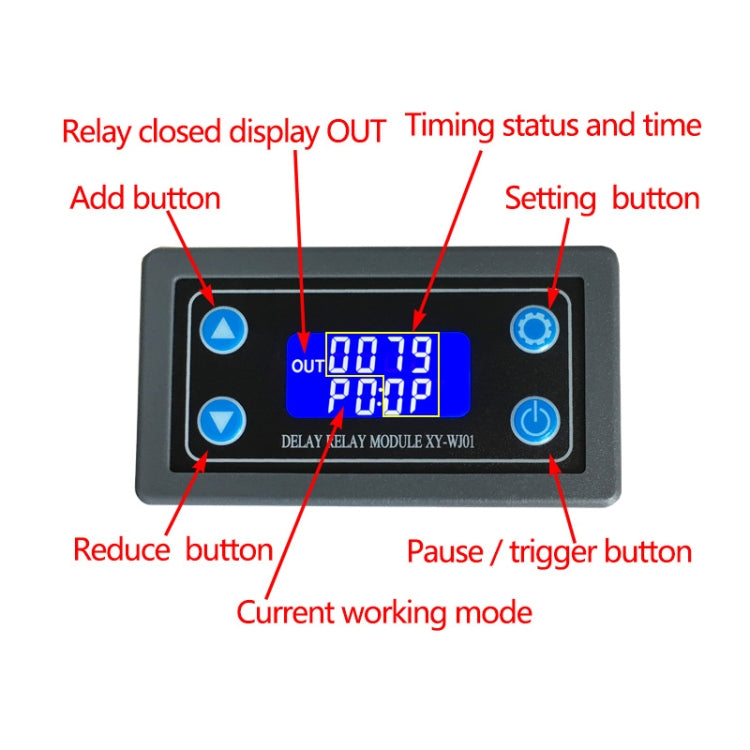

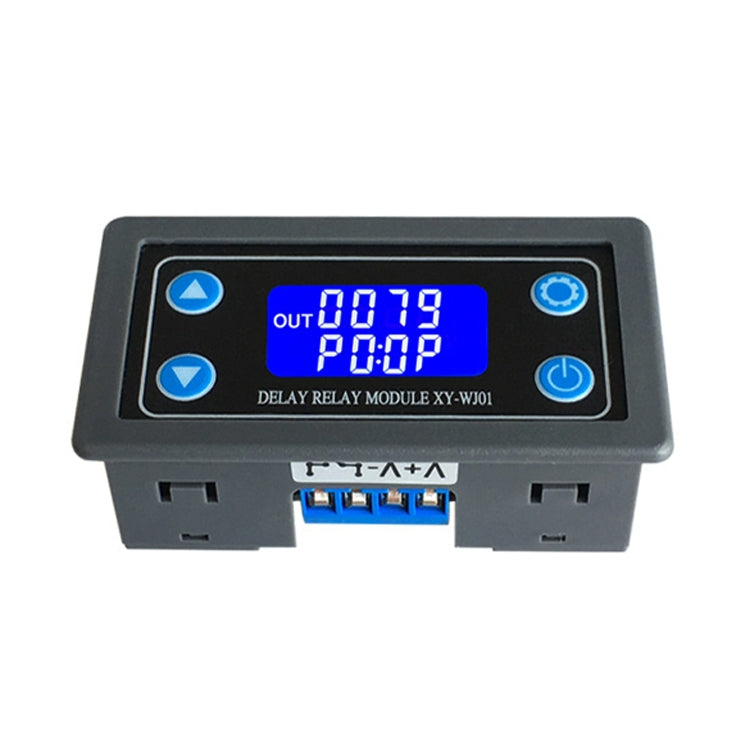

- LCD Display: Yes, shows current mode and parameters
- Control Methods: Button trigger control, high and low level trigger, switch control
- Power Supply: Wide voltage (6-30V)
- UART Data Upload: Yes, supports parameter setting
- One-Key Pause Function: Yes
- Reverse Connection Protection: Yes
- Sleep Mode: Yes, LCD backlight turns off after 5 minutes of inactivity
- Parameter Settings: OP, CL, LOP parameters can be set and saved independently
- Automatic Parameter Saving: Yes, settings are saved after power off
