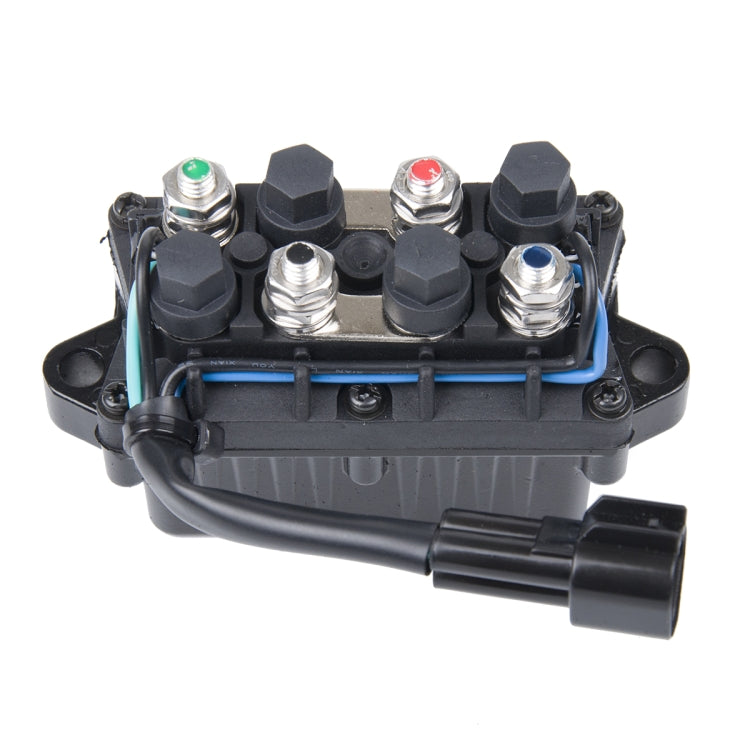

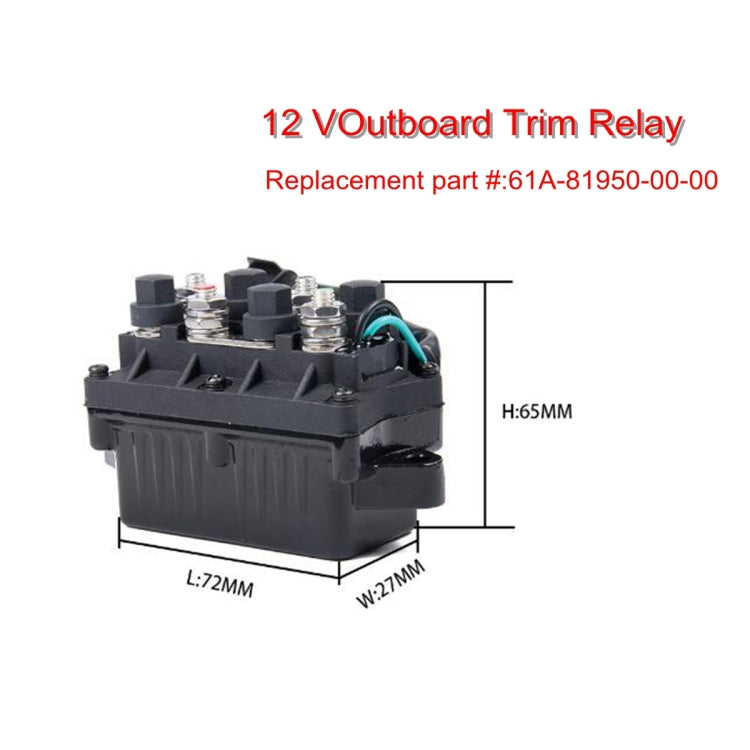

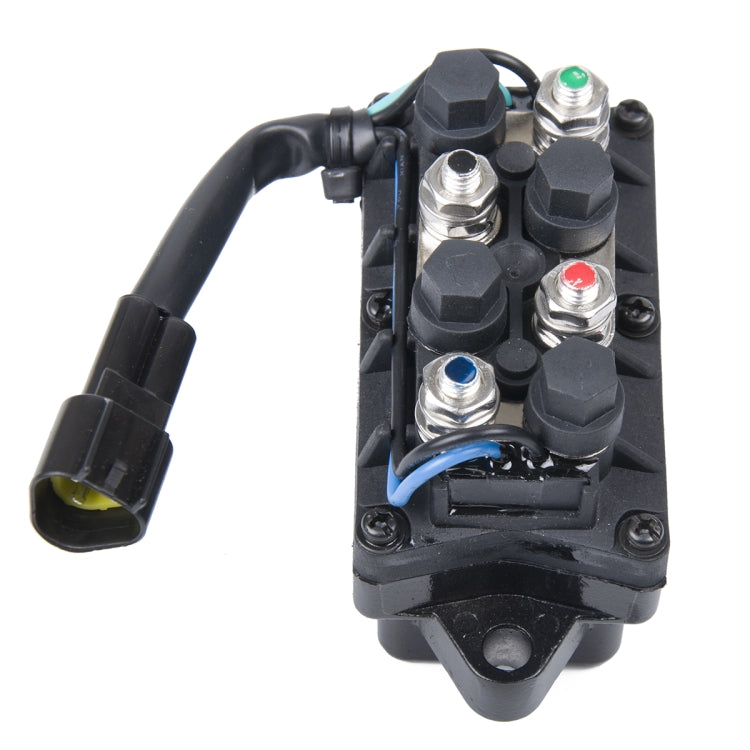

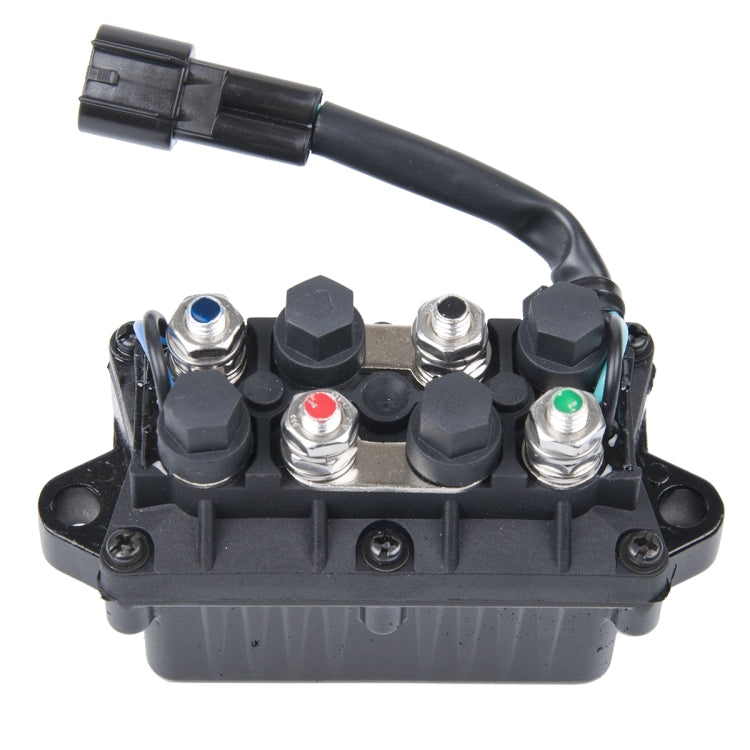

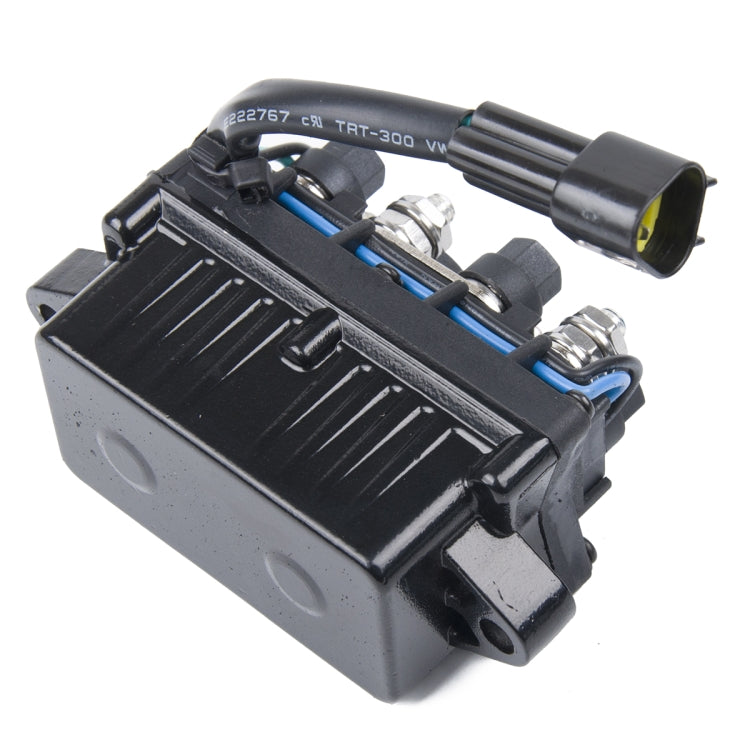

12V / 120A Outboard Lifting Tilt Trim Relay for Yamaha Motors Replacement 61A-81950-00-00 3 PIN Connector

12V / 120A Outboard Lifting Tilt Trim Relay is a replacement part for Yamaha motors. It is designed for marine applications, specifically for the Yamaha 40-90 HP Power Trim and Tilt Relay.

• Product Type: Marine Accessories & Parts
• Replacement Part Number: 61A-81950-00-00
• Voltage: 12V
• Current: 120A
• Working Mode: Batch-type
• Connector Type: DJ7031Y-2.3-11
• Water-resistant Rating: IP67
• Color: Black
• Fitment: Compatible with Yamaha 40-90 HP Power Trim and Tilt Relay, F-150 HP (2004-2009), F-225 HP TLR Model (2007-2009), F-250 HP (2005-2009), F-25 HP (2009), F-40 HP (2009), F-50 HP (2005-2009), F-60 HP (2005-2009), F-75 HP (2005-2009), F-90 HP (2005-2009)
• Connection Method: Red to Power(+), Black to Power(-), Blue(Green) to the motor; Blue and Green connections can be swapped to adjust lifting direction
• Continuous Working Time: Should not exceed 1 minute; typically takes less than 15 seconds for operation
• Note: Do not remove the 6 fixing screws to avoid damage to the relay
