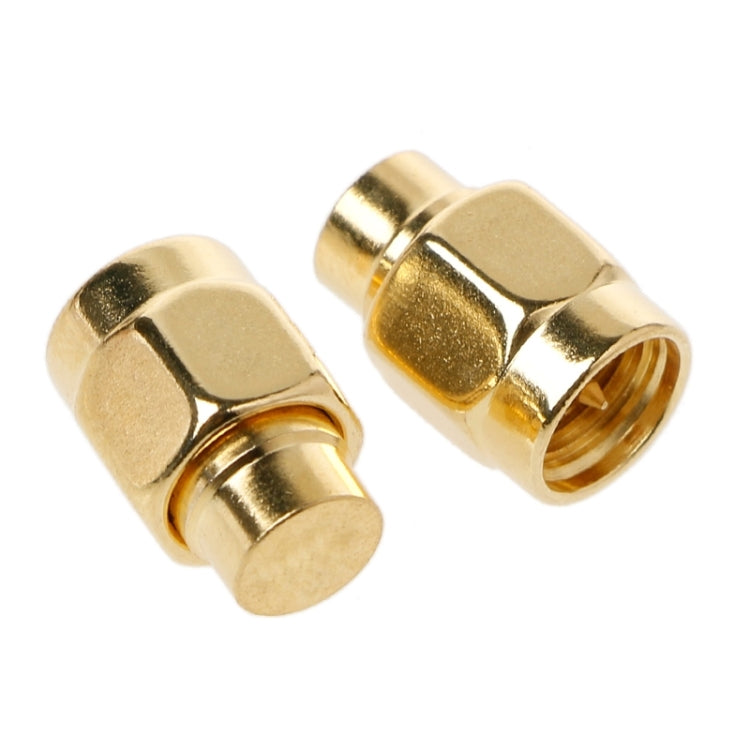

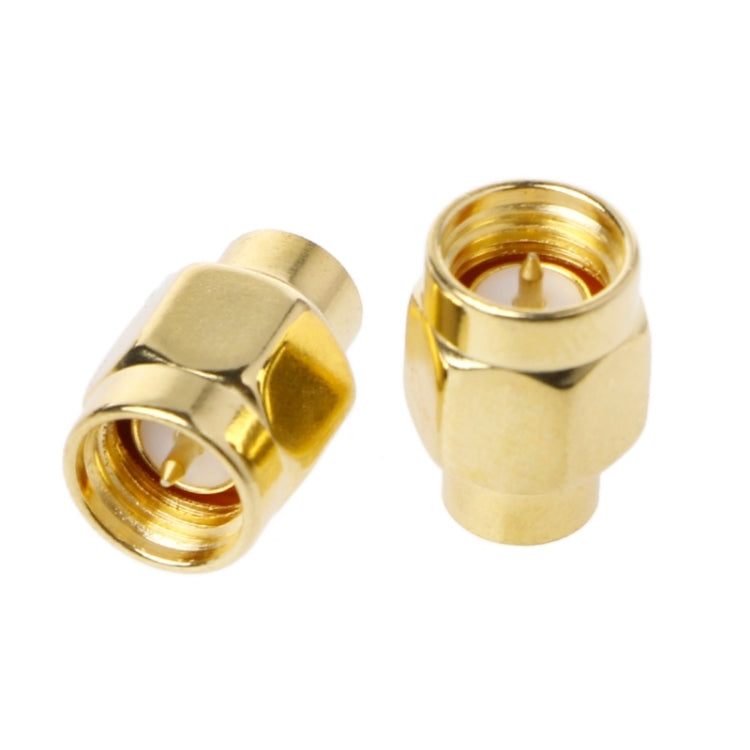

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector

Regular price R 189.00
Regular price Sale price R 189.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

Quantity

🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

FREE Shipping

FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 business days.

Overseas Warehouse: Shipping from China.

Duties and Taxes

  • For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
  • For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.

Return Guaranteed

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius)
2. Vibration: Vibration MIL-STD-202, Method 213
3. Characteristic Impedance: Impedance 50ohm
4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
5. Operating voltage: Working Voltage 335V max (RMS)
6. Pressure: Withstand Voltage 1000V rms (sea level minimum)
7. Contact resistance: Contact resistance
8. Between the inner conductors: Center Contact <= 3M ohm
9. Outside conductor: Outer Contact <= 2M ohm
10. Insulation resistance: Insulation resistance >= 5000M ohm
11. Insertion loss: <=0.15 dB / 6 GHz
12. Voltage Standing Wave Ratio:
- Straight: Straight Soft Cable <=1.10 + 0.002f
Semi-Rigid Cable <=1.05 + 0.001f
- Curved: Right angle soft cable <=1.20 + 0.003f
semi-rigid cable <=1.10 + 0.001f
13. Durability (Dating (mating): >= 500 times (cycles)

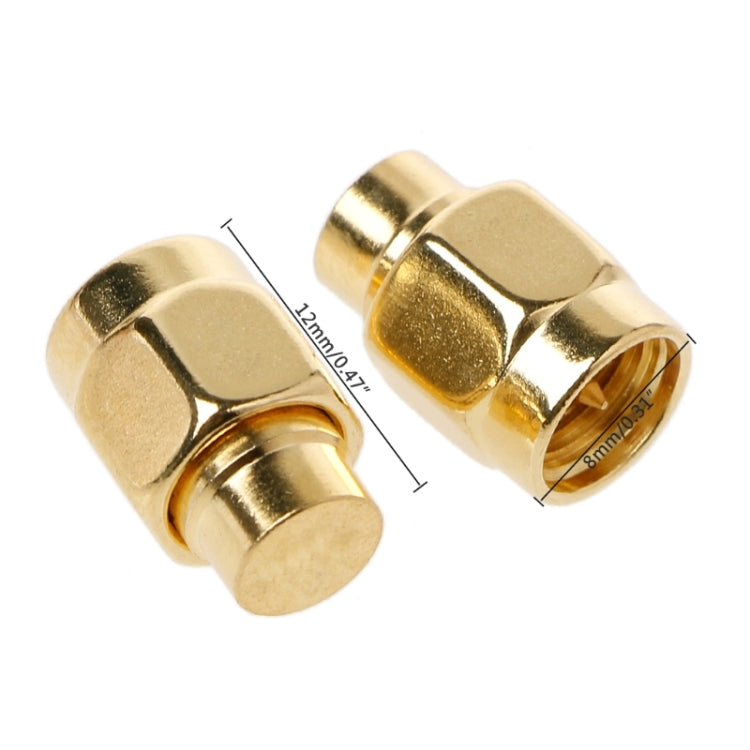

14. Size:12x8mm/0.47x0.31
