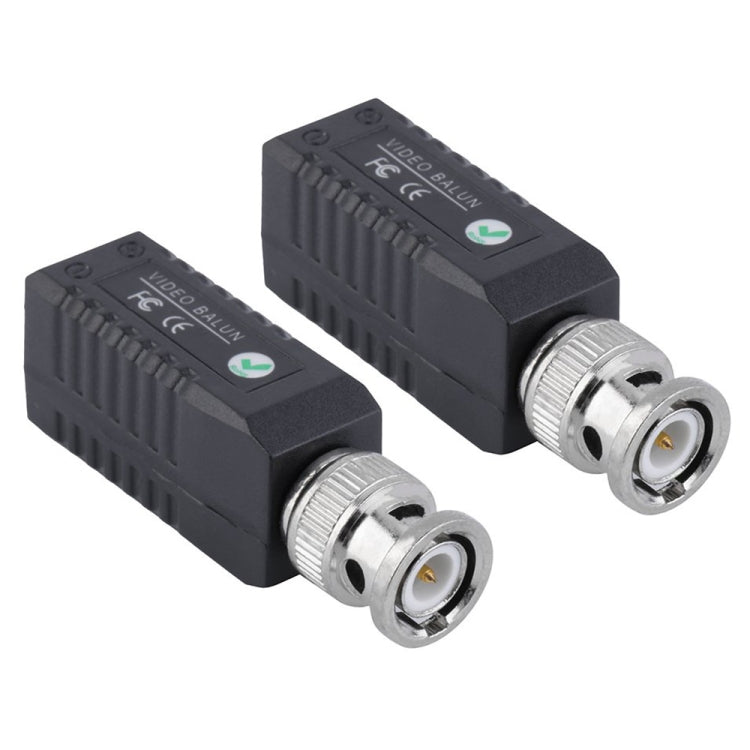

2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black)
2 PCS CCTV Twisted BNC Single Channel Passive Video Balun Transceiver(Black)
Sale
Sold out
Pre-order
Regular price
R 199.00
Regular price
Sale price
R 199.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Video Balun
• Compatibility: CCTV systems
• Material: Not specified
• Key feature: Compact size and easy installation
• Color/Variant: Black
• Intended use: Everyday use
• Category: Video Accessories
Features: 1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver 2. Up to 1500 m with any active UTP video receiver 3. Press-Fit terminal block 4. NTSC, PAL, and SECAM video formats 5. No power required 6. 60 dB crosstalk and noise immunity 7. Compact size and easy installation 8. Built-in transient suppression protection Specifications: 1. Frequency response: DC to 8MHz 2. Attenuation: 0.5 dB typ 3. CMRR: 60dB 4. Connectors: Male BNC and Press-Fit terminal blocks 5. Impedance: BNC: 75 ohms, Terminal:100 ohms 6. Working Temperature: -10 degree C to +70 degree C 7. Storage Temperature: -30 degree C to +70 degree C 8. Humidity: 0 to 95% 9. Dimension: 39x16x19 mm (excluding connectors)
• Compatibility: CCTV systems
• Material: Not specified
• Key feature: Compact size and easy installation
• Color/Variant: Black
• Intended use: Everyday use
• Category: Video Accessories
Features: 1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver 2. Up to 1500 m with any active UTP video receiver 3. Press-Fit terminal block 4. NTSC, PAL, and SECAM video formats 5. No power required 6. 60 dB crosstalk and noise immunity 7. Compact size and easy installation 8. Built-in transient suppression protection Specifications: 1. Frequency response: DC to 8MHz 2. Attenuation: 0.5 dB typ 3. CMRR: 60dB 4. Connectors: Male BNC and Press-Fit terminal blocks 5. Impedance: BNC: 75 ohms, Terminal:100 ohms 6. Working Temperature: -10 degree C to +70 degree C 7. Storage Temperature: -30 degree C to +70 degree C 8. Humidity: 0 to 95% 9. Dimension: 39x16x19 mm (excluding connectors)
