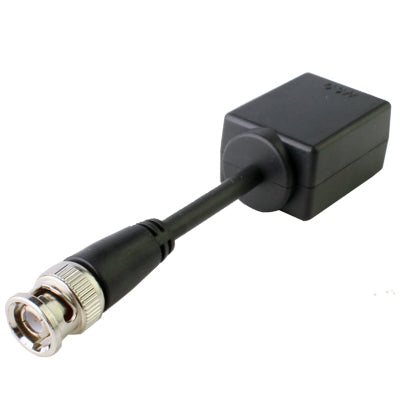

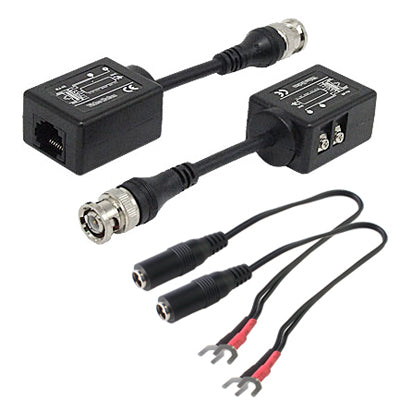

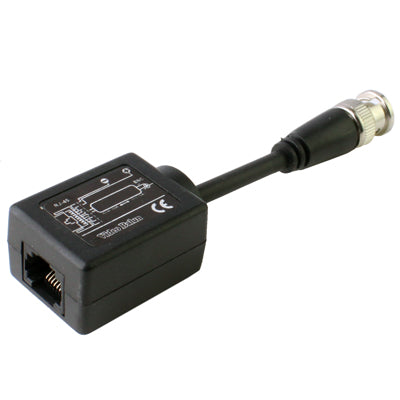

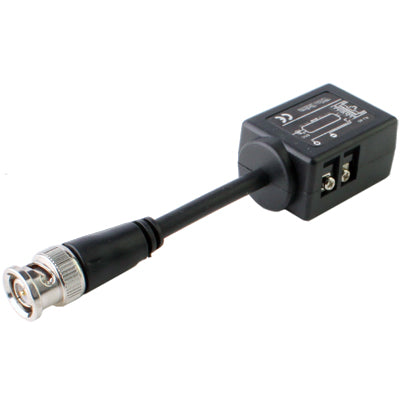

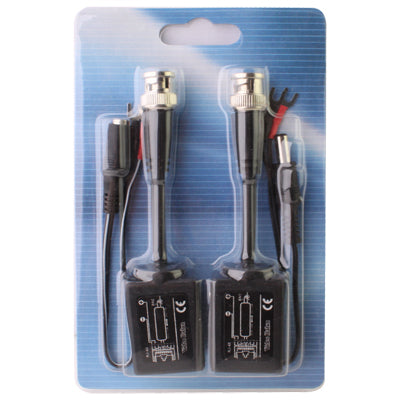

2 PCS Passive Video Balun CCTV Network UTP BNC(Black)
2 PCS Passive Video Balun CCTV Network UTP BNC(Black)
Sale
Sold out
Pre-order
Regular price
R 289.00
Regular price
Sale price
R 289.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Video Balun
• Compatibility: CCTV systems
• Material: UTP
• Key feature: Passive design
• Color/Variant: Black
• Intended use: Video signal transmission
• Category: Video Accessories
Featrues: 1) Using UTP cable to transmit video audio signal instead of co-axial. 2) Longer transmission distance, >600meter. 3) Lower budget, the price of UTP is much less than co-axial cable. 4) Easy Installation, using the standard UTP cable system. 5) Video Balun support all video device, such as camera, monitor, DVR card, recorder, etc. 6) Passive Video Balun is compatible with local Area Network system, using pin 4,5 for video signal and Pin 7,8 for power transmission. Specification: 1) Maximum Output: 1.1Vp-p 2) Loss Ratio: >2db 3) Rejection Ratio: <15db 4) Interference: >40db 5) Transmission Distance Color: <600meter 6) Transmission Distance B/W: >750meter 7) BNC Resistance: 75ohm 8) UTP Resistance: 100ohm 9) Temperature: 0~55°C 10) Size of each CCTV Network Video Balun:11.8cm x 2.7cm x 2cm . Approx. 11) Length of each power convert cable: 16cm long. Approx.
• Compatibility: CCTV systems
• Material: UTP
• Key feature: Passive design
• Color/Variant: Black
• Intended use: Video signal transmission
• Category: Video Accessories
Featrues: 1) Using UTP cable to transmit video audio signal instead of co-axial. 2) Longer transmission distance, >600meter. 3) Lower budget, the price of UTP is much less than co-axial cable. 4) Easy Installation, using the standard UTP cable system. 5) Video Balun support all video device, such as camera, monitor, DVR card, recorder, etc. 6) Passive Video Balun is compatible with local Area Network system, using pin 4,5 for video signal and Pin 7,8 for power transmission. Specification: 1) Maximum Output: 1.1Vp-p 2) Loss Ratio: >2db 3) Rejection Ratio: <15db 4) Interference: >40db 5) Transmission Distance Color: <600meter 6) Transmission Distance B/W: >750meter 7) BNC Resistance: 75ohm 8) UTP Resistance: 100ohm 9) Temperature: 0~55°C 10) Size of each CCTV Network Video Balun:11.8cm x 2.7cm x 2cm . Approx. 11) Length of each power convert cable: 16cm long. Approx.
