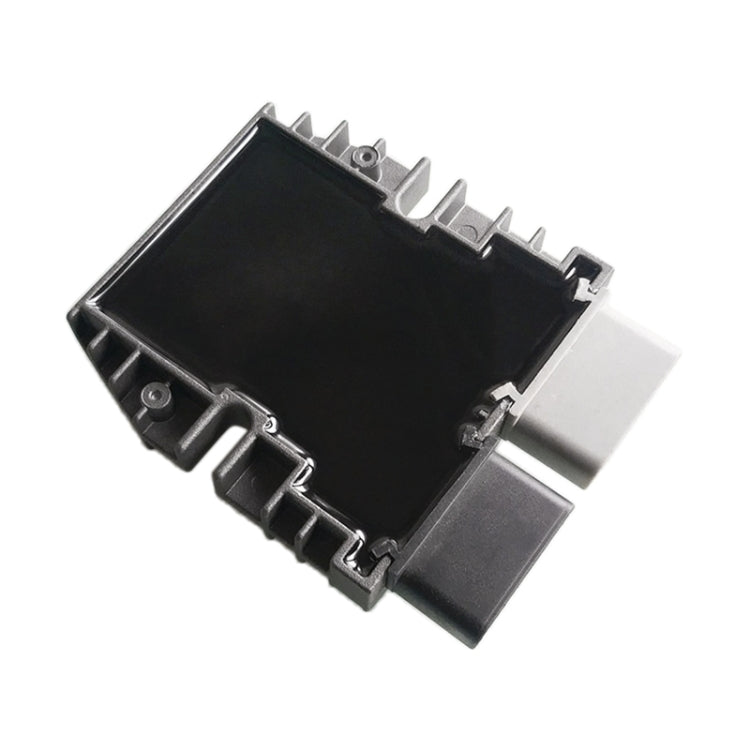

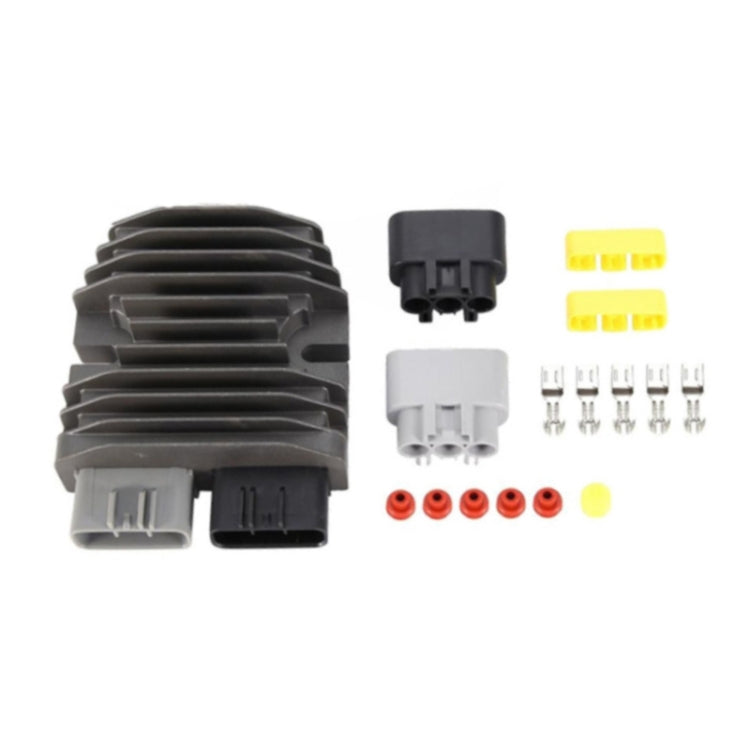

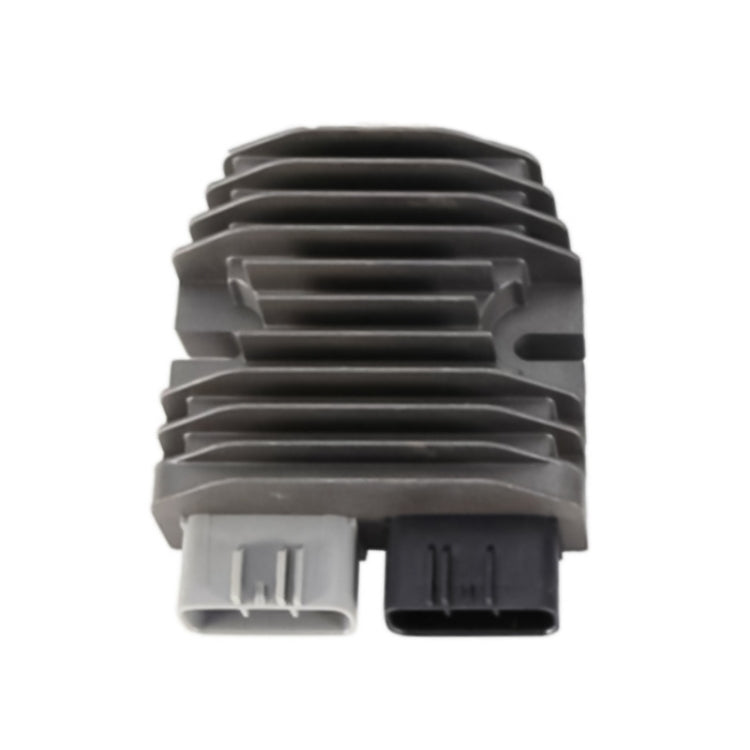

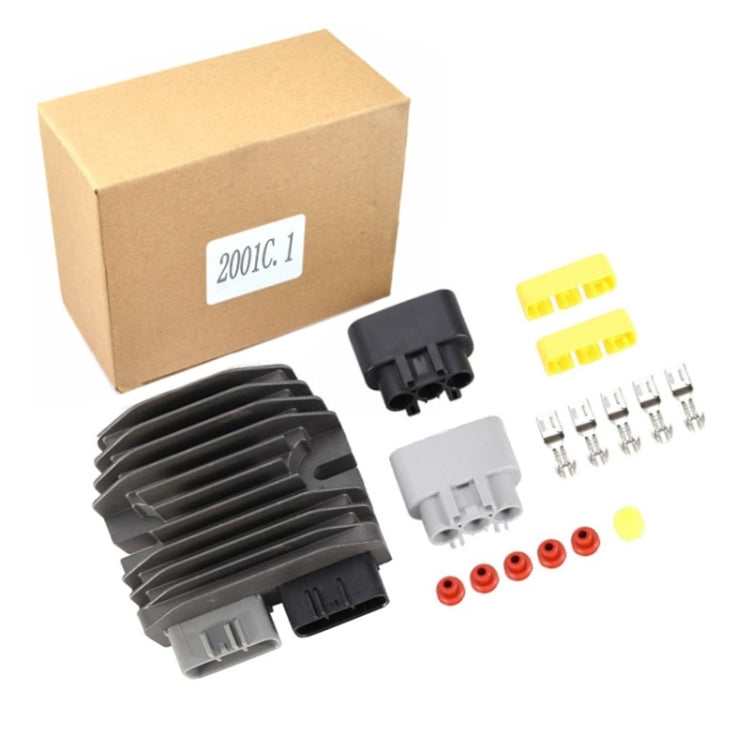

2001C.1 Motorcycle Rectifier For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-00
2001C.1 Motorcycle Rectifier For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-00
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
1. Weight: 360g
2. Wire length: 40cm
3. Aluminum shell size: 83x94x25.7mm
4. Output voltage: 14.5v
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.
Applicable models:
For Mosfet Yamaha Rai r / YZF R1 2002-2014 Yamaha FJR FJR1300 1300 2003 2005 5JW-81960-00
For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-00
For Yamaha FZ8 Fazer 800 2009 2011 1D7-81960-01
For Yamaha FZ8 N 800 2009 2011 1D7-81960-01
For Yamaha FZ8 N 800 2009 2011 1D7-81960-00
For Yamaha FZ8 S 800 2009 2011 1D7-81960-00
For Yamaha FZ8 S 800 2009 2011 1D7-81960-01
For Yamaha MT 01 1700 2007 5YU-81960-00
For Yamaha RS Nytro 900 2006 2007 5JW-81960-00
For Yamaha RS Vector 900 2005 2009 5JW-81960-00
For Yamaha RS Venture 900 2005 2013 5JW-81960-00
For Yamaha RSG Rage 900 2005 2007 5JW-81960-00
For Yamaha RX RX1 1000 2003 2005 5JW-81960-00
For Yamaha RX Apex 1000 2006 2010 5JW-81960-00
For Yamaha RX Warrior 1000 2004 2005 5JW-81960-00
For Yamaha RXW Attak 1000 2006 2007 5JW-81960-00
For Yamaha VK Professional 1000 2006 2013 5JW-81960-00
For Yamaha XTZ Tenere 1200 2010 2012 1D7-81960-00
For Yamaha XTZ Tenere 1200 2013 2017 1D7-81960-01
For Yamaha XV Road Star Warrior 1700 2003 2009 5JW-81960-00
For Yamaha XVS 950 2009 2011 1D7-81960-01
For Yamaha XVS V Star 1300 2011 2013 27D-81960-00
For Yamaha XVS V Star Tourer 950 2011 2013 27D-81960-00
For Yamaha XVS V Star 950 2011 2013 27D-81960-00
For Yamaha XVS Stryker 1300 2011 2013 27D-81960-00
For Yamaha XVS V Star Tourer 1300 2011 2013 27D-81960-00
For Yamaha XVS 950 2009 2011 1D7-81960-00
For Yamaha YZF R1 1000 2002 2003 5JW-81960-00
