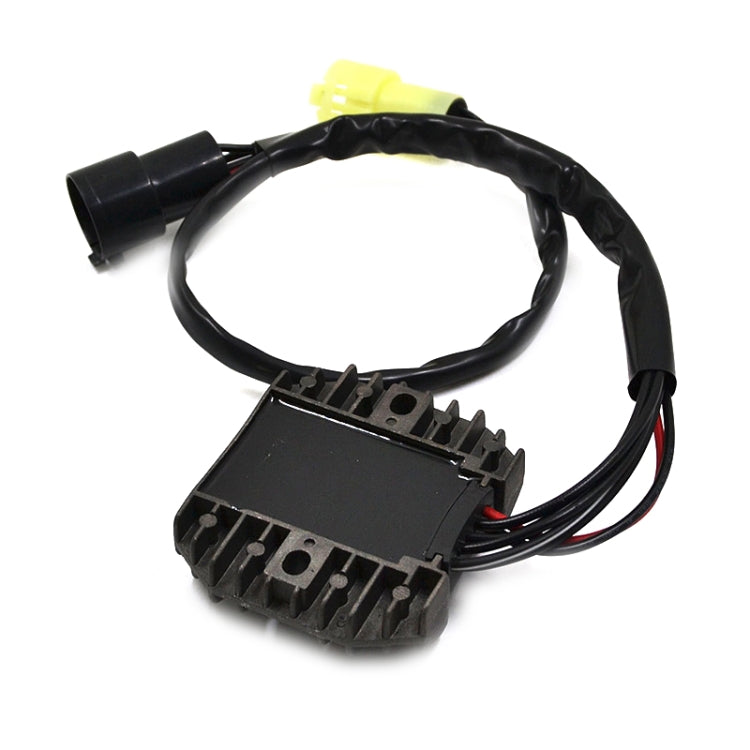

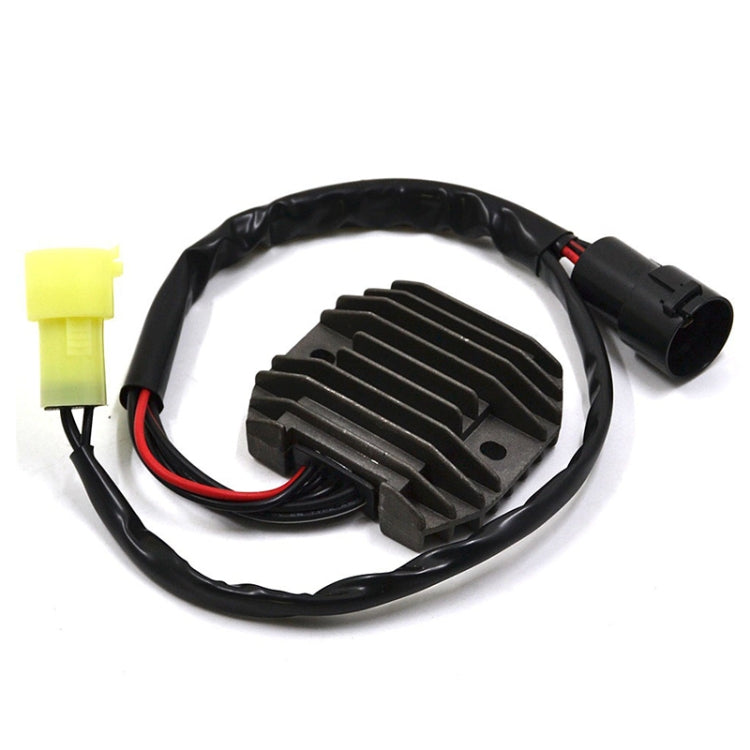

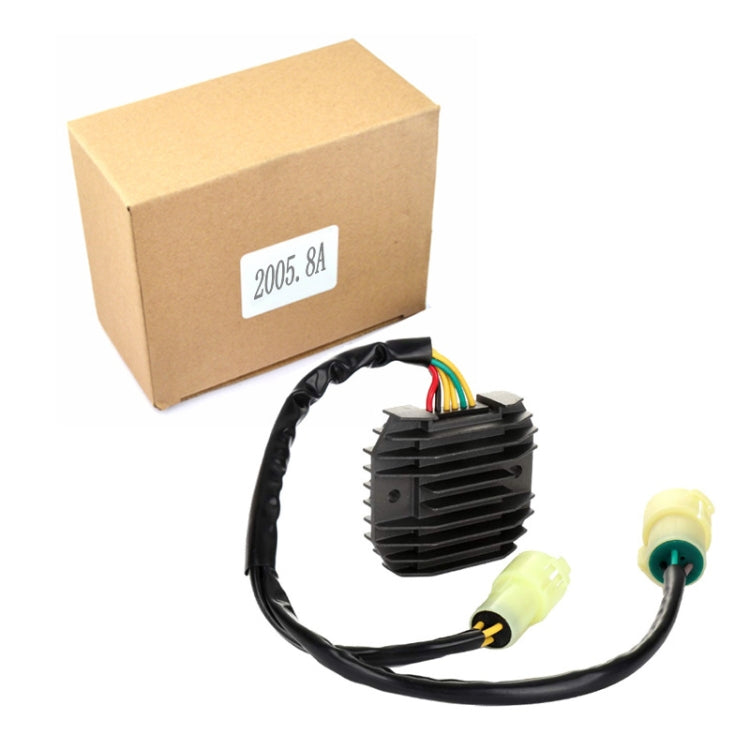

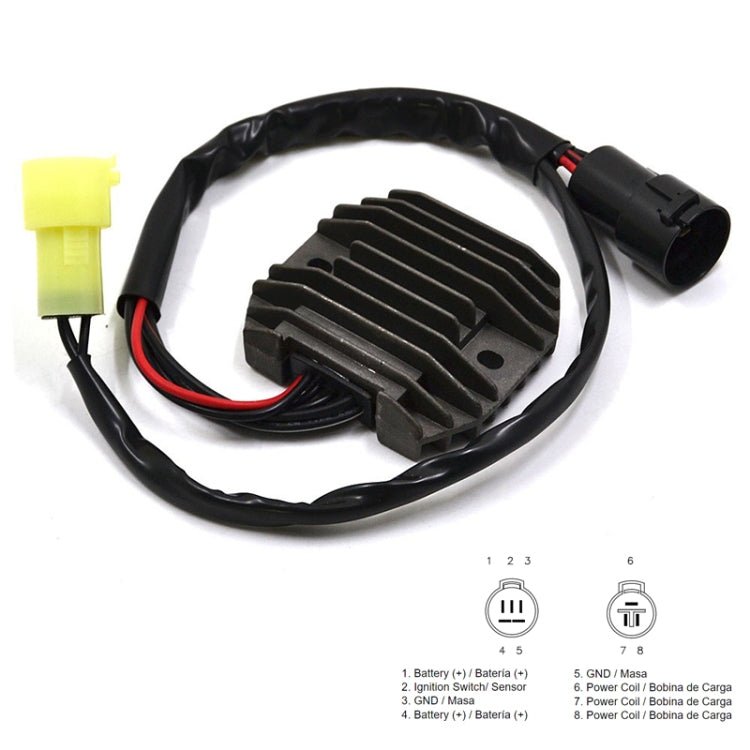

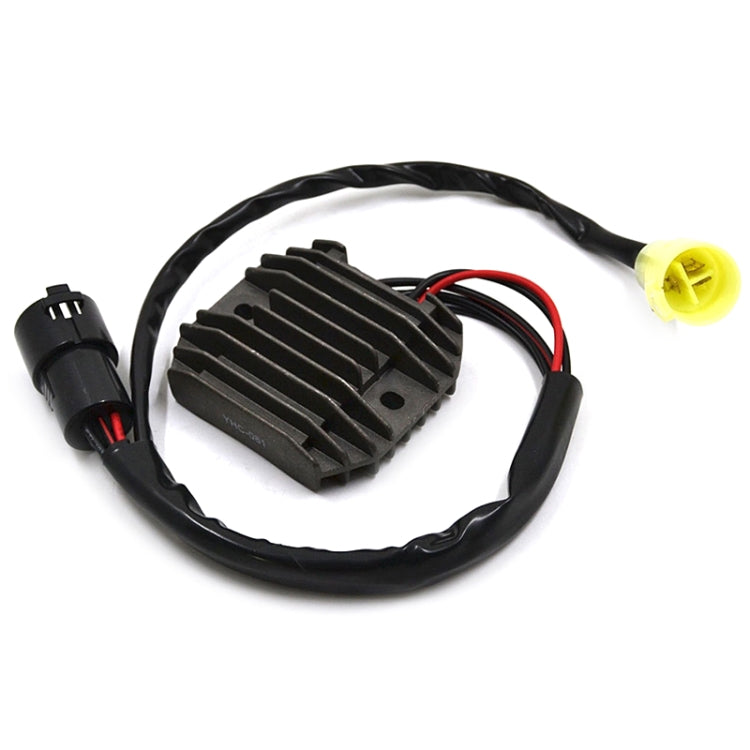

2005.8A Motorcycle Rectifier For Kawasaki Ninja ZX-6R ZX600

1. Weight: 325G
2. Output voltage: 14.5V
3. Output current: 35A
4. Wire length: 35CM

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For Kawasaki KLF Bayou 300 2002 2005 21066-1112
For Kawasaki KSV KFX700 700 2004 2009 21066-1112
For Kawasaki KVF Prairie 650 2002 2003 21066-1112
For Kawasaki KVF Prairie 300 1999 2002 21066-1112
For KVF Prairie 700 2004 2006 21066-1112
For Kawasaki KVF Brute Force 650 2011 2013 21066-0047
For Kawasaki KVF Prairie 360 ​​2003 2012 21066-1112
For Kawasaki KVF Brute Force 650 2005 2010 21066-1112
For Kawasaki KVF Prairie 400 1999 2002 21066-1112
For Suzuki LT-V Twin Peaks 700 2004 2005 K2106-61112
