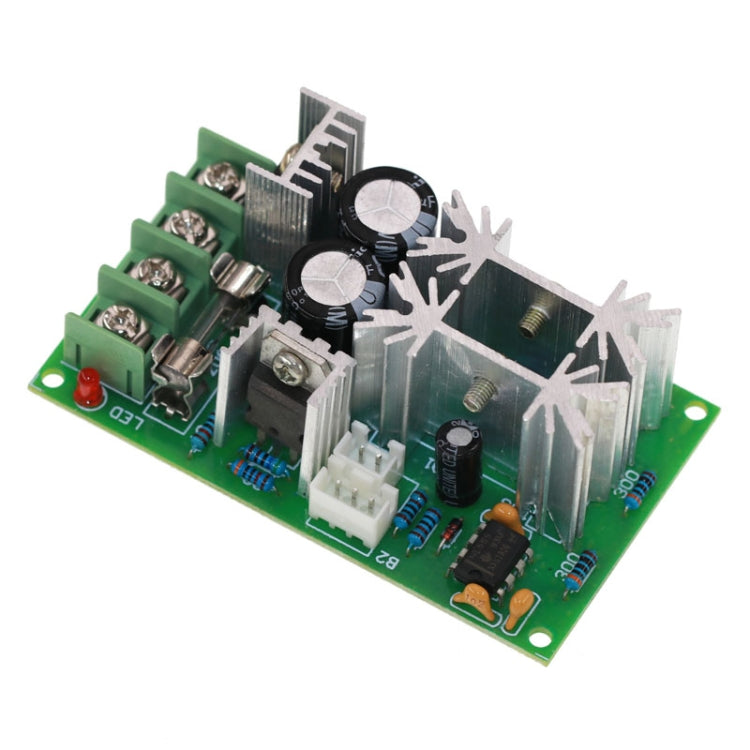

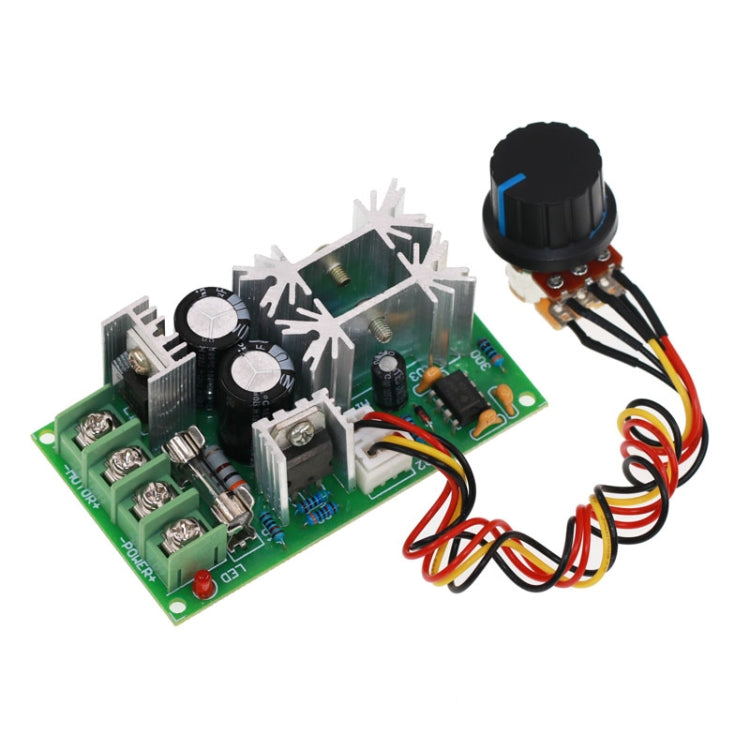

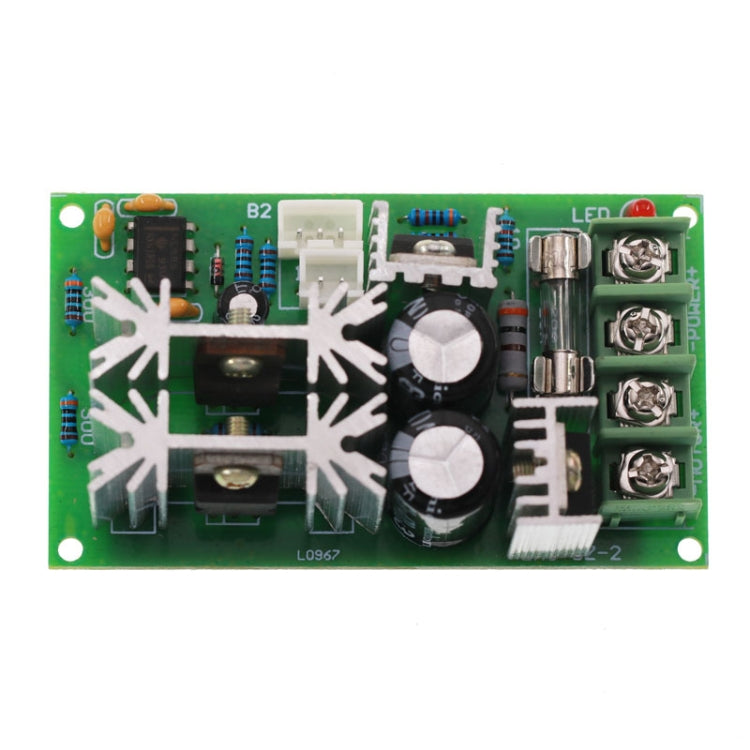

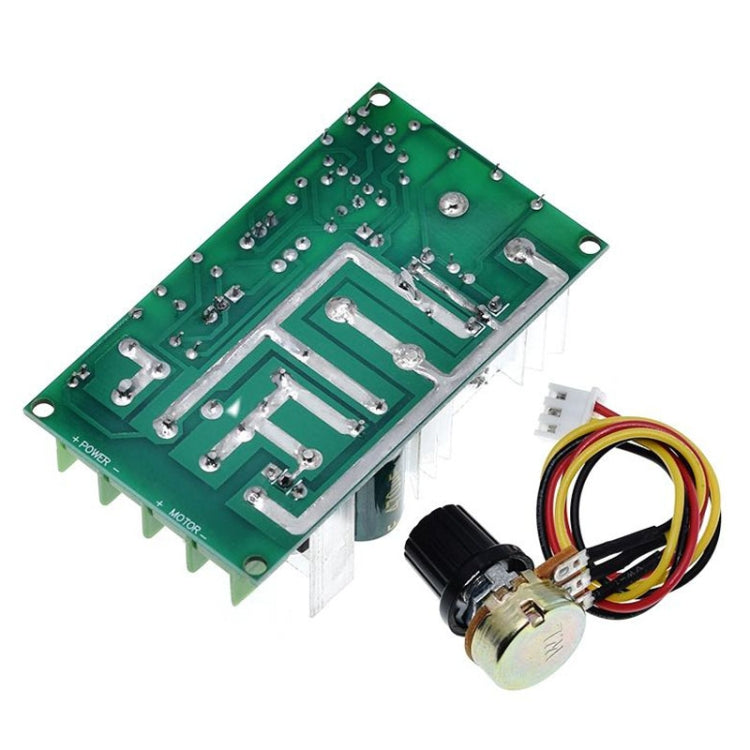

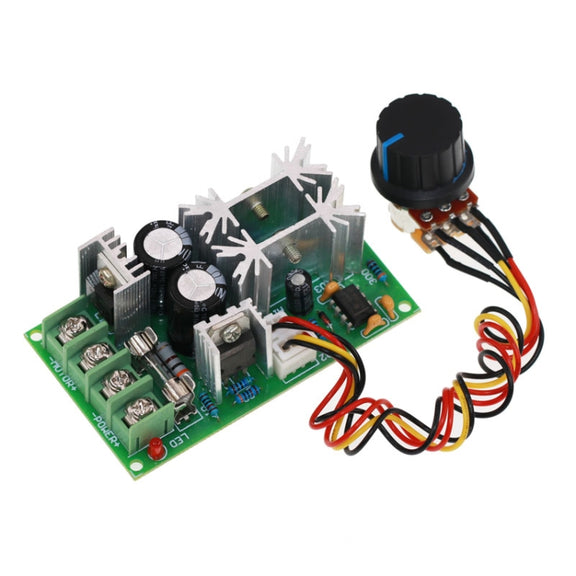

20A 12V24V36V48V DC Motor Speed Controller High Power Drive Module PWM Controller
20A 12V24V36V48V DC Motor Speed Controller High Power Drive Module PWM Controller
Sale
Sold out
Pre-order
Regular price
R 239.00
Regular price
Sale price
R 239.00
Unit price
per
Pay in monthly instalments with
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Type:
Power Module
Description
1. Control frequency: 25KHZ
2. Limit power: 1200W
3. Input voltage: DC10-60V
4. Output voltage: linear under load
5. Speed regulation type: current regulation
6. Speed regulation mode: potentiometer (linear)
7. Wiring type: fence type terminals
8. Output limit current: 20A (long time use 10A, 450W or less, pay attention to keep the module smooth heat dissipation conditions)
9. Make sure the positive and negative connections are correct before powering on, and do not contact the heat sink, as it may burn the circuit board
10. Note that this is not a power module, must be connected to the motor in order to adjust the speed, not connected to the motor multimeter output did not change
11. Weight: about 76.4 g
12. Size: module about 7.7 x 4.5 x 2.8 cm, motherboard mounting size about 7.3 x 4 cm, potentiometer mounting holes about 0.7 cm, knob wire length about 20 cm
Please note:
1. This speed controller is intended for use with brush DC motors
2. It is not suitable for DC brushless motors; nor can it be used as a voltage regulator or voltage stabilizer
