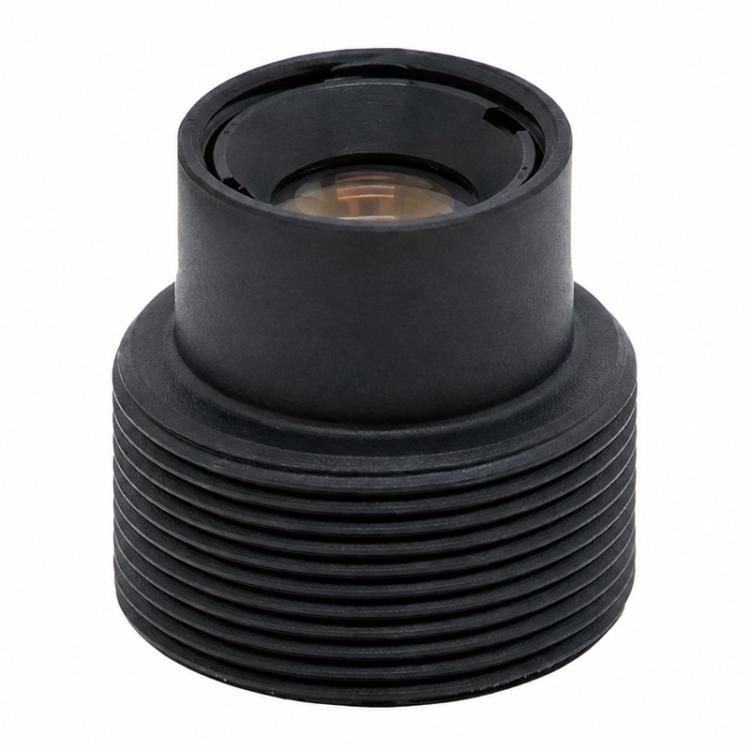

20x High-Definition Skin Analyzer Lens, M8 Interface Distortion-Free Optical Lens(Black)
20x High-Definition Skin Analyzer Lens, M8 Interface Distortion-Free Optical Lens(Black)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
1. High-Definition Imaging: Provides clear and detailed imaging for skin analysis, inspection, and other close-up observation applications.
2. Low Distortion Design: With TV distortion of only -0.82%, the lens helps maintain accurate image shapes and fine details.
3. OV5640 Sensor Compatible: Designed for the 1/4 inch OV5640 sensor, suitable for compatible skin analyzers and compact imaging equipment.
4. Compact M8 Interface: Features an M8 x 0.35 thread for convenient installation with compatible optical modules.
5. Stable Optical Performance: The 4G optical construction and 76% relative illumination provide balanced imaging performance for professional inspection applications.
Specification:
1. Compatible Sensor: 1/4 inch OV5640 sensor
2. Maximum Image Circle: 5.2mm
3. Effective Focal Length: 4.89mm
4. Back Focal Length: 3.52mm
5. Mechanical Back Focal Length: 2.71mm
6. Aperture: F6.65
7. Field of View: Diagonal 39.8 degrees / Horizontal 33 degrees / Vertical 25 degrees
8. TV Distortion: -0.82%
9. Chief Ray Angle: 19.5 degrees
10. Relative Illumination: 76%
11. Lens Construction: 4G
12. Thread: M8 x 0.35
