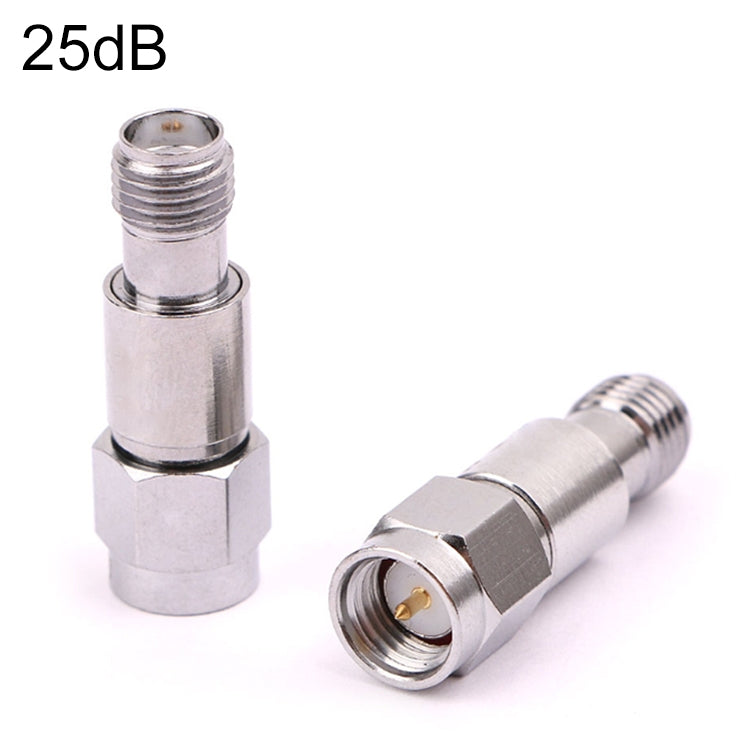

25dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
25dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Useful in a wide variety of applications including impedance matching and level control.
2. With diffrent attenuation values of fixed attenuator to be chosen from. Good quality, rugged construction.
3. Suitable for microwave equipment, electronic equipment or communication systems. The use of features frequency bandwidth, low standing wave, power, stable performance.
4. It can promote your work efficiently.
Specification:
1. Materila: stainless steel
2. Power: 2W
3. Frequency Range: DC-6GHz
4. Impedance: 50 ohm
5. tanding-wave ratio (SWR): <=1.20
6. Connector Type: SMA-J ~ SMA-K
7. perating Temperature: -20~115 degrees Celsius

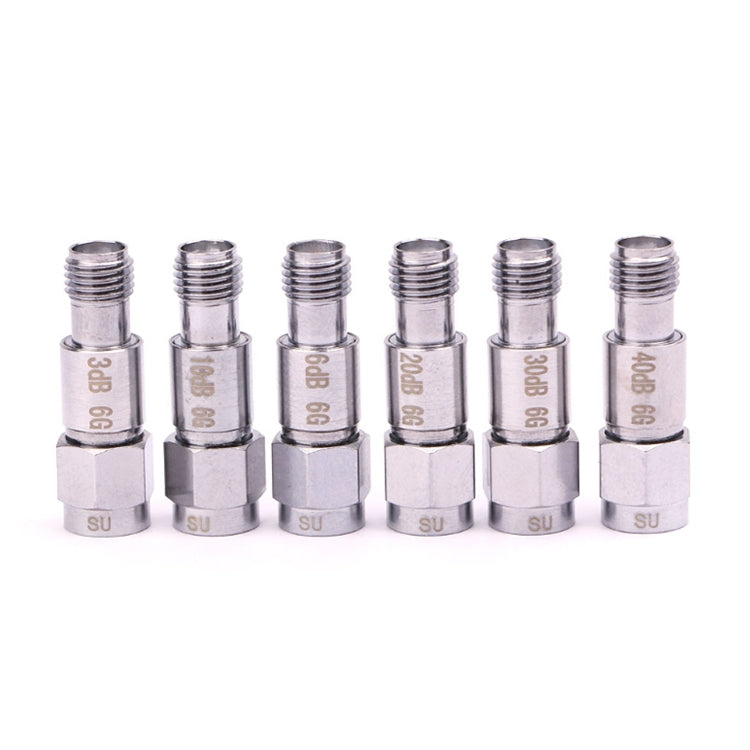

8. Attenuation: 60dB/50dB/40dB/30dB/25dB/20dB/10dB/6dB/5dB/3dB/2dB/1dB
9. Attenuation Range: +/-0.5dB; 30+/-0.8dB; 40-50dB+/-1.5dB; 60dB+/-1.8dB

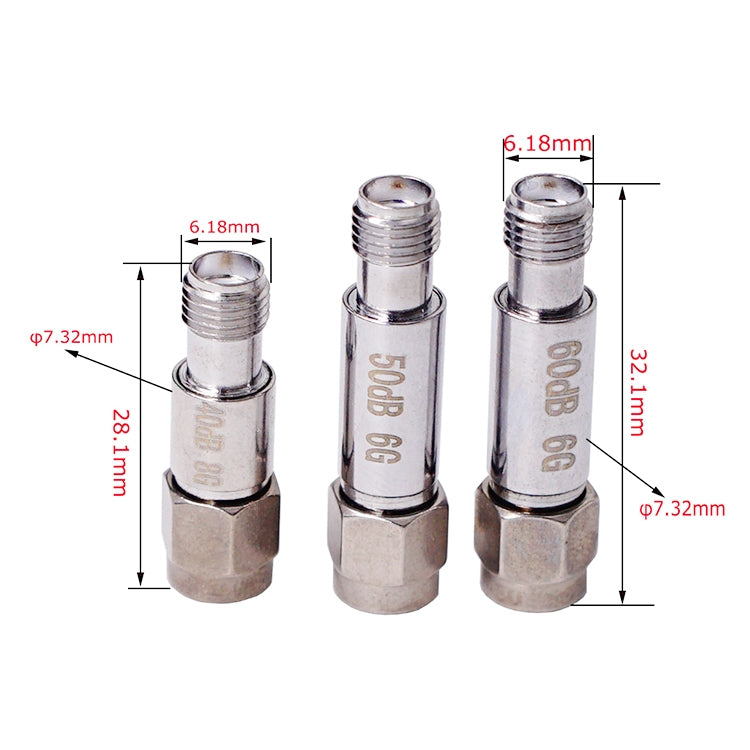

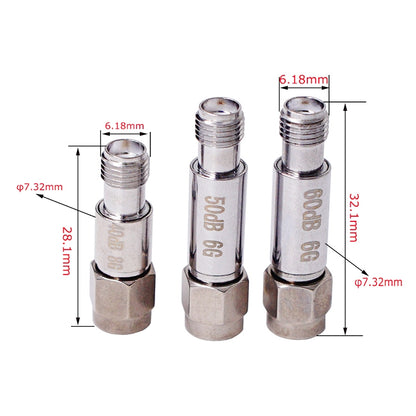

10. Size: 1dB~40dB app.28.1x9.1mm 50dB/60dB app.32.1x9.1mm
