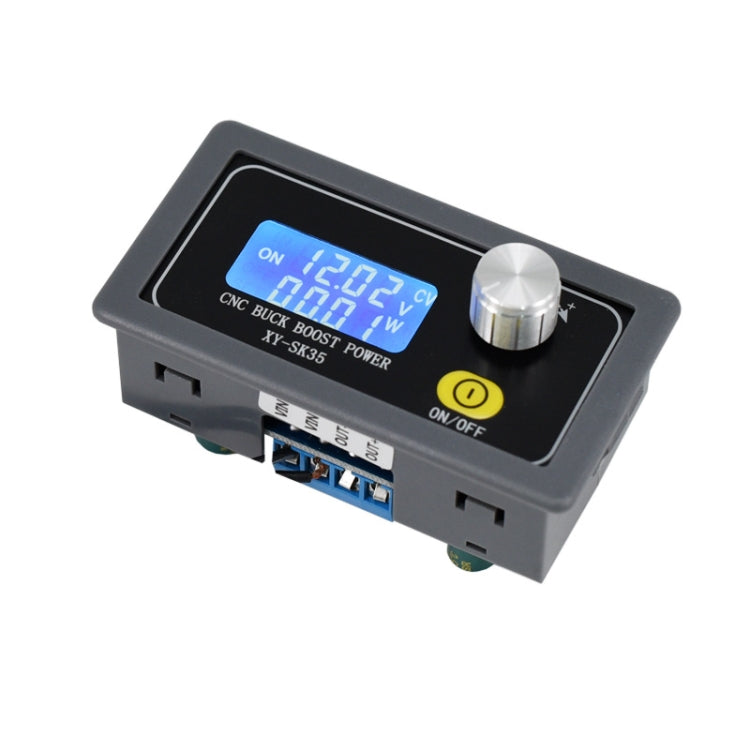

5-30V Adjustable DC Voltage Regulator Power Module Solar Charge
5-30V Adjustable DC Voltage Regulator Power Module Solar Charge
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 business days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guaranteed
Return Guaranteed
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Input voltage: DC 5.0-30V (under 4.7V with under-voltage protection LVP)
2. Output voltage: DC 0.6-30V
3. Output current: 0-4.0A
4. Output power: 35W under natural cooling, up to 50W under air cooling
5. Soft start: yes
6. Input reverse connection protection: yes, reverse connection will not burn
7. Anti-backflow at the output: yes, it can be directly connected to the battery
8. Output short-circuit protection: yes, the output terminal can be directly short-circuited
9. Temperature protection (OTP): yes, 100 degrees Celsius
10. Working frequency: 180KHZ

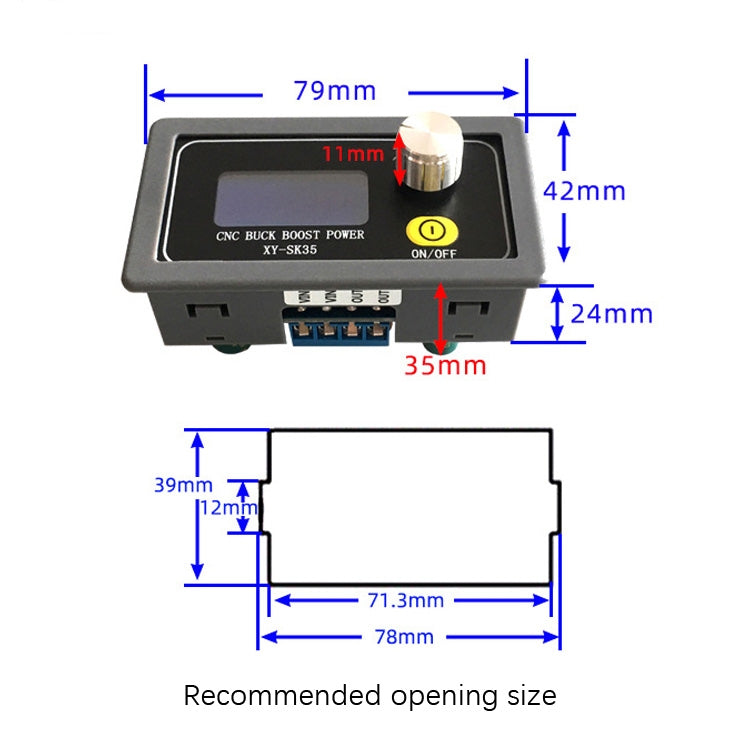

11. Recommended opening size: about 7.8x3.9cm
12. Appearance size: about 7.9x4.2x2.4 cm
13. Weight: about 93g
Features:

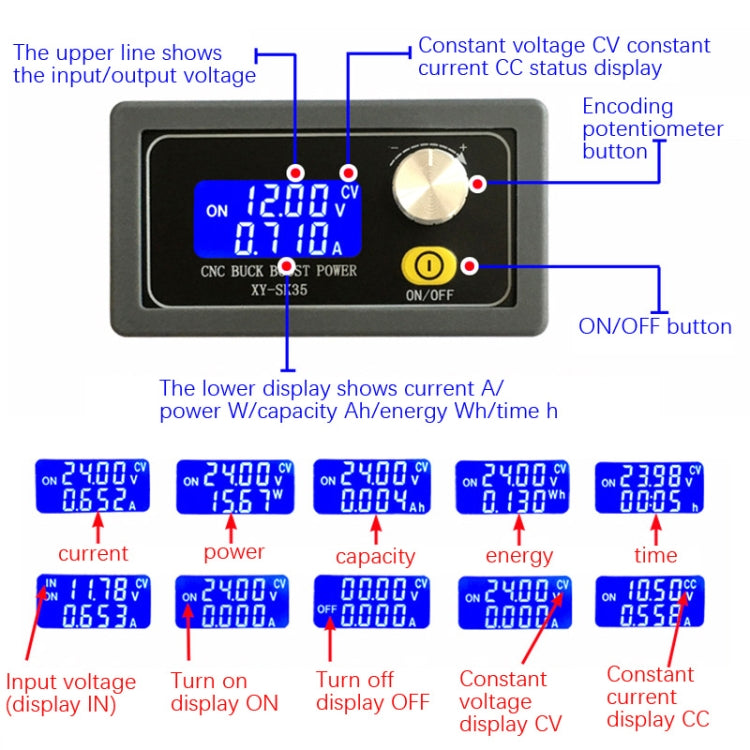

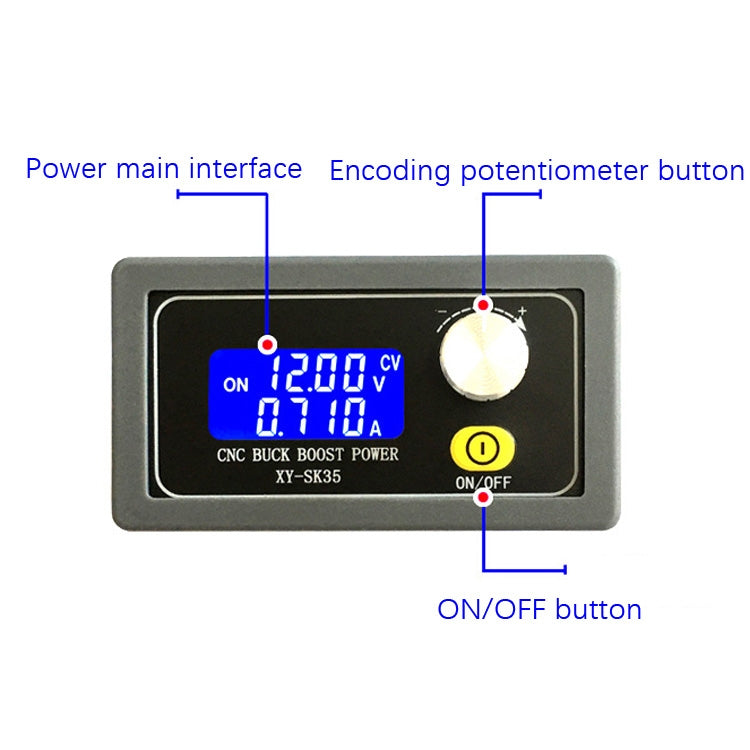

1. Power LCD display, clear interface, easy to operate
2. Digitally controlled voltage and current adjustment, convenient and fast

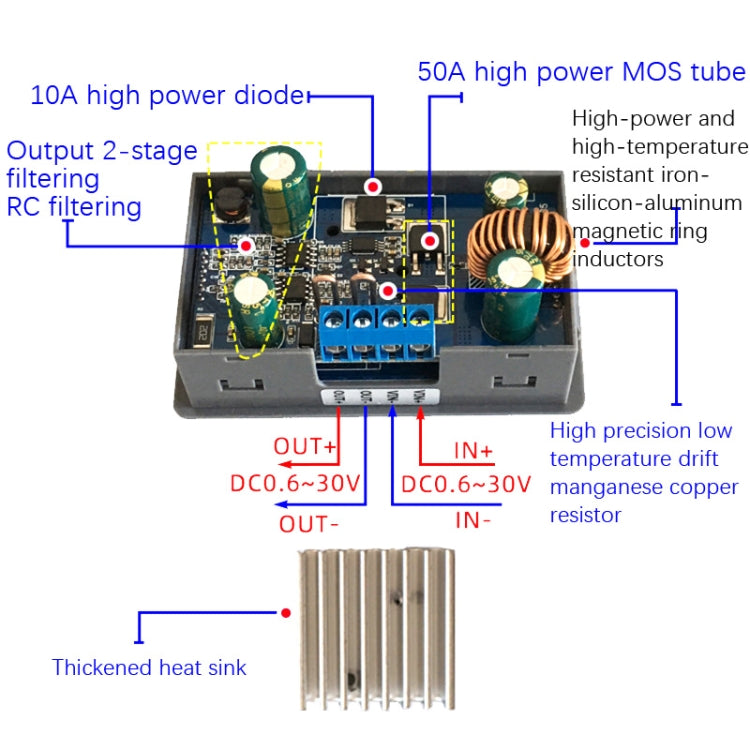

3. Hardware protection: input anti-reverse connection protection, reverse connection does not burn, output short-circuit protection, short-circuit does not burn, output anti-backflow, no need to add an anti-backflow diode when charging the battery
4. Software protection: over voltage protection (OVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), input under voltage protection (LVP)
5. Full of materials, stable performance and wide range of uses

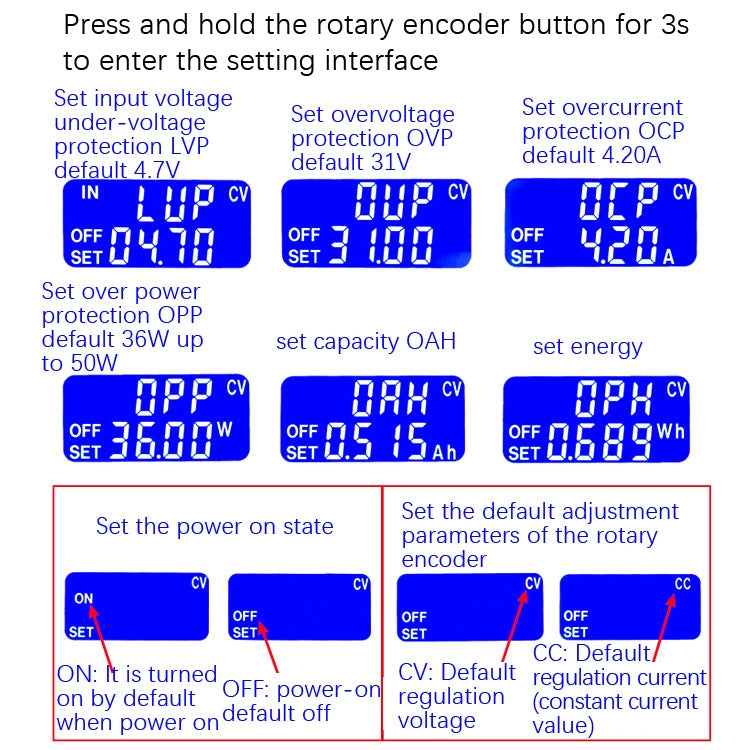

6. Long press the rotary encoder button to enter the setting interface, which is easy to operate
