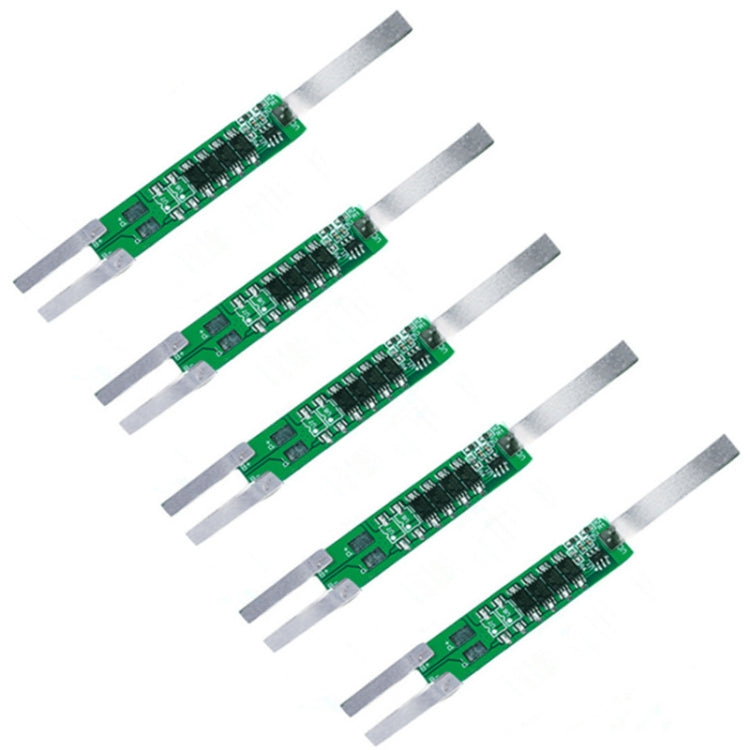

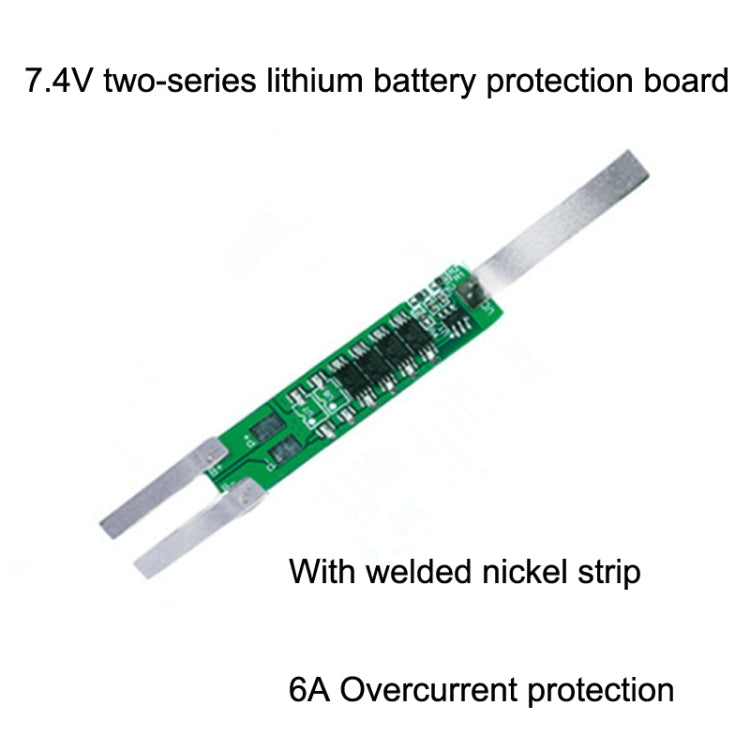

5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protection Board(As Show)
5pcs 7.4V Plus Nickel Long Strip Lithium Battery Protection Board 6A Overcurrent Battery Protection Board(As Show)
Sale
Sold out
Pre-order
Regular price
R 259.00
Regular price
Sale price
R 259.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Sensor Module
• Compatibility: Lithium Battery Protection Board
• Material: Not specified
• Key feature: 6A Overcurrent Protection
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Arduino & SCM Supplies

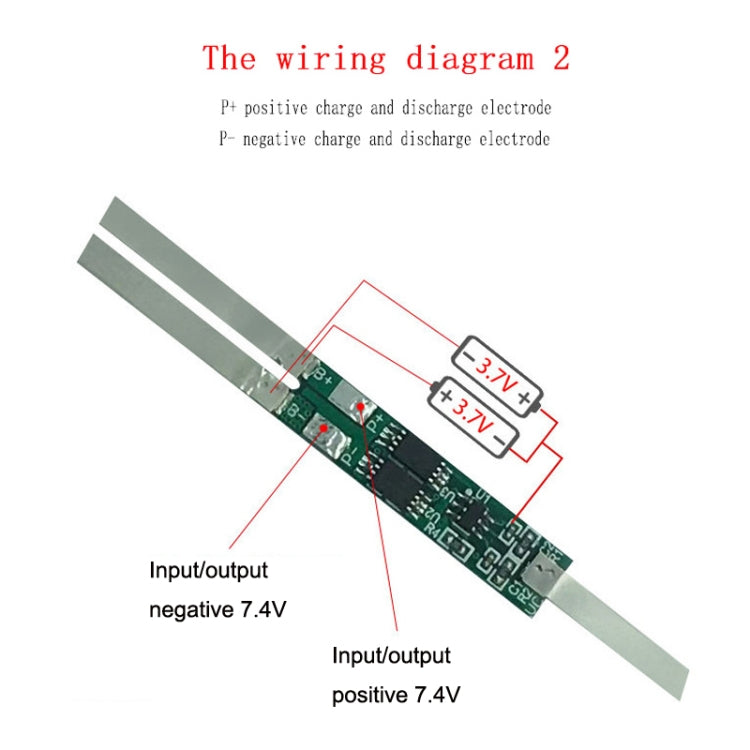

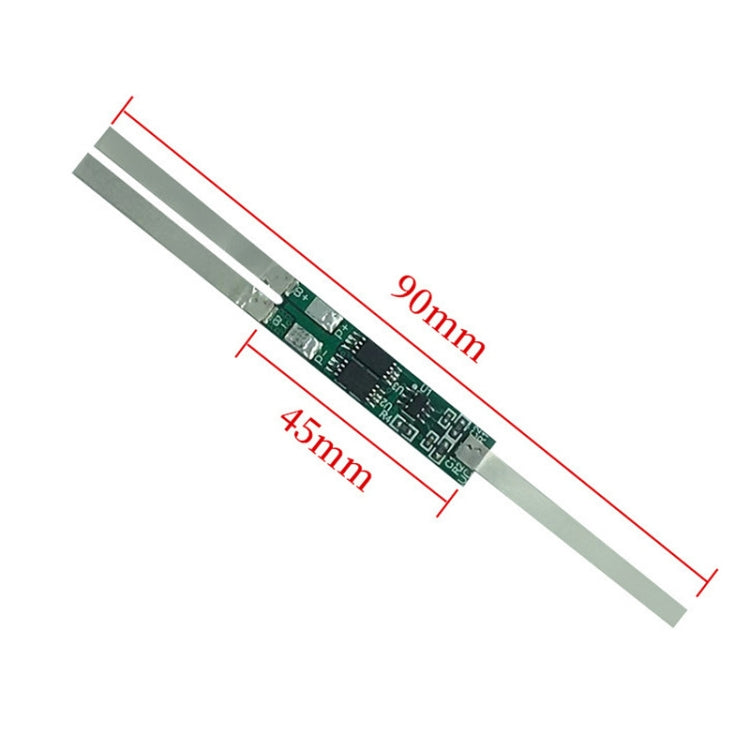

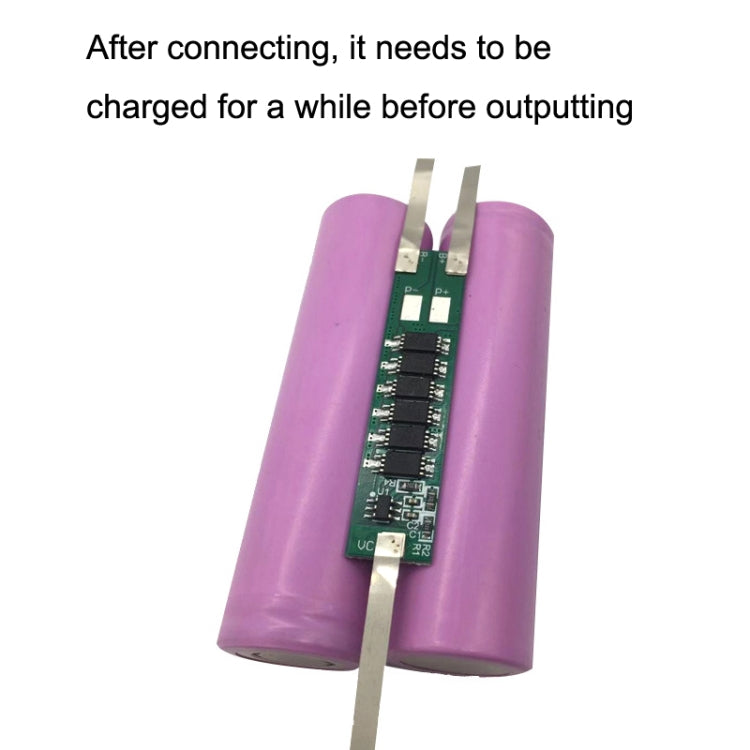

Parameter:1. After connecting, it needs to be charged for a while before outputting2. Charging voltage: DC7.4V3. Continuous discharge current: 6A4. Overcharge detection voltage: 4.25V x 25. Overcharge detection delay time: 1S6. Overcharge recovery voltage: 4.25V x 27. Over-discharge detection voltage: 2.3V--2.35V x 28. Over-discharge detection delay time: 100ms9. Over-discharge recovery voltage: 3.0V x 210. Overcurrent detection voltage: 200mv11. Overcurrent detection current: 6A12. Overcurrent detection delay time: 10ms13. Protection circuit (MOSPET): less than or equal to 60 megohms14. Working temperature range: -40 to 85 degrees Celsius15. Size: 90x45mmKind tips:1. Because (lithium battery protection board) belongs to the particularity of semi-finished products in electronic products; be sure to understand the wiring diagram before assembly; avoid wrong wiring2. Incorrect wiring or unintentional contact of wire ends with components may cause damage
• Compatibility: Lithium Battery Protection Board
• Material: Not specified
• Key feature: 6A Overcurrent Protection
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Arduino & SCM Supplies
Parameter:1. After connecting, it needs to be charged for a while before outputting2. Charging voltage: DC7.4V3. Continuous discharge current: 6A4. Overcharge detection voltage: 4.25V x 25. Overcharge detection delay time: 1S6. Overcharge recovery voltage: 4.25V x 27. Over-discharge detection voltage: 2.3V--2.35V x 28. Over-discharge detection delay time: 100ms9. Over-discharge recovery voltage: 3.0V x 210. Overcurrent detection voltage: 200mv11. Overcurrent detection current: 6A12. Overcurrent detection delay time: 10ms13. Protection circuit (MOSPET): less than or equal to 60 megohms14. Working temperature range: -40 to 85 degrees Celsius15. Size: 90x45mmKind tips:1. Because (lithium battery protection board) belongs to the particularity of semi-finished products in electronic products; be sure to understand the wiring diagram before assembly; avoid wrong wiring2. Incorrect wiring or unintentional contact of wire ends with components may cause damage
