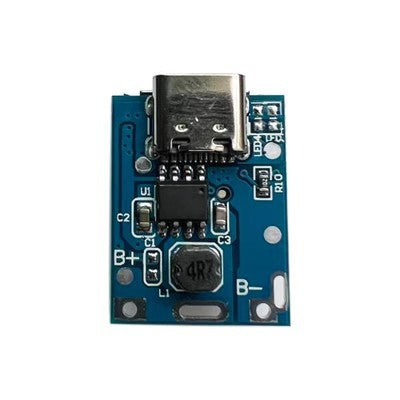

5V Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display For DIY Charger 134N3P, Interface: Type-C
5V Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display For DIY Charger 134N3P, Interface: Type-C
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

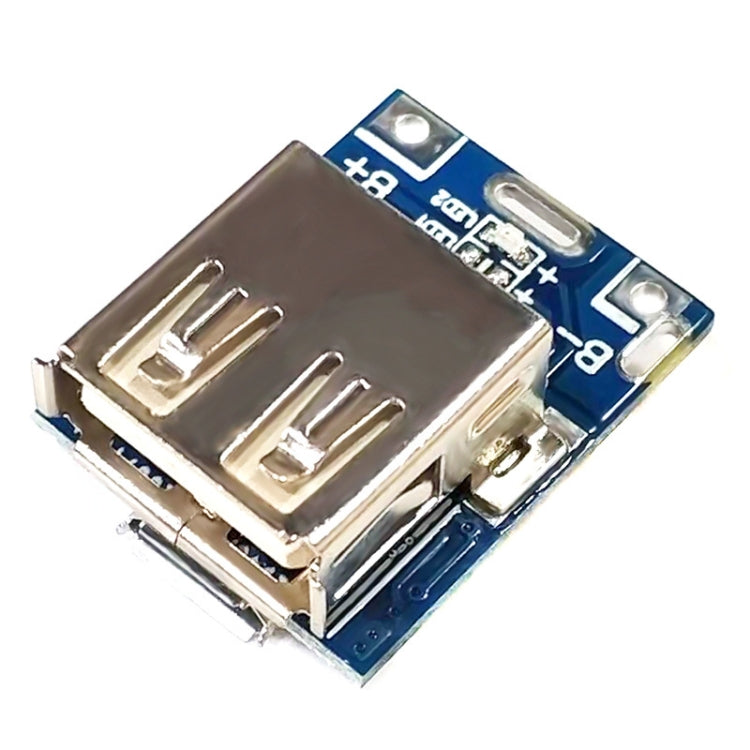

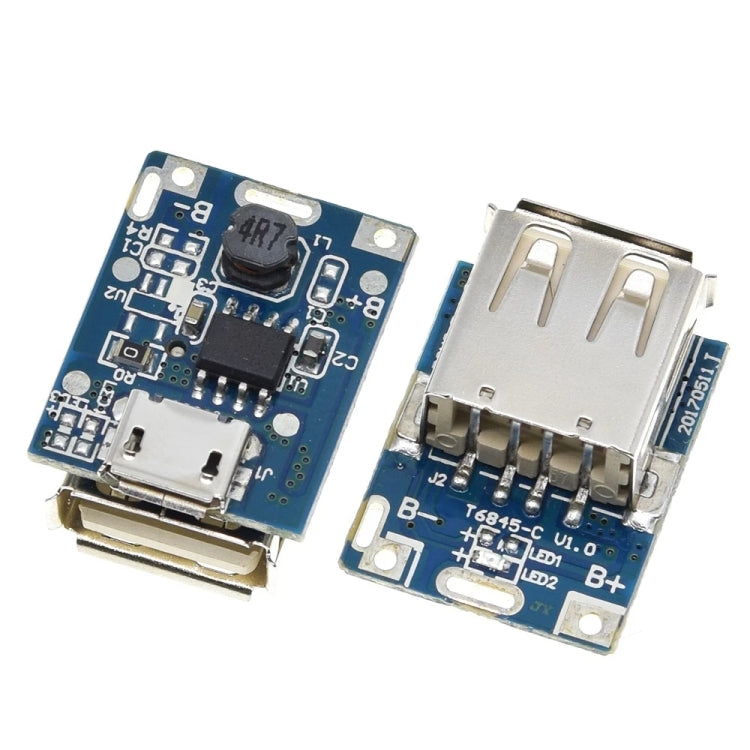

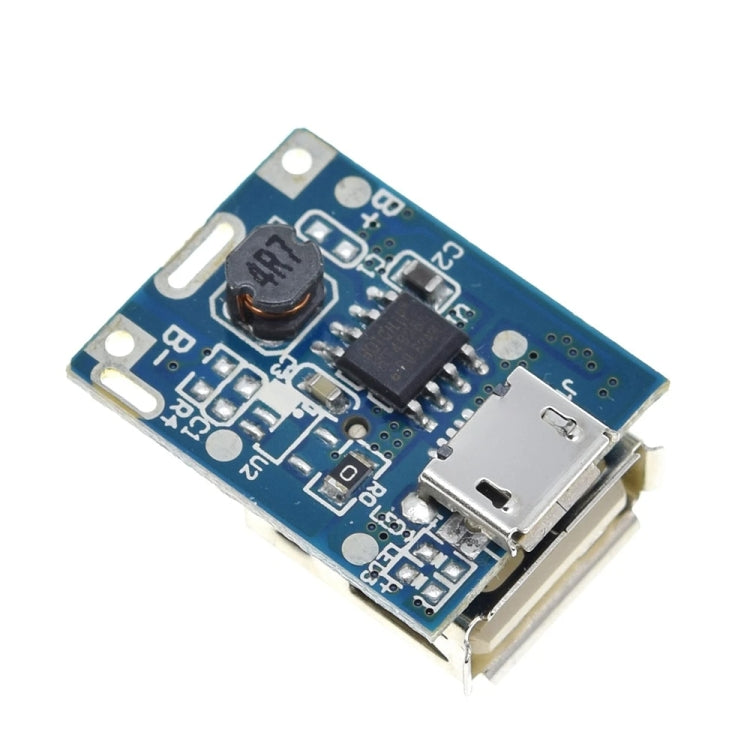

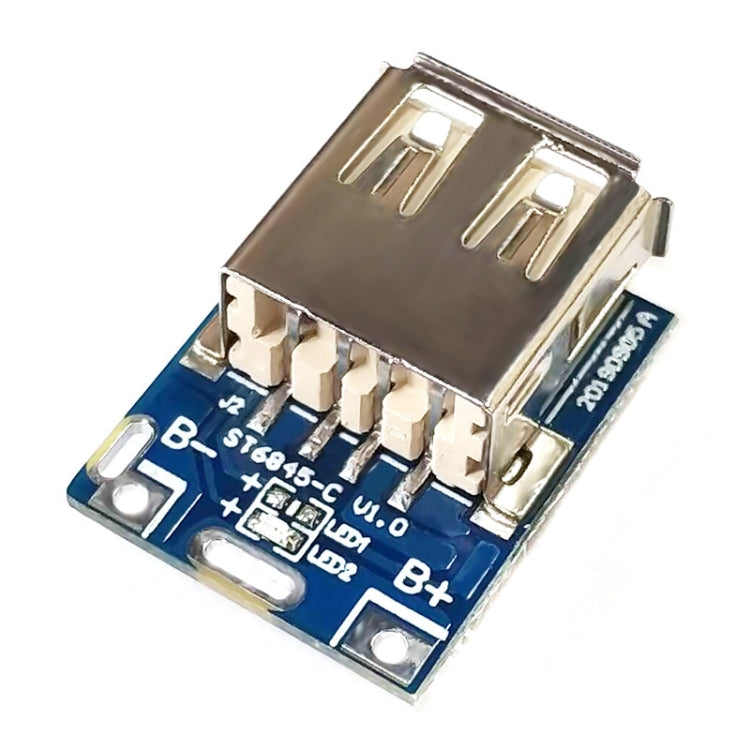

The 5V Boost Converter Step-Up Power Module is designed for charging and discharging lithium batteries. It provides visual status indicators for charging and discharging, aiding in monitoring battery performance.
- Product Type: Sensor Module
- Compatibility: 134N3P
- Input Voltage: 3.7-5.5V
- Charging Current: 1A
- Output Current: 1A
- Output Voltage: 5V
- BAT Discharge Termination Voltage: 2.9V
- Preset Charging Voltage: 4.2V (accuracy about 1%)
- Discharge Efficiency: 85% (input 3.7V, output 5V/1A)
- Standby Current: 8uA
- Integrated Charge Management: Yes
- Integrated Discharge Management: Yes
- Temperature Control: Intelligent
- Over-Temperature Protection: Yes
- Protection Features: Output over-voltage, short circuit, heavy load, over-charging, over-discharging
- Supported Battery Types: 18650 batteries, cell phone batteries, tablet batteries, MP3 batteries, 3.1V-4.2V polymer lithium batteries
- Unusable Battery Types: Dry cell batteries, storage batteries, 1.2V rechargeable batteries, nickel-metal hydride batteries, 3.2V lithium iron polymer lithium batteries

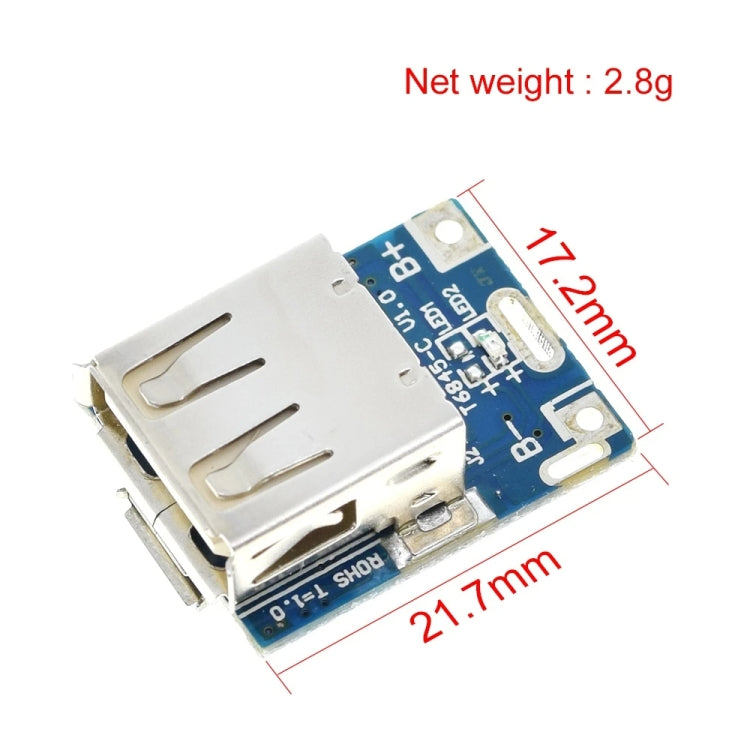

- Size: Approximately 20 x 18 x 1mm
