AUTOOL OBD2 Diagnostic Protocol Scanner Vehicle Power System Jumper Box
AUTOOL OBD2 Diagnostic Protocol Scanner Vehicle Power System Jumper Box
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description

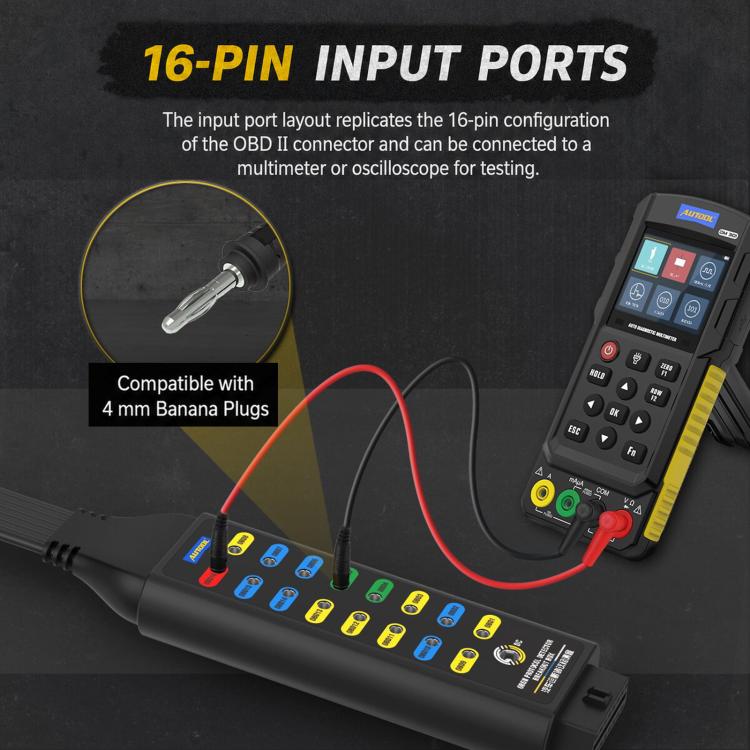

1. 16-pin input socket, the layout of the input socket mimics the 16-pin arrangement of the OBD2 interface, allowing for easy connection to a multimeter or oscilloscope for testing

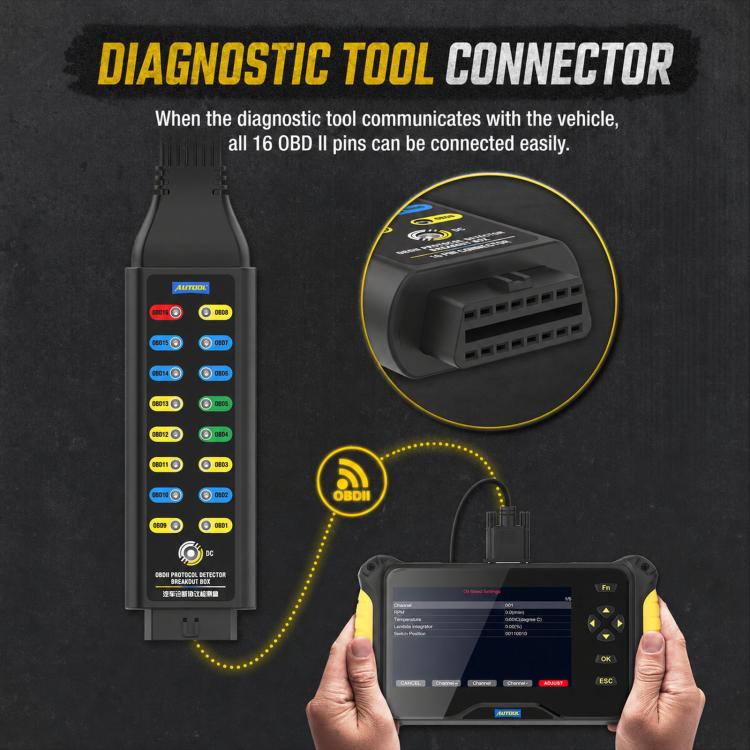

2. Diagnostic interface, when the diagnostic instrument communicates with the vehicle, it can easily connect to all 16 pins of the OBD2

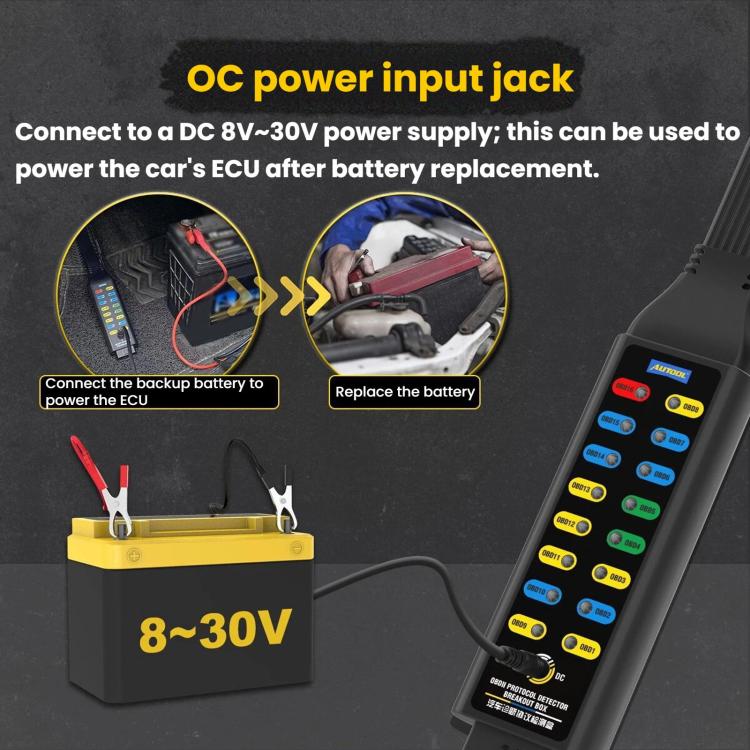

3. DC power input socket, connect a DC 8V-30V power supply, which can be used to power the vehicle ECU and then replace the battery

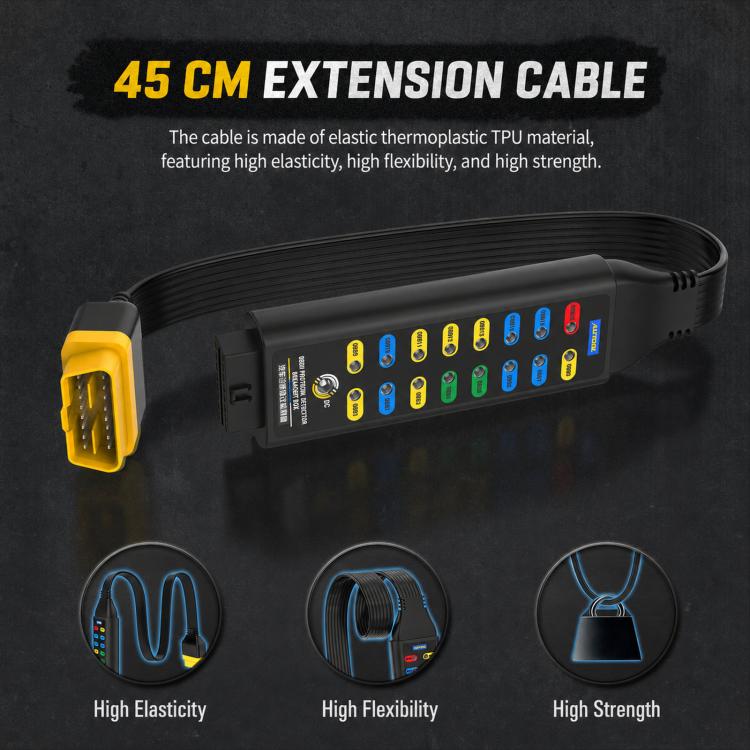

4. 45cm extension cable, made of elastic thermoplastic TPU material, featuring high elasticity, high flexibility, and high strength

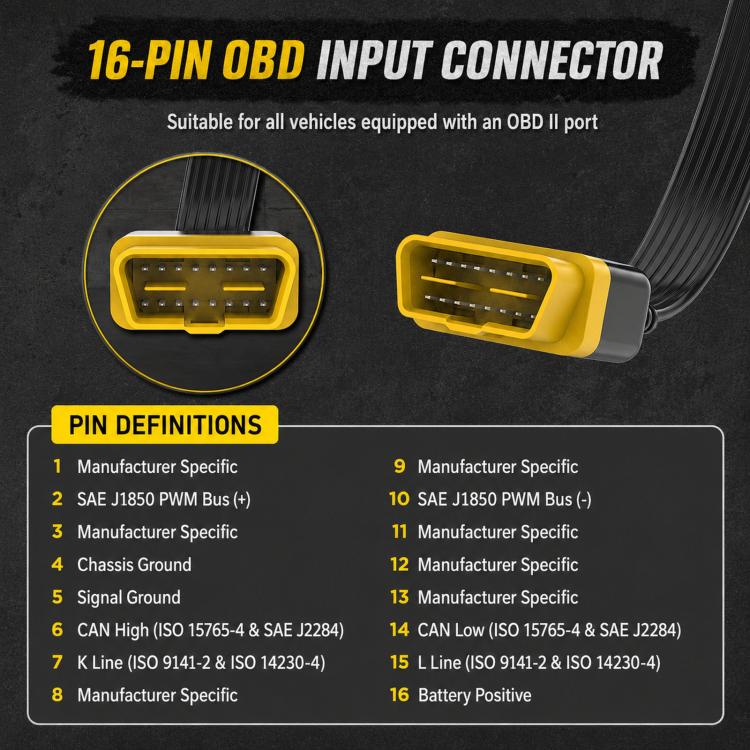

5. Universal OBD2 male connector, compatible with all domestic fuel vehicles with OBD standard interfaces
Parameters
1. Diagnostic port: standard OBD2 16-pin interface
2. Working voltage: DC 8V - 30V
3. Rated load: 2.0A
4. Working temperature: -20℃ - 70℃
5. Wire material: elastomeric thermoplastic TPU
6. Total length of extension cable: 45cm
