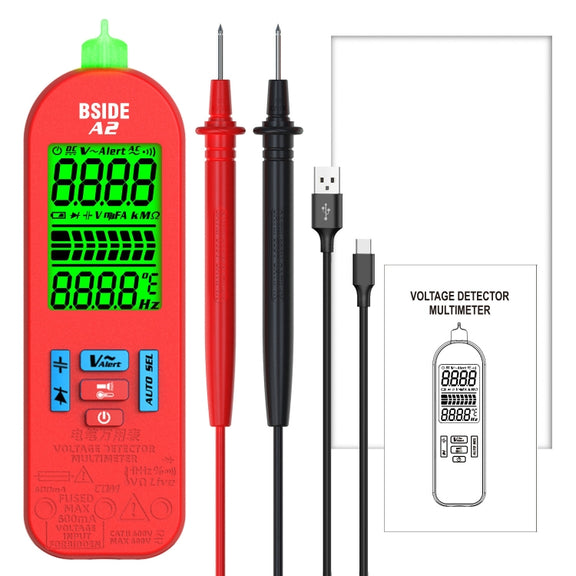

BSIDE A2 Charging Model Mini Digital Auto-Ranging Pencil Multimeter, Specification: Standard
BSIDE A2 Charging Model Mini Digital Auto-Ranging Pencil Multimeter, Specification: Standard
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

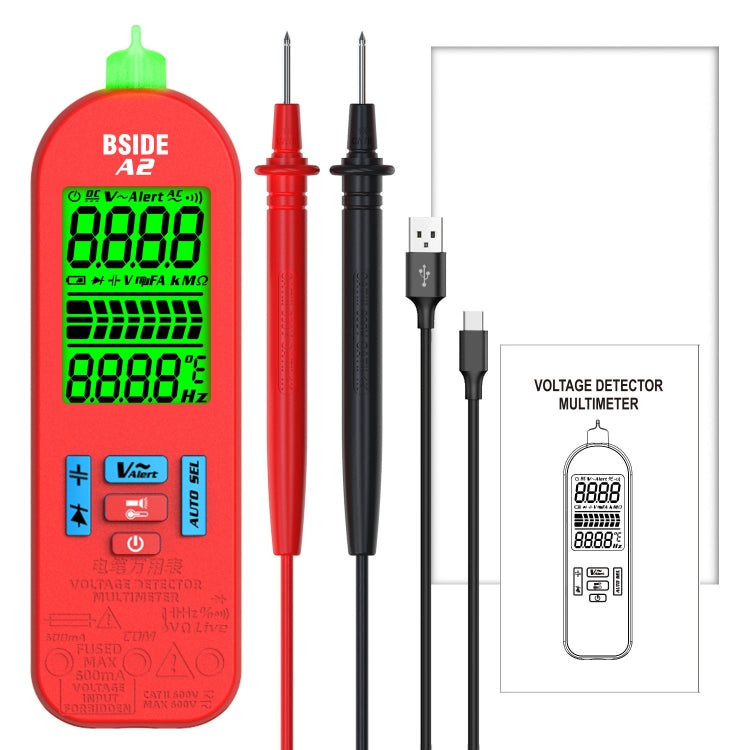

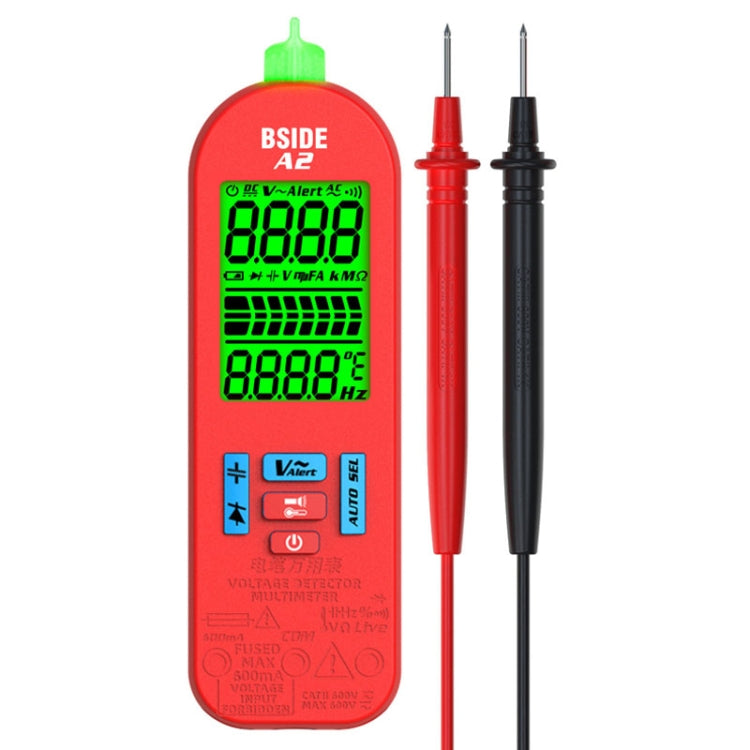

The BSIDE A2 Charging Model Mini Digital Auto-Ranging Pencil Multimeter is a portable pen-type multimeter designed for electrical testing and automotive maintenance. It is suitable for measuring AC voltage, DC voltage, resistance, frequency, and diode functionality in various applications.
- Product Type: Digital Multimeter
- Brand: BSIDE
- Compatibility: A2 Charging Model
- Material: Not specified
- Color/Variant: Not specified
- Display Range: 0-6000 counts
- Operation Mode: Automatic/Manual
- Frequency Range: 0Hz-9999Hz
- DC/AC Voltage Range: 0-620V (DC/AC mode), 0.8-620V (auto mode)
- Current Range: DC current 1-610mA; AC current 1-610mA (40-1000Hz)
- Capacitance Range: 60.00mF
- Resistance Range: 0-60 megohm

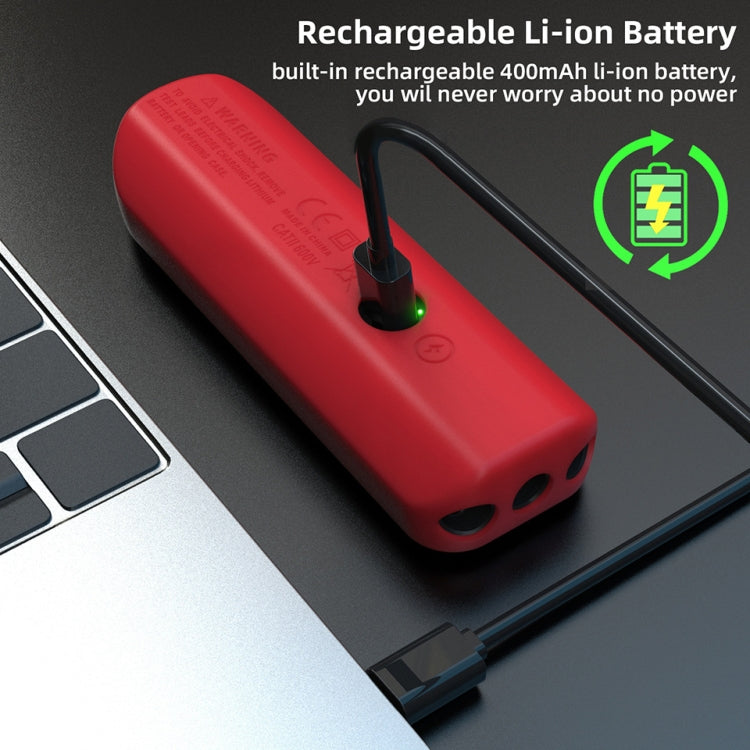

- Li-ion Battery Capacity: 400 mAh
- Charging Interface: USB-C
- Auto Shutdown Time: About 15 minutes
- Working Altitude: Less than 2000m
- Weight: About 95 g

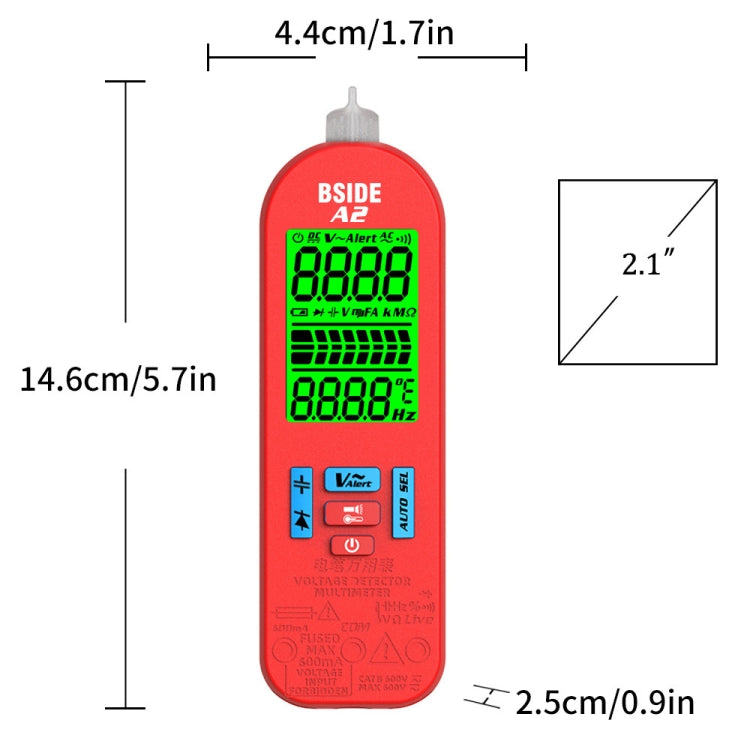

- Size: About 14.6 x 4.4 x 2.5 cm

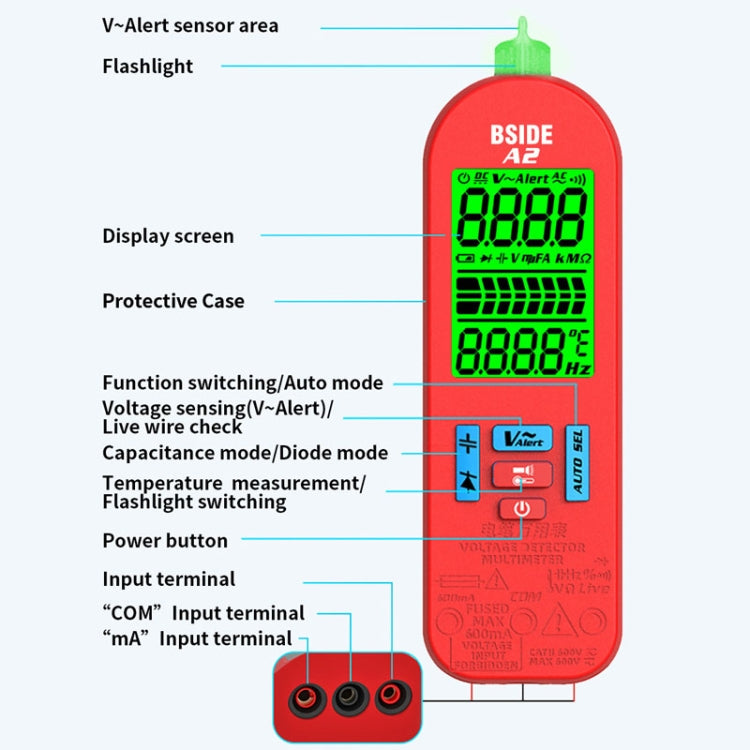

- Functional Features:
- Portable pen-type design, small size for easy carrying

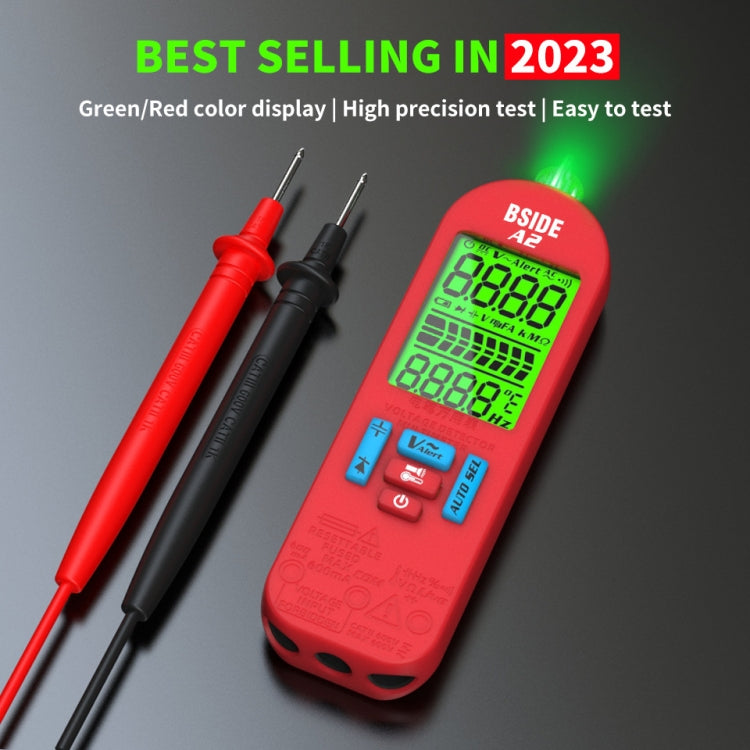

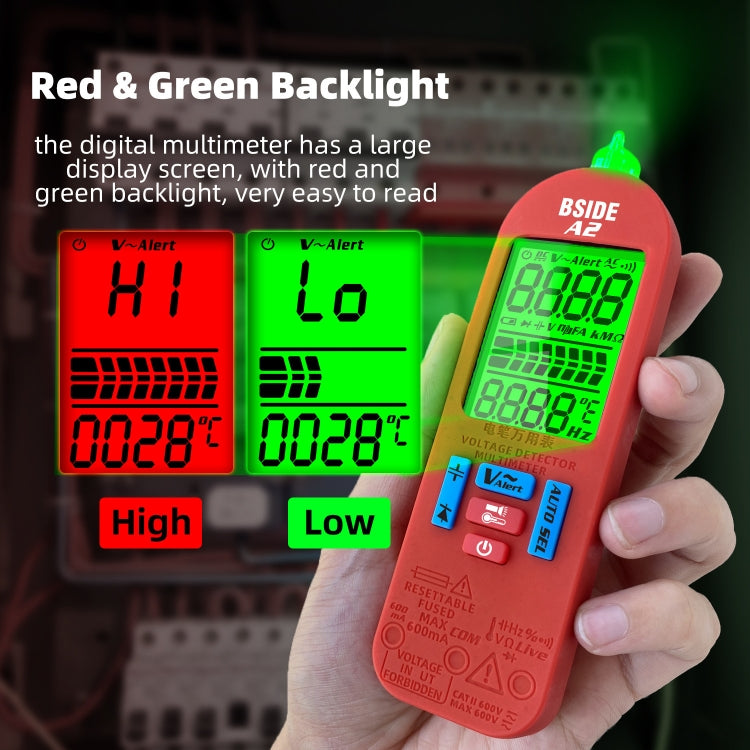

- LCD color display with red and green back-light alarm
- Intelligent identification for automatic measurement signal detection

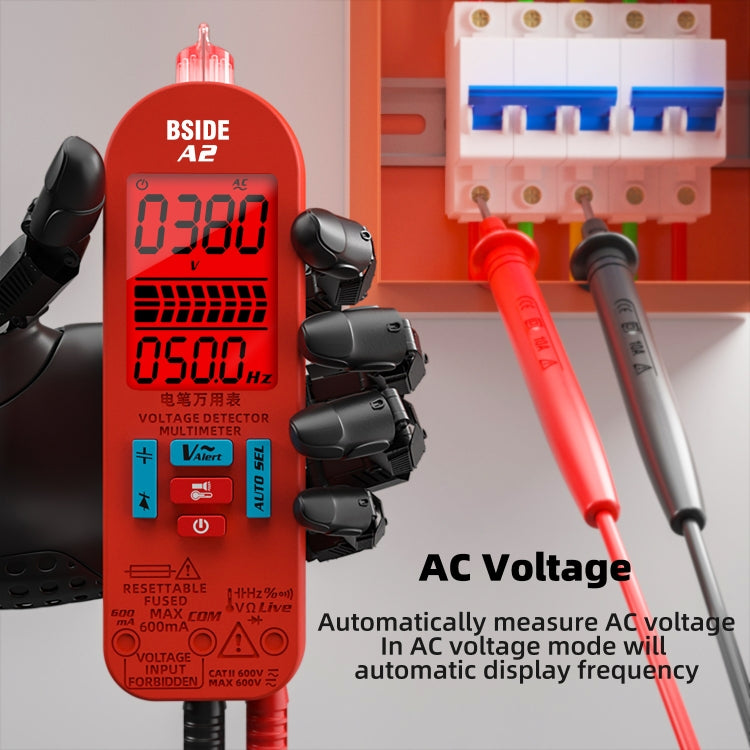

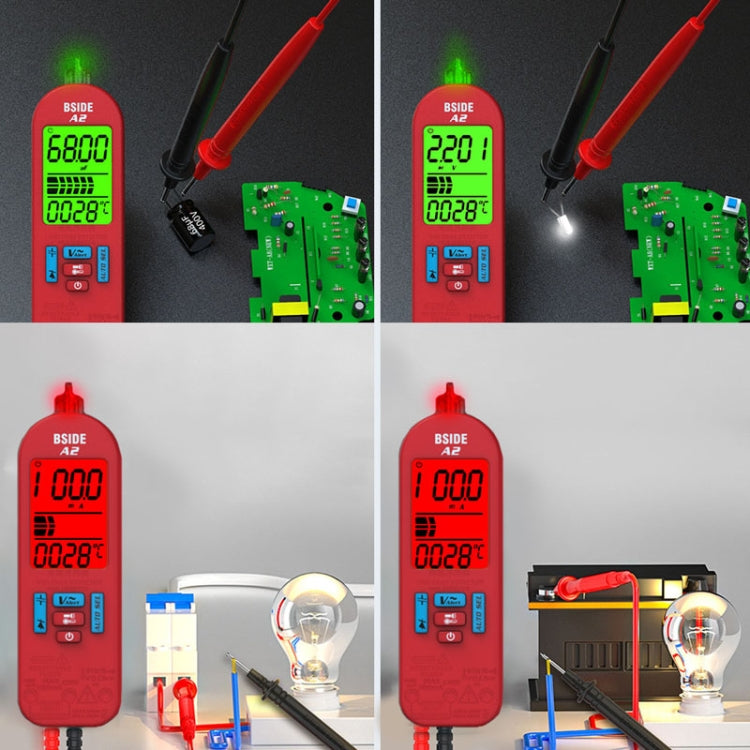

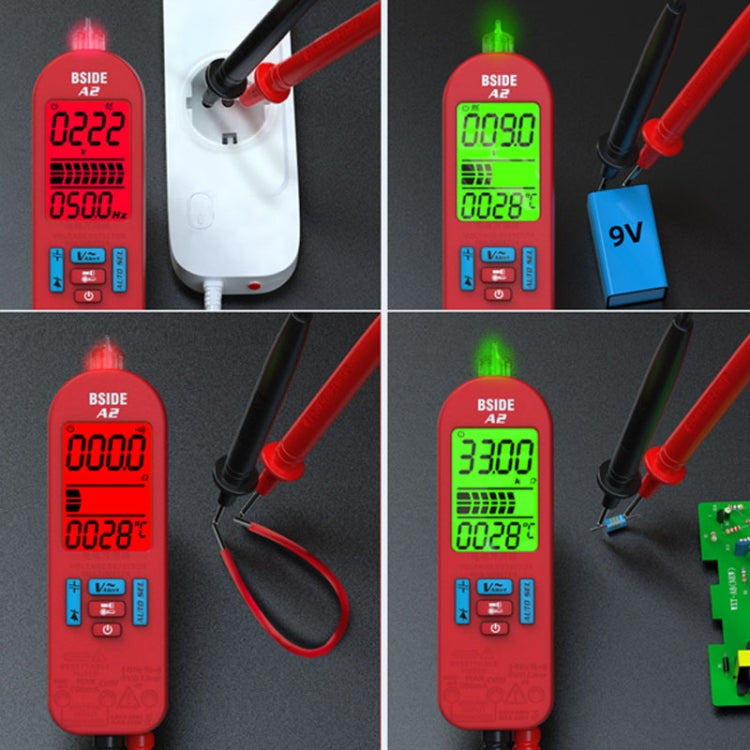

- Direct measurement of AC voltage, DC voltage, resistance, circuit connection, and disconnection

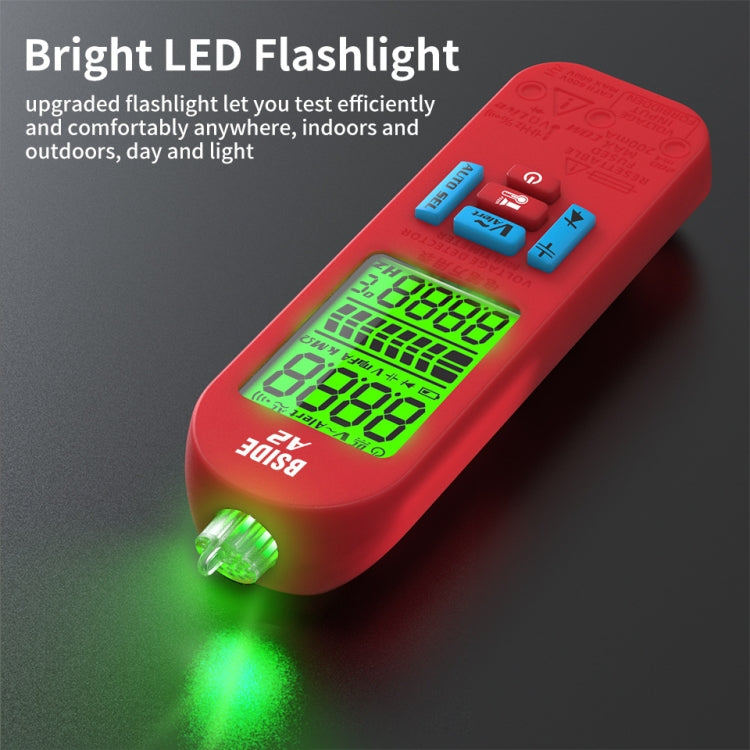

- Equipped with LED flashlight for use in dark environments

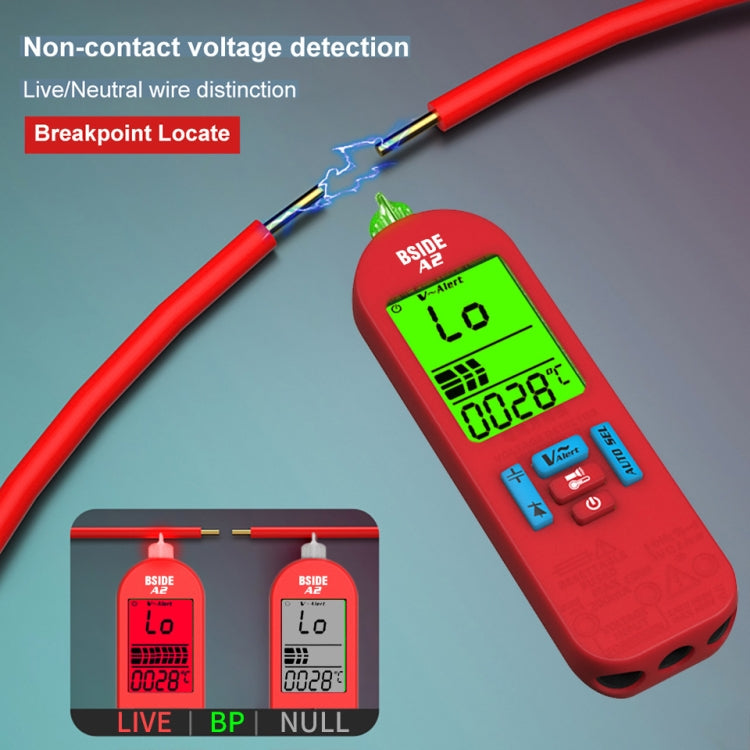

- Non-contact voltage detection alarm with diode automatic identification
- Type-C cable charging with long-lasting battery life
- Continuity buzzer for resistance less than 50 ohms
- Multi-functional capabilities for various electrical measurements
- Wide range of applications including home improvement and industrial electrical maintenance
