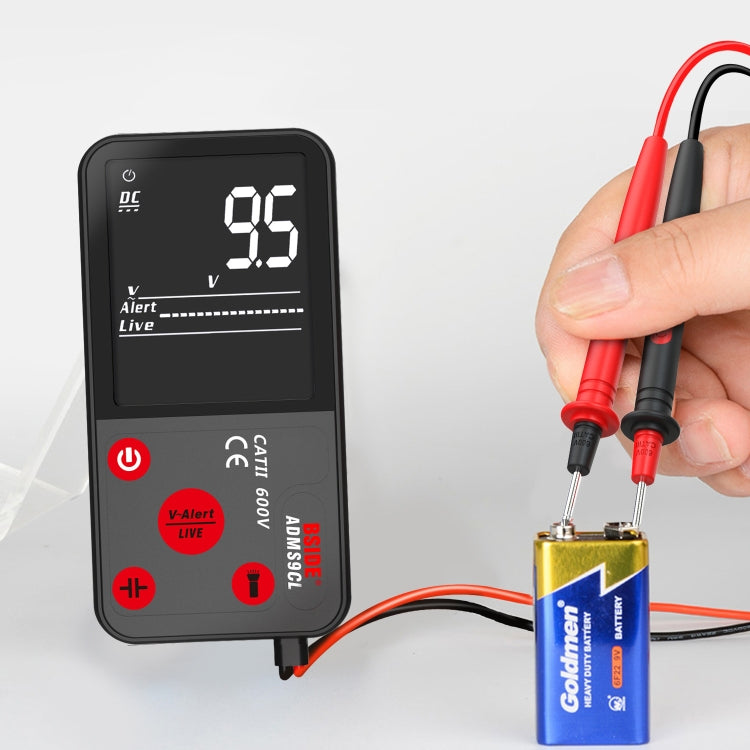

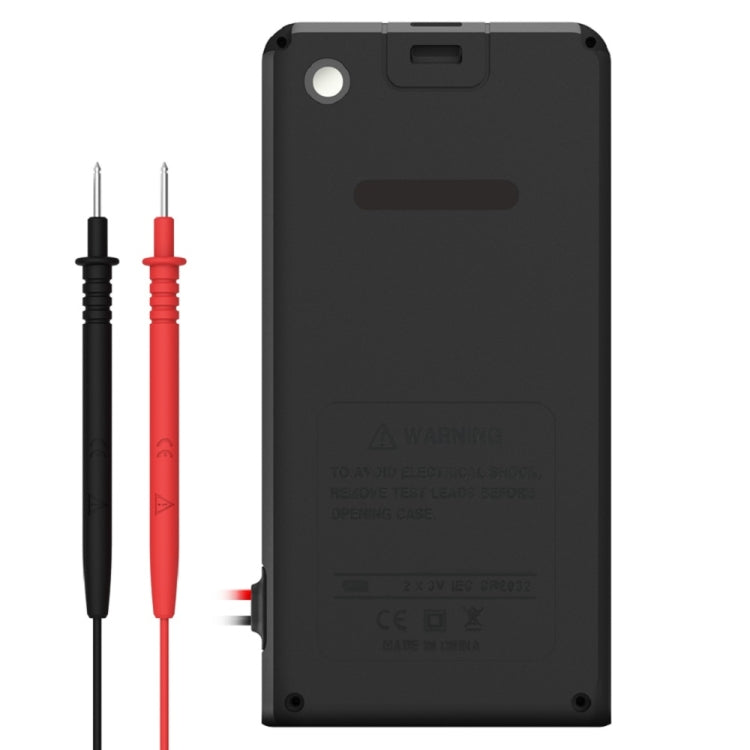

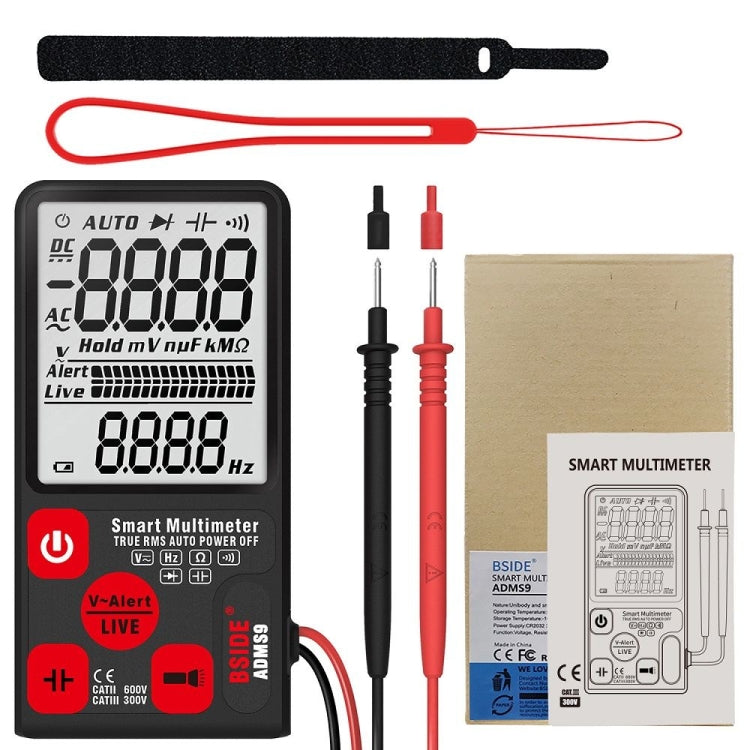

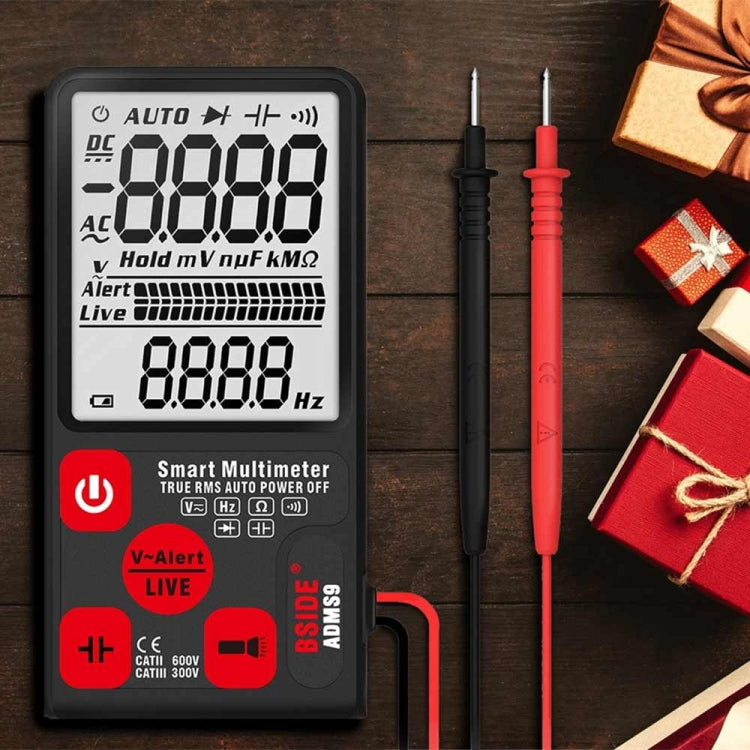

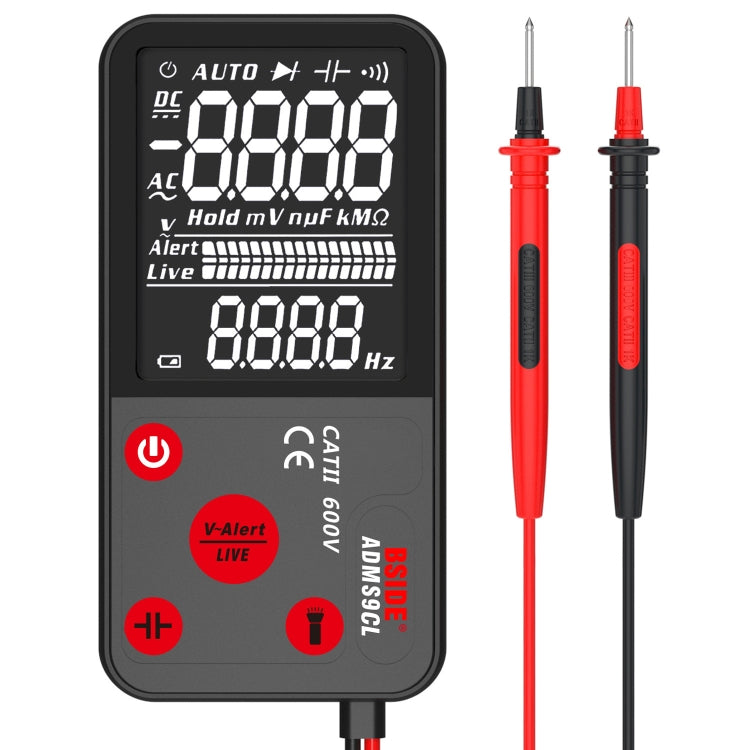

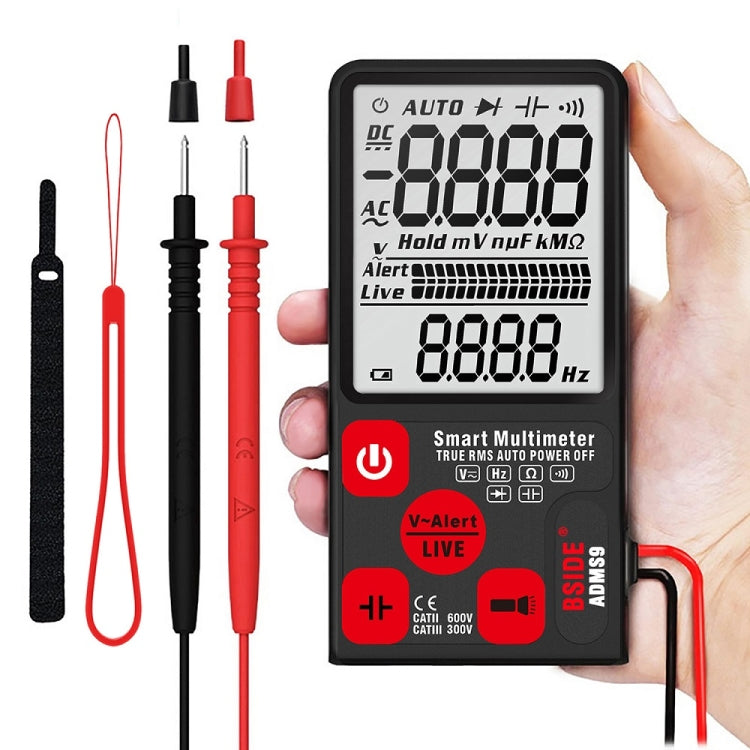

BSIDE ADMS9 Large-Screen Display Intelligent Automatic No Gear Shifting Ultra-Thin Digital Multimeter(Ordinary Screen)

• Product type: Digital Multimeter
• Brand: BSIDE
• Compatibility: Large-Screen Display
• Material: Plastic
• Key feature: Intelligent automatic parameter identification
• Color/Variant: Ordinary Screen
• Intended use: Everyday use
• Category: Test Equipment

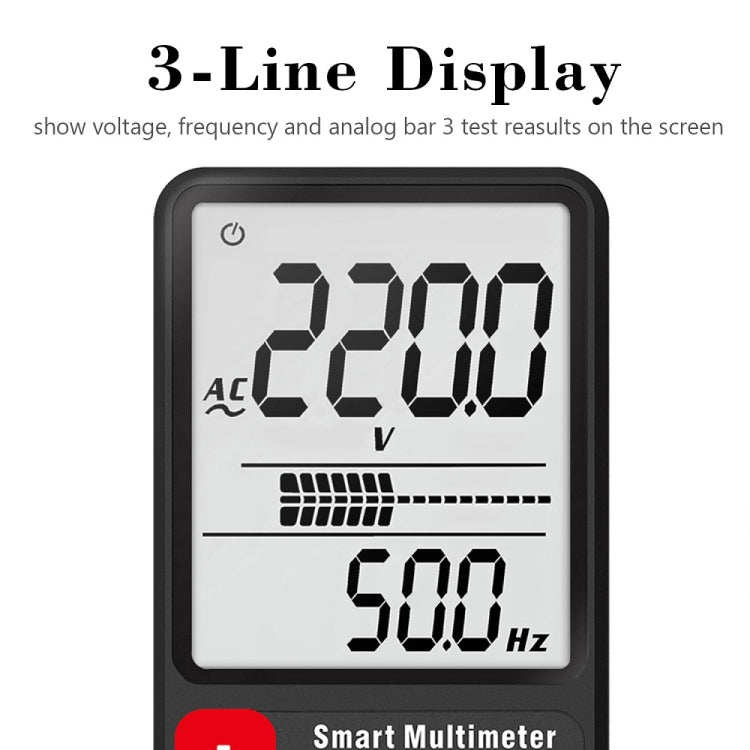

1. The large 3.5-inch screen can display 3 test results, such as voltage, frequency and analog bars.
2. It only takes 1 second to detect the capacitance value.
3. This 9999 count multimeter can measure capacitance, diode, continuity, Hz, AC/DC voltage, resistance, V alarm (non-contact voltage detection), live wire monitoring, etc.
4. BSIDE intelligent technology is specially designed for beginners, so that the multimeter can automatically identify the test parameters and select the required range.

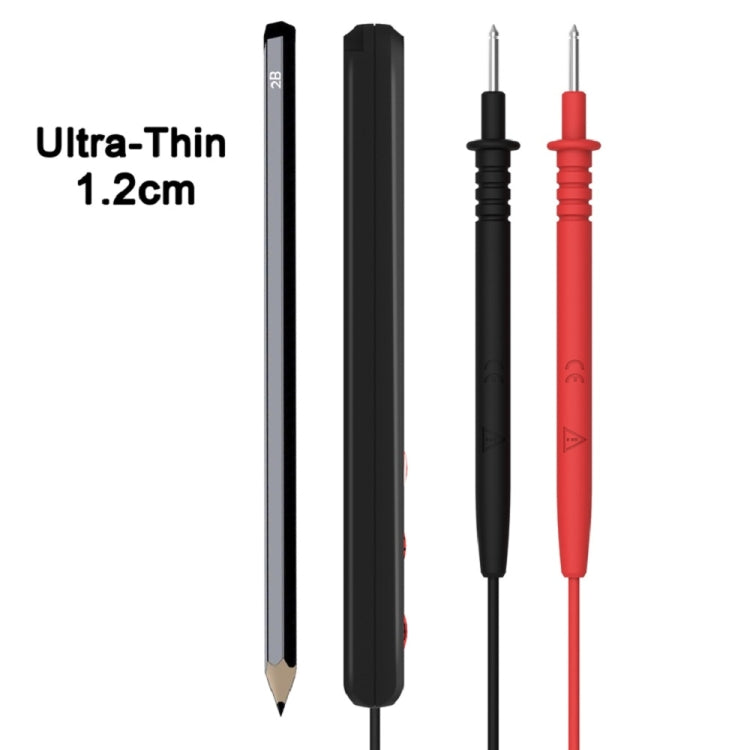

5. Only 1.2 cm thick, lighter, and has a larger LCD screen.
6. With a flashlight tail light can change the dark environment. The suspension hole design makes it lighter.
7. Display: 9999 count display.
8. Screen: 3.5 inches.
9. Meter thickness: 1.2cm.
10. DC voltage: 600V +/- (0.8% + 3).
11. AC voltage: 600V +/- (1.2% + 5).
12. Resistance: 10Mohms+/- (1.2% + 3).
13. Capacitance: 6000uF+/- (4.5% + 10).
14. Frequency: 1000Hz +/- (1.0% + 5).
15. Diode: If it is less than 1.0V, it is an automatic identification diode.
16. Alarm (non-contact voltage detection): alarm sound.
17. On-site control: alarm signal sound, LCD display.
18. Continuity: If the resistance is less than 30Ω, the positioner will sound.
19. Power supply: 3V (CR2032) x 220. Dimensions: 136 x 67 x 12mm.
20. Weight: 110 grams.
