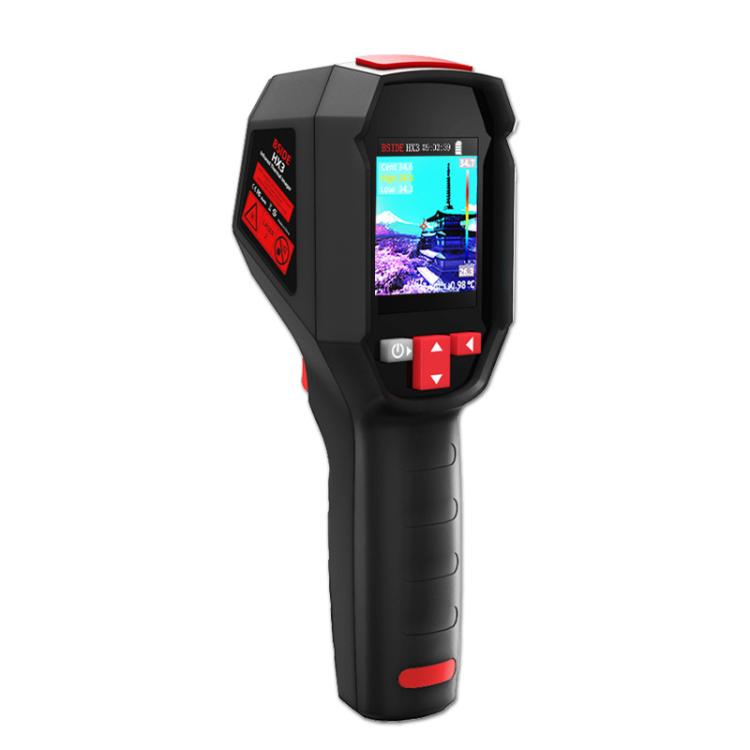

BSIDE HX3 Handheld Infrared Thermal Imager Power Non-Contact Thermometer

• Product type: Thermostat & Thermometer
• Brand: BSIDE
• Compatibility: BSIDE HX3
• Material: Double reshaped mold casing, frosted silicone
• Key feature: Non-contact temperature measurement
• Color/Variant: N/A

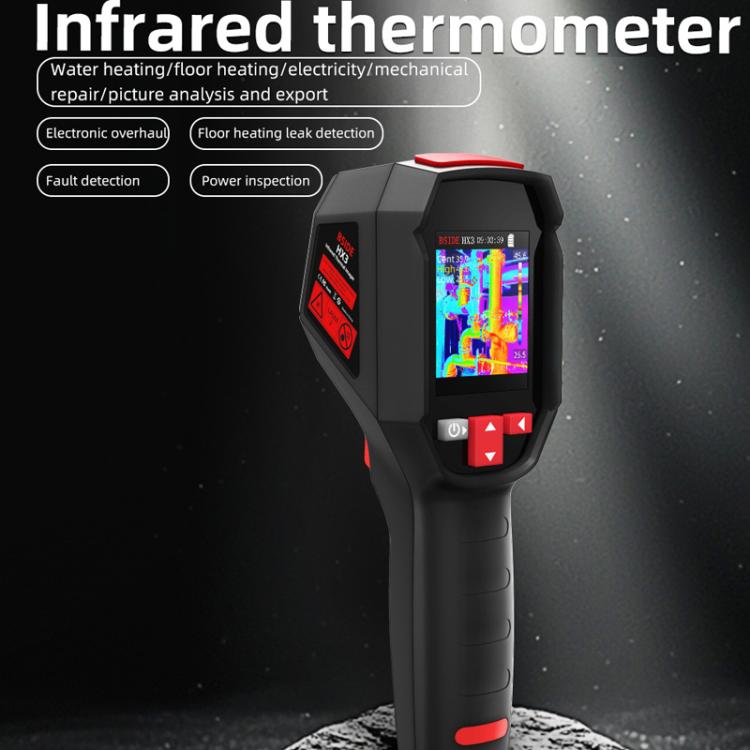

• Intended use: Electronic maintenance, leak detection, fault detection
• Category: Consumer Electronics

1. Save image format: BMP
2. Image color palette: black hot/iron red/white hot/fusion/sepia/red hot/green hot/rainbow
3. Interface: USB
4. Protection level: IP54
5. Response time: 1ms
6. Imaging mode: thermal imaging
7. Image storage: built-in 4GB memory card and 4GB micro SD card
8. Battery capacity: 2500mAh 18650 lithium battery
9. Thermal image resolution: 240 x 240
10. Temperature measurement focal length: about 0.3-3m
11. Temperature measurement range: -20 - 550 degrees Celsius

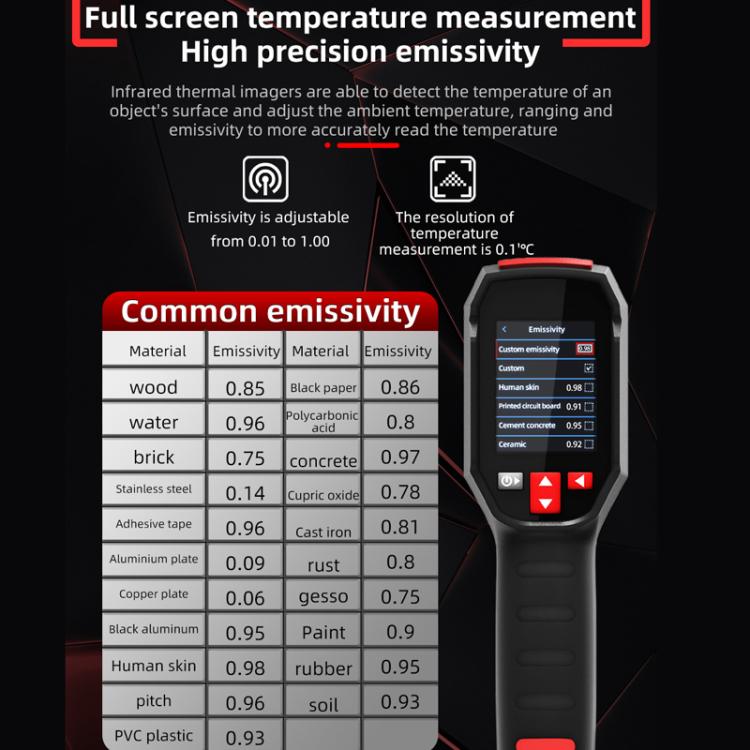

12. Emissivity: 0.01-1.00 adjustable
13. Temperature measurement resolution: 0.1 degrees Celsius
14. Application: electronic maintenance, floor heating leak detection, fault detection, power inspection, etc.

Features:

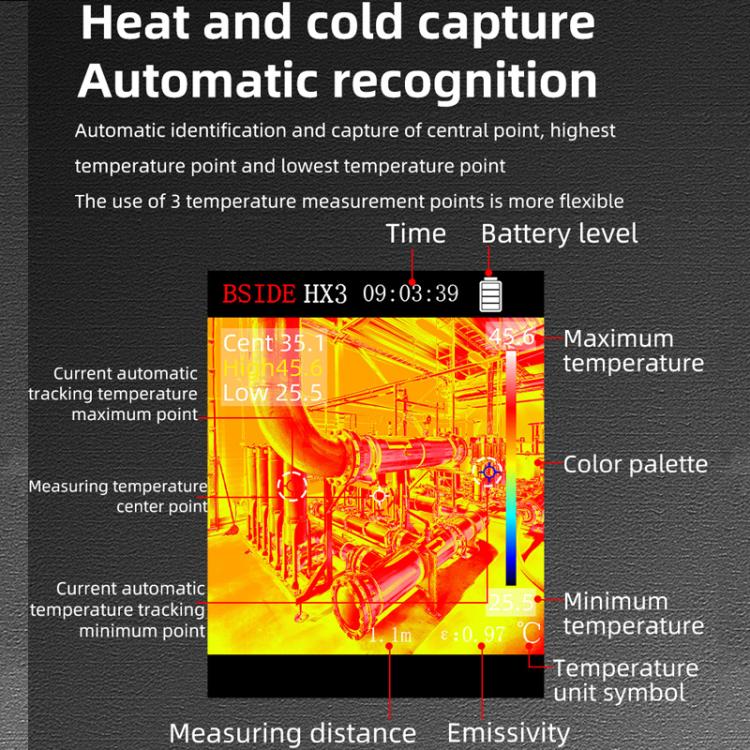

1. Center point, highest temperature point, lowest temperature point are automatically identified and captured, and the three temperature measurement points are more flexible to use

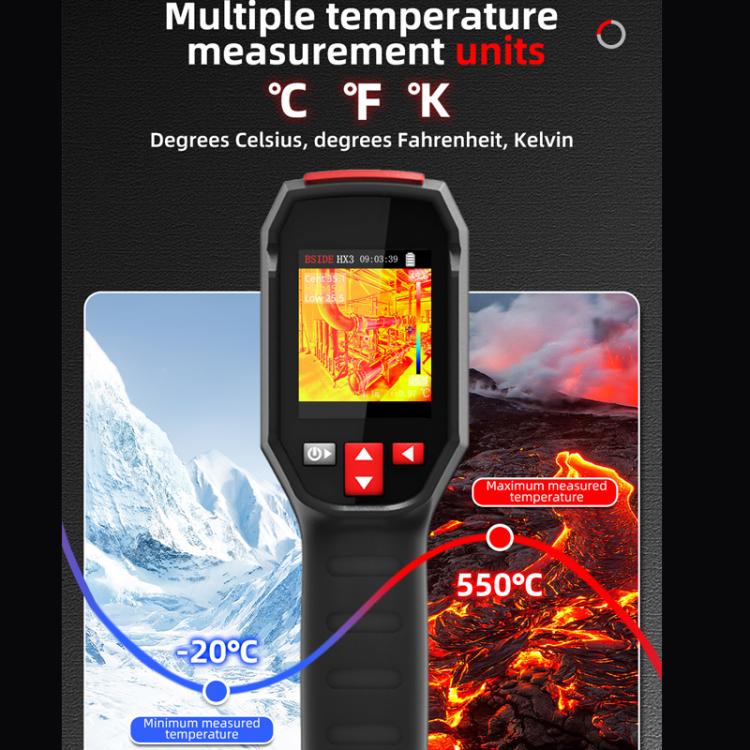

2. Multiple temperature measurement units, Celsius, Fahrenheit, Kelvin

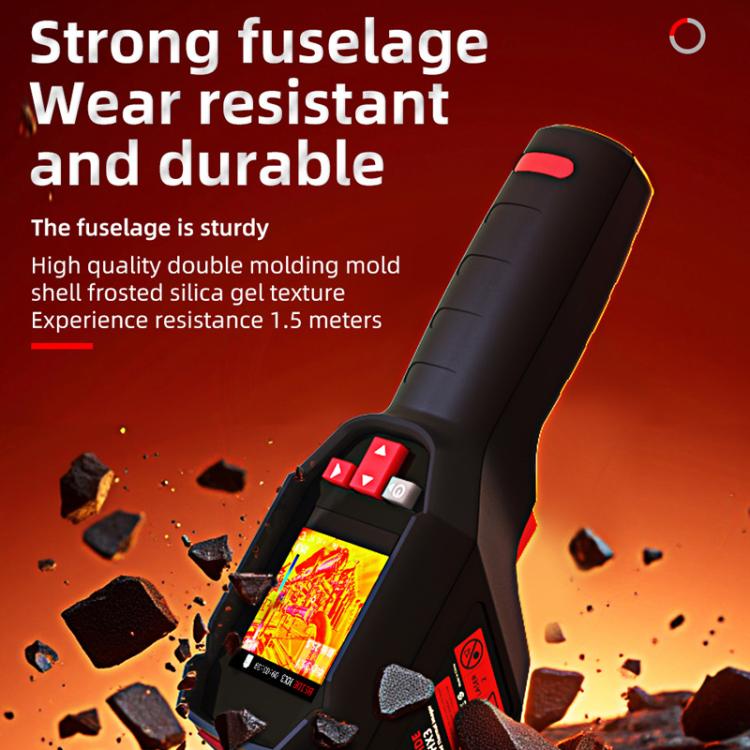

3. Double reshaped mold casing, frosted silicone texture, sturdy and durable

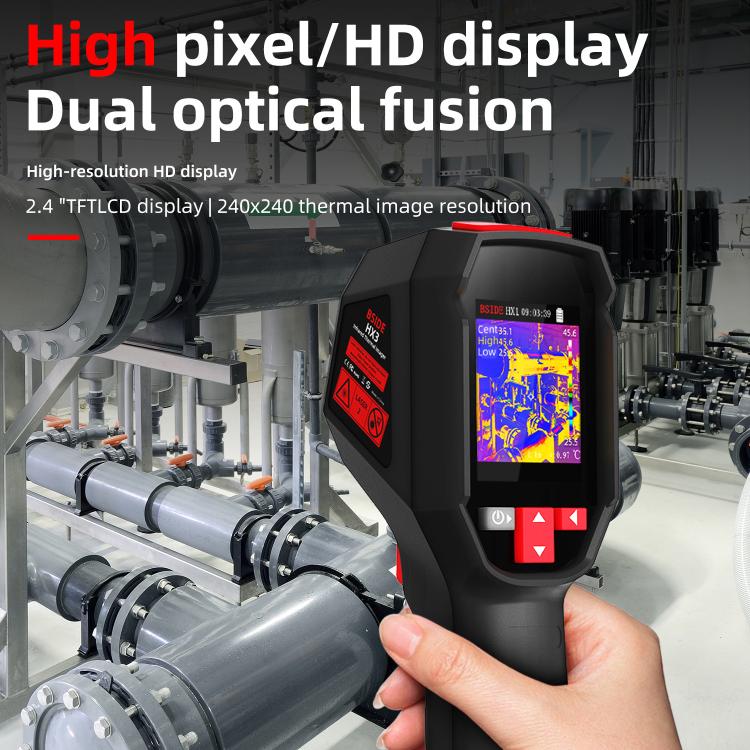

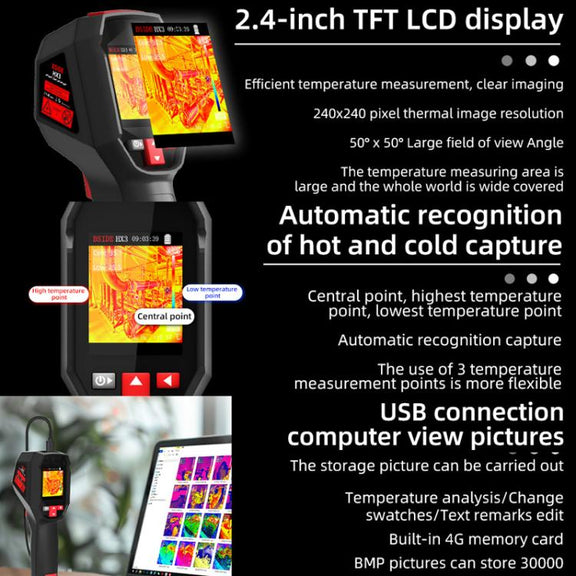

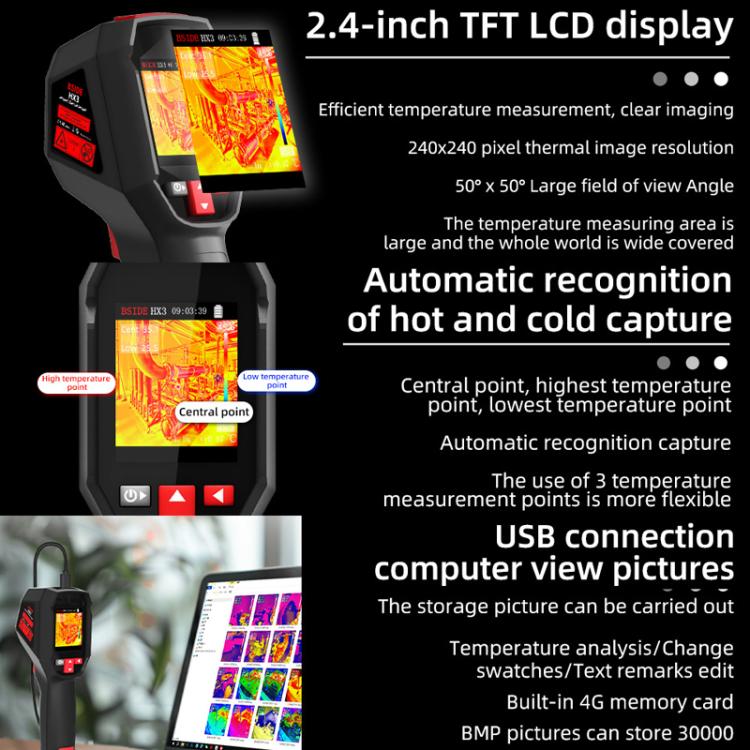

4. 2.4-inch TFT LCD display, 240 x 240 thermal image resolution

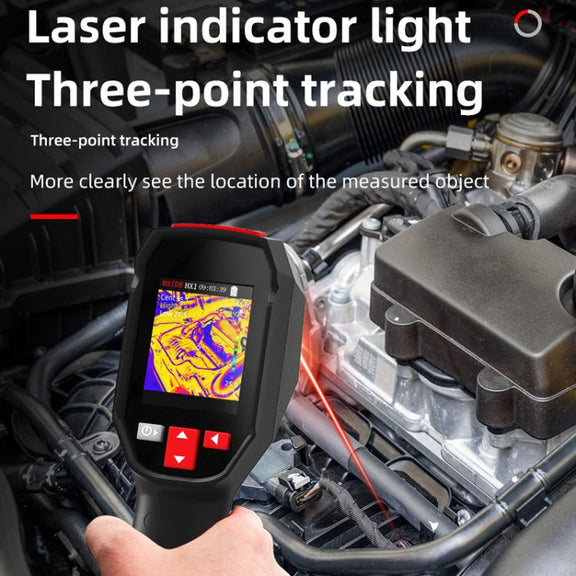

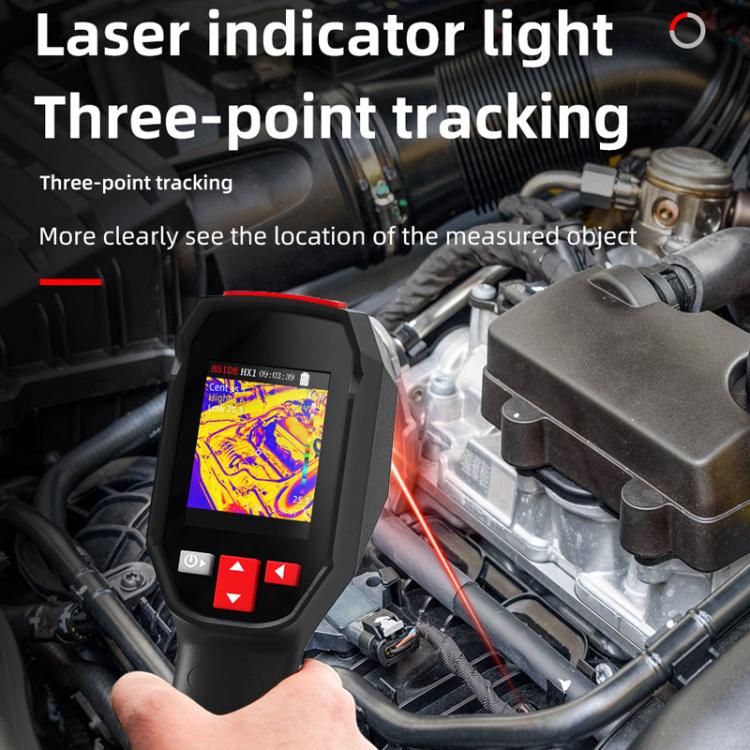

5. Three-point tracking of laser indicator light, more clearly see the location of the measured object

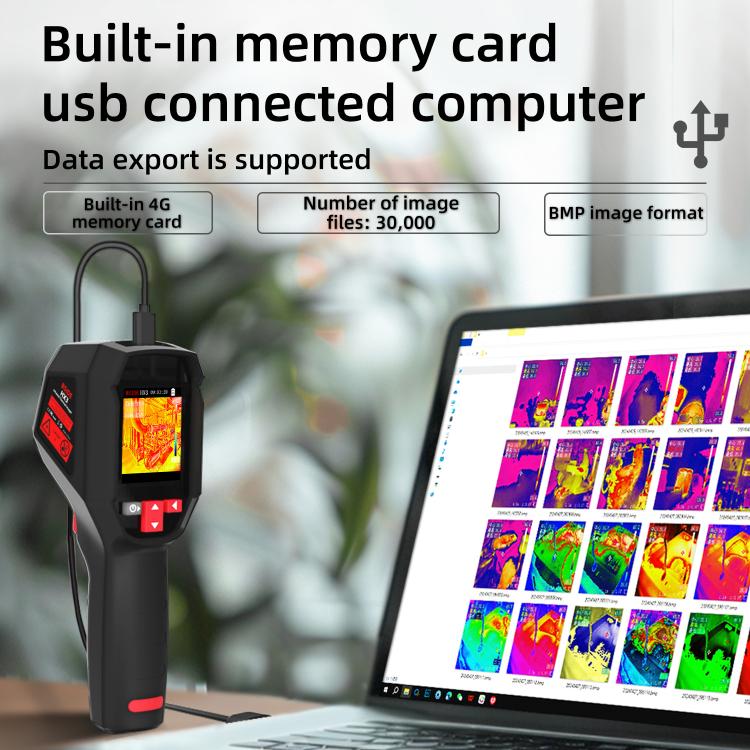

6. Built-in memory card, USB connection to computer, support data export
7. Able to detect the temperature of the surface of the object, adjust the ambient temperature, distance measurement and emissivity to read the temperature more accurately
8. Highly thermally sensitive core vanadium oxide (Vox) microbolometer

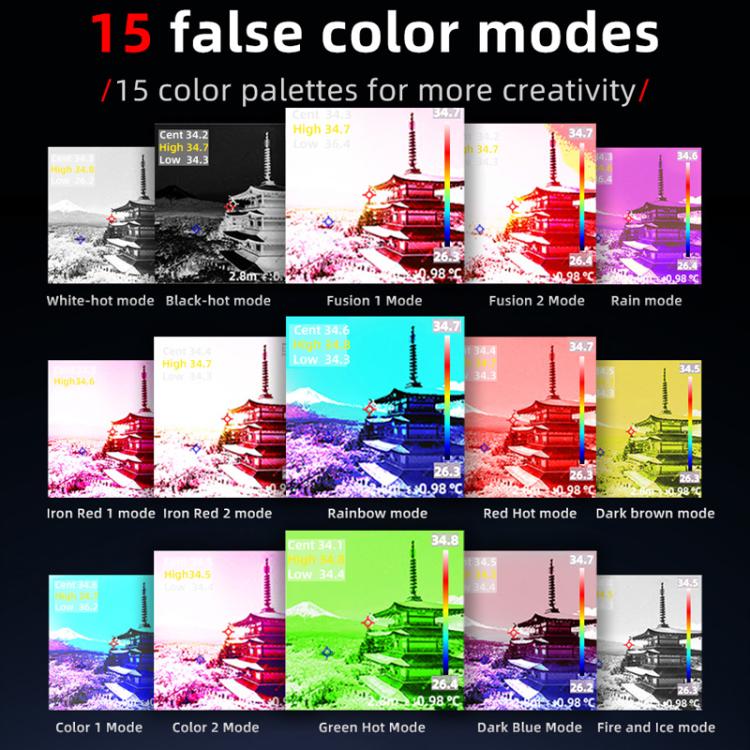

9. 15 pseudo-color modes

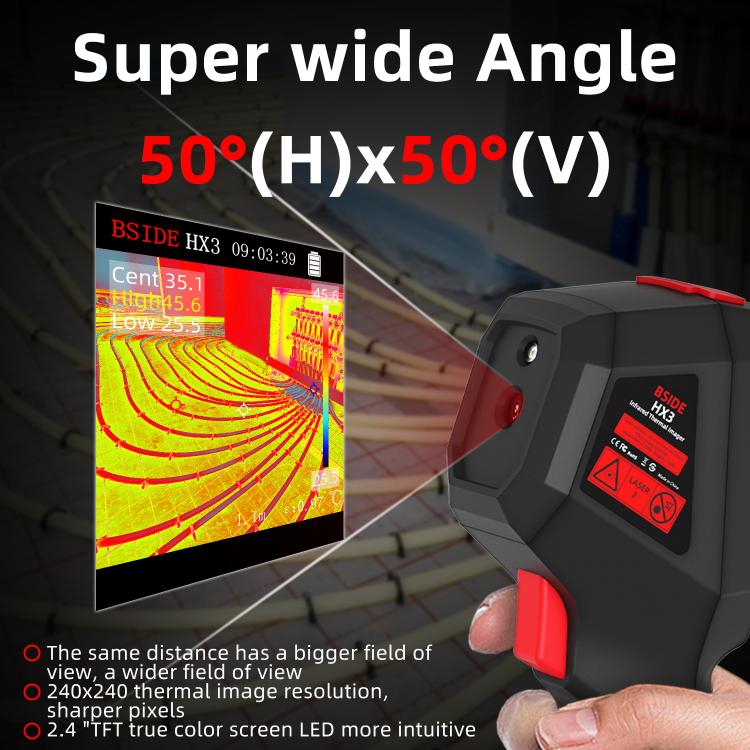

10. 50-degree wide field of view temperature measurement, large area, global coverage
