BSIDE SH7 Standard+Flexible Coil Thermal Imager Multimeter Handheld Touch Screen High Accuracy Thermometer
BSIDE SH7 Standard+Flexible Coil Thermal Imager Multimeter Handheld Touch Screen High Accuracy Thermometer
Sale
Sold out
Pre-order
Regular price
R 5,379.00
Regular price
Sale price
R 5,379.00
Unit price
per
Pay in monthly instalments with
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Brand:BSIDE
Type:
Thermostat & Thermometer
Description
1. Thermal image resolution: 240 x 240 pixels
2. Temperature alarm: screen font color alarm
3. Number of image files: 30,000
4. Save image format: BMP
5. Interface: Type-C
6. Imaging mode: thermal imaging
7. Image storage: built-in memory card
8. Battery capacity: 2500mAh
9. Charging time: about 3h
10. Use time: about 7h
11. Display resolution: 320 x 480
12. Temperature measurement focal length: about 0.3-3m adjustable
13. Temperature measurement range: -20 - 550 degrees Celsius
14. Emissivity: 0.01-1.00 adjustable
15. Temperature measurement resolution: 0.1 degrees Celsius
16. Temperature measurement unit: Celsius, Fahrenheit, Kelvin
17. Temperature measurement display: center point temperature measurement, high and low temperature tracking
18. Spatial resolution: 8.89 mrad
19. Frame rate: 25Hz
20. Imaging lens focal length: 1.35 mm
21. Field of view: 50 degrees
22. Display: 3.98-inch TFT LCD screen/with capacitive touch
23. Functions: data statistics, adjustable backlight brightness, low battery prompt, automatic shutdown

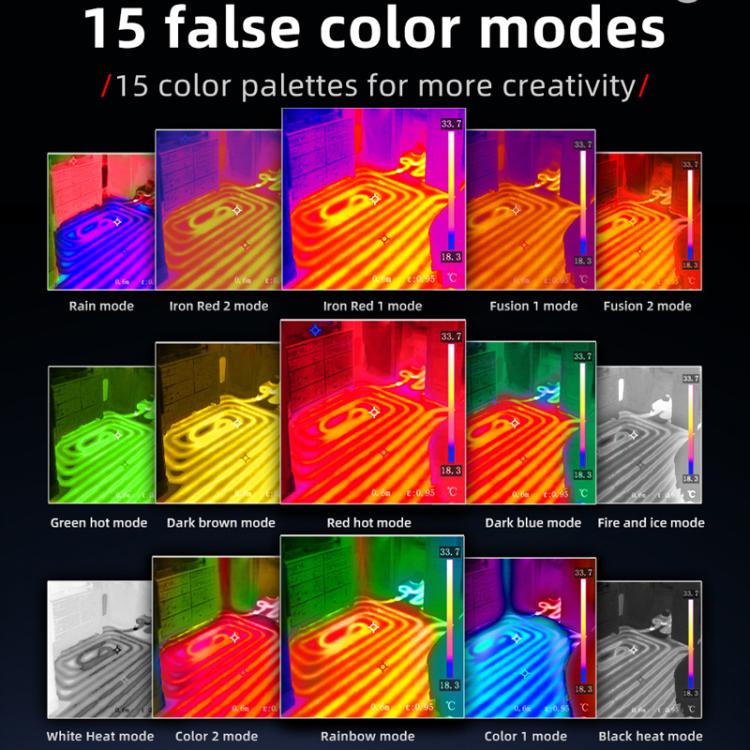

24. Color palette: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue
25. Size: about 16.9 x 8.1 x 2.68cm
26. Weight: about 270.7g
Features:

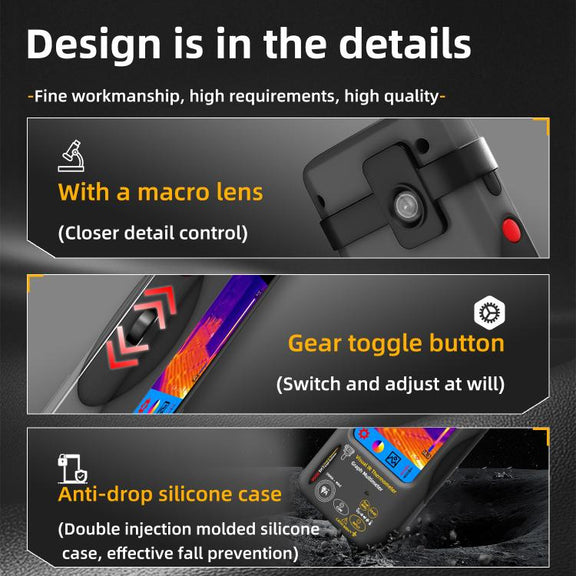

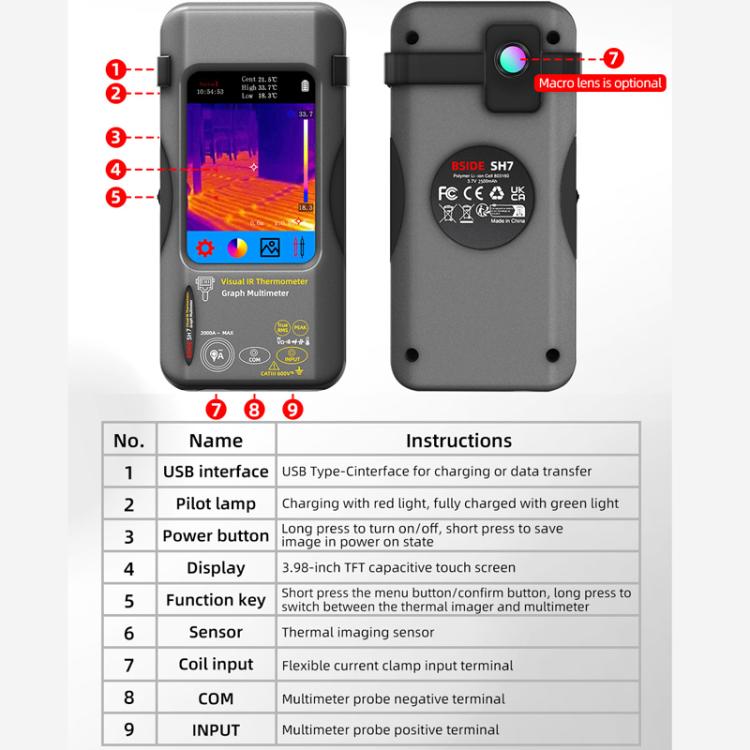

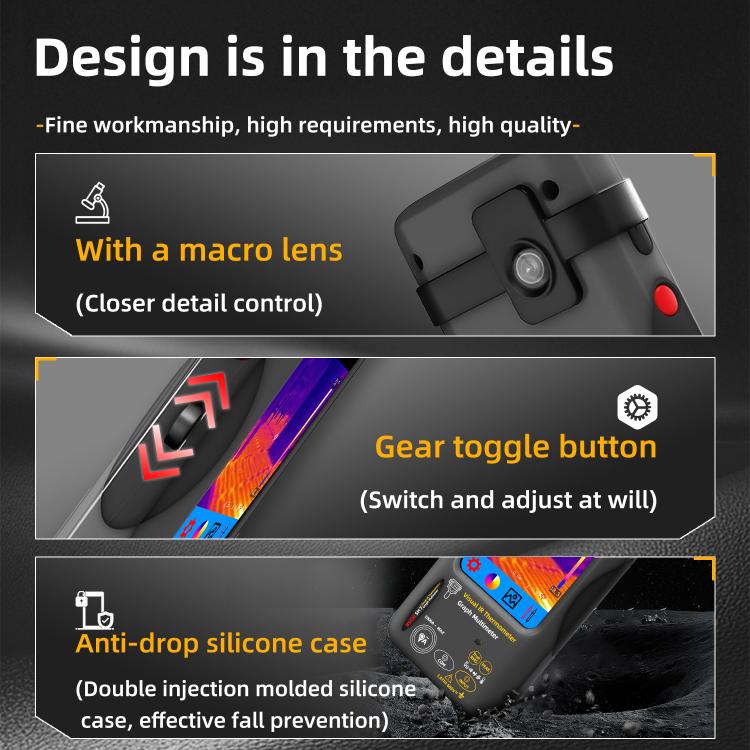

1. Gear toggle button, switch and adjust at will
2. Anti-fall double injection silicone housing, effective anti-fall

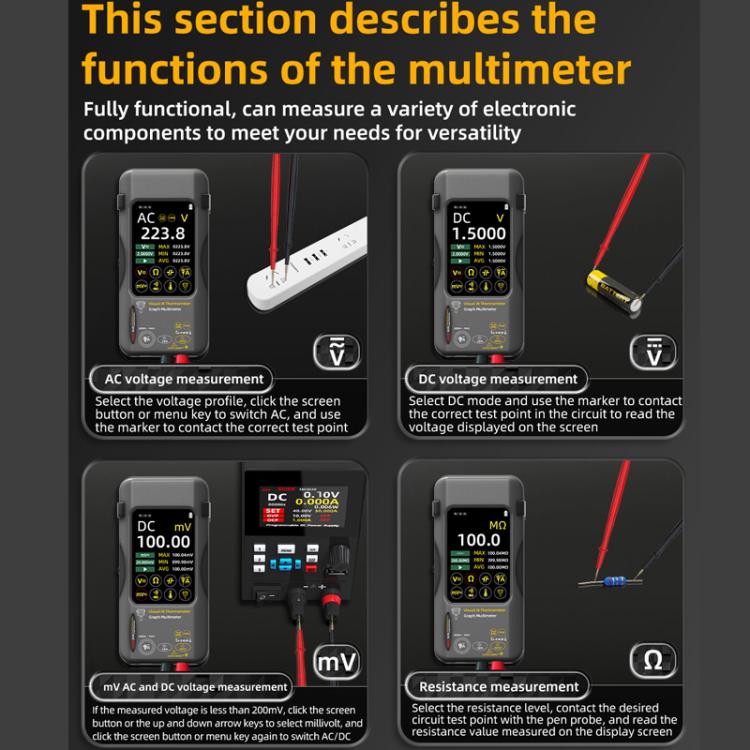

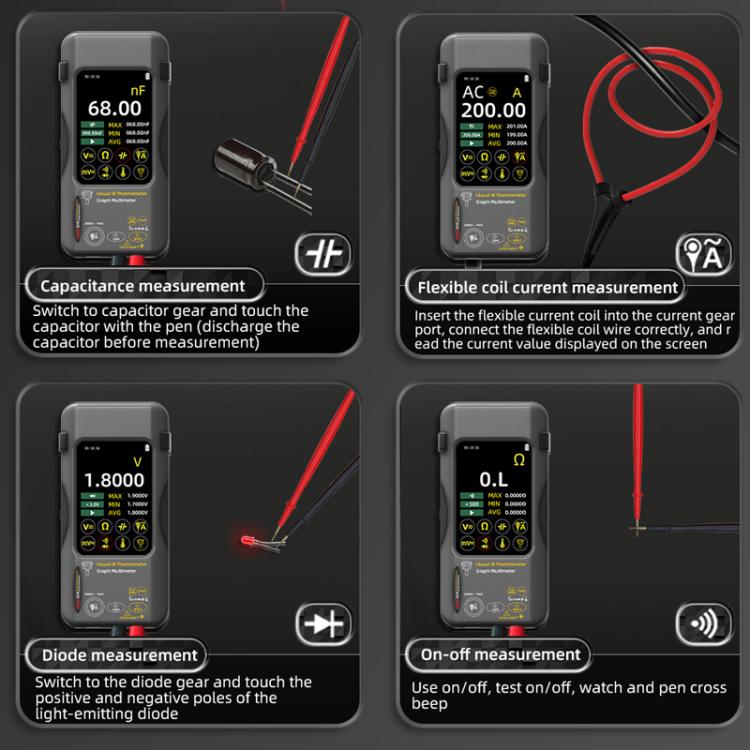

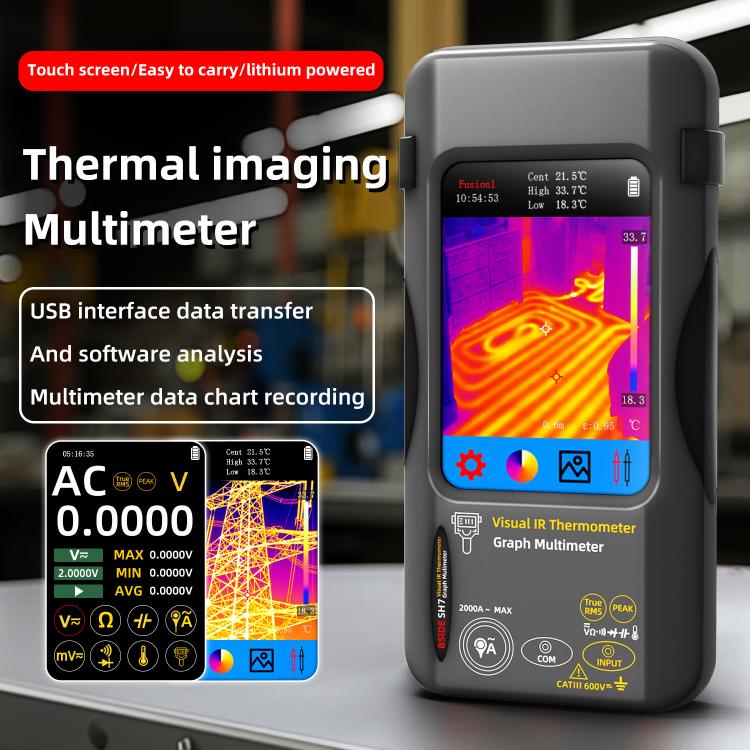

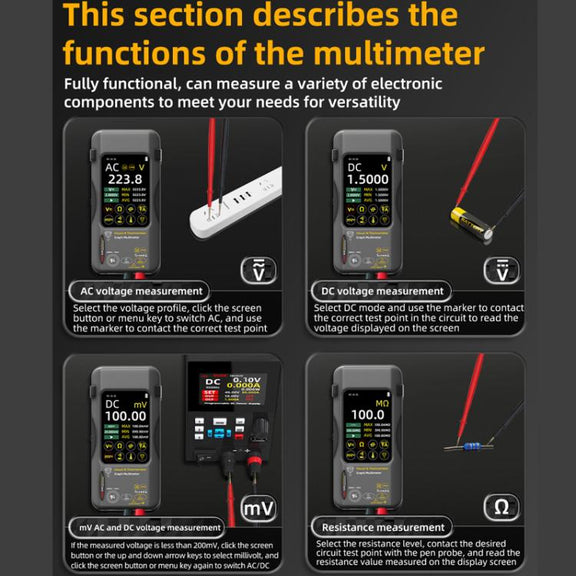

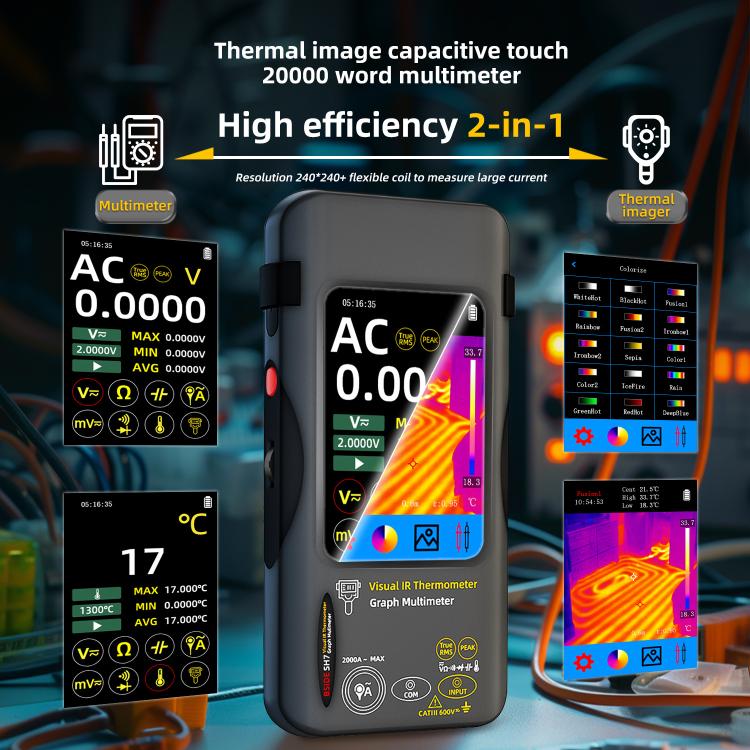

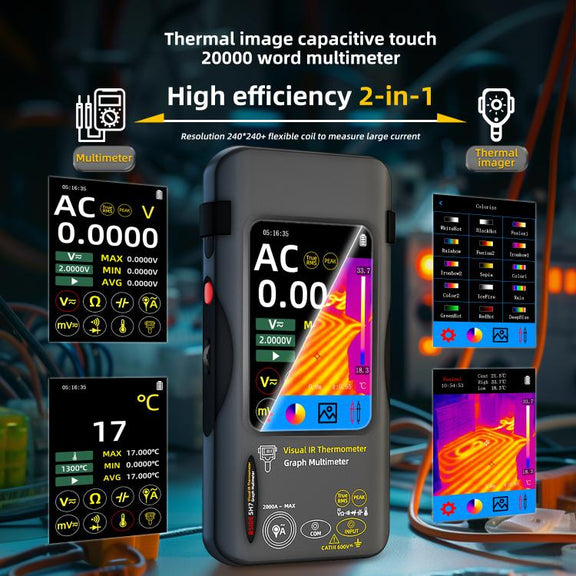

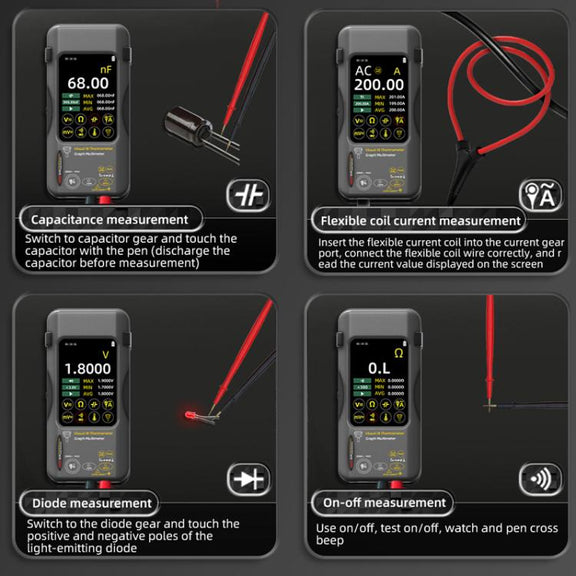

3. Thermal imaging capacitive touch, 20,000 word multimeter, efficient two-in-one

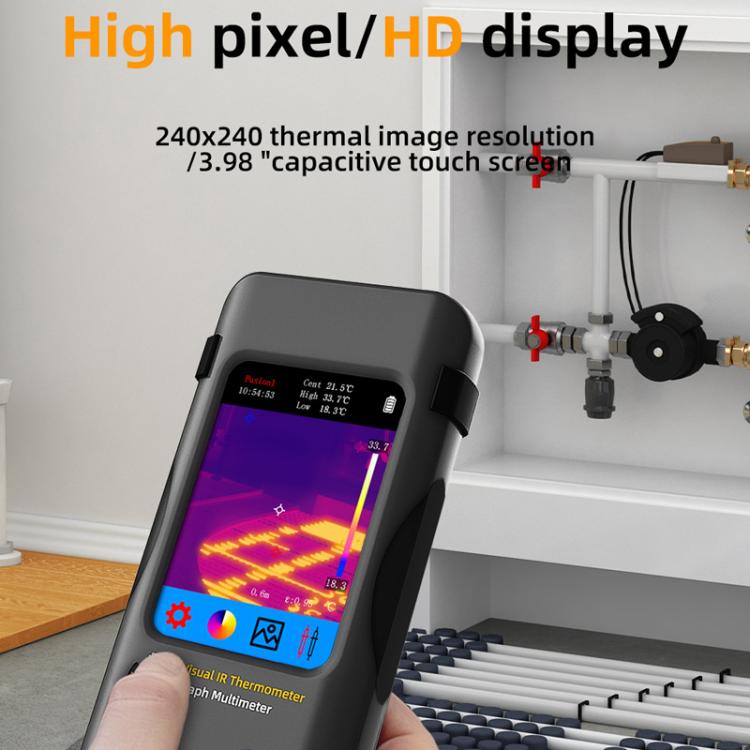

4. 3.98-inch capacitive touch screen, 240 x 240 thermal image resolution

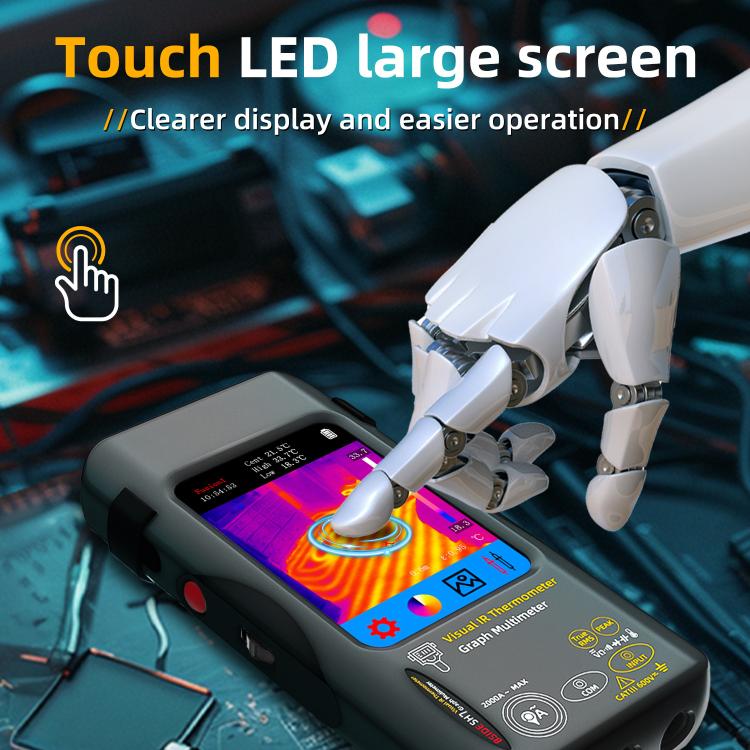

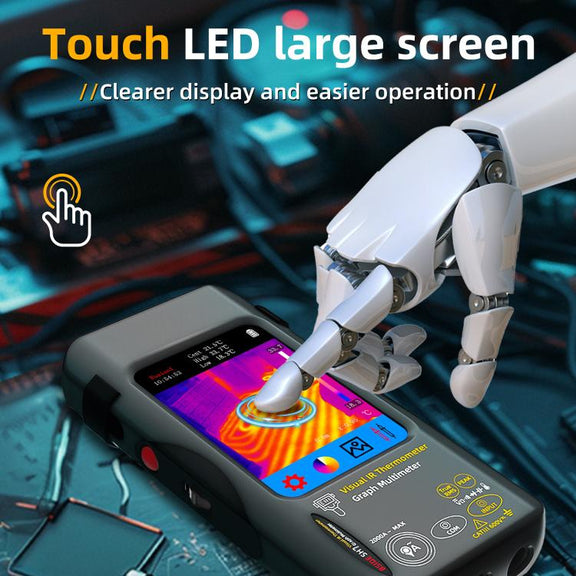

5. Touch LED large screen, clearer display, more convenient operation
6. High thermal sensitivity core vanadium oxide (Vox) microbolometer

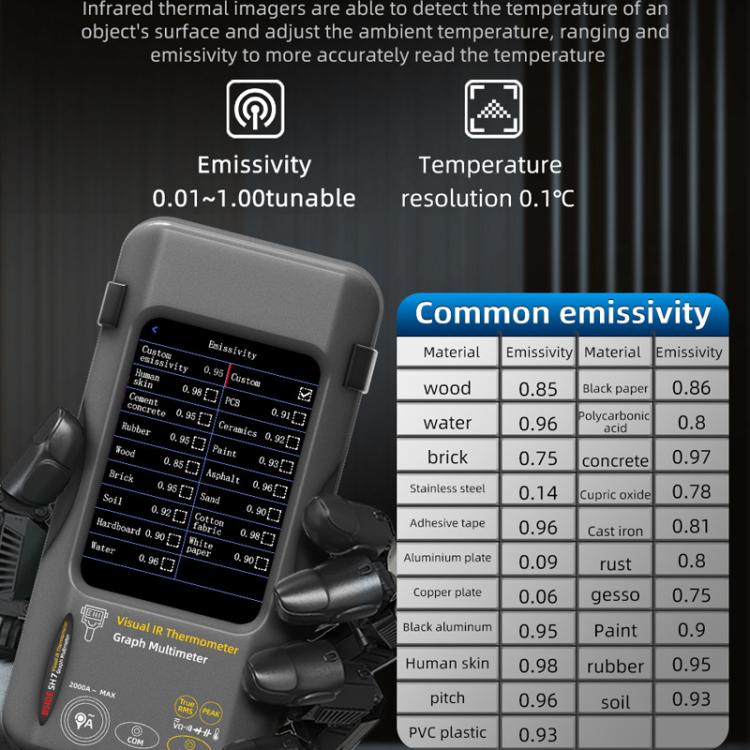

7. Able to detect the temperature of the surface of the object, adjust the ambient temperature, distance and emissivity to read the temperature more accurately
8. 15 pseudo-color modes

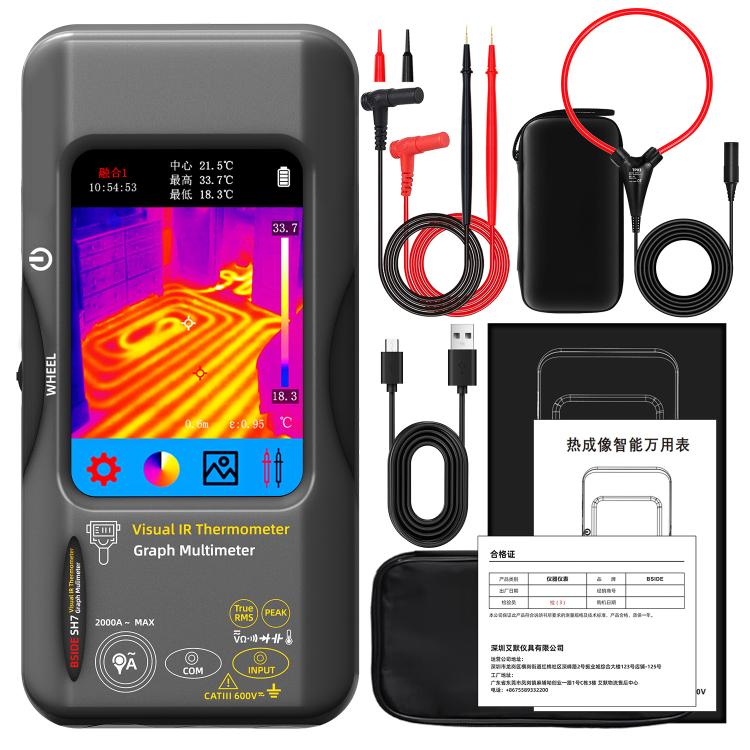

Standard packaging list:
- Multimeter x 1
- USB data cable x 1
- Manual x 1
- Packing box x 1
- Test pens x 2
- Pen caps x 2
Questions about features, compatibility, or warranty? Chat with our local support team!
What is the BSIDE SH7 flexible coil version used for?
It is listed for thermal imaging and multimeter testing in everyday inspection tasks such as electrical troubleshooting and HVAC diagnostics.
How long does the battery last?
The product description lists approximately 7 hours of use time and around 3 hours charging time.
